X1G004541100700壓控晶振,VG7050EAN,愛普生LV-PECL差分晶振，日本進口晶振，EPSON愛普生晶振，型號：VG7050EAN，編碼為：X1G004541100700，頻率為：622.080000MHz，小型外形尺寸：7.0x5.0x1.5mm封裝，8腳貼片晶振，LV-PECL輸出差分晶振，可編程電壓控制振蕩器（VCXO），壓控晶振，差分晶體振蕩器，有源晶振，石英晶體振蕩器，石英晶振。具有超小型，輕薄型，低抖動，低功耗，低電壓，低相位噪聲，低耗能，高精度，高性能，高品質等特點。進口壓控晶振，應用于：通訊設備，無線藍牙，GPS定位，光纖通道，服務器、存儲、路由器/交換機、無線網絡、藍牙模塊，物聯網，以太網，安防設備等應用。

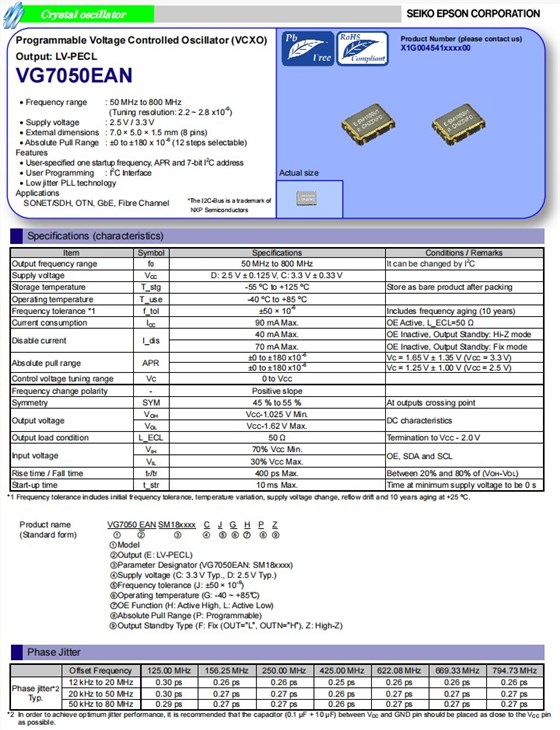

X1G004541100700壓控晶振,VG7050EAN,愛普生LV-PECL差分晶振參數表

Item	Symbol	VG7050EAN	Conditions / Remarks
Output frequency range	f0	622.080000 MHz	It can be changed by I2C
Supply voltage	VCC	D: 2.5 V ± 0.125 V, C: 3.3 V ± 0.33 V
Storage temperature	T_stg	-55 ºC to +125 ºC	Store as bare product after packing
Operating temperature	T_use	-40 ºC to +85 ºC
Frequency tolerance *1	f_tol	±50 × 10-6	Includes frequency aging (10 years)
Current consumption	ICC	90 mA Max.	OE Active, L_ECL=50Ω
Disable current	I_dis	40 mA Max.	OE Inactive, Output Standby: Hi-Z mode
Disable current	I_dis	70 mA Max.	OE Inactive, Output Standby: Fix mode
Absolute pull range	APR	±0 to ±180 x10-6	VC = 1.65 V ± 1.35 V (VCC = 3.3 V)
Absolute pull range	APR	±0 to ±180 x10-6	VC = 1.25 V ± 1.00 V (VCC = 2.5 V)
Control voltage tuning range	VC	0 to VCC
Frequency change polarity	-	Positive slope
Symmetry	SYM	45 % to 55 %	At outputs crossing point
Output voltage	VOH	VCC-1.025 V Min.	DC characteristics
Output voltage	VOL	VCC-1.62 V Max.	DC characteristics
Output load condition	L_ECL	50Ω	Termination to VCC - 2.0 V
Input voltage	VIH	70% VCC Min.	OE, SDA and SCL
Input voltage	VIL	30% VCC Max.	OE, SDA and SCL
Rise time / Fall time	tr/tf	400 ps Max.	Between 20% and 80% of (VOH-VOL)
Start-up time	t_str	10 ms Max.	Time at minimum supply voltage to be 0 s

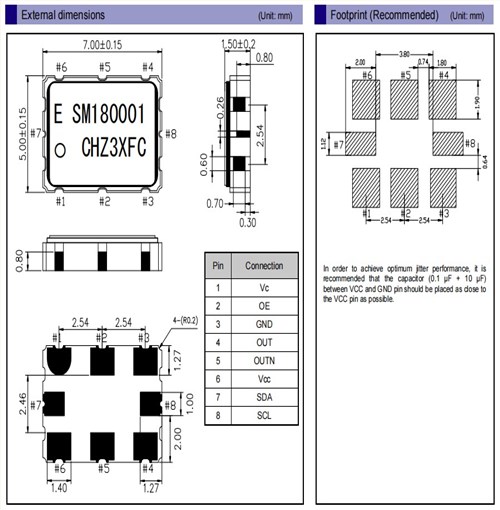

X1G004541100700壓控晶振,VG7050EAN,愛普生LV-PECL差分晶振尺寸圖

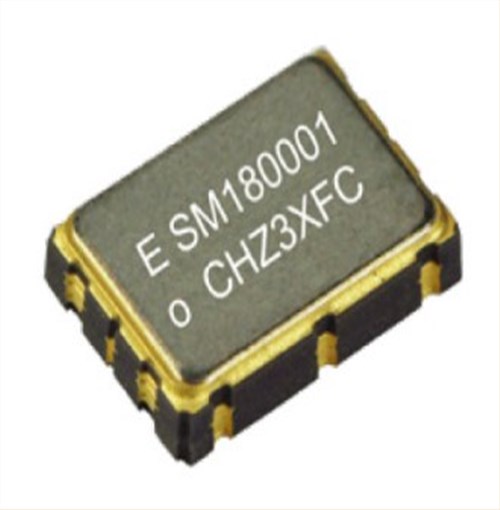

X1G004541100700壓控晶振,VG7050EAN,愛普生LV-PECL差分晶振

產品特點：

頻率范圍： 50MHz到800MHz（調諧分辨率： 2.2~2.8 x10-9）

電源電壓： 2.5V / 3.3V

外部尺寸： 7.0×5.0×1.5毫米（8針）差分晶振

絕對拉范圍： ±0到±180 x 10-6（12步可選）功能

用戶指定的一個啟動頻率，四月和7位I2C地址

用戶編程： I2C接口

低抖動PLL技術

應用：聲波/SDH，OTN，GbE，光纖通道

產品編碼	晶振廠家	型號	頻率	頻率穩定性	尺寸	輸出波形
X1G003691002100	EPSON晶振	VG-4512CA	148.351600 MHz	JHCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691002200	EPSON晶振	VG-4512CA	148.500000 MHz	JHCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691003400	EPSON晶振	VG-4512CA	122.880000 MHz	GHCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011300	EPSON晶振	VG-4512CA	122.880000 MHz	GGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011400	EPSON晶振	VG-4512CA	125.000000 MHz	JGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011500	EPSON晶振	VG-4512CA	156.250000 MHz	JGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691011600	EPSON晶振	VG-4512CA	157.286400 MHz	GGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G003691013400	EPSON晶振	VG-4512CA	153.600000 MHz	GGCT	7.00 x 5.00 x 1.60 mm	LV-PECL
X1G004151000300	EPSON晶振	VG-4513CB	122.880000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151000400	EPSON晶振	VG-4513CB	153.600000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151000700	EPSON晶振	VG-4513CB	122.880000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151000900	EPSON晶振	VG-4513CB	153.600000 MHz	GFCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151001300	EPSON晶振	VG-4513CB	125.000000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004151001600	EPSON晶振	VG-4513CB	156.250000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL
X1G004541100300	石英晶振	VG7050EAN	622.080000 MHz	CJGLPZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004541100500	EPSON晶振	VG7050EAN	622.080000 MHz	CJGHPF	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004541100700	EPSON晶振	VG7050EAN	622.080000 MHz	CJGLPF	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000300	EPSON晶振	VG7050EBN	698.812335 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000400	EPSON晶振	VG7050EBN	794.727753 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000700	EPSON晶振	VG7050EBN	693.482990 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004551000800	EPSON晶振	VG7050EBN	698.812300 MHz	CJGHCZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004561100300	EPSON晶振	VG7050ECN	622.080000 MHz	CJGLPZ	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004561100500	EPSON晶振	VG7050ECN	622.080000 MHz	CJGHPF	7.00 x 5.00 x 1.50 mm	LV-PECL
X1G004561100700	EPSON晶振	VG7050ECN	622.080000 MHz	CJGLPF	7.00 x 5.00 x 1.50 mm	LV-PECL
