當前位置：首頁 » 臺產晶振 » 鴻星晶振 » E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振

prevnext

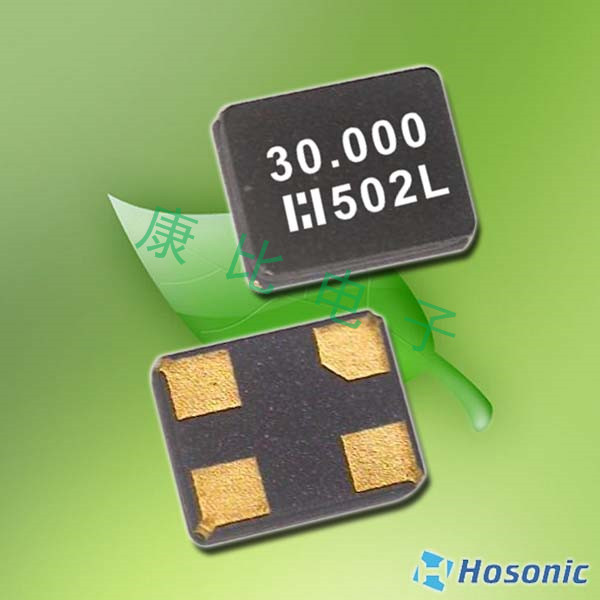

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振

頻率：26MHZ

尺寸：3.2x2.5mm

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振，尺寸3.2x2.5mm，頻率26MHZ，臺灣無源晶振，陶瓷諧振器，四腳貼片晶振，無源貼片晶振，SMD晶振，無源晶振，SMD晶體諧振器，3225mm無源晶振，26MHZ貼片晶振，無鉛環保晶振，無線控制器設備專用晶振，便攜式設備晶振，小型設備晶振，數碼相機晶振，娛樂設備晶振，數字視頻專用晶振，6GWIFI應用晶振，輕薄型晶振，低損耗晶振，高品質晶振，具有高品質低損耗的特點。

無源晶體產品超級適合用于無線控制器設備和其他便攜式消費產品，小型設備，數碼相機，娛樂設備，數字視頻，6GWIFI應用等領域。E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振.

訂購熱線：0755-27876201

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振 參數表

Item
Frequency Range

Type
F0

E3FB

26MHz

160to 19.999MHz

20 to 23.999MHz

24 to 64.00MHz

Mode of Vibration

Fundamental

Load Capacitance

6 to 20pF

Frequency Tolerance

ΔF/ F0

±10ppm, ±15ppm, ±30ppm(At 25℃)

Equivalent Series Resistance

ESR

120Ω max.

100Ω max.

80Ω max.

50Ω max.

Temperature Stability

±10ppm, ±15ppm, ±30ppm(Refer to 25℃)

Operating Temperature Range

TOPR

-20~+70℃,-30~+85℃ Option

Storage Temperature Range

TSTG

-55~+125℃

Shunt Capacitance

3pF max.

Insulator Resistance

500MΩ min. (At 100VDC)

Drive Level

50μW(100μW max.)

Aging

±2ppm max. (At 25℃,First year)

Packing Unit

3000pcs/reel

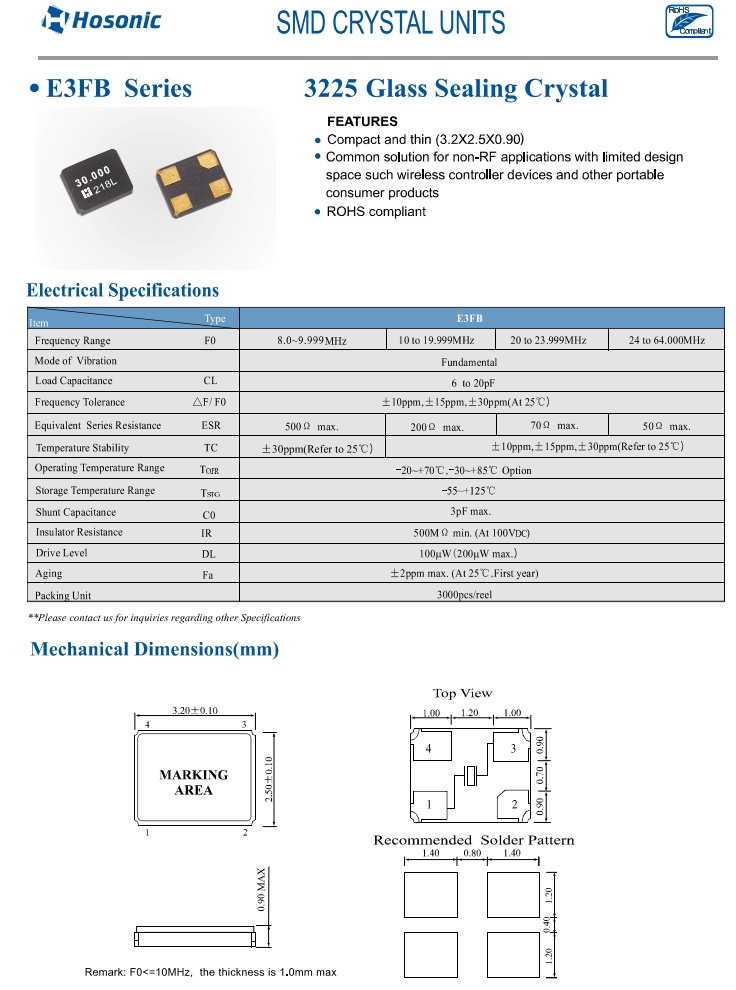

E3FB水晶振動子,E3FB26E004203E,6GWIFI晶振,Hosonic鴻星晶振 尺寸圖

貼片無源晶振產品特征:

小巧輕薄（3.2*2.5*0.9）

設計有限的非射頻應用的通用解決方案

空間這樣的無線控制器設備和其他便攜式消費產品

符合RoHS

更多相關Hosonic鴻星晶振型號

Mfr Part #	Supplier	Series	Frequency	Frequency Stability穩定度	Frequency Tolerance	Load Capacitance
E3SB25E00003FE	Hosonic鴻星晶振	E3SB	25 MHz	±15ppm	±15ppm	18pF
E3SB24E004000E	Hosonic鴻星晶振	E3SB	24 MHz	±10ppm	±10ppm	18pF
E3SB32E001500E	Hosonic鴻星晶振	E3SB	32 MHz	±10ppm	±10ppm	12pF
E3SB37E0X0004E	Hosonic鴻星晶振	E3SB	37.4 MHz	±10ppm	±10ppm	16pF
E3SB25E001803E	Hosonic鴻星晶振	E3SB	25 MHz	±20ppm	±20ppm	12pF
E3SB16E0X000WE	Hosonic鴻星晶振	E3SB	16.384 MHz	±10ppm	±10ppm	10pF
E3SB27E0X000VE	Hosonic鴻星晶振	E3SB	27.12 MHz	±10ppm	±10ppm	10pF
E3SB27E00000DE	Hosonic鴻星晶振	E3SB	27 MHz	±10ppm	±10ppm	10pF
E3SB50E00000AE	Hosonic鴻星晶振	E3SB	50 MHz	±10ppm	±10ppm	18pF
E3SB26E000011E	Hosonic鴻星晶振	E3SB	26 MHz	±10ppm	±10ppm	12pF
E2SB40E000104ECBB8	Hosonic鴻星晶振	E2SB	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鴻星晶振	E2SB	38.4 MHz	±10ppm	±10ppm	8pF
E3SB8E0000003E	Hosonic鴻星晶振	E3SB	8 MHz	±30ppm	±30ppm	10pF
E2SB40E000107E	Hosonic鴻星晶振	E2SB	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鴻星晶振	E2SB	40 MHz	±10ppm	±7ppm	7pF
E3SB24E00000QE	Hosonic鴻星晶振	E3SB	24 MHz	±10ppm	±10ppm	10pF
E3SB40E00010JE	Hosonic鴻星晶振	E3SB	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E3SB12E000022E	Hosonic鴻星晶振	E3SB	12 MHz	±30ppm	±30ppm	18pF
E3SB16E000028E	Hosonic鴻星晶振	E3SB	16 MHz	±10ppm	±10ppm	10pF
E3SB40E00090DE	Hosonic鴻星晶振	E3SB	40 MHz	±20ppm	±10ppm	12pF
E3SB38E0X0006E	Hosonic鴻星晶振	E3SB	38.4 MHz	±10ppm	±10ppm	10pF
E3SB40E00010KECBB8	Hosonic鴻星晶振	E3SB	40 MHz	±15ppm	±7ppm	6pF
E3SB39E000006E	Hosonic鴻星晶振	E3SB	39 MHz	±15ppm	±8ppm	10pF
E3SB38E0X1806E	Hosonic鴻星晶振	E3SB	38.4 MHz	±20ppm	±20ppm	10pF
E3SB48E000801ECBB8	Hosonic鴻星晶振	E3SB	48 MHz	±10ppm	±10ppm	12pF
E3SB12E00004EE	Hosonic鴻星晶振	E3SB	12 MHz	±35ppm	±8ppm	12pF
E2SB27E0X0000E	Hosonic鴻星晶振	E2SB	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鴻星晶振	E2SB	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鴻星晶振	E2SB	40 MHz	±15ppm	±7ppm	6pF
E2SB12E000005E	Hosonic鴻星晶振	E2SB	12 MHz	±20ppm	±20ppm	12pF
E3SB14E0X0002E	Hosonic鴻星晶振	E3SB	14.7456 MHz	±30ppm	±30ppm	12pF
E3SB10E000007E	Hosonic鴻星晶振	E3SB	10 MHz	±30ppm	±30ppm	12pF
E3SB25E00000DE	Hosonic鴻星晶振	E3SB	25 MHz	±10ppm	±10ppm	10pF
E3FB24E00000KE	Hosonic鴻星晶振	E3FB	24 MHz	±30ppm	±30ppm	12pF
E3SB48E00000TE	Hosonic鴻星晶振	E3SB	48 MHz	±30ppm	±30ppm	18pF
E3SB50E00002AE	Hosonic鴻星晶振	E3SB	50 MHz	±18ppm	±7ppm	9pF
E2SB16E00000ME	Hosonic鴻星晶振	E2SB	16 MHz	±30ppm	±30ppm	12pF
E2SB26E001201E	Hosonic鴻星晶振	E2SB	26 MHz	±13ppm	±5ppm	9pF
E2SB32E001201E	Hosonic鴻星晶振	E2SB	32 MHz	±10ppm	±10ppm	12pF
E3SB24E000026E	Hosonic鴻星晶振	E3SB	24MHz	±10ppm		12pF
E3SB24E000022E	Hosonic鴻星晶振	E3SB	24MHz	±20ppm		12pF
E3SB12E000024E	Hosonic鴻星晶振	E3SB	12MHz	±20ppm		18pF
E2SB32E00000LE	Hosonic鴻星晶振	E2SB	32MHz	±10ppm		9pF
E3SB37E0X000HE	Hosonic鴻星晶振	E3SB	37.4MHz	±10ppm		12pF
E3SB25E00001HE	Hosonic鴻星晶振	E3SB	25MHz	±15ppm		16pF
E3SB26E00010CE	Hosonic鴻星晶振	E3SB	26.000MHZ	±10ppm		7.5pF
E3SB16E00000QE	Hosonic鴻星晶振	E3SB	16MHz	±10ppm		10pF
E3SB25E000028E	Hosonic鴻星晶振	E3SB	25MHz	±30ppm		18pF
E3SB32E00001ME	Hosonic鴻星晶振	E3SB	32MHz	15ppm		9pF
E3SB16E00000CE	Hosonic鴻星晶振	E3SB	16MHz	±10ppm		9pF
E3SB25E00002CE	Hosonic鴻星晶振	E3SB	25MHz	±15ppm		18pF
E3SB12E00003KE	Hosonic鴻星晶振	E3SB	12MHz	±10ppm		18pF
E3SB32E000020E	Hosonic鴻星晶振	E3SB	32MHz	±10ppm		9pF
E3SB8E000000CE	Hosonic鴻星晶振	E3SB	8MHz	±20ppm		20pF
E3SB16E000013E	Hosonic鴻星晶振	E3SB	16MHz	±10ppm		12pF
E3SB26E00004QE	Hosonic鴻星晶振	E3SB	26MHz	±10ppm		20pF
E3SB40E00001BE	Hosonic鴻星晶振	E3SB	40MHz	±10ppm		15pF
E2SB37E0X0002E	Hosonic鴻星晶振	E2SB	37.4MHz	±10ppm		10pF
E3SB40E00004GE	Hosonic鴻星晶振	E3SB	40MHz	±8ppm		10pF
E3FB26E004203E	Hosonic鴻星晶振	E3FB	26MHz	±10ppm		7.3pF
E2SB24E000016E	Hosonic鴻星晶振	E2SB	24MHz	±10ppm		20pF
E2SB54E000000E	Hosonic鴻星晶振	E2SB	54MHz	±10ppm		10pF
E2SB48E000009E	Hosonic鴻星晶振	E2SB	48MHz	±10ppm		12pF
E2SB50E00000EE	Hosonic鴻星晶振	E2SB	50MHz	±14ppm		19pF
E2SB37E0X0004E	Hosonic鴻星晶振	E2SB	37.4MHz	±10ppm		12pF
E3SB40E00004TE	Hosonic鴻星晶振	E3SB	40MHz	±10ppm		9pF
E3SB40E00000DE	Hosonic鴻星晶振	E3SB	40MHz	±10ppm		12pF
E2SB40E000007E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		10pF
E2SB40E000003E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		8pF
E3SB40E000030E	Hosonic鴻星晶振	E3SB	40MHz	±10ppm		8pF
E2SB24E00001NE	Hosonic鴻星晶振	E2SB	24MHz	±15ppm		16pF
E3SB27E00002SE	Hosonic鴻星晶振	E3SB	27MHz	±10ppm		20pF
E2SB40E00000RE	Hosonic鴻星晶振	E2SB	40MHz	±30ppm		20pF
E3SB26E000036E	Hosonic鴻星晶振	E3SB	26MHz	±20ppm		20pF
E3SB48E00000CE	Hosonic鴻星晶振	E3SB	48MHz	±10ppm		10pF
E3SB54E000005E	Hosonic鴻星晶振	E3SB	54MHz	±15ppm		19pF
E2SB38E0X0007E	Hosonic鴻星晶振	E2SB	38.400MHz	±10ppm		10pF
E2SB54E000009E	Hosonic鴻星晶振	E2SB	54MHz	±5ppm		19pF
E3SB50E000001E	Hosonic鴻星晶振	E3SB	50MHz	±10ppm		10pF
E3SB12E00001SE	Hosonic鴻星晶振	E3SB	12MHz	±30ppm		16pF
