小體積石英晶體SXT11410AA16-30.000M非常適合高密度應用

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2023-05-19 16:13:58【大中小】

分享到：

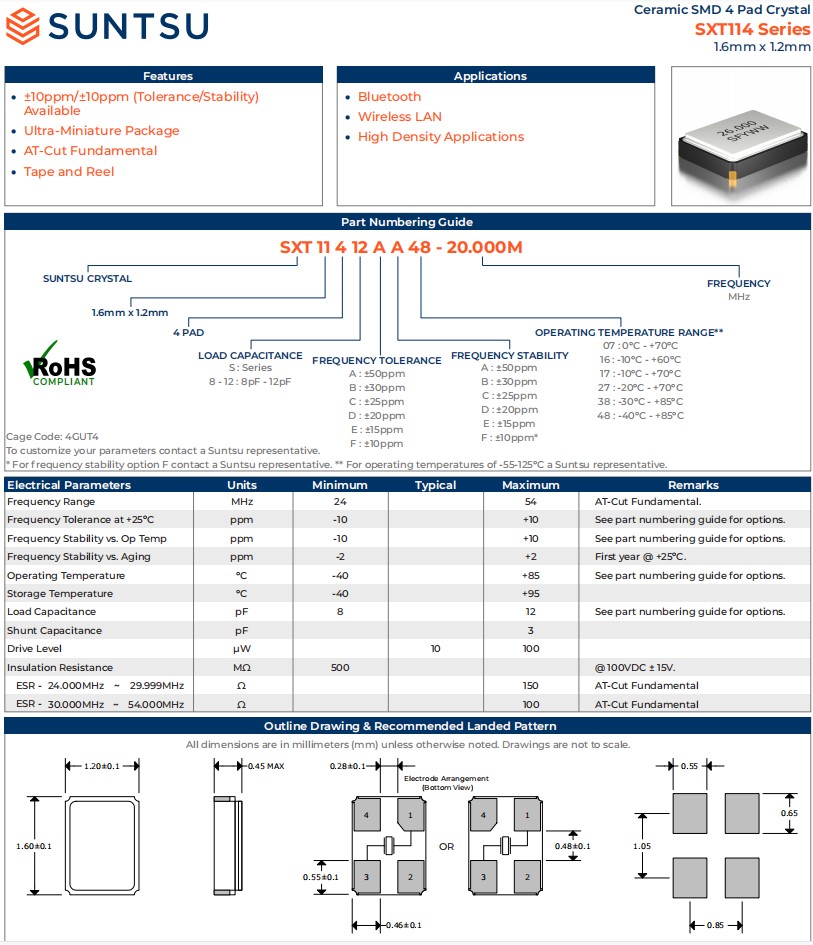

SUNTSU松圖晶振SXT114系列，是一款小體積晶振尺寸1.6mmx1.2mm超小型封裝，四腳貼片晶振，石英晶體諧振器，無源晶振，石英晶振，無鉛環保晶振，SMD晶體，特點：頻率范圍：24MHz至54MHz，±10ppm/±10ppm（公差/穩定性）可用，工作溫度范圍：-40℃至+85℃，AT-Cut基礎，磁帶和卷軸，1612mm晶體應用于藍牙，無線局域網，可穿戴設備，小型便捷式設備，智能手機，平板電腦，高密度應用程序等。小體積石英晶體SXT11410AA16-30.000M非常適合高密度應用

產品編碼	美國松圖晶振	負載	頻率容差	頻率穩定性	工作穩定	頻率
SXT11410AA07-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	24.000M
SXT11410AA07-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	25.000M
SXT11410AA07-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	26.000M
SXT11410AA07-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	27.000M
SXT11410AA07-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	27.120M
SXT11410AA07-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	30.000M
SXT11410AA07-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	32.000M
SXT11410AA07-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	38.400M
SXT11410AA07-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	40.000M
SXT11410AA16-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	24.000M
SXT11410AA16-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	25.000M
SXT11410AA16-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	26.000M
SXT11410AA16-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	27.000M
SXT11410AA16-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	27.120M
SXT11410AA16-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	30.000M
SXT11410AA16-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	32.000M
SXT11410AA16-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	38.400M
SXT11410AA16-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	40.000M
SXT11410AA17-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	24.000M
SXT11410AA17-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	25.000M
SXT11410AA17-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	26.000M
SXT11410AA17-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	27.000M
SXT11410AA17-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	27.120M
SXT11410AA17-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	30.000M
SXT11410AA17-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	32.000M
SXT11410AA17-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	38.400M
SXT11410AA17-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	40.000M
SXT11410AA27-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	24.000M
SXT11410AA27-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	25.000M
SXT11410AA27-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	26.000M
SXT11410AA27-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	27.000M
SXT11410AA27-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	27.120M
SXT11410AA27-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	30.000M
SXT11410AA27-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	32.000M
SXT11410AA27-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	38.400M
SXT11410AA27-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	40.000M
SXT11410AA38-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	24.000M
SXT11410AA38-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	25.000M
SXT11410AA38-26.000M	1612貼片晶振	10pF	±50ppm	±50ppm	-30°C - +85°C	26.000M
SXT11410AA38-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	27.000M
SXT11410AA38-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	27.120M
SXT11410AA38-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	30.000M
SXT11410AA38-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	32.000M
SXT11410AA38-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	38.400M
SXT11410AA38-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	40.000M
SXT11410AA48-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	24.000M
SXT11410AA48-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	25.000M
SXT11410AA48-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	26.000M
SXT11410AA48-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	27.000M
SXT11410AA48-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	27.120M
SXT11410AA48-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	30.000M
SXT11410AA48-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	32.000M
SXT11410AA48-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	38.400M
SXT11410AA48-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	40.000M
SXT11410BA07-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	24.000M
SXT11410BA07-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	25.000M
SXT11410BA07-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	26.000M
SXT11410BA07-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	27.000M
SXT11410BA07-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	27.120M
SXT11410BA07-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	30.000M
SXT11410BA07-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	32.000M
SXT11410BA07-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	38.400M
SXT11410BA07-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	40.000M
SXT11410BA16-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	24.000M
SXT11410BA16-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	25.000M
SXT11410BA16-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	26.000M
SXT11410BA16-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	27.000M
SXT11410BA16-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	27.120M
SXT11410BA16-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	30.000M
SXT11410BA16-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	32.000M
SXT11410BA16-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	38.400M
SXT11410BA16-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	40.000M
SXT11410BA17-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	24.000M
SXT11410BA17-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	25.000M
SXT11410BA17-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	26.000M
SXT11410BA17-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	27.000M
SXT11410BA17-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	27.120M
SXT11410BA17-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	30.000M
SXT11410BA17-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	32.000M
SXT11410BA17-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	38.400M
SXT11410BA17-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	40.000M
SXT11410BA27-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-20°C - +70°C	24.000M
SXT11410BA27-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-20°C - +70°C	25.000M
SXT11410BA27-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-20°C - +70°C	26.000M
SXT11410BA27-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-20°C - +70°C	27.000M
SXT11410BA27-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-20°C - +70°C	27.120M

Suntsu石英晶體提供通孔或表面貼裝封裝，有多種尺寸可供選擇。從下面的數據表中選擇一個標準零件號，或者聯系我們的銷售團隊，請求您想要的任何定制參數，我們將根據您的特定需求進行設計。石英晶振具有壓電特性；當施加機械應力時，它們產生電勢。它們是當今最常用的壓電諧振器。小體積石英晶體SXT11410AA16-30.000M非常適合高密度應用
