微型陶瓷諧振器AWSCR-10.000CELA-C15pF-T3是電機控制的理想選擇

來源：*** 查看手機網址

掃一掃!

微型陶瓷諧振器AWSCR-10.000CELA-C15pF-T3是電機控制的理想選擇

掃一掃!

瀏覽：- 發布日期：2022-10-21 14:45:27【大中小】

分享到：

Abracon llc晶振集團供應石英晶體,貼片晶振,無源晶振,有源晶振,壓電晶振,石英晶體振蕩器等.廣泛用于與商業、工業、消費者和選擇的軍事應用等.

微型陶瓷諧振器AWSCR系列，編碼AWSCR-10.000CELA-C15pF-T3，堅固耐用的緊湊型解決方案。Abracon的AWSCR系列微型陶瓷諧振器是各種堅固設計的理想選擇，包括電機控制、計算、消費電子和工業應用。

這些器件具有多種可用頻率（2MHz至16MHz）和緊湊的占位面積（小至3.2x1.3mm）。內置環路電容器可簡化設計。
該系列提供寬溫度操作（-40℃至+85℃/125℃）。提供低阻抗和各種負載電容選項（范圍從5pF到47pF）。新的AWSCR產品提供±0.5%的頻率容差。

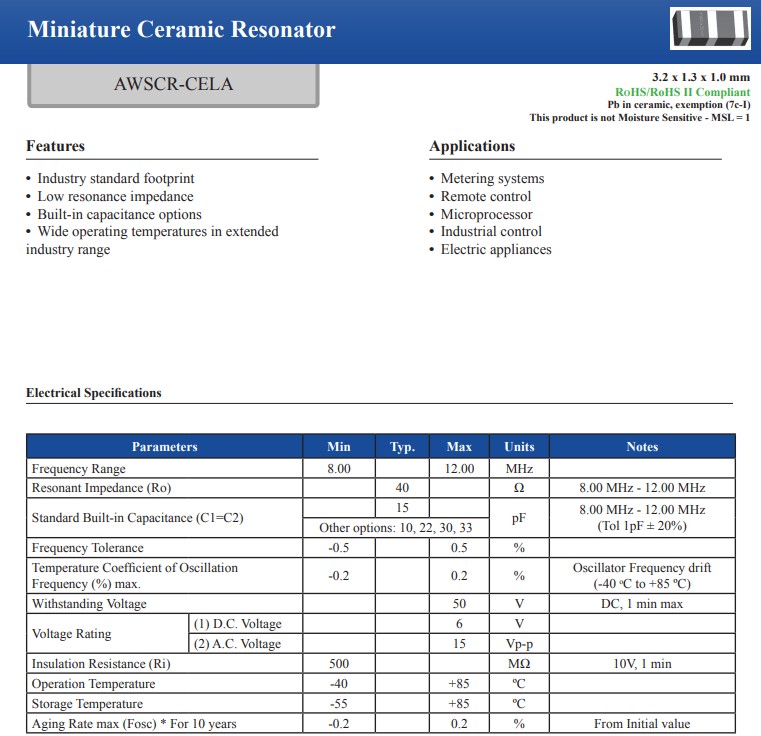

微型陶瓷諧振器AWSCR-10.000CELA-C15pF-T3是電機控制的理想選擇

Abracon晶振	描述	頻率穩定性
AWSCR-CELA	3.2 x 1.3mm，低頻段，-40ºC 至 85ºC 工作溫度	±0.2%
AWSCR-CELB	3.2 x 1.3mm，低頻段，-40ºC 至 125ºC 工作溫度	±0.2%
AWSCR-CPLA	6.0 x 3.0mm, Lower Band, -40ºC to 85ºC operating temperature	±0.2% or ±0.3%
AWSCR-CPLB	6.0 x 3.0mm, Lower Band, -40ºC to 125ºC operating temperature	±0.2% or ±0.4%
AWSCR-CRLA	4.5 x 2.0mm, Lower Band, -40ºC to 85ºC operating temperature	±0.2% or ±0.3%
AWSCR-CRLB	4.5 x 2.0mm, Lower Band, -40ºC to 125ºC operating temperature	±0.2% or ±0.4%
AWSCR-CVHA	3.7 x 3.1mm, Higher Band, -40ºC to 85ºC operating temperature	±0.2%
AWSCR-CVHB	3.7 x 3.1mm, Higher Band, -40ºC to 125ºC operating temperature	±0.2%
AWSCR-CVLA	3.7 x 3.1mm, Lower Band, -40ºC to 85ºC operating temperature	±0.4%
AWSCR-CVLB	3.7 x 3.1mm, Lower Band, -40ºC to 125ºC operating temperature	±0.5%

ABMM2-25.000MHZ-D1-T	Abracon LLC	ABMM2	MHz Crystal	25MHz	4-SMD, No Lead
ABMM-10.000MHZ-B2-T	Abracon LLC	ABMM	MHz Crystal	10MHz	4-SMD, No Lead
ABMM-20.000MHZ-B2-T	Abracon LLC	ABMM	MHz Crystal	20MHz	4-SMD, No Lead
ABMM-24.000MHZ-B2-T	Abracon LLC	ABMM	MHz Crystal	24MHz	4-SMD, No Lead
ABMM-24.576MHZ-B2-T	Abracon LLC	ABMM	MHz Crystal	24.576MHz	4-SMD, No Lead
ABMM-27.000MHZ-B2-T	Abracon LLC	ABMM	MHz Crystal	27MHz	4-SMD, No Lead
ABMM-16.9344MHZ-B2-T	Abracon LLC	ABMM	MHz Crystal	16.9344MHz	4-SMD, No Lead
ABMM-32.000MHZ-B2F-T	Abracon LLC	ABMM	MHz Crystal	32MHz	4-SMD, No Lead
ABS07-32.768KHZ-1-T	Abracon LLC	ABS07	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
ABM8G-32.000MHZ-B4Y-T	Abracon LLC	ABM8G	MHz Crystal	32MHz	4-SMD, No Lead
ABM8G-16.384MHZ-B4Y-T	Abracon LLC	ABM8G	MHz Crystal	16.384MHz	4-SMD, No Lead
ABM8G-26.000MHZ-B4Y-T	Abracon LLC	ABM8G	MHz Crystal	26MHz	4-SMD, No Lead
ABM8G-12.288MHZ-B4Y-T	Abracon LLC	ABM8G	MHz Crystal	12.288MHz	4-SMD, No Lead
ABM8G-18.432MHZ-B4Y-T	Abracon LLC	ABM8G	MHz Crystal	18.432MHz	4-SMD, No Lead
ABM8G-19.6608MHZ-B4Y-T	Abracon LLC	ABM8G	MHz Crystal	19.6608MHz	4-SMD, No Lead
ABM8G-27.000MHZ-B4Y-T	Abracon LLC	ABM8G	MHz Crystal	27MHz	4-SMD, No Lead
ABM12-115-26.000MHZ-T3	Abracon LLC	ABM12	MHz Crystal	26MHz	4-SMD, No Lead
ABM12-116-26.000MHZ-T3	歐美晶振	ABM12	MHz Crystal	26MHz	4-SMD, No Lead
ABM12-117-27.120MHZ-T3	Abracon LLC	ABM12	MHz Crystal	27.12MHz	4-SMD, No Lead
ABM12-118-27.120MHZ-T3	Abracon LLC	ABM12	MHz Crystal	27.12MHz	4-SMD, No Lead
ABS09-32.768KHZ-9-T	Abracon LLC	ABS09	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
ABS09-32.768KHZ-T	Abracon LLC	ABS09	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
ABS10-32.768KHZ-1-T	Abracon LLC	ABS10	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
ABS09-32.768KHZ-7-T	Abracon LLC	ABS09	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
ABMM2-14.7456MHZ-E2-T	Abracon LLC	ABMM2	MHz Crystal	14.7456MHz	4-SMD, No Lead

微型陶瓷諧振器AWSCR-10.000CELA-C15pF-T3是電機控制的理想選擇

特征：±0.5%頻率容差，可用的寬諧振頻率范圍，在16MHz載波下低至30Ω的低諧振阻抗，可用的內置電容選項，5/10/15/22/30/33/39/47 pF)，各種行業標準的腳印，適用于擴展行業的寬工作溫度（高達 -40℃/+125℃），通過Abracon晶振全球分銷網絡提供標準配置。
應用于：計量系統，工業控制，電器，微處理器，遙控器，通訊設備
