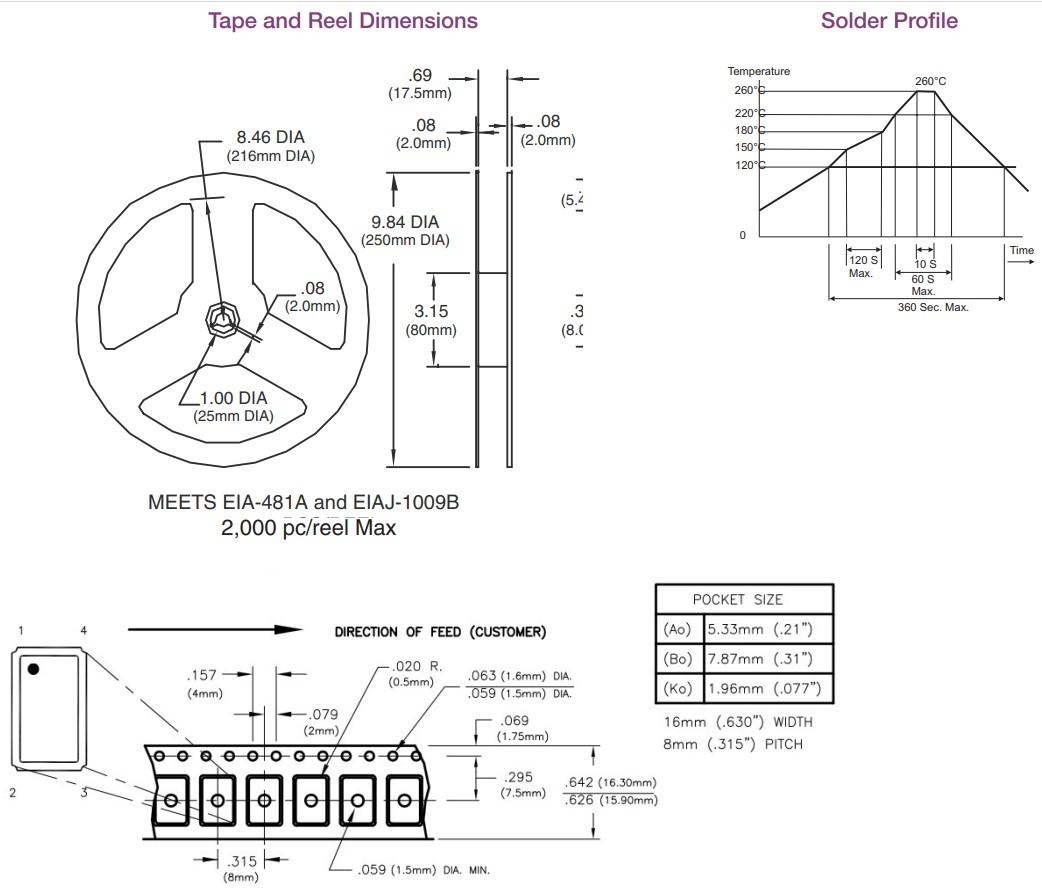

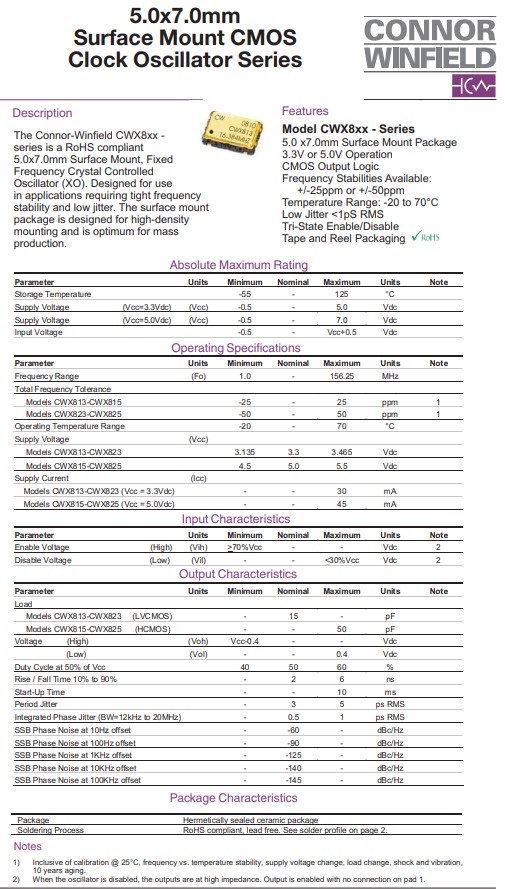

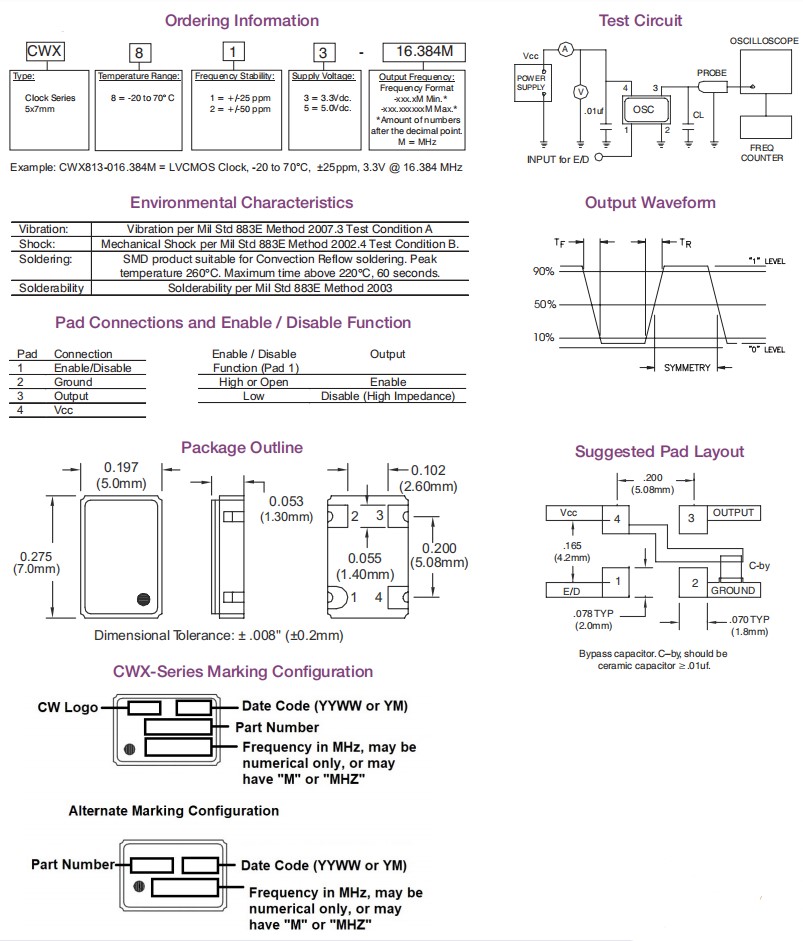

ConnorWinfield康納溫菲爾德晶振CWX8系列，CWX813是一款小體積晶振尺寸7.0x5.0mm表面貼裝，固定頻率晶體控制振蕩器(XO)。為使用而設計在要求嚴格頻率的應用中穩定性和低抖動，表面貼裝CMOS時鐘晶體振蕩器系列，封裝設計用于高密度安裝，是質量的最佳選擇生產。3.3V或5.0V工作電壓，CMOS輸出邏輯，可用的頻率穩定性: 低抖動< 1pS RMS 三態使能/禁用 膠帶和卷軸包裝 +/-25ppm或+/-50ppm，工作溫度范圍:-20℃至+70℃。貼片石英晶振被廣泛用于通訊設備，無線網絡，北斗導航，藍牙模塊，汽車電子，GPS定位系統，導航儀，醫療設備，數碼電子，物聯網等應用。北斗導航專用晶振CWX813-024.576M/7050mm/±25ppm/3.3V/24.576MHz
| 原廠代碼 | 康納溫菲爾德晶振 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| CWX813-024.0M | ConnorWinfield晶振 | CWX813 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-012.0M | ConnorWinfield晶振 | CWX813 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-018.432M | ConnorWinfield晶振 | CWX813 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-001.8432M | ConnorWinfield晶振 | CWX813 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-007.3728M | ConnorWinfield晶振 | CWX813 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-010.0M | ConnorWinfield晶振 | CWX813 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-025.0M | ConnorWinfield晶振 | CWX813 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-027.0M | ConnorWinfield晶振 | CWX813 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-033.0M | ConnorWinfield晶振 | CWX813 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-040.0M | ConnorWinfield晶振 | CWX813 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-060.0M | ConnorWinfield晶振 | CWX813 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-004.0M | ConnorWinfield晶振 | CWX813 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-016.0M | ConnorWinfield晶振 | CWX813 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-080.0M | ConnorWinfield晶振 | CWX813 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-064.0M | ConnorWinfield晶振 | CWX813 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-100.0M | ConnorWinfield晶振 | CWX813 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-044.736M | ConnorWinfield晶振 | CWX813 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-012.288M | ConnorWinfield晶振 | CWX813 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-019.44M | ConnorWinfield晶振 | CWX813 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-024.576M | ConnorWinfield晶振 | CWX813 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-030.0M | 7050貼片晶振 | CWX813 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-020.0M | ConnorWinfield晶振 | CWX813 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-020.48M | ConnorWinfield晶振 | CWX813 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-049.152M | ConnorWinfield晶振 | CWX813 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-050.0M | ConnorWinfield晶振 | CWX813 | 50MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-029.4912M | ConnorWinfield晶振 | CWX813 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-066.6666M | ConnorWinfield晶振 | CWX813 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-001.544M | ConnorWinfield晶振 | CWX813 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-016.384M | ConnorWinfield晶振 | CWX813 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-072.0M | ConnorWinfield晶振 | CWX813 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-014.31818M | ConnorWinfield晶振 | CWX813 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-015.36M | ConnorWinfield晶振 | CWX813 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-045.0M | ConnorWinfield晶振 | CWX813 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-003.6864M | ConnorWinfield晶振 | CWX813 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-008.0M | ConnorWinfield晶振 | CWX813 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-032.0M | ConnorWinfield晶振 | CWX813 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-032.768M | ConnorWinfield晶振 | CWX813 | 32.768MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-033.333M | ConnorWinfield晶振 | CWX813 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
北斗導航專用晶振CWX813-024.576M/7050mm/±25ppm/3.3V/24.576MHz，Connor-Winfield公司是一家總部位于美國的私人電子產品制造商。1963年成立后，ConnorWinfield晶振主要專注于設計和制造石英計時電路和振蕩器，用于各種電子應用。在20世紀90年代，康納-溫菲爾德擴展到其他產品領域，同時繼續關注其核心計時根源。Connor-Winfield的頻率控制產品應用非常廣泛，包括電信、局域網和廣域網產品、計算機以及其他微處理器和電子設備。
