X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振，尺寸7.0×5.0mm，頻率150MHZ，輸出邏輯LV-PECL，EPSON有源晶振，日本進口晶振，差分有源振蕩器，LV-PECL輸出晶振，差分晶體振蕩器，7050mm差分晶振，差分貼片振蕩器，石英差分振蕩器，150MHZ差分晶振，低電壓差分晶振，低損耗差分晶振，低抖動差分晶振，低相位差分晶振，低相噪差分晶振，高性能差分晶振，娛樂設備差分晶振，微波通信專用差分晶振，航空電子差分晶振，儀器設備差分晶振，具有超高的可靠性能。

OSC振蕩器產品超級適合用于娛樂設備，微波通信，航空電子，儀器設備等領域。X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振.

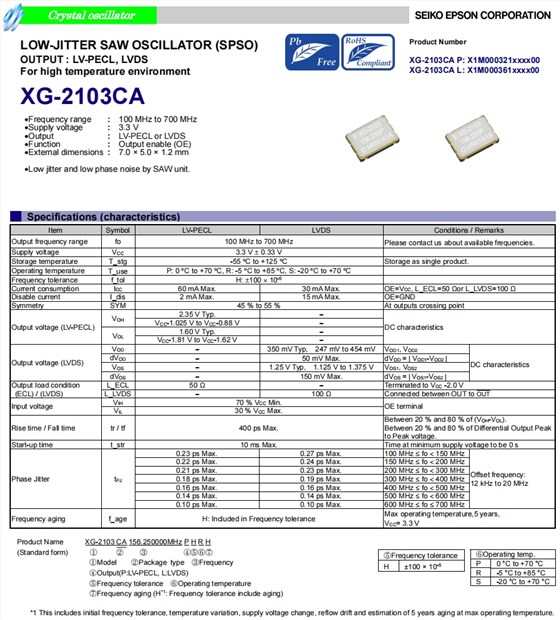

X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振 參數表

Item

Symbol

LV-PECL

LVDS

Conditions / Remarks

Output frequency range

150 MHz

Please contact us about available frequencies.

Supply voltage

VCC

3.3 V±0.33 V

Storage temperature

T_stg

-55°C to +125°C

Storage as single product.

Operating temperature

T_use

P: 0°C to +70°C, R: -5°C to +85°C , S: -20°C to +70°C

Frequency tolerance

f_tol

H:±100×10-6

Current consumption

ICC

60 mA Max.

30 mA Max.

OE=VCC, L_ECL=50 Ωor L_LVDS=100 Ω

Disable current

I_dis

2 mA Max.

15 mA Max.

OE=GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

2.35 V Typ.

−

DC characteristics

VCC- 1.025 V to VCC-0.88 V

−

VOL

1.60 V Typ.

−

VCC- 1.81 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

350 mV Typ,247 mV to 454 mV

VOD1 , VOD2

DC characteristics

dVOD

−

50 mV Max.

dVOD=|VOD1-VOD2|

VOS

−

1.25 V Typ,1.125 V to 1.375 V

VOS1 , VOS2

dVOS

−

150 mV Max.

dVOS=|VOS1-VOS2|

Output load condition
(ECL) / (LVDS)

L_ECL

50 Ω

−

Terminated to VCC-2.0 V

L_LVDS

−

100 Ω

Connected between OUT to OUT

Input voltage

VIH

70 % VCCMin.

OE terminal

VIL

30 % VCCMax.

Rise time / Fall time

tr / tf

400 ps Max.

Between 20 % and 80 % of (VOH-VOL).
Between 20 % and 80 % of Differential Output Peak
to Peak voltage.

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

tPJ

0.23 ps Max.

0.27 ps Max.

100 MHz≤fo<150 MHz

Offset frequency:
12 kHz to 20 MHz

0.22 ps Max.

0.24 ps Max.

150 MHz≤fo<200 MHz

0.21 ps Max.

0.23 ps Max.

200 MHz≤fo<300 MHz

0.18 ps Max.

0.19 ps Max.

300 MHz≤fo<400 MHz

0.16 ps Max.

400 MHz≤fo<500 MHz

0.14 ps Max.

500 MHz≤fo<600 MHz

0.10 ps Max.

600 MHz≤fo≤700 MHz

Frequency aging

f_age

H: Included in Frequency tolerance

Max operating temperature,5 years,
VCC= 3.3 V

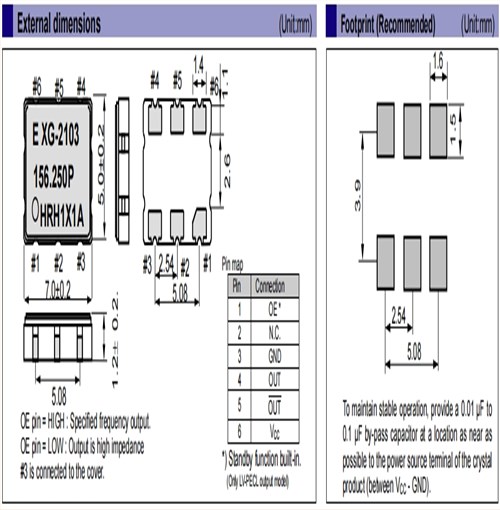

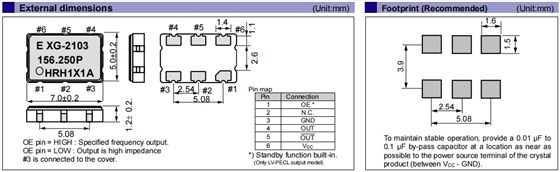

X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振 尺寸圖

X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振

產品特性：

頻率范圍： 100MHz至700MHz

電源電壓： 3.3V

輸出： LV-PECL差分晶振或LVDS

功能：輸出啟用（OE）

外部尺寸： 7.0×5.0×1.2mm

編碼	品牌	型號	頻率	尺寸	輸出方式	電源電壓
X1M0003010002	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010003	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010004	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010006	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010007	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010008	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010009	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010010	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010011	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010012	愛普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010013	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010014	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010015	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010016	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010017	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010019	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010020	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010021	愛普生晶振	XG-2102CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010022	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010023	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010025	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010026	愛普生晶振	XG-2102CA	245.760000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010027	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010029	愛普生晶振	XG-2102CA	156.257812 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010030	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010031	愛普生晶振	XG-2102CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010032	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010033	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010035	愛普生晶振	XG-2102CA	199.860000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010036	愛普生晶振	XG-2102CA	200.140000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010037	愛普生晶振	XG-2102CA	216.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010039	愛普生晶振	XG-2102CA	263.157900 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010040	愛普生晶振	XG-2102CA	622.080000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010041	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010042	愛普生晶振	XG-2102CA	103.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010043	愛普生晶振	XG-2102CA	105.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010044	愛普生晶振	XG-2102CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010045	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010046	愛普生晶振	XG-2102CA	644.531250 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010047	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010048	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010049	愛普生晶振	XG-2102CA	156.255000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010050	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010051	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010052	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003010053	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003210000	愛普生晶振	XG-2103CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0003210001	愛普生晶振	XG-2103CA	132.812500 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
