X1G004481000200有源晶振為網絡設備提供穩定的時鐘信號

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-16 17:23:32【大中小】

分享到：

愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

Epson晶振推出的一款SPXO晶振系列，型號SG7050CAN是一款CMOS輸出石英晶體振蕩器、常規的7050尺寸擴展溫度有源貼片晶振，頻率范圍4MHz至72MHz，1.6V至3.63V的寬工作電源電壓和寬工作溫度范圍從-40℃到85℃，此外，最高工作溫度可達105℃。這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，四腳貼片晶振，并提供標準引腳排列。具有輸出頻率穩定和低功耗，低電源電壓，低抖動的特點，非常適用于物聯網、移動設備，USB、GPS系統、光纖通道、千兆以太網以及工控類IC時鐘芯片，為網絡設備提供穩定的時鐘信號。

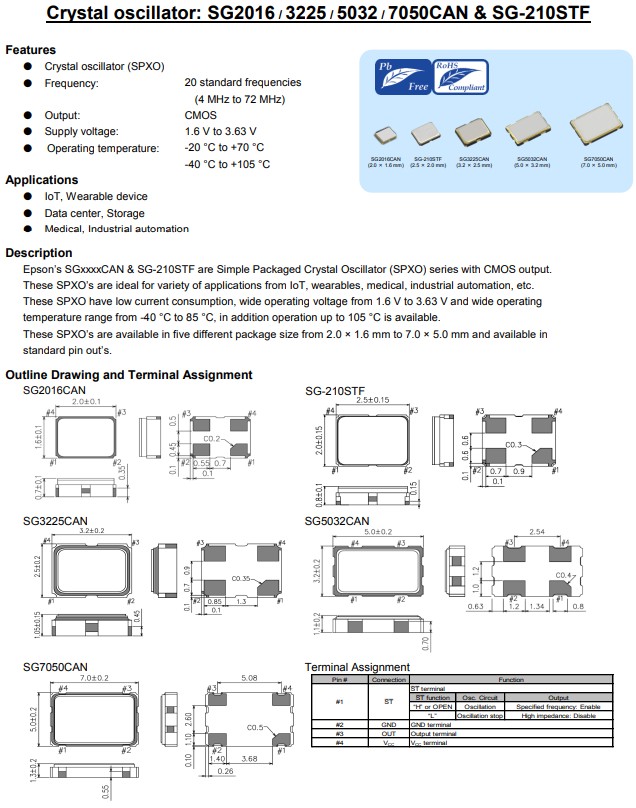

X1G004481000200有源晶振為網絡設備提供穩定的時鐘信號

愛普生晶振	型號	頻率	尺寸	輸出波	電源電壓	工作溫度
X1G004481000100	SG7050CAN	12.288000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000200	SG7050CAN	24.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000300	SG7050CAN	25.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000400	SG7050CAN	27.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000500	SG7050CAN	10.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000600	SG7050CAN	12.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000700	SG7050CAN	16.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000800	SG7050CAN	20.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481000900	SG7050CAN	32.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481001100	SG7050CAN	48.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481001200	SG7050CAN	50.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481001400	SG7050CAN	8.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481001500	SG7050CAN	40.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481001600	SG7050CAN	24.576000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481002200	SG7050CAN	24.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G004481002500	SG7050CAN	14.745600MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

X1G004481016000	SG7050CAN	50.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481017900	SG7050CAN	33.330000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481018300	SG7050CAN	72.000000MHz	7.00x5.00x1.30mm	CMOS	1.710 to 3.630 V	-40 to 85 °C
X1G004481022600	SG7050CAN	48.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G004481025200	SG7050CAN	4.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481025300	SG7050CAN	8.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481025400	SG7050CAN	10.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481025500	SG7050CAN	12.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G004481025600	SG7050CAN	12.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481025700	SG7050CAN	12.288000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G004481025800	SG7050CAN	12.288000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481025900	SG7050CAN	14.745600MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481026000	SG7050CAN	16.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481026100	SG7050CAN	20.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481026200	SG7050CAN	24.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481026300	SG7050CAN	24.576000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G004481026400	SG7050CAN	25.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481026500	SG7050CAN	26.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481026600	SG7050CAN	27.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G004481026700	SG7050CAN	32.000000MHz	7.00x5.00x1.30mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

X1G004481000200有源晶振為網絡設備提供穩定的時鐘信號
SG7050CAN有源晶振具有輸出頻率穩定和低功耗的特點。符合工業級標準,在空載條件下輸出最大頻率時，元件的電流損耗僅為3.0mA。降低系統待機功耗的同時可有效延長電源裝置的使用壽命。通過控制引腳ST的高低電平還可實現待機模式的切換，其中待機模式下電流損耗可低至2.7μA，進一步降低了元件的待機功耗。此外，最大啟動時間3ms，保證了低功耗設計對設備喚醒速度的要求。
