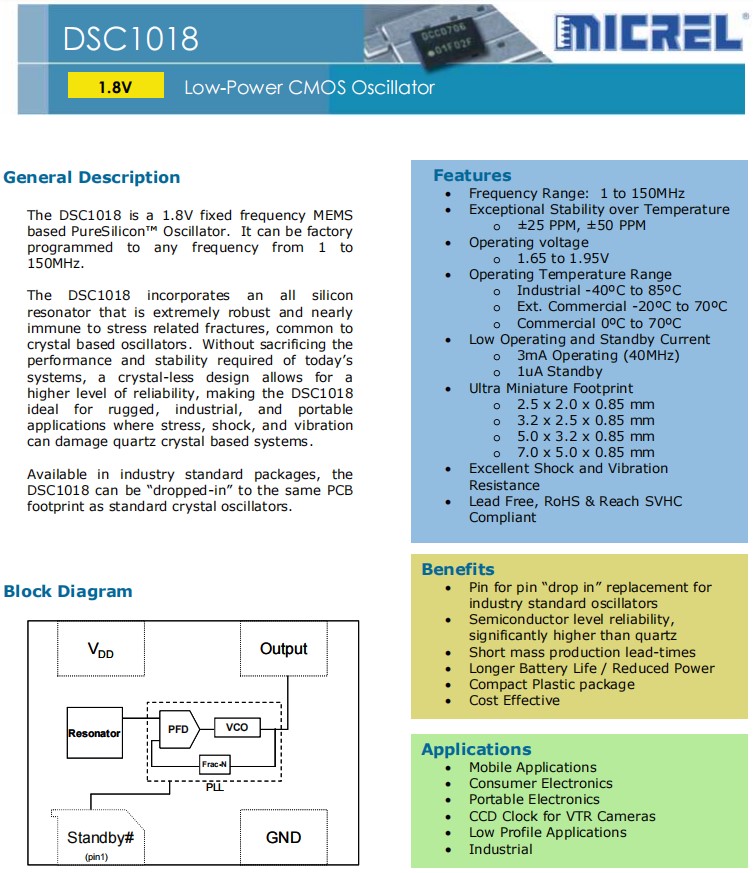

Microchip晶振DSC1018是一個1.8V固定頻率MEMS基于純硅™振蕩器。它可以被工廠編程到從1到150MHz的任何頻率。DSC1018包含了一個全硅諧振器，它非常堅固，幾乎不受應力相關裂縫的影響，這是石英晶體振蕩器常見的。在不犧牲當今系統所需的性能和穩定性的情況下，無晶體設計允許更高水平的可靠性，DSC1018非常適合堅固的工業和便攜式應用，其中應力、沖擊和振動可能會損害基于石英晶體的系統。可在工業標準軟件包，貼片晶振DSC1018可以“插入”到相同的PCB足跡作為標準晶體振蕩器。應用程序：移動應用，消費電子產品，便攜式電子設備，VTR攝像機的CCD時鐘，低配置文件應用，工業用等。VTR攝像機的CCD時鐘應用晶振DSC1030BC1-024.5760
| 原廠代碼 | 美國進口晶振 | 型號 | 頻率 | 電壓 | Type 類型 |
| DSC1030BC1-008.0000 | Microchip晶振 | DSC1030 | 8MHz | 3V | MEMS (Silicon) |
| DSC1030CI1-026.0000 | Microchip晶振 | DSC1030 | 26MHz | 3V | MEMS (Silicon) |
| DSC1030DI1-030.0000T | Microchip晶振 | DSC1030 | 30MHz | 3V | MEMS (Silicon) |
| DSC1030DI1-042.5000T | Microchip晶振 | DSC1030 | 42.5MHz | 3V | MEMS (Silicon) |
| DSC1030DI1-042.5000 | Microchip晶振 | DSC1030 | 42.5MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-008.0000T | Microchip晶振 | DSC1030 | 8MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-025.0000T | Microchip晶振 | DSC1030 | 25MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-027.0000T | Microchip晶振 | DSC1030 | 27MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-040.0000T | Microchip晶振 | DSC1030 | 40MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-050.0000T | Microchip晶振 | DSC1030 | 50MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-012.0000T | Microchip晶振 | DSC1030 | 12MHz | 3V | MEMS (Silicon) |
| DSC1030CE2-025.0000T | Microchip晶振 | DSC1030 | 25MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-024.5760 | Microchip晶振 | DSC1030 | 24.576MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-003.6864T | Microchip晶振 | DSC1030 | 3.6864MHz | 3V | MEMS (Silicon) |
| DSC1030DI1-030.0000 | Microchip晶振 | DSC1030 | 30MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-020.0000T | Microchip晶振 | DSC1030 | 20MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-066.6666T | Microchip晶振 | DSC1030 | 66.6666MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-066.6666 | Microchip晶振 | DSC1030 | 66.6666MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-100.0000T | Microchip晶振 | DSC1030 | 100MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-125.0000T | Microchip晶振 | DSC1030 | 125MHz | 3V | MEMS (Silicon) |
| DSC1030CI1-026.0000T | Microchip晶振 | DSC1030 | 26MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-011.0592 | Microchip晶振 | DSC1030 | 11.0592MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-011.0592T | Microchip晶振 | DSC1030 | 11.0592MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-026.0000 | Microchip晶振 | DSC1030 | 26MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-026.0000T | Microchip晶振 | DSC1030 | 26MHz | 3V | MEMS (Silicon) |
| DSC1030DC1-010.0000 | Microchip晶振 | DSC1030 | 10MHz | 3V | MEMS (Silicon) |
| DSC1030DC1-010.0000T | Microchip晶振 | DSC1030 | 10MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-012.0000T | Microchip晶振 | DSC1030 | 12MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-024.0000T | Microchip晶振 | DSC1030 | 24MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-024.5760T | Microchip晶振 | DSC1030 | 24.576MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-027.0000C | Microchip晶振 | DSC1030 | 27MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-030.0000T | Microchip晶振 | DSC1030 | 30MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-080.0000T | Microchip晶振 | DSC1030 | 80MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-008.0000T | Microchip晶振 | DSC1030 | 8MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-040.0000T | 有源晶振 | DSC1030 | 40MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-001.8432T | Microchip晶振 | DSC1030 | 1.8432MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-004.0000T | Microchip晶振 | DSC1030 | 4MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-008.0000T | Microchip晶振 | DSC1030 | 8MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-012.0000T | Microchip晶振 | DSC1030 | 12MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-012.2880T | Microchip晶振 | DSC1030 | 12.288MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-014.7456T | Microchip晶振 | DSC1030 | 14.7456MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-025.0000T | Microchip晶振 | DSC1030 | 25MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-050.0000T | Microchip晶振 | DSC1030 | 50MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-080.0000T | Microchip晶振 | DSC1030 | 80MHz | 3V | MEMS (Silicon) |
| DSC1030CI1-007.3728T | Microchip晶振 | DSC1030 | 7.3728MHz | 3V | MEMS (Silicon) |
| DSC1030DI1-050.0000T | Microchip晶振 | DSC1030 | 50MHz | 3V | MEMS (Silicon) |
| DSC1030DI2-027.0000T | Microchip晶振 | DSC1030 | 27MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-025.0000 | Microchip晶振 | DSC1030 | 25MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-008.0000 | Microchip晶振 | DSC1030 | 8MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-012.0000 | Microchip晶振 | DSC1030 | 12MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-025.0000 | Microchip晶振 | DSC1030 | 25MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-100.0000 | Microchip晶振 | DSC1030 | 100MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-125.0000 | Microchip晶振 | DSC1030 | 125MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-001.8432T | Microchip晶振 | DSC1030 | 1.8432MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-010.0000T | Microchip晶振 | DSC1030石英晶振 | 10MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-016.0000T | Microchip晶振 | DSC1030 | 16MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-024.5760T | Microchip晶振 | DSC1030 | 24.576MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-010.0000T | Microchip晶振 | DSC1030 | 10MHz | 3V | MEMS (Silicon) |
| DSC1030DI2-019.2000T | Microchip晶振 | DSC1030 | 19.2MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-001.8432 | Microchip晶振 | DSC1030 | 1.8432MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-010.0000 | Microchip晶振 | DSC1030 | 10MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-016.0000 | Microchip晶振 | DSC1030 | 16MHz | 3V | MEMS (Silicon) |
| DSC1030BE1-024.5760 | Microchip晶振 | DSC1030 | 24.576MHz | 3V | MEMS (Silicon) |
| DSC1030BI1-010.0000 | Microchip晶振 | DSC1030 | 10MHz | 3V | MEMS (Silicon) |
| DSC1030DI2-019.2000 | Microchip晶振 | DSC1030 | 19.2MHz | 3V | MEMS (Silicon) |
| DSC1030BC1-003.6864 | Microchip晶振 | DSC1030 | 3.6864MHz | 3V | MEMS (Silicon) |
| DSC1030BE2-027.1200 | Microchip晶振 | DSC1030 | 27.12MHz | 3V | MEMS (Silicon) |
| DSC1030BE2-027.1200T | Microchip晶振 | DSC1030 | 27.12MHz | 3V | MEMS (Silicon) |

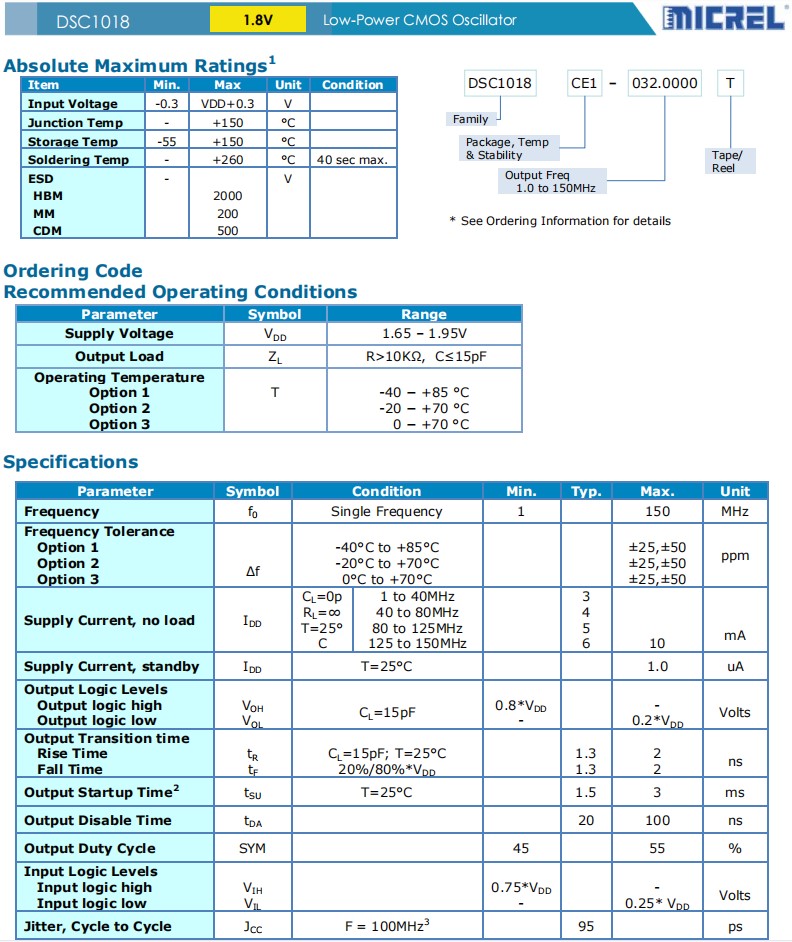

DSC1018晶振特點：
頻率范圍：1MHz至150MHz
特殊溫度穩定性：±25PPM，±50PPM
工作電壓：1.65至1.95V 可編程晶振
工作溫度范圍：工業-40ºC至+85ºC Ext。商業-20ºC~+70ºC ，商業0ºC~+70ºC
低操作和備用當前：3mA操作（40MHz），1uA備用
超微型尺寸：2.5x2.0x0.85毫米，3.2x2.5x0.85毫米，5.0x3.2x0.85毫米，7.0x5.0x0.85毫米
優秀的沖擊和振動
無鉛，RoHS &達到SVHC兼容
引腳“插入”替換的引腳 工業標準振蕩器
半導體級可靠性明顯高于石英
短批量生產交付周期
更長的電池壽命/更低的功耗
緊湊型塑料封裝
具有成本效益
