Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振，尺寸2.5x2.0mm，頻率156.25MHZ，電壓3.3V，頻率穩定性25ppm，輸出邏輯LVPECL，XO時鐘振蕩器，歐美進口差分晶振，OSC差分晶振，LVPECL輸出晶振，LVPECL差分晶體振蕩器，2520mm差分晶體振蕩器，SMD有源差分晶振，十二腳貼片差分晶振，6G無線差分晶振，瑞薩差分振蕩器，6G電信差分晶振，測試測量差分晶振，儀器設備晶振，路由器差分晶振，高品質差分晶振，高性能差分晶振，低抖動差分晶振，低損耗差分晶振，低功耗差分晶振，低電壓差分晶振，具有低抖動高品質的特點.

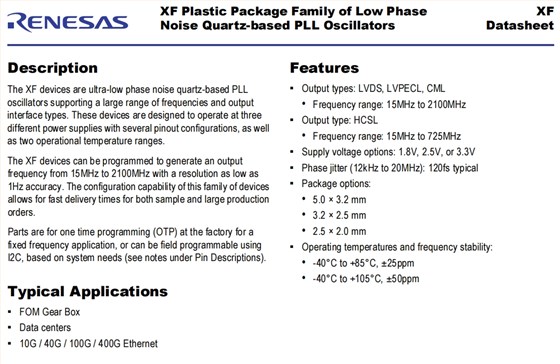

XF設備是基于石英的超低相位噪聲PLL支持大范圍頻率和輸出的OSC振蕩器接口類型。這些設備設計為在三具有多種引腳輸出配置的不同電源作為兩個操作溫度范圍。XF設備可以編程以生成輸出頻率從15MHz到2100MHz，分辨率低至1Hz精度。Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振.

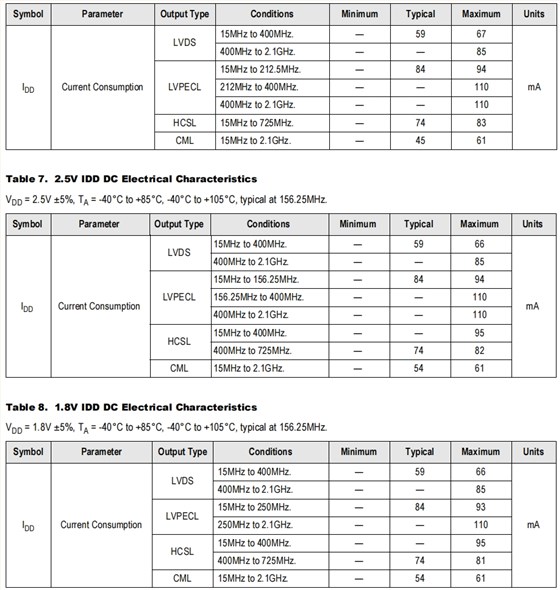

Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振 參數表

XF 參數

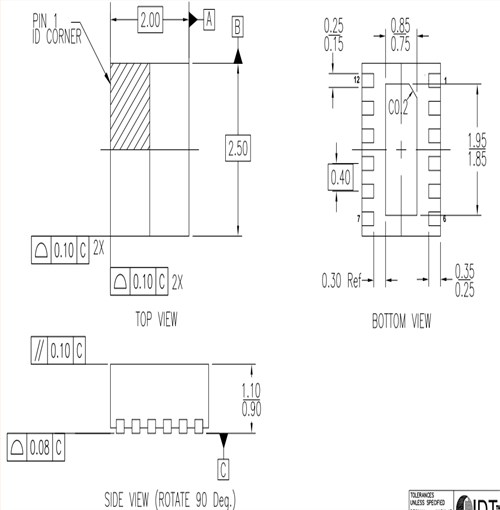

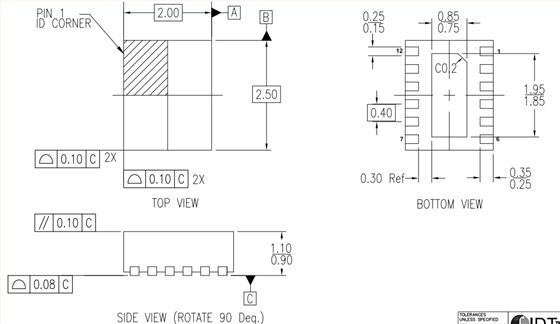

Renesas瑞薩晶振 XFP236156.250000I 6G無線晶振 尺寸圖

差分晶振產品特性:

輸出類型：LVDS、LVPECL、CML

頻率范圍：15MHz至2100MHz

輸出類型：HCSL

頻率范圍：15MHz至725MHz

電源電壓選項：1.8V、2.5V或3.3V

相位抖動（12kHz至20MHz）：典型值為120fs

程序包選項：

5.0×3.2毫米

3.2×2.5毫米

2.5×2.0毫米

工作溫度和頻率穩定性：

-40°C至+85°C，±25ppm

-40°C至+105°C，±50ppm

更多相關美國瑞薩晶振型號

Mfr Part #	美國進口晶振	Description	Series	Frequency	Output	Voltage - Supply
XFC236156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ CML SMD	XFC	156.25 MHz	CML	3.3V
XFP236625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVPECL	XFP	625 MHz	LVPECL	3.3V
XFP236312.500000I	Renesas晶振	XTAL OSC XO 312.5000MHZ LVPECL	XFP	312.5 MHz	LVPECL	3.3V
XFP536625.000000I	Renesas晶振	625.000000 MHZ 3.3VDC LVPECL 503	XF	625 MHz	LVPECL	3.3V
XFN516100.000000I	Renesas晶振	100.000000 MHZ 1.8VDC HCSL 5032	XF	100 MHz	HCSL	1.8V
XFL526125.000000I	Renesas晶振	125.000000 MHZ 2.5VDC LVDS 5032	XF	125 MHz	LVDS	2.5V
XFP236156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XFP	156.25 MHz	LVPECL	3.3V
XFL235837.500000K	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	837.5 MHz	LVDS	3.3V
XFP235156.250000K	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVPECL	3.3V
XFN336100.000000I	Renesas晶振	100.000000 MHZ 3.3VDC HCSL 3225	XF	100 MHz	HCSL	3.3V
XFP336312.500000I	Renesas晶振	312.500000 MHZ 3.3VDC LVPECL 322	XF	312.5 MHz	LVPECL	3.3V
XFL336156.250000I	Renesas晶振	156.250000 MHZ 3.3VDC LVDS 3225	XF	156.25 MHz	LVDS	3.3V
XFP236148.500000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	148.5 MHz	LVPECL	3.3V
XFN236100.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	100 MHz	HCSL	3.3V
XFL516100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XF	100 MHz	LVDS	1.8V
XFL536125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XF	125 MHz	LVDS	3.3V
XFL336032.768000I	Renesas晶振	XTAL OSC XO 32.7680MHZ LVDS SMD	XF	32.768 MHz	LVDS	3.3V
XFL316125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XF	125 MHz	LVDS	1.8V
XFP526156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XF	156.25 MHz	LVPECL	2.5V
XFP536025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ LVPECL	XF	25 MHz	LVPECL	3.3V
XFL336333.330000I	Renesas晶振	XTAL OSC XO 333.3300MHZ LVDS SMD	XF	333.33 MHz	LVDS	3.3V
XFL336032.000000I	Renesas晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	XF	32 MHz	LVDS	3.3V
XFL526032.000000I	Renesas晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	XF	32 MHz	LVDS	2.5V
XFL336333.333333I	Renesas晶振	XTAL OSC XO 333.333333MHZ LVDS	XF	333.333333 MHz	LVDS	3.3V
XFL336125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	XF	125 MHz	LVDS	3.3V
XFL516500.000000I	Renesas晶振	XTAL OSC XO 500.0000MHZ LVDS SMD	XF	500 MHz	LVDS	1.8V
XFL316300.000000I	Renesas晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	XF	300 MHz	LVDS	1.8V
XFL336148.425824I	Renesas晶振	XTAL OSC XO 148.425824MHZ LVDS	XF	148.425824 MHz	LVDS	3.3V
XFL336161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XF	161.132812 MHz	LVDS	3.3V
XFP336161.132812I	Renesas晶振	XTAL OS XO 161.132812MHZ LVPECL	XF	161.132812 MHz	LVPECL	3.3V
XFL536026.000000I	Renesas晶振	XTAL OSC XO 26.0000MHZ LVDS SMD	XF	26 MHz	LVDS	3.3V
XFL536100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XF	100 MHz	LVDS	3.3V
XFL336096.000000I	Renesas晶振	XTAL OSC XO 96.0000MHZ LVDS SMD	XF	96 MHz	LVDS	3.3V
XFL336048.000000I	Renesas晶振	XTAL OSC XO 48.0000MHZ LVDS SMD	XF	48 MHz	LVDS	3.3V
XFL336333.333000I	Renesas晶振	XTAL OSC XO 333.3330MHZ LVDS SMD	XF	333.333 MHz	LVDS	3.3V
XFP536156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XF	156.25 MHz	LVPECL	3.3V
XFL336450.000000I	Renesas晶振	XTAL OSC XO 450.0000MHZ LVDS SMD	XF	450 MHz	LVDS	3.3V
XFC516025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ CML SMD	XF	25 MHz	CML	1.8V
XFL316270.000000I	Renesas晶振	XTAL OSC XO 270.0000MHZ LVDS SMD	XF	270 MHz	LVDS	1.8V
XFL336025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	XF	25 MHz	LVDS	3.3V
XFL236644.531250I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	644.53125 MHz	LVDS	3.3V
XFP216025.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	25 MHz	LVPECL	1.8V
XFL236830.078125I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	830.078125 MHz	LVDS	3.3V
XFL226156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVDS	2.5V
XFL236156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVDS	3.3V
XFN236156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	HCSL	3.3V
XFN216100.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	100 MHz	HCSL	1.8V
XFL236108.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	108 MHz	LVDS	3.3V
XFL216156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVDS	1.8V
XFP236161.132812I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	161.132812 MHz	LVPECL	3.3V
XFP226156.250000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	156.25 MHz	LVPECL	2.5V
XFP216625.000000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	625 MHz	LVPECL	1.8V
XFL236148.500000I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	148.5 MHz	LVDS	3.3V
XFN216161.132812I	Renesas晶振	DFN 2.00X2.50X1.00 MM, 0.40MM PI	XF	161.132812 MHz	HCSL	1.8V
XFP216156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XF	156.25 MHz	LVPECL	1.8V
XFN236025.000000I	Renesas晶振	XTAL OSC XO 25.0000MHZ HCSL SMD	XF	25 MHz	HCSL	3.3V
XFC226156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ CML SMD	XF	156.25 MHz	CML	2.5V
XFL226026.000000I	Renesas晶振	XTAL OSC XO 26.0000MHZ LVDS SMD	XF	26 MHz	LVDS	2.5V
XFL216625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVDS SMD	XF	625 MHz	LVDS	1.8V
XFL216397.770000I	Renesas晶振	XTAL OSC XO 397.7700MHZ LVDS SMD	XF	397.77 MHz	LVDS	1.8V
XFL216078.125000I	Renesas晶振	XTAL OSC XO 78.1250MHZ LVDS SMD	XF	78.125 MHz	LVDS	1.8V
XFC216837.500000I	Renesas晶振	XTAL OSC XO 837.5000MHZ CML SMD	XF	837.5 MHz	CML	1.8V
XFL536040.000000I	Renesas晶振	XTAL OSC XO 40.0000MHZ LVDS SMD	XF	40 MHz	LVDS	3.3V
XFP336048.000000I	Renesas晶振	XTAL OSC XO 48.0000MHZ LVPECL	XF	48 MHz	LVPECL	3.3V
XFL516156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XF	156.25 MHz	LVDS	1.8V
XFL536200.000000I	Renesas晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	XF	200 MHz	LVDS	3.3V
XFL525100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XF	100 MHz	LVDS	2.5V
XFL516245.000000I	Renesas晶振	XTAL OSC XO 245.0000MHZ LVDS SMD	XF	245 MHz	LVDS	1.8V
XFP336156.253906I	Renesas晶振	XTAL OS XO 156.253906MHZ LVPECL	XF	156.253906 MHz	LVPECL	3.3V
XFL336165.000000I	Renesas晶振	XTAL OSC XO 165.0000MHZ LVDS SMD	XF	165 MHz	LVDS	3.3V
XFL536156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	XF	156.25 MHz	LVDS	3.3V
XFL526100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XF	100 MHz	LVDS	2.5V
XFL336161.132813I	Renesas晶振	XTAL OSC XO 161.132813MHZ LVDS	XF	161.132813 MHz	LVDS	3.3V
XFL326300.000000I	Renesas晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	XF	300 MHz	LVDS	2.5V
XFL326161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XF	161.132812 MHz	LVDS	2.5V
XFL536153.600000I	Renesas晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	XF	153.6 MHz	LVDS	3.3V
XFP536045.158400I	Renesas晶振	XTAL OSC XO 45.1584MHZ LVPECL	XF	45.1584 MHz	LVPECL	3.3V
XFN336212.500000I	Renesas晶振	XTAL OSC XO 212.5000MHZ HCSL SMD	XF	212.5 MHz	HCSL	3.3V
XFP316156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XF	156.25 MHz	LVPECL	1.8V
XFL516161.132812I	Renesas晶振	XTAL OSC XO 161.132812MHZ LVDS	XF	161.132812 MHz	LVDS	1.8V
XFL336425.000000I	Renesas晶振	XTAL OSC XO 425.0000MHZ LVDS SMD	XF	425 MHz	LVDS	3.3V
XFL336780.000000I	Renesas晶振	XTAL OSC XO 780.0000MHZ LVDS SMD	XF	780 MHz	LVDS	3.3V
XFL326148.351648I	Renesas晶振	XTAL OSC XO 148.351648MHZ LVDS	XF	148.351648 MHz	LVDS	2.5V
XFL516135.000000I	Renesas晶振	XTAL OSC XO 135.0000MHZ LVDS SMD	XF	135 MHz	LVDS	1.8V
XFP536750.000000I	Renesas晶振	XTAL OSC XO 750.0000MHZ LVPECL	XF	750 MHz	LVPECL	3.3V
XFL336400.000000I	Renesas晶振	XTAL OSC XO 400.0000MHZ LVDS SMD	XF	400 MHz	LVDS	3.3V
XFL316050.000000I	Renesas晶振	XTAL OSC XO 50.0000MHZ LVDS SMD	XF	50 MHz	LVDS	1.8V
XFL326148.500000I	Renesas晶振	XTAL OSC XO 148.5000MHZ LVDS SMD晶振	XF	148.5 MHz	LVDS	2.5V
XFL336603.229000I	Renesas晶振	XTAL OSC XO 603.2290MHZ LVDS SMD	XF	603.229 MHz	LVDS	3.3V
XFL336033.300000I	Renesas晶振	XTAL OSC XO 33.3000MHZ LVDS SMD	XF	33.3 MHz	LVDS	3.3V
XFP326100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVPECL	XF	100 MHz	LVPECL	2.5V
XFL336380.000000I	Renesas晶振	XTAL OSC XO 380.0000MHZ LVDS SMD	XF	380 MHz	LVDS	3.3V
XFL536148.500000I	Renesas晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	XF	148.5 MHz	LVDS	3.3V
XFL316080.000000I	Renesas晶振	XTAL OSC XO 80.0000MHZ LVDS SMD	XF	80 MHz	LVDS	1.8V
XFL316100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	XF	100 MHz	LVDS	1.8V
