AXE3225P‐33‐50-150.000MHz,AXTAL有源差分晶振,150MHZ,3225mm,德國進口晶振,AXTAL振蕩器,OSC差分晶振,石英晶體振蕩器,六腳貼片晶振,150MHZ有源振蕩器,LVPECL輸出振蕩器,差分晶體振蕩器,SMD差分振蕩器,3225小體積晶振,尺寸3.2x2.5mm,頻率150MHZ,輸出邏輯LVPECL,低相噪晶振,低電壓晶振,便攜式設備晶振,通信模塊晶振,測試設備晶振,微波通信晶振.
AXE3225P‐33‐50-150.000MHz,AXTAL有源差分晶振,150MHZ,3225mm特點:
3.2x2.5 mm封裝的帶PECL輸出的SMD SPXO有源晶振
低電壓低相噪

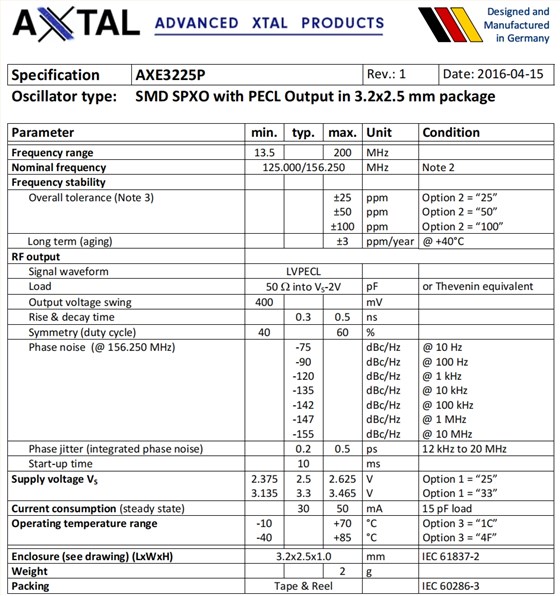

AXE3225P‐33‐50-150.000MHz,AXTAL有源差分晶振,150MHZ,3225mm 參數表
| Parameter | min. | typ. | max. | Unit | Condition | ||||||||||
| Frequency range |
|
150 |
|
MHz | |||||||||||
| Nominal frequency | 125.000/156.250 | MHz | Note 2 | ||||||||||||
| Frequency stability | |||||||||||||||
| Overall tolerance (Note 3) |
±25 ±50 ±100 |
ppm ppm ppm |
Option 2 = “25” Option 2 = “50” Option 2 = “100” |
||||||||||||
| Long term (aging) | ±3 | ppm/year | @ +40°C | ||||||||||||
| RF output | |||||||||||||||
| Signal waveform | LVPECL | ||||||||||||||
| Load | 50Ωinto VS-2V | pF | or Thevenin equivalent | ||||||||||||
| Output voltage swing | 400 | mV | |||||||||||||
| Rise & decay time | 0.3 | 0.5 | ns | ||||||||||||
| Symmetry (duty cycle) | 40 | 60 | % | ||||||||||||
| Phase noise(@ 156.250 MHz) |
-75 -90 -120 -135 -142 -147 -155 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
@ 10 Hz @ 100 Hz @ 1 kHz @ 10 kHz @ 100 kHz @ 1 MHz @ 10 MHz |
||||||||||||
| Phase jitter (integrated phase noise) | 0.2 | 0.5 | ps | 12 kHz to 20 MHz | |||||||||||
| Start-up time | 10 | ms | |||||||||||||
| Supply voltage VS |
2.375 3.135 |
2.5 3.3 |
2.625 3.465 |
V V |
Option 1 = “25” Option 1 = “33” |
||||||||||
| Current consumption(steady state) | 30 | 50 | mA | 15 pF load | |||||||||||
| Operating temperature range |
-10 -40 |
+70 +85 |
°C °C |
Option 3 = “1C” Option 3 = “4F” |
|||||||||||
| Enclosure (see drawing) (LxWxH) | 3.2x2.5x1.0 | mm | IEC 61837-2 | ||||||||||||
| Weight | 2 | g | |||||||||||||
| Packing | Tape & Reel | IEC 60286-3 | |||||||||||||

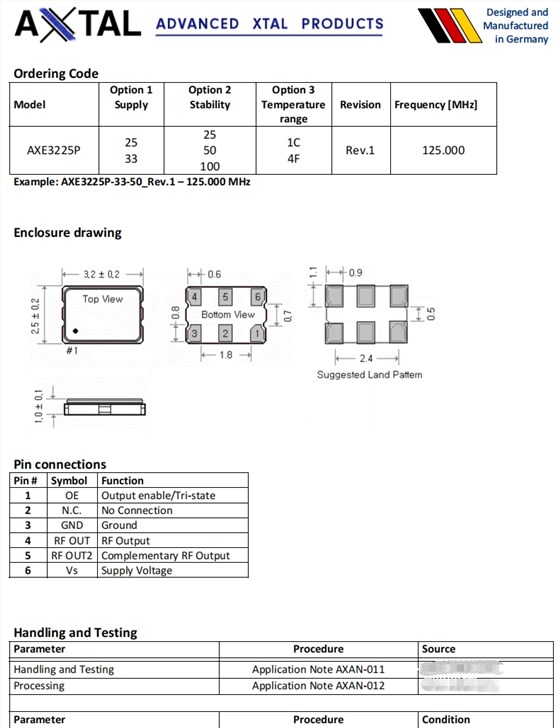

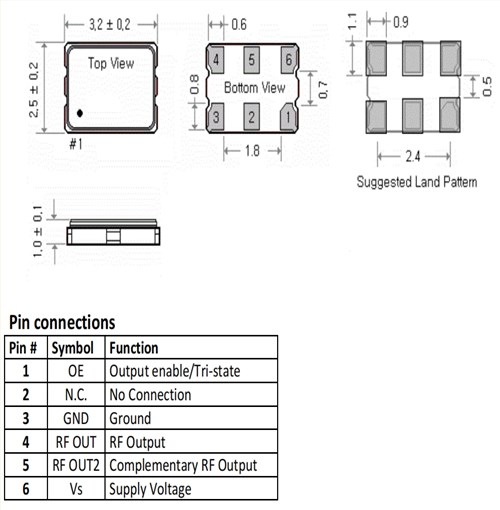

AXE3225P‐33‐50-150.000MHz,AXTAL有源差分晶振,150MHZ,3225mm 尺寸圖
