3215mm薄型晶振,TZ1006A,臺灣嘉碩晶振,32.768KHZ時鐘晶振特點:
表面安裝3.2mmx1.5mm無源晶體單元
陶瓷接縫焊接包裝或陶瓷玻璃密封包裝
卓越的可靠性性能
超小型封裝
可用于表面安裝技術和IR回流工藝

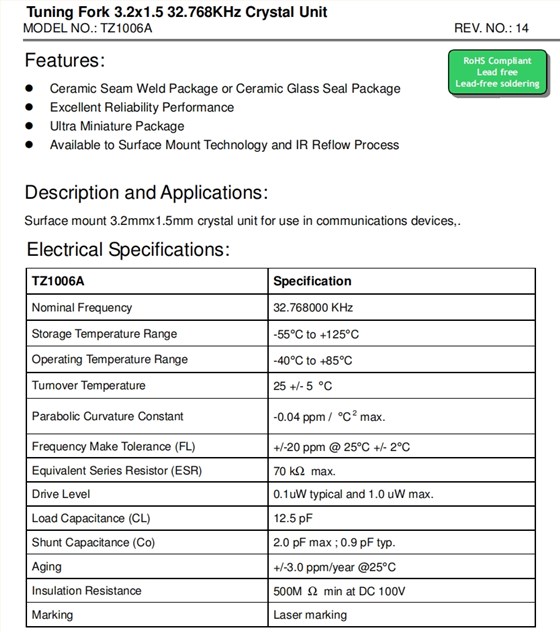

3215mm薄型晶振,TZ1006A,臺灣嘉碩晶振,32.768KHZ時鐘晶振 參數表
|
TZ1006A |
Specification |
|
NominalFrequency |
32.768000KHz |
|
Storage TemperatureRange |
-55°Cto+125°C |
|
Operating TemperatureRange |
-40°Cto+85°C |
|
Turnover Temperature |
25+/-5 °C |
|
Parabolic CurvatureConstant |
-0.04ppm/ °C2 max. |
|
FrequencyMakeTolerance(FL) |
+/-20 ppm@25°C+/-2°C |
|
EquivalentSeriesResistor(ESR) |
70kΩmax. |
|
DriveLevel |
0.1uWtypicaland1.0uWmax. |
|
LoadCapacitance(CL) |
12.5pF |
|
ShuntCapacitance(Co) |
2.0 pFmax;0.9pF typ. |
|
Aging |
+/-3.0ppm/year@25°C |
|
InsulationResistance |
500MΩ min atDC100V |
|

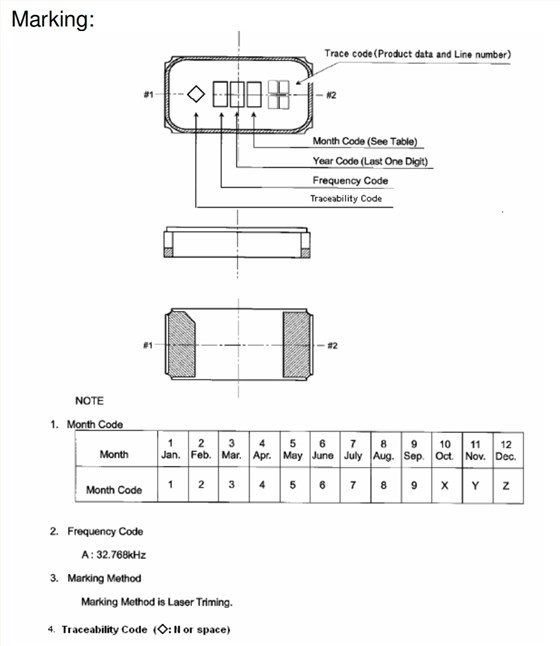

Marking |
Lasermarking |

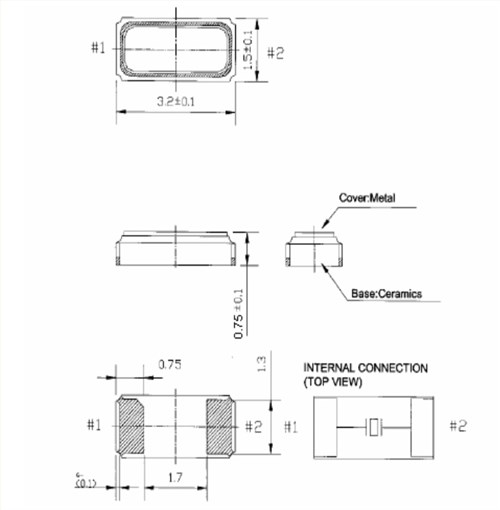

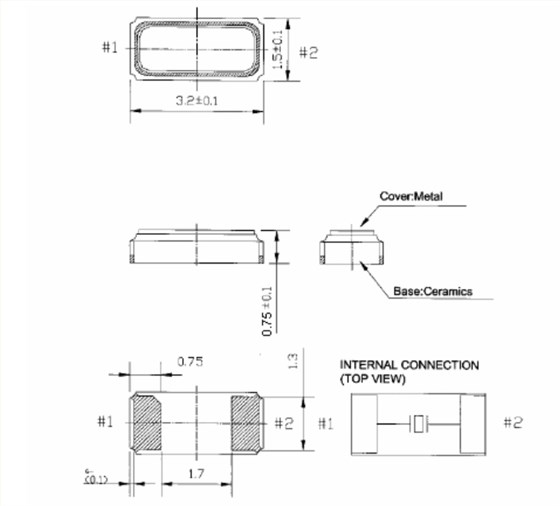

3215mm薄型晶振,TZ1006A,臺灣嘉碩晶振,32.768KHZ時鐘晶振 尺寸圖
