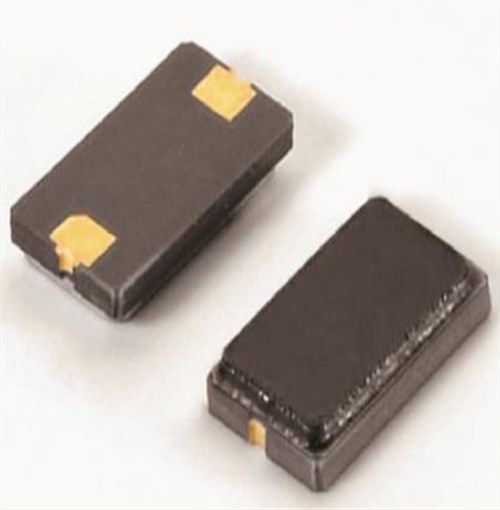

ECS-360-S-20A-F-TR,ECS無源晶振,CSM-8A,以太網晶振，美國進口晶振，伊西斯晶振，ECS晶振，型號：CSM-8A，編碼為：ECS-360-S-20A-F-TR，頻率：36MHz，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：7.0x5.0x1.7mm陶瓷SMD晶振，兩腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，陶瓷晶振，無鉛晶振。具有超小型，輕薄型，高可靠性，高質量，高品質等特點。符合RoHS，CSM-8A系列是一種非常經濟有效的，低輪廓的SMD石英晶體。玻璃密封陶瓷封裝是理想的PCMCIA，以太網和傳真調制解調器卡的應用。

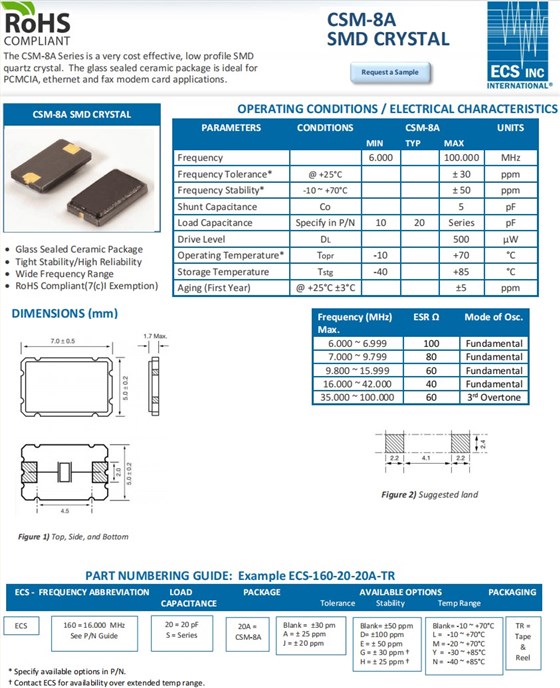

ECS-360-S-20A-F-TR,ECS無源晶振,CSM-8A,以太網晶振,參數表

PARAMETERS

CONDITIONS

CSM-8A

UNITS

MIN

TYP

MAX

Frequency

MHz

Frequency Tolerance*

@ +25°C

± 30

ppm

Frequency Stability*

-10 ~ +70°C

± 50

ppm

Shunt Capacitance

Load Capacitance

Specify in P/N

Series

Drive Level

500

µW

Operating Temperature*

Topr

-10

+70

°C

Storage Temperature

Tstg

-40

+85

°C

Aging (First Year)

@ +25°C ±3°C

±5

ppm

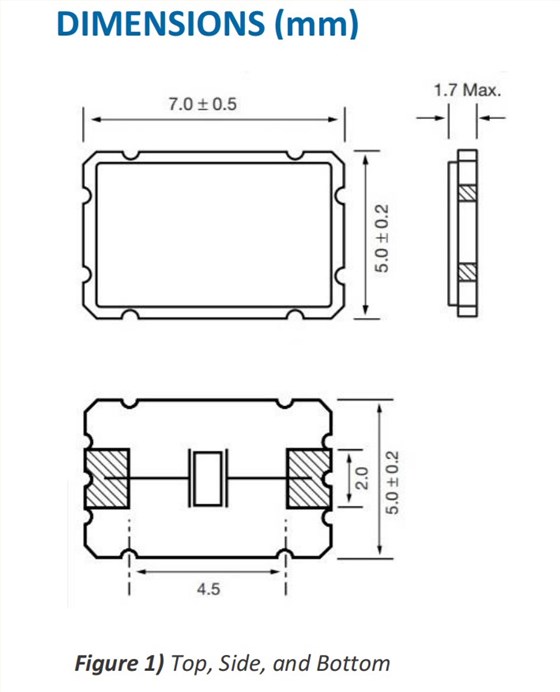

ECS-360-S-20A-F-TR,ECS無源晶振,CSM-8A,以太網晶振,尺寸圖

石英晶體諧振器	廠家	型號	頻率	工作溫度
ECS-80-20-20A-TR	ECS晶振	CSM-8A	8MHz	-10°C ~ 70°C
ECS-240-12-20A-TR	ECS晶振	CSM-8A	24MHz	-10°C ~ 70°C
ECS-100-S-20A-TR	ECS晶振	CSM-8A	10MHz	-10°C ~ 70°C
ECS-400-S-20A-TR	ECS晶振	CSM-8A	40MHz	-10°C ~ 70°C
ECS-200-S-20A-TR	ECS晶振	CSM-8A	20MHz	-10°C ~ 70°C
ECS-320-S-20A-F-TR	ECS晶振	CSM-8A	32MHz	-10°C ~ 70°C
ECS-120-20-20A-TR	ECS晶振	CSM-8A	12MHz	-10°C ~ 70°C
ECS-98.3-20-20A-TR	ECS晶振	CSM-8A	9.8304MHz	-10°C ~ 70°C
ECS-110.5-S-20A-TR	ECS晶振	CSM-8A	11.0592MHz	-10°C ~ 70°C
ECS-147.4-S-20A-TR	ECS晶振	CSM-8A	14.7456MHz	-10°C ~ 70°C
ECS-184-S-20A-TR	ECS晶振	CSM-8A	18.432MHz	-10°C ~ 70°C
ECS-200-20-20A-TR	ECS晶振	CSM-8A	20MHz	-10°C ~ 70°C
ECS-240-S-20A-TR	ECS晶振	CSM-8A	24MHz	-10°C ~ 70°C
ECS-240.0014S20A-TR	ECS晶振	CSM-8A	24.00014MHz	-10°C ~ 70°C
ECS-360-S-20A-F-TR	ECS晶振	CSM-8A	36MHz	-10°C ~ 70°C
ECS-400-S-20A-F-TR	ECS晶振	CSM-8A	40MHz	-10°C ~ 70°C
ECS-160-20-20A-TR	ECS晶振	CSM-8A	16MHz	-10°C ~ 70°C
ECS-403.2-S-20A-TR	ECS晶振	CSM-8A	40.32MHz	-10°C ~ 70°C
ECS-300-S-20A-F-TR	ECS晶振	CSM-8A	30MHz	-10°C ~ 70°C
ECS-110.5-20-20A-TR	進口晶振	CSM-8A	11.0592MHz	-10°C ~ 70°C
ECS-120-S-20A-TR	ECS晶振	CSM-8A	12MHz	-10°C ~ 70°C
ECS-320-S-20A-TR	ECS晶振	CSM-8A	32MHz	-10°C ~ 70°C
ECS-160-S-20A-TR	ECS晶振	CSM-8A	16MHz	-10°C ~ 70°C
ECS-240-20-20A-TR	ECS晶振	CSM-8A	24MHz	-10°C ~ 70°C
ECS-143-S-20A-TR	ECS晶振	CSM-8A	14.31818MHz	-10°C ~ 70°C
ECS-196.6-S-20A-TR	ECS晶振	CSM-8A	19.6608MHz	-10°C ~ 70°C
ECS-300-S-20A-TR	ECS晶振	CSM-8A	30MHz	-10°C ~ 70°C
ECS-480-20-20A-TR	ECS晶振	CSM-8A	48MHz	-10°C ~ 70°C
ECS-330-S-20A-TR	ECS晶振	CSM-8A	33MHz	-10°C ~ 70°C
ECS-122.8-20-20A-TR	ECS晶振	CSM-8A	12.288MHz	-10°C ~ 70°C
ECS-360-S-20A-TR	ECS晶振	CSM-8A	36MHz	-10°C ~ 70°C
ECS-143-20-20A-TR	ECS晶振	CSM-8A	14.31818MHz	-10°C ~ 70°C
ECS-98.3-S-20A-TR	ECS晶振	CSM-8A	9.8304MHz	-10°C ~ 70°C
