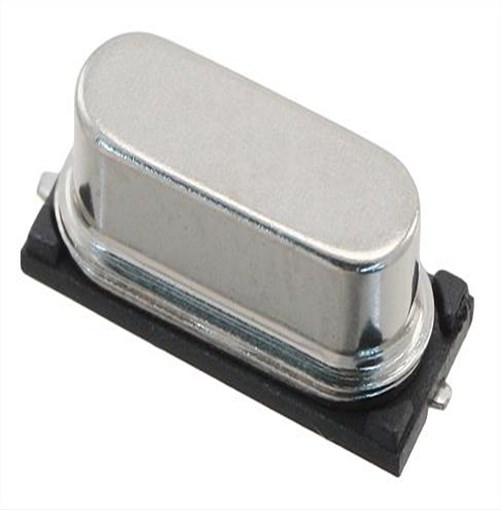

FC4SDEEKD26.0-T1,FOX?？怂咕д?26MHz,安防設備晶振，美國進口晶振，FOX晶振，?？怂咕д?/span>，型號：FC4SD系列，編碼為：FC4SDEEKD26.0-T1，頻率為：26.000MHz，頻率穩定性：±20ppm，頻率容差：±20ppm，負載電容：16pF，工作溫度范圍：-10℃至+60℃，小體積晶振尺寸：11.7x5.0mm封裝，兩腳貼片晶振，無源晶振，SMD石英晶體，石英晶振，石英晶體諧振器，無鉛環保晶振。被廣泛用于：儀器設備晶振，無線藍牙模塊，車載控制器，安防設備，物聯網，智能家居等應用。

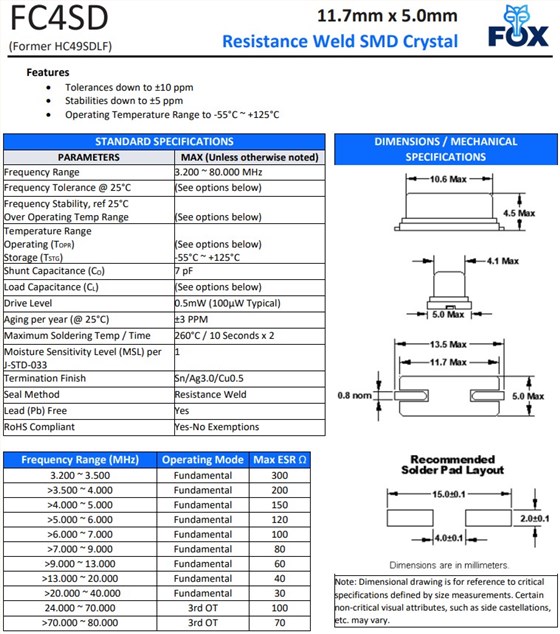

FC4SDEEKD26.0-T1,FOX?？怂咕д?26MHz,安防設備晶振,參數表
| PARAMETERS | MAX(unless otherwise noted) |
| Frequency Range | 26.000 MHz |
| Frequency Tolerance @ 25ºC | (See options on page 2) |
| Frequency Stability, ref @ 25ºC | (See options below) |
| Temperature Range | |
| Operating (TOPR) | (see options below) |
| Storage (TSTG) | -55ºC ~ +125ºC |
| Shunt Capacitance (Co) | 7.0pF |
| Load Capacitance (Cl) | (See options on page 2) |
| Drive Level | 0.5 mW (0.1 mW Typical) |
| Aging per year | ±3 PPM |
| Maximum Soldering Temp / Time | 260ºC / 10 Seconds |
| Moisture Sensitivity Level (MSL) | 1 |
| Termination Finish | Sn/3.0Ag/0.5Cu |
| Seal Method | Resistance Weld |
| Lead (Pb) Free | Yes |
| RoHS Compliant | No Exemptions |

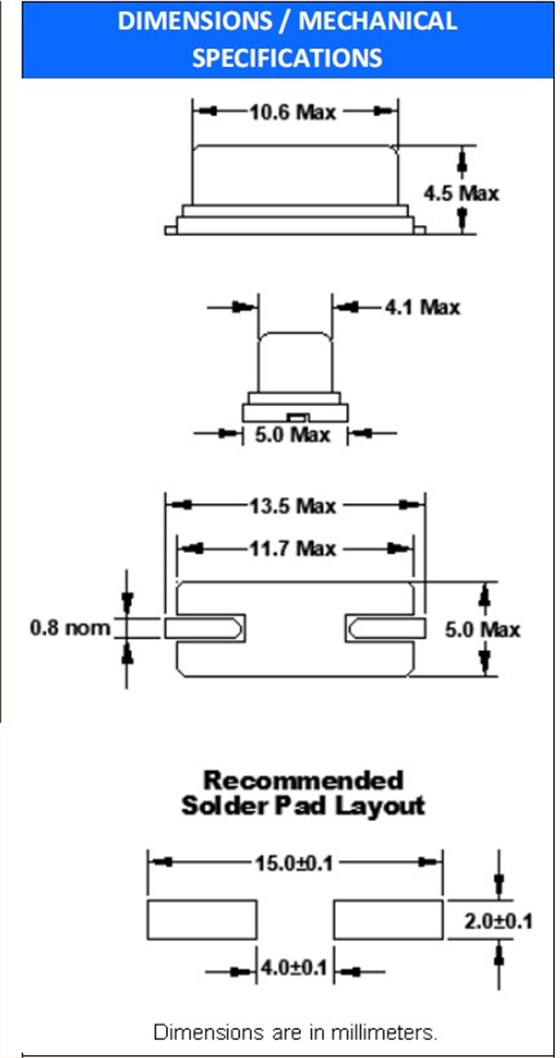

FC4SDEEKD26.0-T1,FOX?？怂咕д?26MHz,安防設備晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| FC4SDCBMF4.0-T1 | Fox晶振 | FC4SD | 4 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF4.9152-T1 | Fox晶振 | FC4SD | 4.9152 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF5.0-T1 | Fox晶振 | FC4SD | 5 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF6.0-T1 | Fox晶振 | FC4SD | 6 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF7.3728-T1 | Fox晶振 | FC4SD | 7.3728 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF8.0-T1 | Fox晶振 | FC4SD | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF8.192-T1 | Fox晶振 | FC4SD | 8.192 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMF9.8304-T1 | Fox晶振 | FC4SD | 9.8304 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM10.0-T1 | Fox晶振 | FC4SD | 10 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM12.0-T1 | Fox晶振 | FC4SD | 12 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM16.0-T1 | Fox晶振 | FC4SD | 16 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM20.0-T1 | Fox晶振 | FC4SD | 20 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM25.0-T1 | Fox晶振 | FC4SD | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM3.6864-T1 | Fox晶振 | FC4SD | 3.6864 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM4.0-T1 | Fox晶振 | FC4SD | 4 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM6.0-T1 | Fox晶振 | FC4SD | 6 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMM8.0-T1 | Fox晶振 | FC4SD | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDCBMP8.0-T1 | Fox晶振 | FC4SD | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| FC4SDDDMC32.768-T1 | Fox晶振 | FC4SD | 32.768 MHz | ±25ppm | ±25ppm | 20 pF |
| FC4SDEEKD26.0-T1 | Fox晶振 | FC4SD | 26 MHz | ±20ppm | ±20ppm | 16 pF |
| FC4SDHCMM25.0-T1 | Fox晶振 | FC4SD | 25 MHz | ±30ppm | ±10ppm | 20 pF |
| FC4SDHHUE44.545-1-T1 | Fox晶振 | FC4SD | 44.545 MHz | ±10ppm | ±10ppm | 13 pF |
