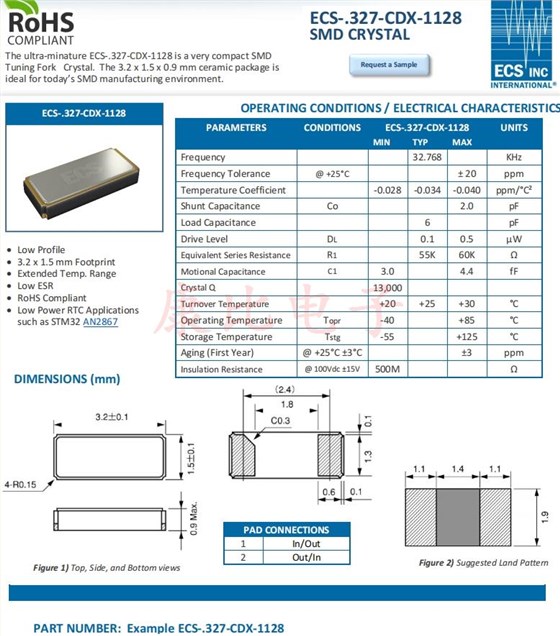

32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶體，尺寸為3215mm,頻率為32.768KHZ,工作溫度為-40°C~+85°C，ECS晶振，美國伊西斯晶振，歐美進口晶振，32.768KHZ晶振，SMD晶體，音叉晶體，3215mm貼片晶體，貼片無源晶振，石英晶體諧振器，石英晶體，時鐘應用晶振，無線設備晶振，藍牙音響晶振，高性能晶振。

PARAMETERS	CONDITIONS	ECS-.327-CDX-1128			UNITS
		MIN	TYP	MAX
Frequency			32.768		KHz
Frequency Tolerance	@ +25°C			± 20	ppm
Temperature Coefficient		--0.028	--0.034	--0.040	ppm/°C²
Shunt Capacitance	Co			2.0	pF
Load Capacitance			6		pF
Drive Level	DL		0.1	0.5	μW
Equivalent Series Resistance	R1		55K	60K	Ω

Motional Capacitance	C1	3.0		4.4	fF
Crystal Q		13,000
Turnover Temperature		+20	+25	+30	°C
Operating Temperature	Topr	--40		+85	°C
Storage Temperature	Tstg	--55		+125	°C
Aging (First Year)	@ +25°C ±3°C			±3	ppm
Insulation Resistance	@ 100Vdc ±15V	500M			Ω

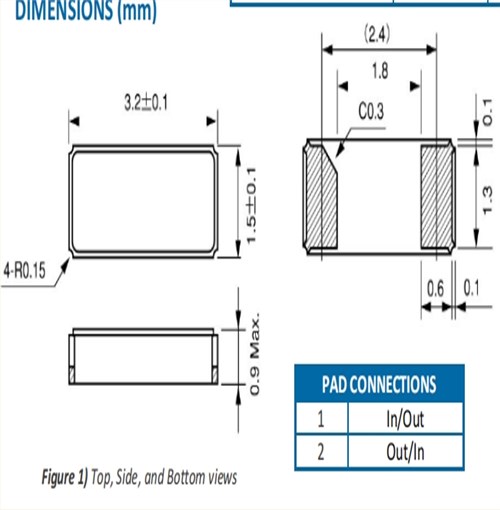

32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶體尺寸圖

ECS-.327-CDX-1128 特點：

•低調

•3.2 x 1.5毫米的足跡

•延長溫度范圍

•低ESR
•符合RoHS標準
•低功耗RTC應用
如STM32 AN2867

更多相關美國ECS晶振型號

原廠編碼	廠家	型號	頻率	工作溫度
ECS-.327-CDX-1128	ECS晶振	ECS-CDX	32.768kHz	-40°C ~ 85°C
ECS-.327-12.5-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-.327-7-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-.327-6-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-.327-9-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-240-8-47-JTN-TR	ECS晶振	ECX-1247	24MHz	-40°C ~ 85°C
ECS-260-8-47-JTN-TR	ECS晶振	ECX-1247	26MHz	-40°C ~ 85°C
ECS-360-8-47-JTN-TR	ECS晶振	ECX-1247	36MHz	-40°C ~ 85°C
ECS-480-8-47-JTN-TR	ECS晶振	ECX-1247	48MHz	-40°C ~ 85°C
ECS-320-8-47-JTN-TR	ECS晶振	ECX-1247	32MHz	-40°C ~ 85°C
ECS-400-8-47-JTN-TR	ECS晶振	ECX-1247	40MHz	-40°C ~ 85°C
ECS-.327-CDX-1293	ECS晶振	ECS-CDX	32.768kHz	-40°C ~ 85°C
ECS-240-8-48-CKY-TR	ECS晶振	ECX-1048	24MHz	-30°C ~ 85°C
ECS-260-8-48-CKY-TR	ECS晶振	ECX-1048	26MHz	-30°C ~ 85°C
ECS-374-8-48-CKY-TR	ECS晶振	ECX-1048	37.4MHz	-30°C ~ 85°C
ECS-384-8-48-CKY-TR	ECS晶振	ECX-1048	38.4MHz	-30°C ~ 85°C
ECS-400-8-48-CKY-TR	ECS晶振	ECX-1048	40MHz	-30°C ~ 85°C
ECS-480-8-48-CKY-TR	ECS晶振	ECX-1048	48MHz	-30°C ~ 85°C
ECS-520-8-48-CKY-TR	ECS晶振	ECX-1048	52MHz	-30°C ~ 85°C
ECS-240-8-48-RTN-TR	ECS晶振	ECX-1048	24MHz	-40°C ~ 85°C
ECS-260-8-48-RTN-TR	ECS晶振	ECX-1048	26MHz	-40°C ~ 85°C
ECS-374-8-48-RTN-TR	ECS晶振	ECX-1048	37.4MHz	-40°C ~ 85°C
ECS-384-8-48-RTN-TR	ECS晶振	ECX-1048	38.4MHz	-40°C ~ 85°C
ECS-400-8-48-RTN-TR	ECS晶振	ECX-1048	40MHz	-40°C ~ 85°C
ECS-480-8-48-RTN-TR	ECS晶振	ECX-1048	48MHz	-40°C ~ 85°C
ECS-520-8-48-RTN-TR	ECS晶振	ECX-1048	52MHz	-40°C ~ 85°C
