M12531JM12 12.000000,12MHz,3225mm,MtronPTI藍牙應用晶振，美國進口晶振，麥特倫皮晶振，MtronPTI晶振，型號：M1253系列晶振，產品編碼為：M12531JM12 12.000000，頻率：12 MHz，頻率穩定性：±50ppm，頻率容差：±30ppm，負載電容：12pF，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，石英晶振，石英晶體諧振器，無源晶振，3225晶振，SMD晶振，具有超小型，輕薄型，高品質晶振，耐熱及耐環境特點。應用于：無線藍牙晶振，汽車電子晶振，安防設備晶振，儀器儀表晶振，智能家居等應用。

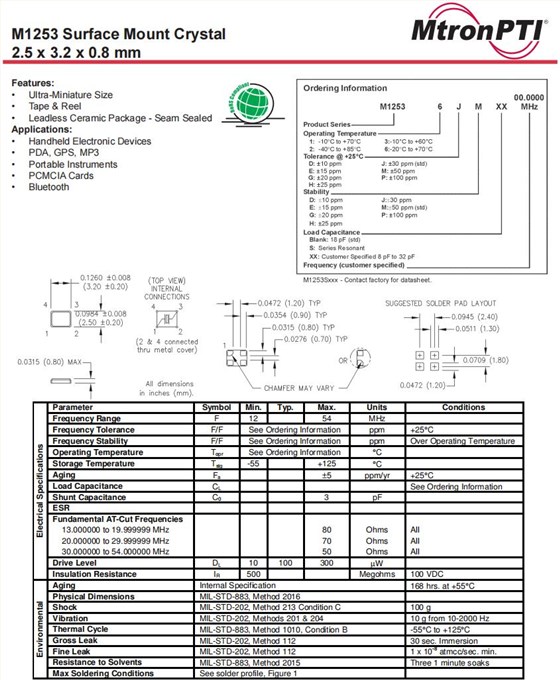

M12531JM12 12.000000,12MHz,3225mm,MtronPTI藍牙應用晶振,參數表

Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Frequency Range	F			12	MHz
Frequency Tolerance	F/F	See Ordering Information			ppm	+25℃
Frequency Stability	F/F	See Ordering Information			ppm	Over Operating Temperature
Operating Temperature	Topr	See Ordering Information			℃
Storage Temperature	Tstg	-55		+125	℃
Aging	Fa			±5	ppm/yr	+25℃
Load Capacitance	CL					See Ordering Information
Shunt Capacitance	C0			3	pF
ESR
Fundamental AT-Cut Frequencies 13.000000 to 19.999999 MHz 20.000000 to 29.999999 MHz 30.000000 to 54.000000 MHz				80 70 50	Ohms Ohms Ohms	All All All
Drive Level	DL	10	100	300	μW
Insulation Resistance	IR	500			Megohms	100 VDC
Aging	Internal Specification					168 hrs. at +55℃
Physical Dimensions	MIL-STD-883, Method 2016
Shock	MIL-STD-202, Method 213 Condition C					100 g
Vibration	MIL-STD-202, Methods 201 & 204					10 g from 10-2000 Hz
Thermal Cycle	MIL-STD-883, Method 1010, Condition B					-55℃to +125℃
Gross Leak	MIL-STD-202, Method 112					30 sec. Immersion
Fine Leak	MIL-STD-202, Method 112					1 x 10-8atmcc/sec. min.
Resistance to Solvents	MIL-STD-883, Method 2015					Three 1 minute soaks
Max Soldering Conditions	See solder profile, Figure 1

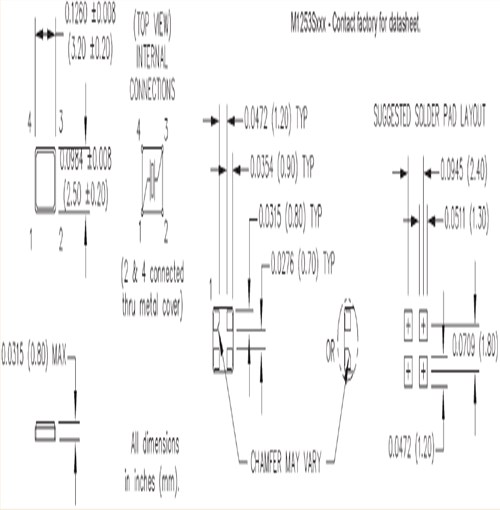

M12531JM12 12.000000,12MHz,3225mm,MtronPTI藍牙應用晶振,尺寸圖

進口晶振	型號	頻率	包裝	頻率穩定性	頻率容差
M12531DD 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12531DD20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12531JJ12 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12531JM12 12.000000	M1253	12MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531JM12 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531JM20 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531MM16 30.000000	M1253	30MHz	2.5 x 3.2 mm	±50 ppm	±50 ppm
M12532DE09 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M12532DG 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG12 19.200000	M1253	19.2MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG13 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG15 20.000000	M1253	20MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 25.000000	M1253	15.36MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG22 30.000000	M1253	30MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532GG 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M12532GG 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M12532GJ 24.000000	M1253	24MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12532GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12532HH 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 16.000000	M1253	16MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 27.000000	M1253	27MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
