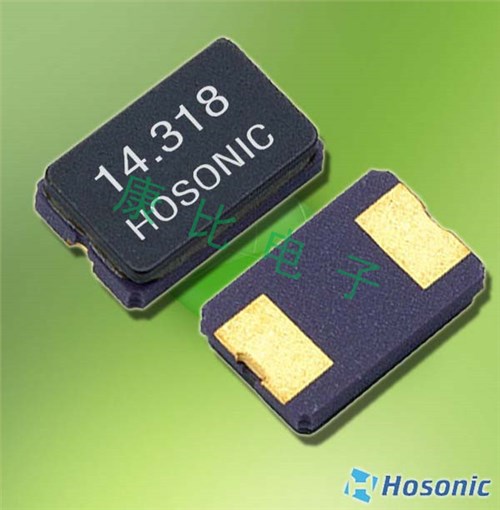

Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振，尺寸5.0x3.2mm，頻率8MHZ，臺灣鴻星晶振，鴻星貼片晶振，兩腳無源晶體，貼片無源晶振，5032mm無源晶振，SMD晶振，陶瓷晶振，8MHZ無源晶振，水晶振動子，綠色環保晶振，高精度晶振，高性能晶振，低功耗晶振，低成本晶振，儀器儀表晶振，智能手機，藍牙音響專用晶振，智能家居晶振，無線設備晶振，6G電信晶振，具有輕薄型低功耗的特點。

該無源晶體器件為DIP型晶體設計的主要解決方案，常常應用于藍牙音響，智能家居，無線設備，6G電信，儀器儀表，智能手機等領域。Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振.

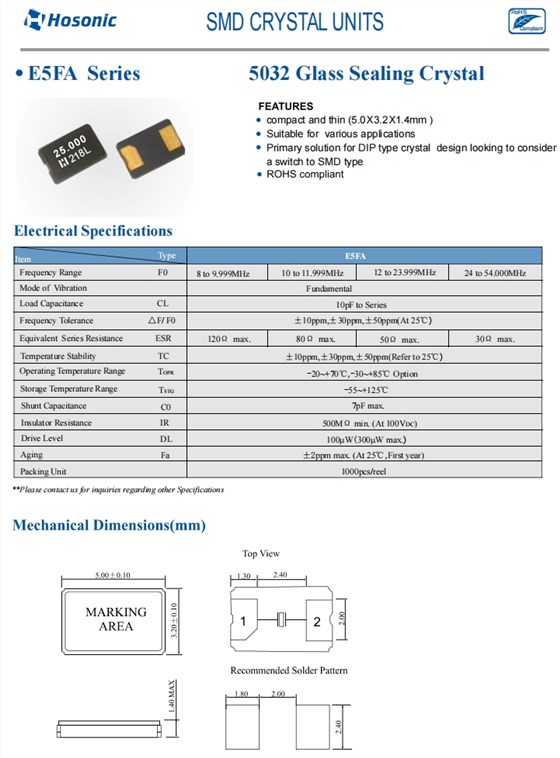

Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振 參數表

Item Frequency Range	Type F0	E5FA
		8 MHz	10 to 11.999MHz	12 to 23.999MHz	24 to 54.000MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	10pF to Series
Frequency Tolerance	ΔF/ F0	±10ppm,±30ppm,±50ppm(At 25℃)
EquivalentSeries Resistance	ESR	120Ωmax.	80Ωmax.	50Ωmax.	30Ωmax.
Temperature Stability	TC	±10ppm,±30ppm,±50ppm(Refer to 25℃)
Operating Temperature Range	TOPR	-20~+70℃,-30~+85℃Option
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	7pF max.
Insulator Resistance	IR	500MΩmin. (At 100VDC)
Drive Level	DL	100μW(300μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		1000pcs/reel

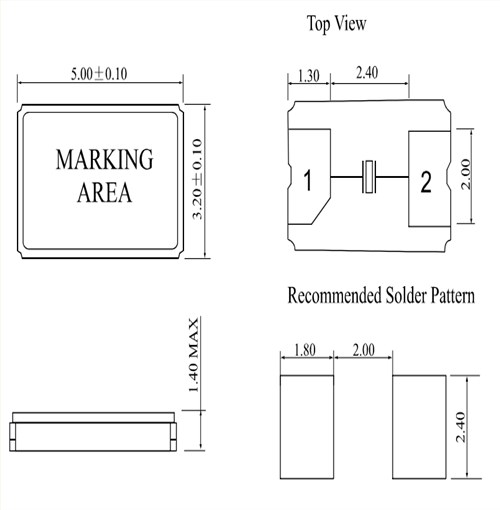

Hosonic無源晶振,E5FA8E000000DE,E5FA高精度晶振,6G電信晶振 尺寸圖

陶瓷晶振產品特征:

緊湊和薄（5.0X3.2X1.4mm）適用于各種應用，

為DIP型晶體設計的主要解決方案，

希望考慮轉換到SMD類型

符合RoHS

更多相關Hosonic鴻星晶振型號

臺產晶振	Supplier	Series	Frequency	Frequency Stability穩定度	Frequency Tolerance	Load Capacitance
E2SB40E000104ECBB8	Hosonic鴻星晶振	E2SB	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鴻星晶振	E2SB	38.4 MHz	±10ppm	±10ppm	8pF
E2SB40E000107E	Hosonic鴻星晶振	E2SB	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鴻星晶振	E2SB	40 MHz	±10ppm	±7ppm	7pF
E1SB24E00001EE	Hosonic鴻星晶振	E1S	24 MHz	±30ppm	±30ppm	18pF
E1SB26E007902E	Hosonic鴻星晶振	E1SB	26 MHz	±15ppm	±10ppm	9pF
E1SB60E003701E	Hosonic鴻星晶振	E1S	60 MHz	±20ppm	±10ppm	9pF
E1SB55E0X0002E	Hosonic鴻星晶振	E1SB	55.2 MHz	±10ppm	±10ppm	10pF
E2SB27E0X0000E	Hosonic鴻星晶振	E2SB	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鴻星晶振	E2SB	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鴻星晶振	E2SB	40 MHz	±15ppm	±7ppm	6pF
E1SB24E000007E	Hosonic鴻星晶振	E1SB	24 MHz	±10ppm	±10ppm	10pF
E1SB25E000009E	Hosonic鴻星晶振	E1S	25 MHz	±30ppm	±30ppm	6pF
E1SB24E004000E	Hosonic鴻星晶振	E1S	24 MHz	±10ppm	±10ppm	18pF
E1SB38E0X0001E	Hosonic鴻星晶振	E1S	38.4 MHz	±10ppm	±10ppm	10pF
E1SB39E000000E	Hosonic鴻星晶振	E1SB	39 MHz	±13ppm	±8ppm	10pF
E1SB40E00090AECBB8	Hosonic鴻星晶振	E1S	40 MHz	±20ppm	±10ppm	12pF
E1SB48E000506E	Hosonic鴻星晶振	E1S	48 MHz	±16ppm	±8ppm	11.1pF
E1SB25E001000E	Hosonic鴻星晶振	E1S	25 MHz	±30ppm	±30ppm	18pF
E1SB32E007900E	Hosonic鴻星晶振	E1SB	32 MHz	±15ppm	±10ppm	10pF
E1SB32E001502E	Hosonic鴻星晶振	E1SB	32 MHz	±20ppm	±10ppm	12pF
E2SB12E000005E	Hosonic鴻星晶振	E2SB	12 MHz	±20ppm	±20ppm	12pF
E1SB37E0X0002E	Hosonic鴻星晶振	E1S	37.4 MHz	±10ppm	±10ppm	16pF
E1SB32E001501ECBB8	Hosonic鴻星晶振	E1S	32 MHz	±10ppm	±10ppm	9pF
E1SB16E000004E	Hosonic鴻星晶振	E1SB	16 MHz	±10ppm	±10ppm	8pF
E2SB16E00000ME	Hosonic鴻星晶振	E2SB	16 MHz	±30ppm	±30ppm	12pF
E2SB26E001201E	Hosonic鴻星晶振	E2SB	26 MHz	±13ppm	±5ppm	9pF
E2SB32E001201E	Hosonic鴻星晶振	E2SB	32 MHz	±10ppm	±10ppm	12pF
E1SB40E001202E	Hosonic鴻星晶振	E1SB	40 MHz	±17ppm	±10ppm	8pF
E2SB32E00000LE	Hosonic鴻星晶振	E2SB	32MHz	±10ppm		9pF
E5FA8E000000DE	Hosonic鴻星晶振	E5FA	8MHz	±20ppm		20pF
E1SB24E000901E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		12PF
E1SB24E000009E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		12PF
E1SB32E000016E	Hosonic鴻星晶振	E1SB	32MHz	±10ppm		9pF
E5SB8E0000000E	Hosonic鴻星晶振	E5SB	8MHz	±10ppm		10pF
E5SB8E0000015E10C0	Hosonic鴻星晶振	E5SB	8MHz			10pF
E2SB37E0X0002E	Hosonic鴻星晶振	E2SB	37.4MHz	±10ppm		10pF
E1SB27E00000FE	Hosonic鴻星晶振	E1SB	27MHz	±10ppm		10pF
E2SB24E000016E	Hosonic鴻星晶振	E2SB	24MHz	±10ppm		20pF
E2SB54E000000E	Hosonic鴻星晶振	E2SB	54MHz	±10ppm		10pF
E2SB48E000009E	Hosonic鴻星晶振	E2SB	48MHz	±10ppm		12pF
E2SB50E00000EE	Hosonic鴻星晶振	E2SB	50MHz	±14ppm		19pF
E1SB40E000000E	Hosonic鴻星晶振	E1SB	40MHz	±10ppm		8pF
E2SB37E0X0004E	Hosonic鴻星晶振	E2SB	37.4MHz	±10ppm		12pF
E1SB48E00001JE	Hosonic鴻星晶振	E1SB	48MHz	±10ppm		15pF
E2SB40E000007E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		10pF
E1SB26E000006E	Hosonic鴻星晶振	E1SB	26MHz	±10ppm		16pF
E2SB40E000003E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		8pF
E1SB24E000012E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		9pF
E2SB24E00001NE	Hosonic鴻星晶振	E2SB	24MHz	±15ppm		16pF
E2SB40E00000RE	Hosonic鴻星晶振	E2SB	40MHz	±30ppm		20pF
E1SB50E000000E	Hosonic鴻星晶振	E1SB	50MHz	±15ppm		7pF
E1SB24E00000EE	Hosonic鴻星晶振	E1SB	24MHz	±20ppm		20pF
E2SB38E0X0007E	Hosonic鴻星晶振	E2SB	38.400MHz	±10ppm		10pF
E2SB54E000009E	Hosonic鴻星晶振	E2SB	54MHz	±5ppm		19pF
E2SB26E00000GE	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		16pF
E1SB26E00000PE	Hosonic鴻星晶振	E1SB	26MHz	±15ppm		12pF
E2SB26E000007E	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		9pF
E1SB40E000007E	Hosonic鴻星晶振	E1SB	40.000MHz	±10ppm		15pF
E2SB40E000006E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		10pF
E1SB16E00000PE	Hosonic鴻星晶振	E1SB	16MHz	±10ppm		16pF
E2SB40E00000EE	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		15pF
E1SB27E0X0005E	Hosonic鴻星晶振	E1SB	27.12MHz	±10ppm		10pF
E2SB26E00000DE	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		12pF
E1SB26E00000SE	Hosonic鴻星晶振	E1SB	26MHz	±10ppm		9pF
E2SB50E00000CE	Hosonic鴻星晶振	E2SB	50MHz	±10ppm		8pF
E1SB24E00000XE	Hosonic鴻星晶振	E1SB	24MHz	±10ppm		16pF
E2SB48E000004E	Hosonic鴻星晶振	E2SB	48MHz	±10ppm		10pF
E2SB16E000014E	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		16pF
E2SB40E000009E	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		12pF
E1SB37E0X0009E	Hosonic鴻星晶振	E1SB	37.4MHz	±10ppm		12pF
E1SB40E00000CE	Hosonic鴻星晶振	E1SB	40MHz	±10ppm		10pF
E2SB26E000005E	Hosonic鴻星晶振	E2SB	26.000MHz	±10ppm		9PF
E2SB12E00000CE	Hosonic鴻星晶振	E2SB	12MHz	±20ppm		18pF
E1SB32E00000AE	Hosonic鴻星晶振	E1SB	32MHz	±15ppm		10pF
E2SB16E000007E	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		10pF
E1SB50E00000DE	Hosonic鴻星晶振	E1SB	50MHz	±10ppm		15pF
E1SB38E0X000EE	Hosonic鴻星晶振	E1SB	38.4MHz	±8ppm		12pF
E1SB40E00000AE	Hosonic鴻星晶振	E1SB	40MHz	±10ppm		12pF
E2SB16E00000VE	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		12pF
E1SB24E000011E	Hosonic鴻星晶振	E1SB	24.000MHz	±10ppm		8pF
E2SB27E00000KE	Hosonic鴻星晶振	E2SB	27MHz	±10ppm		10pF
E2SB40E00000WE	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		9pF
E2SB16E000003E	Hosonic鴻星晶振	E2SB	16MHz	±10ppm		9pF
E1SB25E00000NE	Hosonic鴻星晶振	E1SB	25MHz	±10ppm		12pF
E1SB16E000008E	Hosonic鴻星晶振	E1SB	16MHz	±10ppm		12pF
E2SB27E00000EE	Hosonic鴻星晶振	E2SB	27.000MHz	±10ppm		20pF
E2SB32E000018E	Hosonic鴻星晶振	E2SB	32MHz	±10ppm		10pF
E1SB24E00000PE	Hosonic鴻星晶振	E1SB	24.000MHZ	±30ppm		16pF
E2SB26E000103E	Hosonic鴻星晶振	E2SB	26MHz	±10ppm		7.5pF
E2SB40E00000JE	Hosonic鴻星晶振	E2SB	40MHz	±10ppm		12pF
E2SB12E000014E	Hosonic鴻星晶振	E2SB	12MHz	±10ppm		20pF
E1SB16E000005E	Hosonic鴻星晶振	E1SB	16MHz	±10ppm		10pF
E1SB32E00000WE	Hosonic鴻星晶振	E1SB	32MHZ	±10ppm		8pF
E2SB38E0X000HE	Hosonic鴻星晶振	E2SB	38.4MHz	±10ppm		12pF
