TZ1510A,TST音叉晶體,3215mm無源晶振,32.768KHZ計時器晶振,臺灣貼片晶振,TST CRYSTAL,嘉碩SMD晶振,32.768KHZ時鐘晶振,3215mm輕薄型晶體,無源貼片晶振,無源晶振,音叉晶體,尺寸3.2x1.5mm,頻率32.768KHZ,負載9pF,低功耗晶振,低耗能晶振,無鉛環保晶振,高可靠晶振,計時器晶振,游戲設備晶振,智能電表晶振,數字顯示晶振.
TZ1510A,TST音叉晶體,3215mm無源晶振,32.768KHZ計時器晶振特點:
陶瓷接縫封裝SMD晶振
卓越的可靠性性能
超微型封裝
可用于表面安裝技術和紅外回流工藝

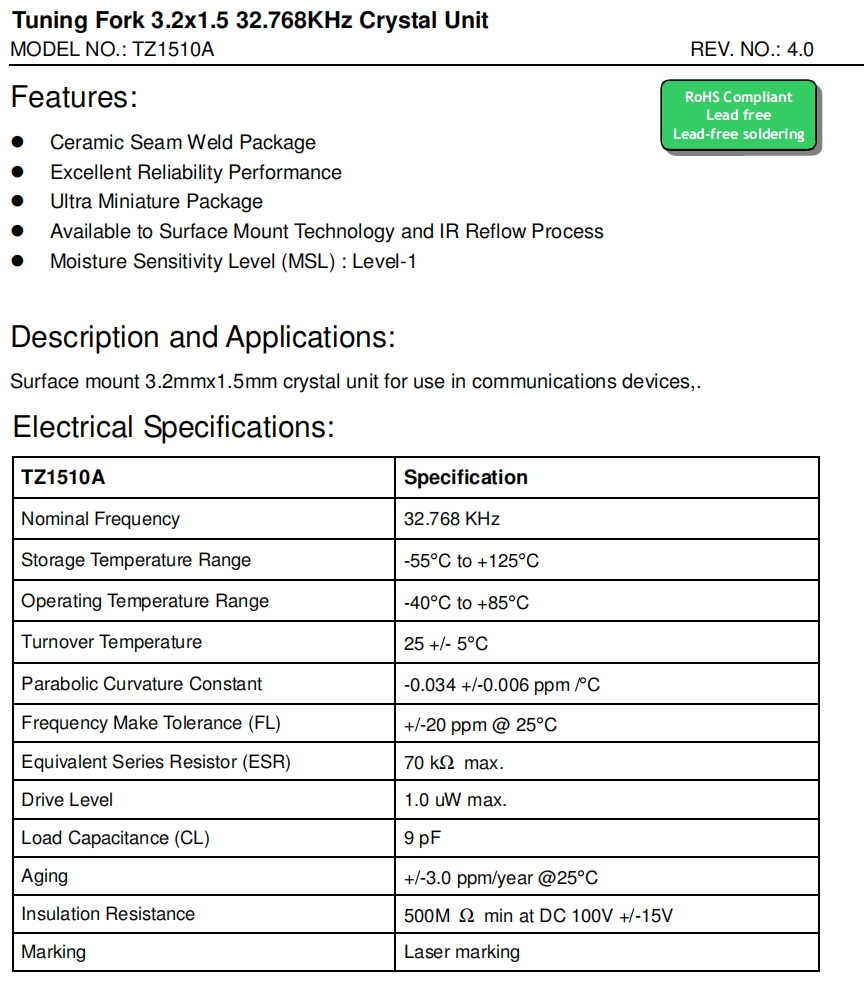

TZ1510A,TST音叉晶體,3215mm無源晶振,32.768KHZ計時器晶振 參數表
        TZ1510A
|
Specification |
| NominalFrequency | 32.768000KHz |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -40°Cto+85°C |
| Turnover Temperature | 25+/-5°C |
| Parabolic CurvatureConstant | -0.034 ppm+/-0.006ppm/°C |
| FrequencyMakeTolerance(FL) | +/-20 ppm@25°C+/-3°C |
| EquivalentSeriesResistor(ESR) | 70KΩmax. |
| ShuntCapacitance(Co) | 1.0 pF Max. |
| LoadCapacitance(CL) | 9pF |
| Aging | +/-3.0ppm/year@25°C |
| InsulationResistance | 500MΩmin atDC100V +/-15V |

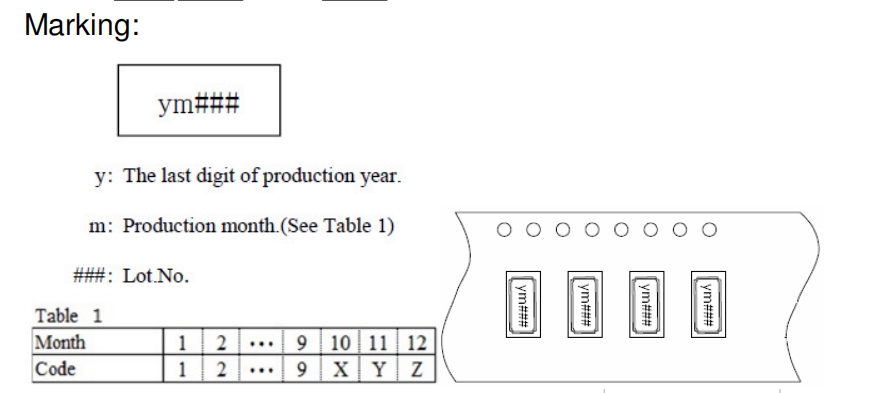

| Marking | Lasermarking |

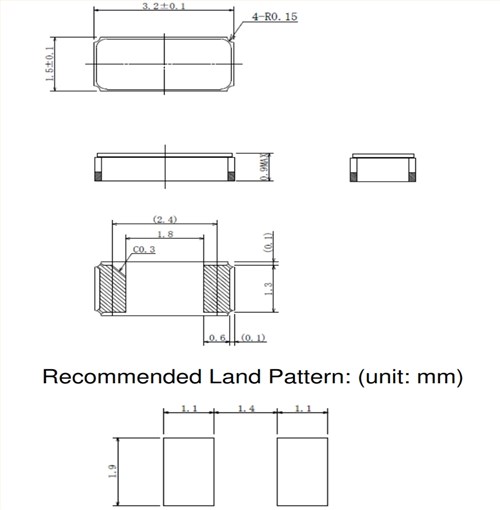

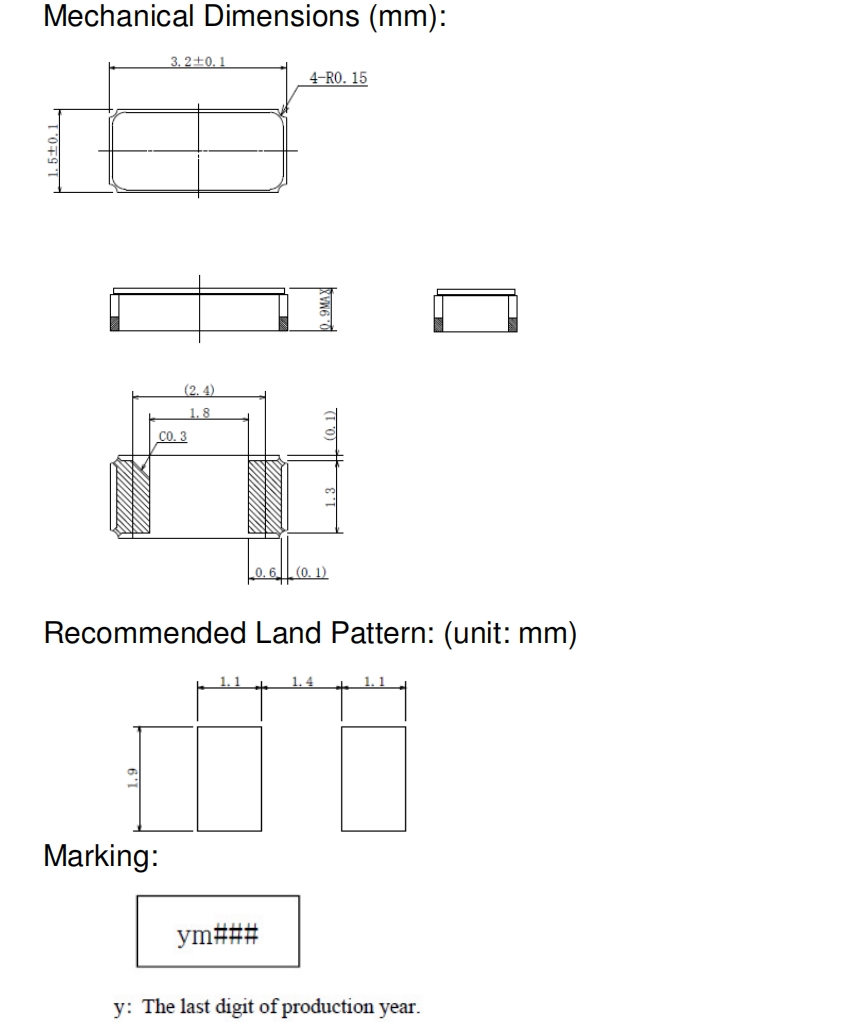

TZ1510A,TST音叉晶體,3215mm無源晶振,32.768KHZ計時器晶振 尺寸圖
