CE3390-24.000,24MHz,7050mm,Crystek以太網應用晶振，美國CRYSTEK晶振，瑞斯克晶振，型號：C33xx系列晶振，編碼為：CE3390-24.000，頻率：24 MHz，頻率穩定性：±100ppm，工作溫度范圍：-40℃至+85℃，電壓：3.3V，小體積晶振尺寸：7.0x5.0mm封裝，四腳貼片晶振，石英晶體振蕩器，HCMOS時鐘振蕩器，石英晶振，SMD晶振。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境等特點。應用于：通訊設備，數字視頻，導航儀晶振，羅拉模塊晶振，寬帶接入，以太網，網絡設備晶振等應用。

進口晶振CRYSTEK瑞斯克晶振，型號C33xx系列是一個1.544 MHz到156.250MHz的HCMOS時鐘振蕩器，工作電壓3.3V。該振蕩器利用基本或高Q第三Q，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。

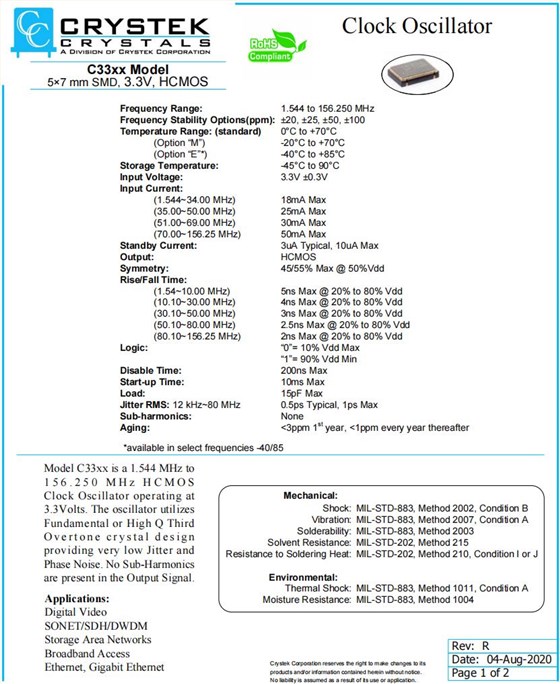

CE3390-24.000,24MHz,7050mm,Crystek以太網應用晶振,參數表

Frequency Range:	24 MHz
Frequency Stability Options(ppm):	±20, ±25, ±50, ±100
Temperature Range: (standard)	0°C to +70°C
(Option “M”)	-20°C to +70°C
(Option “E”*)	-40°C to +85°C
Storage Temperature:	-45°C to 90°C
Input Voltage:	3.3V ±0.3V
Input Current:
(1.544~34.00 MHz)	18mA Max
(35.00~50.00 MHz)	25mA Max
(51.00~69.00 MHz)	30mA Max
(70.00~156.25 MHz)	50mA Max
Standby Current:	3uA Typical, 10uA Max
Output:	HCMOS
Symmetry:	45/55% Max @ 50%Vdd
Rise/Fall Time:
(1.54~10.00 MHz)	5ns Max @ 20% to 80% Vdd
(10.10~30.00 MHz)	4ns Max @ 20% to 80% Vdd
(30.10~50.00 MHz)	3ns Max @ 20% to 80% Vdd
(50.10~80.00 MHz)	2.5ns Max @ 20% to 80% Vdd
(80.10~156.25 MHz)	2ns Max @ 20% to 80% Vdd
Logic:	“0”= 10% Vdd Max
	“1”= 90% Vdd Min
Disable Time:	200ns Max
Start-up Time:	10ms Max
Load:	15pF Max
Jitter RMS: 12 kHz~80 MHz	0.5ps Typical, 1ps Max
Sub-harmonics:	None
Aging:	<3ppm 1styear, <1ppm every year thereafter

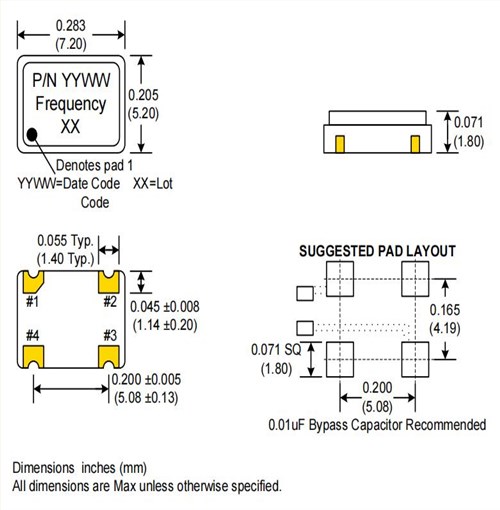

CE3390-24.000,24MHz,7050mm,Crystek以太網應用晶振,尺寸圖

原廠代碼	品牌	型號	類型	頻率	頻率穩定度
CE3390-1.544	Crystek晶振	C33	XO (Standard)	1.544MHz	±100ppm
CE3390-1.843200	Crystek晶振	C33	XO (Standard)	1.8432MHz	±100ppm
CE3390-10.000	Crystek晶振	C33	XO (Standard)	10MHz	±100ppm
CE3390-12.000	Crystek晶振	C33	XO (Standard)	12MHz	±100ppm
CE3390-12.288	Crystek晶振	C33	XO (Standard)	12.288MHz	±100ppm
CE3390-12.352	Crystek晶振	C33	XO (Standard)	12.352MHz	±100ppm
CE3390-14.318180	7050貼片晶振	C33	XO (Standard)	14.31818MHz	±100ppm
CE3390-15.360	Crystek晶振	C33	XO (Standard)	15.36MHz	±100ppm
CE3390-16.000	Crystek晶振	C33	XO (Standard)	16MHz	±100ppm
CE3390-16.384	Crystek晶振	C33	XO (Standard)	16.384MHz	±100ppm
CE3390-18.432	Crystek晶振	C33	XO (Standard)	18.432MHz	±100ppm
CE3390-19.440	Crystek晶振	C33	XO (Standard)	19.44MHz	±100ppm
CE3390-2.048	Crystek晶振	C33	XO (Standard)	2.048MHz	±100ppm
CE3390-20.000	Crystek晶振	C33	XO (Standard)	20MHz	±100ppm
CE3390-20.480	Crystek晶振	C33	XO (Standard)	20.48MHz	±100ppm
CE3390-24.000	Crystek晶振	C33	XO (Standard)	24MHz	±100ppm
CE3390-24.704	Crystek晶振	C33	XO (Standard)	24.704MHz	±100ppm
CE3390-25.000	Crystek晶振	C33	XO (Standard)	25MHz	±100ppm
CE3390-3.686400	Crystek晶振	C33	XO (Standard)	3.6864MHz	±100ppm
CE3390-30.000	Crystek晶振	C33	XO (Standard)	30MHz	±100ppm
CE3390-32.000	Crystek晶振	C33	XO (Standard)	32MHz	±100ppm
CE3390-32.768	Crystek晶振	C33	XO (Standard)	32.768MHz	±100ppm
CE3390-33.000	Crystek晶振	C33	XO (Standard)	33MHz	±100ppm
CE3390-33.333	Crystek晶振	C33	XO (Standard)	33.333MHz	±100ppm
CE3390-35.000	Crystek晶振	C33	XO (Standard)	35MHz	±100ppm
CE3390-4.000	Crystek晶振	C33	XO (Standard)	4MHz	±100ppm
