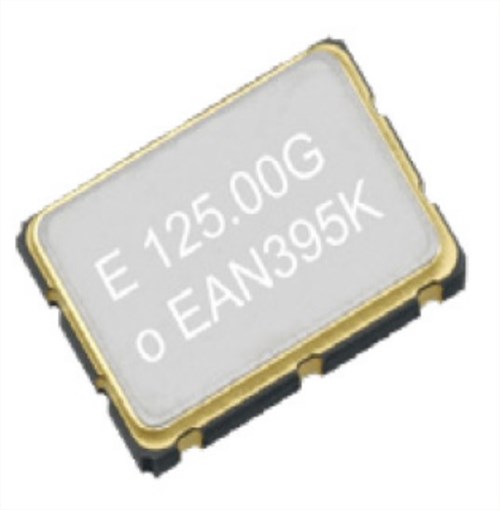

VCXO,X1G004861001200,7050mm,VG7050CDN,148.5MHz,EPSON振蕩器，日本進口晶振，EPSON晶振，愛普生晶振，型號：VG7050CDN，編碼為：X1G004861001200，頻率容差：±50ppm，頻率：148.5 MHz，工作溫度范圍：-40℃至+85℃，電源電壓：3.135V to 3.465V，小體積晶振尺寸：7.0x5.0x1.5mm表面安裝，六腳貼片晶振，CMOS輸出晶振，VCXO壓控晶體振蕩器，壓控晶振，有源晶振，石英晶振，石英晶體振蕩器，7050晶振，SMD晶振。具有超小型晶振，輕薄型晶振，高品質晶振，低抖動晶振，低功耗晶振，低相位噪聲晶振，低電源電壓晶振，低損耗晶振，低耗能等特點。應用于：移動通訊晶振，羅拉模塊晶振，無線藍牙晶振，GPS定位晶振，導航儀晶振，物聯網等應用。

VCXO,X1G004861001200,7050mm,VG7050CDN,148.5MHz,EPSON振蕩器，產品特點：

•頻率范圍：85MHz至170MHz
•電源電壓：3.3V石英晶振
•絕對拉力范圍：±50×10-6分鐘。
•外部尺寸：7.0×5.0×1.5 mm（t:Typ.）
•工作溫度：+85°C/+105°C
•功能：輸出啟用（OE）
•輸出：CMOS

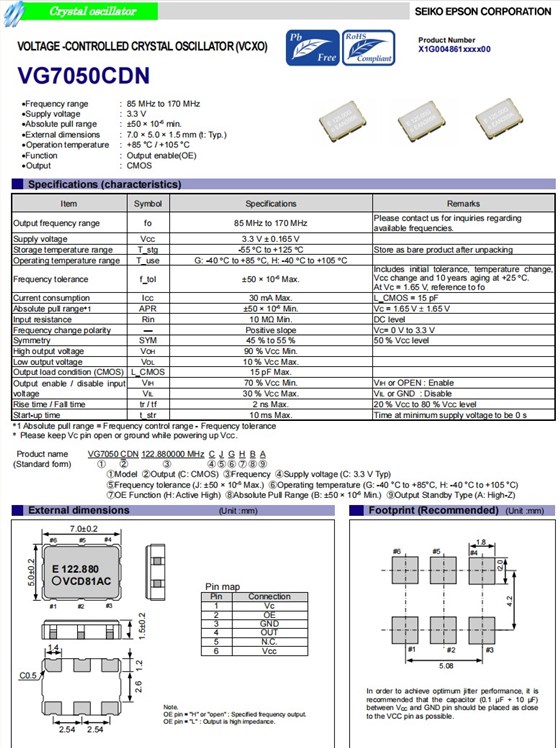

VCXO,X1G004861001200,7050mm,VG7050CDN,148.5MHz,EPSON振蕩器,參數表

Item

Symbol

Specifications

Remarks

Output frequency range

148.5 MHz

Please contact us for inquiries regarding
available frequencies.

Supply voltage

VCC

3.3 V ± 0.165 V

Storage temperature range

T_stg

-55 °C to +125 °C

Store as bare product after unpacking

Operating temperature range

T_use

G: -40 °C to +85 °C, H: -40 °C to +105 °C

Frequency tolerance

f_tol

±50 × 10-6Max.

Includesinitialtolerance,temperaturechange,
Vcc change and 10 years aging at +25 °C.
At Vc = 1.65 V, reference to fo

Current consumption

ICC

30 mA Max.

L_CMOS = 15 pF

Absolute pull range*1

APR

±50 × 10-6Min.

VC= 1.65 V ± 1.65 V

Input resistance

Rin

10 MΩ Min.

DC level

Frequency change polarity

Positive slope

VC= 0 V to 3.3 V

Symmetry

SYM

45 % to 55 %

50 % VCClevel

High output voltage

VOH

90 % VCCMin.

Low output voltage

VOL

10 % VCCMax.

Output load condition (CMOS)

L_CMOS

15 pF Max.

Output enable / disable input
voltage

VIH

70 % VCCMin.

VIHor OPEN : Enable

VIL

30 % VCCMax.

VILor GND: Disable

Rise time / Fall time

tr / tf

2 ns Max.

20 % VCCto 80 % VCClevel

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

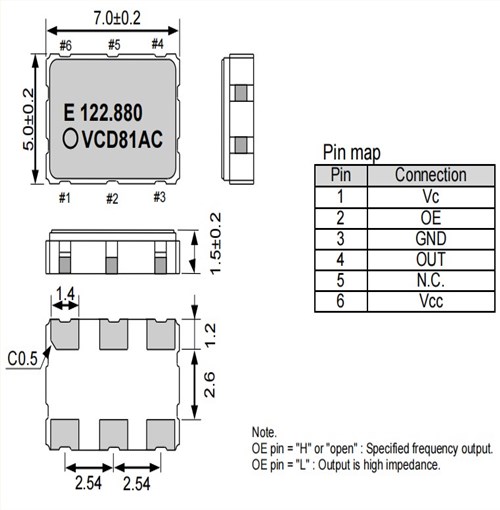

VCXO,X1G004861001200,7050mm,VG7050CDN,148.5MHz,EPSON振蕩器,尺寸圖

編碼	愛普生晶振	型號	頻率	尺寸	輸出
Q3614CE00000600	EPSON愛普生	VG-4231CE	27.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00001100	EPSON愛普生	VG-4231CE	27.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00001200	EPSON愛普生	VG-4231CE	27.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00001300	EPSON愛普生	VG-4231CE	24.576000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00002300	EPSON愛普生	VG-4231CE	24.576000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00002400	EPSON愛普生	VG-4231CE	16.384000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00002700	EPSON愛普生	VG-4231CE	17.734475 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00002900	EPSON愛普生	VG-4231CE	24.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00003100	EPSON愛普生	VG-4231CE	36.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00004100	EPSON愛普生	VG-4231CE	25.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00004300	EPSON愛普生	VG-4231CE	32.768000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00004400	EPSON愛普生	VG-4231CE	25.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00004600	EPSON愛普生	VG-4231CE	12.288000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00006000	EPSON愛普生	VG-4231CE	11.289600 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00006100	EPSON愛普生	VG-4231CE	32.768000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00006200	EPSON愛普生	VG-4231CE	24.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00006600	EPSON愛普生	VG-4231CE	28.636360 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00007100	EPSON愛普生	VG-4231CE	32.768000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00007200	進口晶振	VG-4231CE	12.288000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00008000	EPSON愛普生	VG-4231CE	16.777216 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00008100	EPSON愛普生	VG-4231CE	12.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00008200	EPSON愛普生	VG-4231CE	24.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00008300	EPSON愛普生	VG-4231CE	25.165800 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00009400	EPSON愛普生	VG-4231CE	9.600000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00009500	EPSON愛普生	VG-4231CE	32.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00009700	EPSON愛普生	VG-4231CE	25.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00009800	EPSON愛普生	VG-4231CE	13.560000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
Q3614CE00009900	EPSON愛普生	VG-4231CE	12.000000 MHz	3.20 x 2.50 x 1.05 mm	CMOS
X1G004861000500	EPSON愛普生	VG7050CDN	100.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS
X1G004861000600	EPSON愛普生	VG7050CDN	125.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS
X1G004861000800	EPSON愛普生	VG7050CDN	122.880000 MHz	7.00 x 5.00 x 1.50 mm	CMOS
X1G004861000900	EPSON愛普生	VG7050CDN	153.600000 MHz	7.00 x 5.00 x 1.50 mm	CMOS
X1G004861001000	EPSON愛普生	VG7050CDN	150.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS
X1G004861001100	EPSON愛普生	VG7050CDN	122.880000 MHz	7.00 x 5.00 x 1.50 mm	CMOS
X1G004861001200	EPSON愛普生	VG7050CDN	148.500000 MHz	7.00 x 5.00 x 1.50 mm	CMOS
X1G004861001300	EPSON愛普生	VG7050CDN	148.351648 MHz	7.00 x 5.00 x 1.50 mm	CMOS
