當前位置：首頁 » 日產進口晶振 » 京瓷晶振 » CX3225GB智能家電晶振,Kyocera無源晶體,CX3225GB25000P0HPQZ1

prevnext

CX3225GB智能家電晶振,Kyocera無源晶體,CX3225GB25000P0HPQZ1

頻率：25MHZ

尺寸：3.2x2.5mm

CX3225GB智能家電晶振,Kyocera無源晶體,CX3225GB25000P0HPQZ1，尺寸3.2x2.5mm，頻率25MHZ，日本進口晶振，京瓷陶瓷晶振，四腳貼片晶振，3225mm貼片晶振，無源貼片晶振，無源晶振，SMD晶振，陶瓷諧振器，無鉛環保晶振，陶瓷晶振，輕薄型晶振，水晶振動子，低損耗晶振，低功耗晶振，高質量晶振，高性能晶振，儀器設備晶振，數碼家電晶振，數字視頻晶振，照相機晶振，民生機器專用晶振，網絡設備晶振，無線應用晶振，具有良好的耐壓性能。

貼片晶振產品廣泛應用各個領域之中，比較適用于儀器設備，數碼家電，數字視頻，照相機，民生機器，網絡設備，無線應用等領域。CX3225GB智能家電晶振,Kyocera無源晶體,CX3225GB25000P0HPQZ1.

訂購熱線：0755-27876201

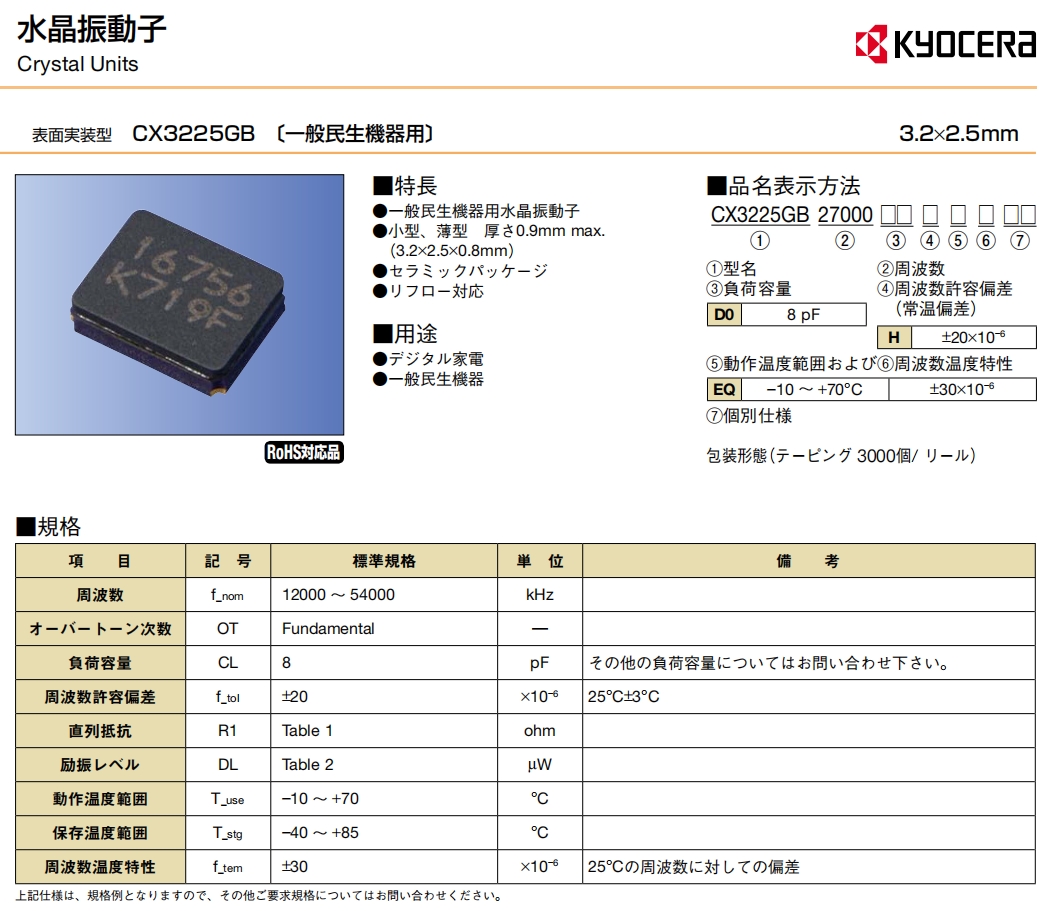

CX3225GB智能家電晶振,Kyocera無源晶體,CX3225GB25000P0HPQZ1 參數表

項目

記號

標準規格

単位

備考

頻率

f_nom

25000

kHz

過音階

Fundamental

―

負荷容量

關于其他的負荷容量請咨詢。

頻率容許偏差

f_tol

±20

× 10−6

25°C±3°C

直列抵抗

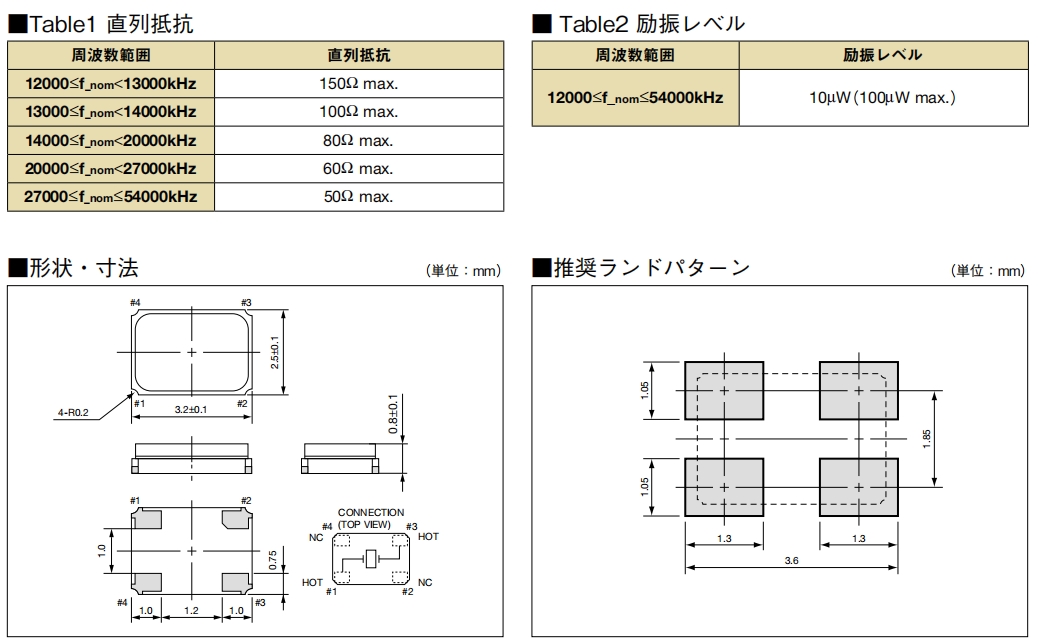

Table 1

ohm

激勵水平

Table 2

工作溫度范圍

T_use

− 10 ~ +70

°C

保持穩定范圍

T_stg

−40 ~ +85

°C

頻率溫度特性

f_tem

±30

× 10−6

相對于25°C頻率的偏差

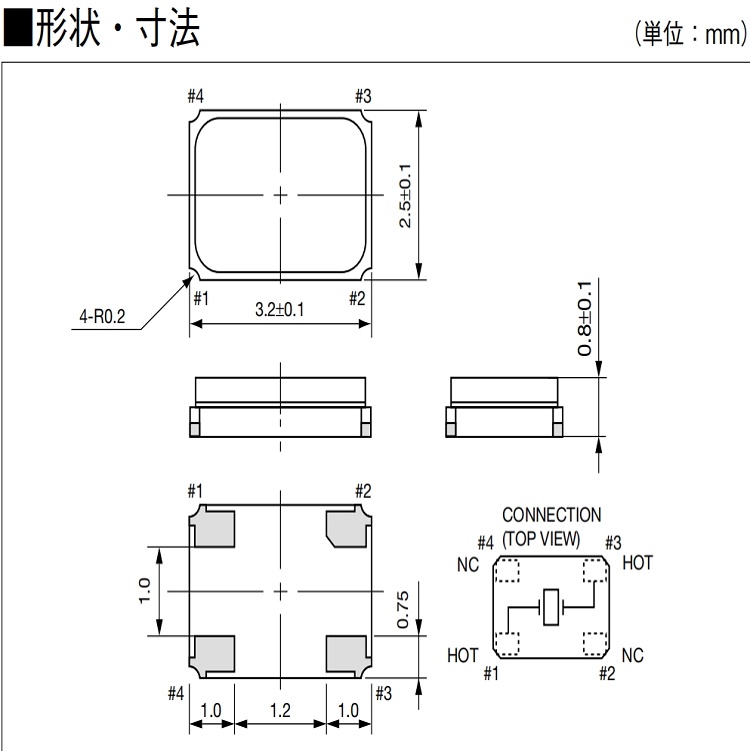

CX3225GB智能家電晶振,Kyocera無源晶體,CX3225GB25000P0HPQZ1 尺寸圖

CX3225GB智能家電晶振,Kyocera無源晶體,CX3225GB25000P0HPQZ1

無源晶體產品特性：

一般民用機器用水晶振子

小型、薄型厚度0.9mm max。

（3.2×2.5×0.8mm）

陶瓷包裝

支持回流

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency	Operating Temperature 工作溫度
CX3225GB48000D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX3225GB13560D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX3225GB13560D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 85°C
CX3225GB14745D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.7456MHz	-10°C ~ 70°C
CX3225GB14745D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.7456MHz	-40°C ~ 85°C
CX3225GB18432D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	18.432MHz	-10°C ~ 70°C
CX3225GB18432D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	18.432MHz	-40°C ~ 85°C
CX3225GB19200D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	19.2MHz	-10°C ~ 70°C
CX3225GB19200D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	19.2MHz	-40°C ~ 85°C
CX3225GB22579D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	22.5792MHz	-10°C ~ 70°C
CX3225GB22579D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	22.5792MHz	-40°C ~ 85°C
CX3225GB24576D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX3225GB24576D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24.576MHz	-40°C ~ 85°C
CX3225GB30000D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	30MHz	-10°C ~ 70°C
CX3225GB30000D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	30MHz	-40°C ~ 85°C
CX3225GB33333D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	33.333MHz	-10°C ~ 70°C
CX3225GB33333D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	33.333MHz	-40°C ~ 85°C
CX3225GB38400D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	38.4MHz	-10°C ~ 70°C
CX3225GB38400D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX3225GB54000D0HEQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	54MHz	-10°C ~ 70°C
CX3225GB54000D0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	54MHz	-40°C ~ 85°C
CX3225GB36000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	36MHz	-40°C ~ 85°C
CX3225GB27120P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	27.12MHz	-40°C ~ 85°C
CX3225GB48000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX3225GB12000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX3225GB25000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	25MHz	-40°C ~ 85°C
CX3225GB13560P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 85°C
CX3225GB32000P0HPQZ1	KyoceraCrystal	CX3225GB, Kyocera	MHz Crystal	32MHz	-40°C ~ 85°C
CX3225GB30000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	30MHz	-40°C ~ 85°C
CX3225GB54000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	54MHz	-40°C ~ 85°C
CX3225GB24000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24MHz	-40°C ~ 85°C
CX3225GB24576P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	24.576MHz	-40°C ~ 85°C
CX3225GB10000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	10MHz	-40°C ~ 85°C
CX3225GB12288P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	12.288MHz	-40°C ~ 85°C
CX3225GB13000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	13MHz	-40°C ~ 85°C
CX3225GB33333P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	33.333MHz	-40°C ~ 85°C
CX3225GB50000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	50MHz	-40°C ~ 85°C
CX3225GB20000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	20MHz	-40°C ~ 85°C
CX3225GB18432P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	18.432MHz	-40°C ~ 85°C
CX3225GB19200P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	19.2MHz	-40°C ~ 85°C
CX3225GB22579P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	22.5792MHz	-40°C ~ 85°C
CX3225GB38400P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX3225GB14318P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.31818MHz	-40°C ~ 85°C
CX3225GB14745P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	14.7456MHz	-40°C ~ 85°C
CX3225GB16000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CX3225GB40000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	40MHz	-40°C ~ 85°C
CX3225GB16384P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	16.384MHz	-40°C ~ 85°C
CX3225GB27000P0HPQZ1	AVX Corp/Kyocera Corp	CX3225GB, Kyocera	MHz Crystal	27MHz	-40°C ~ 85°C
