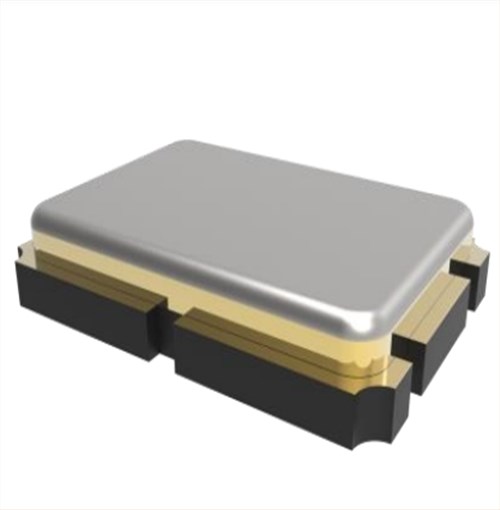

BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振，尺寸7.0×5.0mm，頻率60MHZ，美國百利晶振，歐美進口晶振，進口無源晶振，石英貼片晶振，四腳貼片晶振，石英晶體諧振器，石英水晶振子，無源晶體，石英晶體，SMD貼片晶體，無源貼片晶振，無源石英晶體，輕薄型晶體，綠色環保晶振，高質量晶體，高性能晶振，低損耗晶振，低成本晶振，平板電腦專用晶振，儀器設備晶振，6G通信專用晶振，無線應用專用晶振，智能家電專用晶振，測試測量晶振，小型設備晶振，藍牙音響晶振，具有超高的耐壓性能以及可靠性能。
石英晶振產品很適合用于平板電腦，儀器設備，6G通信，無線應用，智能家電，測試測量，小型設備，藍牙音響等領域。BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振.

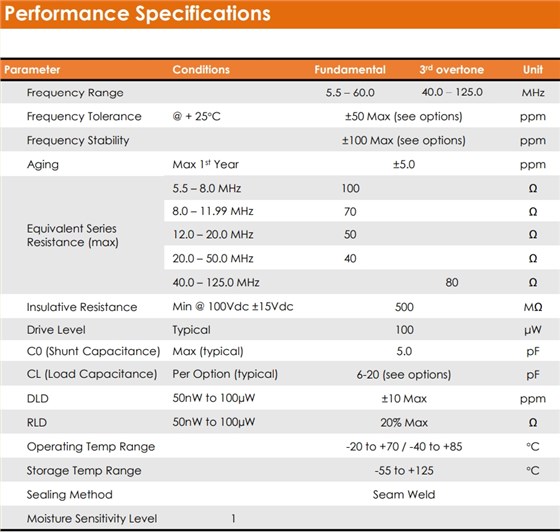

BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振 參數表
| Parameter | ConditionsFundamental3rdovertoneUnit | |||||||||||||||||||
| Frequency Range | 60.0MHz | |||||||||||||||||||
| Frequency Tolerance | @ + 25。C±50 Max (see options)ppm | |||||||||||||||||||
| Frequency Stability | ±100 Max (see options)ppm | |||||||||||||||||||
| Aging | Max 1stYear±5.0ppm | |||||||||||||||||||
|
Equivalent Series Resistance (max) |
5.5 – 8.0 MHz100Ω | |||||||||||||||||||
| 8.0 – 11.99 MHz70Ω | ||||||||||||||||||||
| 12.0 – 20.0 MHz50Ω | ||||||||||||||||||||
| 20.0 – 50.0 MHz40Ω | ||||||||||||||||||||
| 40.0 – 125.0 MHz80Ω | ||||||||||||||||||||
| Insulative Resistance | Min @ 100Vdc ±15Vdc500MΩ | |||||||||||||||||||
| Drive Level | Typical100μW | |||||||||||||||||||
| C0 (Shunt Capacitance) | Max (typical)5.0pF | |||||||||||||||||||
| CL (Load Capacitance) | Per Option (typical)6-20 (see options)pF | |||||||||||||||||||
| DLD | 50nW to 100µW±10 Maxppm | |||||||||||||||||||
| RLD | 50nW to 100µW20% MaxΩ | |||||||||||||||||||
| Operating Temp Range | -20 to +70 / -40 to +85。C | |||||||||||||||||||
| Storage Temp Range | -55 to +125。C | |||||||||||||||||||
| Sealing Method | Seam Weld | |||||||||||||||||||
| Moisture Sensitivity Level | 1 | |||||||||||||||||||

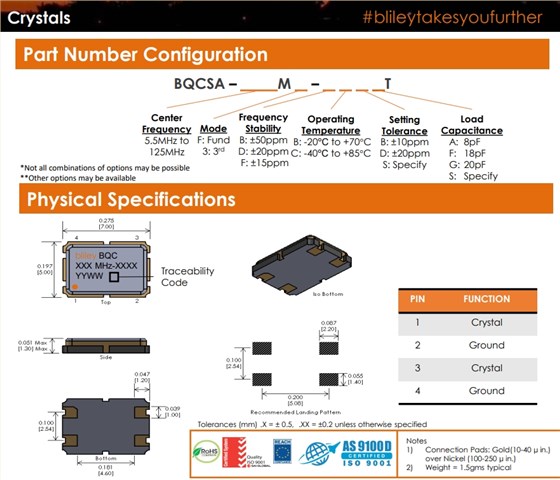

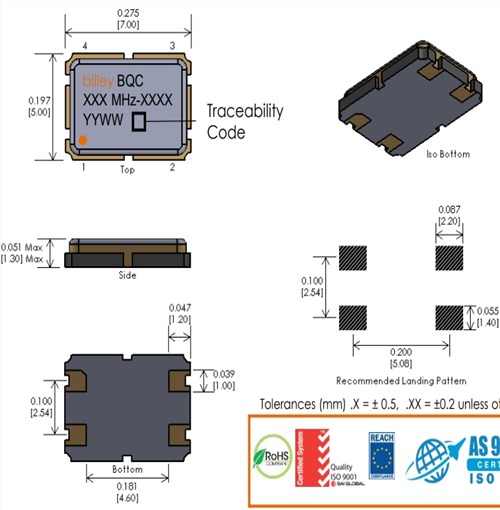

BQCSA-60M3-DCBGT,Bliley百利晶振,6G通信晶振 尺寸圖
產品特征:
SMD晶振結構
標準5X7mm包裝尺寸
高穩定性超過溫度
更多相關Bliley百利晶振型號，請咨詢我們！
