ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ，尺寸為6035mm,頻率為24.576MHZ,艾博康晶振，Abracon晶振，美國進口晶振，貼片無源晶振，陶瓷晶振，SMD晶體，輕薄型晶振，無鉛環保晶振，高質量晶振，高性能晶振，無線產品晶振，通訊設備晶振，電腦專用晶振，調制解調器晶振、輕薄型設備晶振，工業應用晶振。

無源晶體產品主要應用范圍：電腦、調制解調器、通訊設備，輕薄的設備，工業廣泛的溫度應用.ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ.

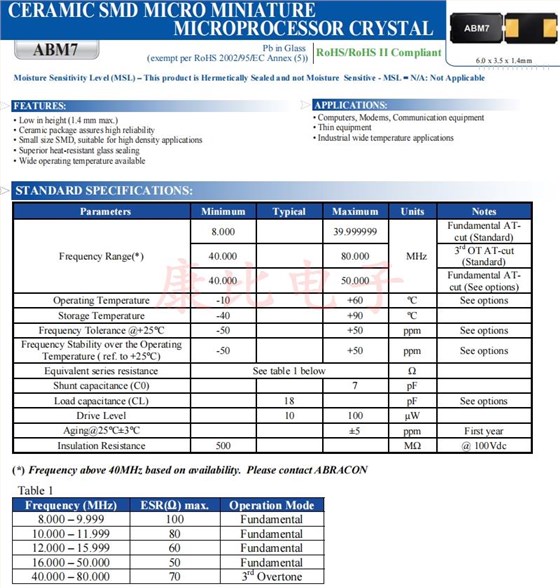

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ參數表

ANDARDSPECIFICATIONS:
Parameters	Minimum	Typical	Maximum	Units	Notes
FrequencyRange(*)	8.000		39.999999	MHz	FundamentalAT-cut(Standard)
	40.000		80.000		3rdOTAT-cut(Standard)
	40.000		50.000		FundamentalAT-cut(Seeoptions)
OperatingTemperature	-10		+60	ºC	See options
Storage Temperature	-40		+90	ºC
FrequencyTolerance@+25°C	-50		+50	ppm	See options
FrequencyStabilityovertheOperating Temperature(ref.to+25°C)	-50		+50	ppm	See options
Equivalentseries resistance	See table 1 below			Ω
Shuntcapacitance(C0)			7	pF
Loadcapacitance(CL)		18		pF	Seeoptions
DriveLevel		10	100	µW
Aging@25°C±3°C			±5	ppm	First year
InsulationResistance	500			MΩ	@100Vdc

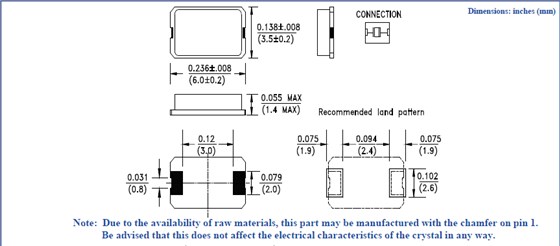

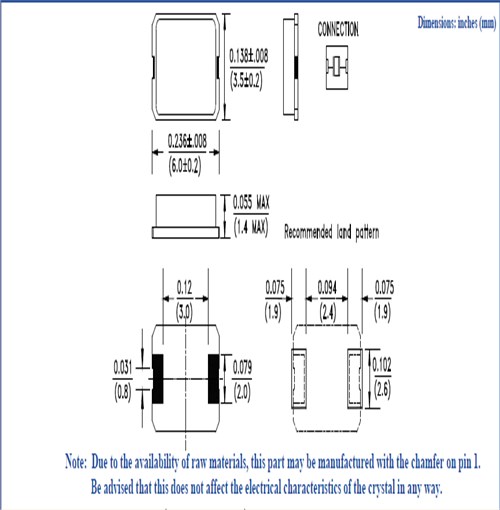

ABM7-24.576MHZ-D2Y-T,ABM7,6035mm,通訊設備,24.576MHZ尺寸圖

ABM7-24.576MHZ-D2Y-T,ABM7晶振特點：

•高度低(最大1.4毫米)
•陶瓷封裝確保高可靠性
•小尺寸貼片，適合高密度應用
•優越的耐熱玻璃密封
•工作溫度范圍廣
