32.000MHz X11/10/30/-10+60/12pF/80R無源諧振器,歐洲石英晶振,6G網絡設備晶振，尺寸1.6*1.2mm，頻率25MHZ，小體積晶振，EUROQUARTZ無源晶振，水晶振動子，石英貼片晶振，石英晶體諧振器，輕薄型晶振，無源石英晶振，無源晶振，四腳無源晶體，綠色環保晶振，藍牙模塊晶振，小型設備晶振，手持式設備晶振，無線設備晶振，小型設備專用晶振，便攜式設備晶振，網絡設備晶振，消費電子專用晶振，平板電腦晶振，可穿戴設備晶振.

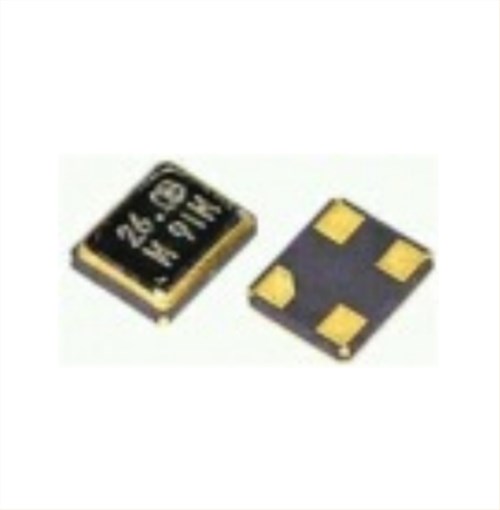

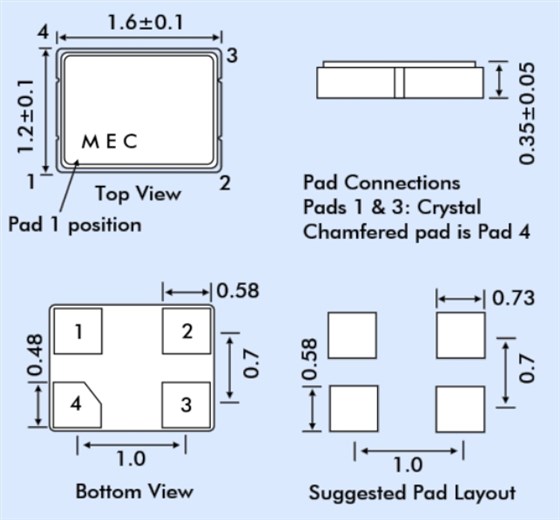

X11無源晶體是覆蓋頻率的超小型AT切割晶體基本模式下的頻率范圍為24MHz至48MHz。他們異常外形小（1.6 x 1.2毫米），質量低，具有高沖擊和抗振動性使這些晶體成為小型化的理想選擇手持式設備和類似的高密度應用。32.000MHz X11/10/30/-10+60/12pF/80R無源諧振器,歐洲石英晶振,6G網絡設備晶振.

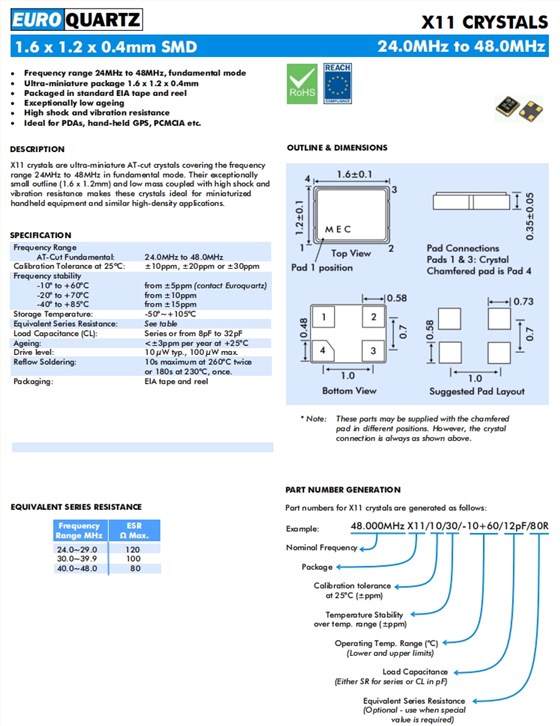

32.000MHz X11/10/30/-10+60/12pF/80R無源諧振器,歐洲石英晶振,6G網絡設備晶振 參數表

Frequency Range AT-Cut Fundamental:					24.0MHz to 48.0MHz
Calibration Tolerance at 25ºC:					±10ppm, ±20ppm or ±30ppm
Frequency stability -10° to +60°C -20° to +70°C -40° to +85°C					from ±5ppm(contact Euroquartz) from ±10ppm from ±15ppm
Storage Temperature:					-50°~+105°C
Equivalent Series Resistance:					See table
Load Capacitance (CL):					Series or from 8pF to 32pF
Ageing:					<±3ppm per year at +25°C
Drive level:					10 µW typ., 100 µW max.
Reflow Soldering:					10s maximum at 260°C twice or 180s at 230°C, once.
