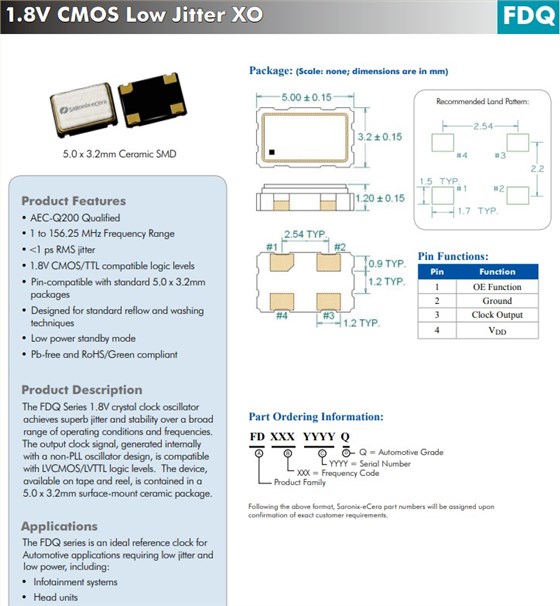

亞陶晶振FDQ系列1.8V時鐘晶體振蕩器可在廣泛的工作條件和頻率范圍內實現出色的抖動和穩定性，FDQ系列，小體積尺寸5.0x3.2mm、汽車級CMOS晶體振蕩器，使用非PLL振蕩器設計在內部生成的輸出時鐘信號與LVCMOS/LVTTL差分晶振邏輯電平兼容。該器件采用卷帶包裝，采用5.0x3.2mm表面貼裝陶瓷封裝。
產品特點：
符合AEC-Q200標準
頻率范圍：1至156.25MHz
<1 ps RMS抖動
1.8V CMOS/TTL兼容邏輯電平
與標準5.0x3.2mm封裝引腳兼容
專為標準回流和清洗技術而設計
低功耗待機模式
無鉛且符合RoHS/Green標準

應用：FDQ系列是需要低抖動和低功耗的汽車應用的理想參考時鐘,包括：信息娛樂系統,主機

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

FDC500014	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm	-20°C ~ 70°C
FK0100001	Diodes Incorporated	SaRonix-eCera™ FK	1MHz	±50ppm	-20°C ~ 70°C
FK0100002	Diodes Incorporated	SaRonix-eCera™ FK	1MHz	±50ppm	-20°C ~ 70°C
FK0180004	Diodes Incorporated	SaRonix-eCera™ FK	1.843MHz	±50ppm	-20°C ~ 70°C
FK0180005	Diodes Incorporated	SaRonix-eCera™ FK	1.843MHz	±25ppm	-20°C ~ 70°C
FK0180006	Diodes Incorporated	SaRonix-eCera™ FK	1.843MHz	±50ppm	-40°C ~ 85°C
FK0200002	Diodes Incorporated	SaRonix-eCera™ FK	2MHz	±50ppm	-20°C ~ 70°C
FK0360002	Diodes Incorporated	SaRonix-eCera™ FK	3.686MHz	±50ppm	-20°C ~ 70°C
FK0360003	Diodes Incorporated	SaRonix-eCera™ FK	3.686MHz	±25ppm	-20°C ~ 70°C
FK0360004	Diodes Incorporated	SaRonix-eCera™ FK	3.686MHz	±50ppm	-40°C ~ 85°C
FK0400005	Diodes Incorporated	SaRonix-eCera™ FK	4MHz	±25ppm	-20°C ~ 70°C
FK0400007	Diodes Incorporated	SaRonix-eCera™ FK	4MHz	±50ppm	-40°C ~ 85°C
FK0500002	Diodes Incorporated	SaRonix-eCera™ FK	5MHz	±50ppm	-40°C ~ 85°C
FK0530001	Diodes Incorporated	SaRonix-eCera™ FK	5.33MHz	±50ppm	-40°C ~ 85°C
FK0610001	Diodes Incorporated	SaRonix-eCera™ FK	6.14MHz	±25ppm	-20°C ~ 70°C
FK0670001	Diodes Incorporated	SaRonix-eCera™ FK	6.758MHz	±25ppm	-20°C ~ 70°C
FK0800004	Diodes Incorporated	SaRonix-eCera™ FK	8MHz	±50ppm	-40°C ~ 85°C
FK0810001	Diodes Incorporated	SaRonix-eCera™ FK	8.192MHz	±50ppm	-20°C ~ 70°C
FK0810002	Diodes Incorporated	SaRonix-eCera™ FK	8.192MHz	±25ppm	-20°C ~ 70°C
FK0810003	Diodes Incorporated	SaRonix-eCera™ FK	8.192MHz	±50ppm	-40°C ~ 85°C
FK1000006	Diodes Incorporated	SaRonix-eCera™ FK	10MHz	±50ppm	-20°C ~ 70°C
FK1000007	Diodes Incorporated	SaRonix-eCera™ FK	10MHz	±25ppm	-20°C ~ 70°C
FK1000008	Diodes Incorporated	SaRonix-eCera™ FK	10MHz	±50ppm	-40°C ~ 85°C
FK1200010	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±50ppm	-20°C ~ 70°C
FK1200013	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±25ppm	-20°C ~ 70°C

Product Parameters

Subfamily	General XO
Product Series	FDQ
Compliance(Only Automotive supports PPAP)	Automotive
Freq Range (MHz)	1 to 135
Jitter RMS (ps)	<1
Stability (PPM)	20to50
Package Size (mm)	5.0 x 3.2
PkgType	Ceramic Seam
Output Logic	CMOS
Supply Voltage (V)	1.8
Pads	4

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

產品參數：

類別 XO將軍
產品系列 FDQ
合規性（僅汽車支持PPAP）汽車
頻率范圍 1MHz到135MHz
抖動均方根 (ps) <1
穩定性 20PPM到50PPM
包裝尺寸 5.0x3.2mm貼片晶振
包裝類型陶瓷縫
輸出邏輯 CMOS
電源電壓 1.8V
墊 4腳

FK1220006	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±25ppm	-20°C ~ 70°C
FK1220007	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-20°C ~ 70°C
FK1220008	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±25ppm	-20°C ~ 70°C
FK1220009	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1300008	Diodes Incorporated	SaRonix-eCera™ FK	13MHz	±50ppm	-20°C ~ 70°C
FK1300010	Diodes Incorporated	SaRonix-eCera™ FK	13MHz	±50ppm	-20°C ~ 70°C
FK1430004	Diodes Incorporated	SaRonix-eCera™ FK	14.318MHz	±50ppm	-20°C ~ 70°C
FK1600003	Diodes Incorporated	SaRonix-eCera™ FK	16MHz	±25ppm	-20°C ~ 70°C
FK1600004	Diodes Incorporated	SaRonix-eCera™ FK	16MHz	±50ppm	-20°C ~ 70°C
FK1600005	Diodes Incorporated	SaRonix-eCera™ FK	16MHz	±50ppm	-40°C ~ 85°C
FK1630003	Diodes Incorporated	SaRonix-eCera™ FK	16.384MHz	±50ppm	-20°C ~ 70°C
FK1630004	Diodes Incorporated	SaRonix-eCera™ FK	16.384MHz	±25ppm	-20°C ~ 70°C
FK1630005	Diodes Incorporated	SaRonix-eCera™ FK	16.384MHz	±50ppm	-40°C ~ 85°C
FK1840001	Diodes Incorporated	SaRonix-eCera™ FK	18.432MHz	±50ppm	-20°C ~ 70°C
FK1840002	Diodes Incorporated	SaRonix-eCera™ FK	18.432MHz	±25ppm	-20°C ~ 70°C
FK1840003	Diodes Incorporated	SaRonix-eCera™ FK	18.432MHz	±50ppm	-40°C ~ 85°C
FK1940001	Diodes Incorporated	SaRonix-eCera™ FK	19.44MHz	±50ppm	-20°C ~ 70°C
FK1940002	Diodes Incorporated	SaRonix-eCera™ FK	19.44MHz	±25ppm	-20°C ~ 70°C
FK1940004	Diodes Incorporated	SaRonix-eCera™ FK	19.44MHz	±50ppm	-40°C ~ 85°C
FK2000022	Diodes Incorporated	SaRonix-eCera™ FK	20MHz	±50ppm	-20°C ~ 70°C
FK2000023	Diodes Incorporated	SaRonix-eCera™ FK	20MHz	±25ppm	-20°C ~ 70°C
FK2000025	Diodes Incorporated	SaRonix-eCera™ FK	20MHz	±50ppm	-40°C ~ 85°C
FK2400012	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±50ppm	-20°C ~ 70°C
FK2400013	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-20°C ~ 70°C
FK2400014	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±50ppm	-40°C ~ 85°C

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

晶體振蕩器(CXO)詳細信息：
Diodes Incorporated與SaRonix-eCera進行了獨特的垂直整合，用于陶瓷封裝振蕩器的專有大容量自動化生產
輸出頻率高達670MHz，總壽命精度為±20ppm
提供5V、3.3V、2.5V和1.8V產品
專利 XP 技術，用于經濟高效的高頻、低抖動時鐘電路
VCXO控制電壓功能，用于與另一個時鐘或數據信號同步
Diodes Incorporated 時鐘和 VCXO IC 可縮短交貨時間并降低成本
使用ASSP XO晶體振蕩器快速獲得成熟的技術

FK2450008	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±50ppm	-20°C ~ 70°C
FK2450009	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450010	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±50ppm	-40°C ~ 85°C
FK2500018	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-20°C ~ 70°C
FK2500019	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-20°C ~ 70°C
FK2500026	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FK2600016	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-20°C ~ 70°C
FK2600017	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±25ppm	-20°C ~ 70°C
FK2600019	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-40°C ~ 85°C
FK2600020	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±25ppm	-20°C ~ 70°C
FK2600024	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-20°C ~ 70°C
FK2600027	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±20ppm	-20°C ~ 70°C
FK2600028	Diodes Incorporated	SaRonix-eCera™ FK	26MHz	±50ppm	-40°C ~ 85°C
FK2700001	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±25ppm	-20°C ~ 70°C
FK2700015	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±50ppm	-20°C ~ 70°C
FK2700016	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±25ppm	-20°C ~ 70°C
FK2700017	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±20ppm	-20°C ~ 70°C
FK2700018	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±50ppm	-40°C ~ 85°C
FK2700021	Diodes Incorporated	SaRonix-eCera™ FK	27MHz	±50ppm	-20°C ~ 70°C
FK2820001	Diodes Incorporated	SaRonix-eCera™ FK	28.224MHz	±25ppm	-20°C ~ 70°C
FK3000001	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-20°C ~ 70°C
FK3000003	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±25ppm	-20°C ~ 70°C
FK3000004	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-20°C ~ 70°C
FK3000005	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-20°C ~ 70°C
FK3000006	Diodes Incorporated	SaRonix-eCera™ FK	30MHz	±50ppm	-40°C ~ 85°C

亞陶晶振FDQ系列1.8V汽車級CMOS晶體振蕩器,FDSAS6062,FD0600006,ECERA貼片晶振

FDQ 1.8V 20~50 5.0x3.2 CMOS 1.8 4 1.8V、5.0x3.2mm、汽車級CMOS晶體振蕩器
FDQ 2.5V 20~50 5.0x3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、汽車級CMOS晶體振蕩器
FDQ 3.3V 20~50 5.0x3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、汽車級CMOS晶體振蕩器
FKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、汽車級CMOS晶體振蕩器
FKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、汽車級CMOS晶體振蕩器
FKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、汽車級CMOS晶體振蕩器
FNQ 1.8V 20~50 7.0x5.0 CMOS 1.8 4 1.8V、7.0x5.0mm、汽車級CMOS晶體振蕩器
FNQ 2.5V 20~50 7.0x5.0 CMOS 2.5 4 2.5V、7.0x5.0mm、汽車級CMOS晶體振蕩器
FNQ 3.3V 20~50 7.0x5.0 CMOS 3.3 4 3.3V、7.0x5.0mm、汽車級CMOS晶體振蕩器
