DIODES百利通亞陶晶振所生產的石英晶振,貼片晶振,石英晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.

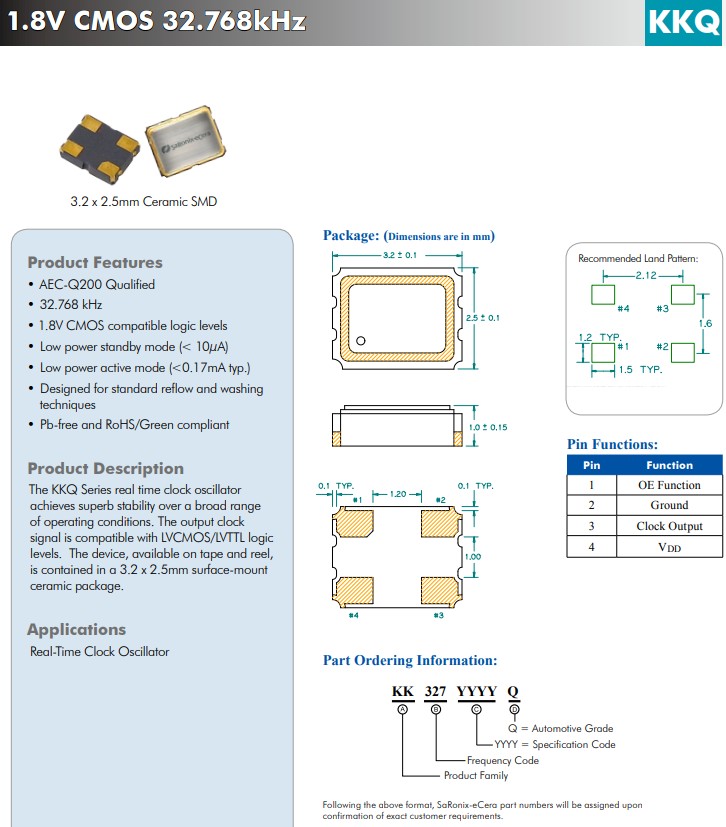

KKQ系列實時時鐘晶體振蕩器在廣泛的工作條件下實現了卓越的穩定性。1.8V、小體積尺寸3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器，輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用3.2x2.5mm表面貼裝陶瓷封裝。
產品特點：
符合AEC-Q200標準
頻率：32.768K晶振
1.8V CMOS兼容邏輯電平
低功耗待機模式（< 10μA）
低功耗主動模式（<0.17mA typ.）
專為標準回流和清洗
技術而設計
無鉛且符合RoHS/Green標準
應用：實時時鐘振蕩器

KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振

HX3127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
HX21480001	Diodes Incorporated	SaRonix-eCera™ HX	48MHz	±50ppm	-40°C ~ 105°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
NX7031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
HX2127001Q	Diodes Incorporated	SaRonix-eCera™ HX	27MHz	±25ppm	-40°C ~ 105°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SHPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SQPCIE100	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	100MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SN10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
SQA000001	Diodes Incorporated	SaRonix-eCera™ SQ	100MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
NX53D3301Z	Diodes Incorporated	SaRonix-eCera™ NX	133.333333MHz	±50ppm	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT2553P0016.369000	Diodes Incorporated	SaRonix-eCera™ JT	16.369MHz	±500ppb	-40°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT15260001	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C

Product Parameters

Subfamily	32kHz XO
Product Series	KKQ
Compliance(Only Automotive supports PPAP)	Automotive
Freq Range (MHz)	32.768KHZ
Jitter RMS (ps)	<1 ps RMS
Stability (PPM)	20 to 50
Package Size (mm)	3.2 x 2.5
PkgType	Ceramic Seam
Output Logic	CMOS
Supply Voltage (V)	1.8
Pads	4

KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振

產品參數：

亞科 32kHz XO
產品系列 KKQ
合規性（僅汽車支持PPAP）汽車
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 ps RMS
穩定性 20PPM到50PPM
包裝尺寸 3.2x2.5mm有源晶振
包裝類型陶瓷縫
輸出邏輯 CMOS
電源電壓 1.8V
墊 4
應用：刀片服務器,基站,工控機,多功能打印機,機架服務器,存儲陣列,智能電網, DVD/藍光,安全, GPS ,機頂盒

NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F5506Z	Diodes Incorporated	SaRonix-eCera™ NX	155.52MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
NX72F6208Z	Diodes Incorporated	SaRonix-eCera™ NX	156.25MHz	±50ppm	-20°C ~ 70°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX51706001	Diodes Incorporated	SaRonix-eCera™ HX	70.656MHz	±50ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
HX7011C0020.000000	Diodes Incorporated	SaRonix-eCera™ HX	20MHz	±25ppm	-40°C ~ 105°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
PBF620074Z	Diodes Incorporated	SaRonix-eCera™ PB	156.25MHz	±50ppm	-20°C ~ 70°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
NX3241E0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±50ppm	-40°C ~ 85°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
PXC500007	Diodes Incorporated	SaRonix-eCera™ PX	125MHz	±50ppm	-20°C ~ 70°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX73K0004Z	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX7021E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C
NX5041D0100.000000	Diodes Incorporated	SaRonix-eCera™ NX	100MHz	±25ppm	-40°C ~ 85°C

我們的汽車兼容晶體振蕩器(XO)旨在滿足汽車應用的嚴格要求，并在其部件號中以“Q”區分。它們是在經過嚴格IATF 16949標準認證的設施中制造的，并且能夠根據VDA6.3進行客戶審核。這些零件均受PPAP（生產零件批準流程）文檔支持，從而滿足汽車電子行業的所有要求。
此外，所有符合汽車標準的晶體振蕩器(XO)均已使用AECQ-200和QAP-81進行了認證，以涵蓋石英諧振器和XO IC，而不是使用AEC-Q100（僅針對 IC 定義）。我們計劃在2021年開始為我們新的符合汽車標準的 XO 產品逐步采用AECQ-104認證標準，但它不會將以前符合AECQ-200+QAP-81的產品重新認證為AEC-Q104（AECQ- 200 + QAP-81資格標準和AECQ-0104資格標準是測試數量和添加X射線檢查）。KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振

NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.500000	Diodes Incorporated	SaRonix-eCera™ NX	148.5MHz	±25ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
NX3221E0150.000000	Diodes Incorporated	SaRonix-eCera™ NX	150MHz	±50ppm	-40°C ~ 85°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
SNSAS2150	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	150MHz	±50ppm	-20°C ~ 70°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PD10GE156	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
PDF620008Z	Diodes Incorporated	SaRonix-eCera™ PD	156.25MHz	±50ppm	-40°C ~ 85°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX72G1102Z	Diodes Incorporated	SaRonix-eCera™ NX	161.132812MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
NX7032C0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX52F62008	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-20°C ~ 70°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX54F62001	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
NX72W2201Z	Diodes Incorporated	SaRonix-eCera™ NX	322.265625MHz	±50ppm	-20°C ~ 70°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
JX5021E0156.250000	Diodes Incorporated	SaRonix-eCera™ JX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX73F62003	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX52F6204Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C

KKQ系列實時時鐘晶體振蕩器,KK3270046,CMOS晶體振蕩器,ECERA晶振

KDQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器
KDQ 2.5V 20~50 5.0x3.2 CMOS 2.5 4 2.5V、5.0x3.2mm、32.768k、汽車級CMOS晶體振蕩器
KDQ 3.3V 20~50 5.0x3.2 CMOS 3.3 4 3.3V、5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器
KKQ 1.8V 20~50 3.2x2.5 CMOS 1.8 4 1.8V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器
KKQ 2.5V 20~50 3.2x2.5 CMOS 2.5 4 2.5V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器
KKQ 3.3V 20~50 3.2x2.5 CMOS 3.3 4 3.3V、3.2x2.5mm、32.768kHz、汽車級CMOS晶體振蕩器
