E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體

頻率：8MHZ

尺寸：12.5x4.7mm

E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體，尺寸12.5x4.7mm，頻率8MHZ，Hosonic無源晶振，無源石英晶體，石英貼片晶振，SMD晶振，石英晶體諧振器，貼片無源晶振，水晶振動子，無源晶振，石英晶振，大尺寸晶振，綠色環保晶振，低功耗晶振，低損耗晶振，高質量晶振，無線設備晶振，藍牙音響晶振，小型設備晶振，智能家居晶振，網絡設備晶振，6G藍牙專用晶振，產品具有良好的可靠性能。

無源晶體產品比較常用于小型設備，藍牙音響，智能家居，網絡設備，還被廣泛應用無線應用,電子數碼等領域。E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體.

訂購熱線：0755-27876201

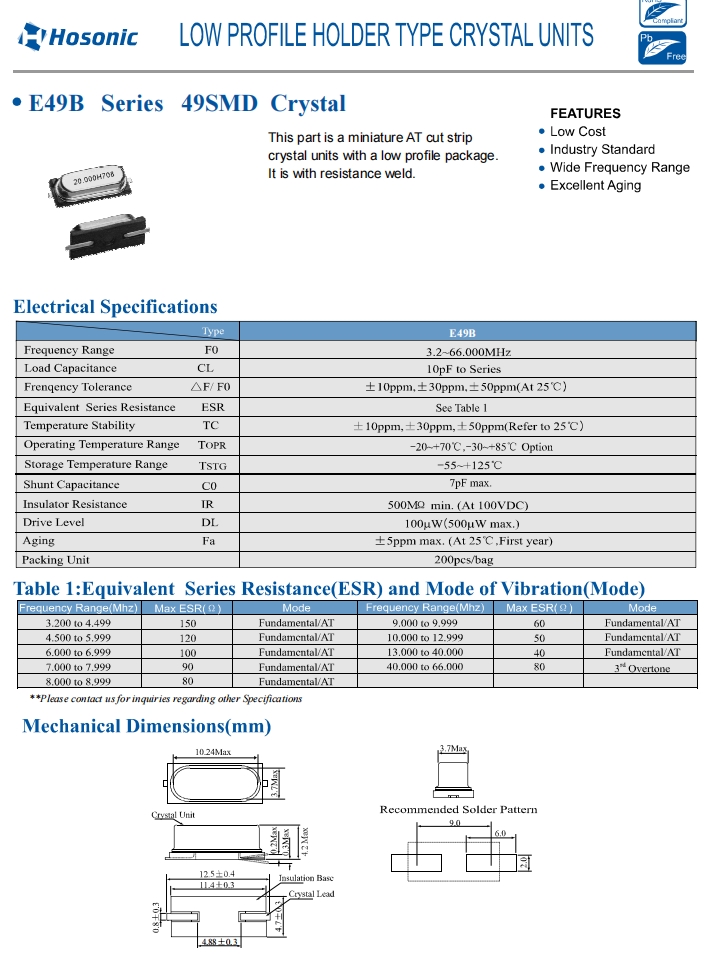

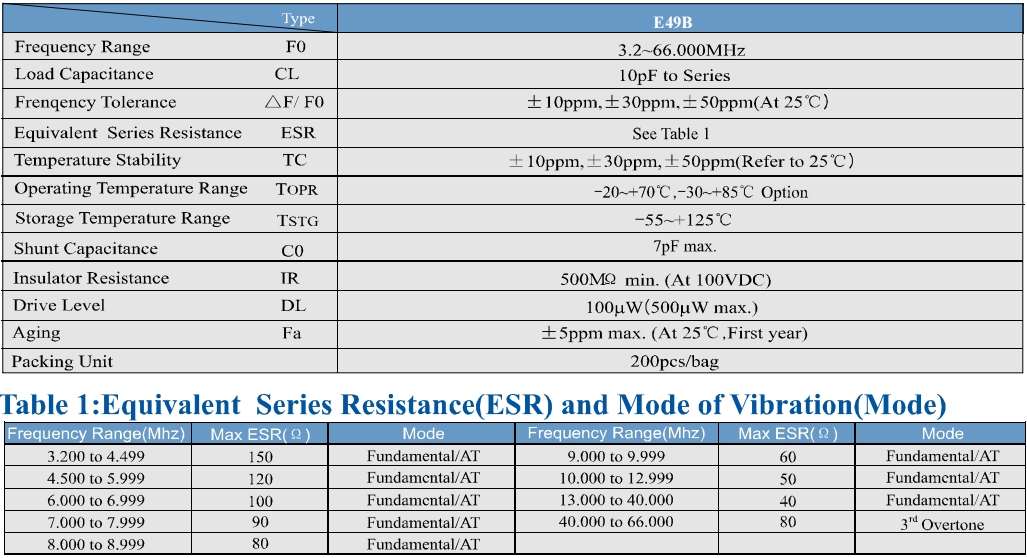

E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體 參數表

E49B cans

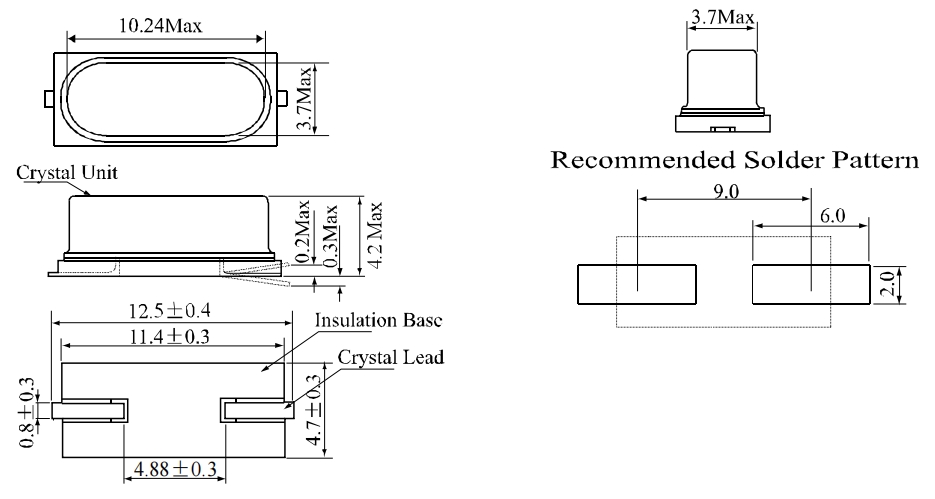

E49B13E0X000FE10C0-E49B水晶振動子-6G藍牙晶振-鴻星石英晶體 尺寸圖

石英晶振產品特征:

這部分是一個微型AT切割帶

采用薄型封裝的晶體單元。

采用電阻焊。

低成本

行業標準

寬頻率范圍

極好的老化

更多相關Hosonic鴻星晶振型號

Mfr Part #	Supplier	Series	Frequency	Frequency Stability穩定度	Frequency Tolerance	Load Capacitance
E5FA8E000000DE	Hosonic鴻星晶振	E5FA	8MHz	±20ppm		20pF
E49B8E000001AE	Hosonic鴻星晶振	E49B	8MHz	±20ppm		20pF
E49B13E0X000FE10C0	Hosonic鴻星晶振	E49B	13.560MHz	±20ppm		20PF
E5FA8.00000F20E22	Hosonic鴻星晶振	E5FA	8MHz	±20ppm		20PF
E49B4E000000VE10C0	Hosonic鴻星晶振	E49B	4MHz	±20ppm		20PF
E5FA8.00000F20E11	Hosonic鴻星晶振	E5FA	8MHz
E49B11E0X000YE10C0	Hosonic鴻星晶振	E49B	11.0592MHz	±20ppm		20pF
E49A8E00000FE10CO	Hosonic鴻星晶振	E49A	8MHz	±20ppm		20pF
E49A16E00000KE10CO	Hosonic鴻星晶振	E49A	16M	±20ppm		20pF
E49A11E0X000JE	Hosonic鴻星晶振	HC-49SA	11.0592MHz	±30ppm		20pF
E49A12E00000ME	Hosonic鴻星晶振	HC-49SA	12MHz	±30ppm		20pF
E49A16E00000ME	Hosonic鴻星晶振	HC-49SA	16MHz	±30ppm		20pF
E49A24E00000HE	Hosonic鴻星晶振	HC-49SA	24MHz	±30ppm		20pF
E49A25E00001AE	Hosonic鴻星晶振	HC-49SA	25MHz	±30ppm		20pF
E49A25E000033E	Hosonic鴻星晶振	E49A	20pF	±30ppm		20pF
E49A4E000000JE	Hosonic鴻星晶振	HC-49SA	4MHz	±30ppm		20pF
E49A7E00X0007E	Hosonic鴻星晶振	HC-49SA	7.3728MHz	±30ppm		20pF
E49A8E000001CE	Hosonic鴻星晶振	E49A				10pF
E49B10E00000TE	Hosonic鴻星晶振	E49B				10pF
E49B12E000022E	鴻星貼片晶振	HC-49SB	12MHz	±30ppm		10pF
E49B16E00000KE	Hosonic鴻星晶振	HC-49SM	16MHz			16pF
E49B16E00000SE	Hosonic鴻星晶振	HC-49SB	16MHz	±30ppm		18pF
E49B4E000000GE	Hosonic鴻星晶振	HC-49SM	4MHz	±30ppm		18pF
E49B4E00X000ZE	Hosonic鴻星晶振	E49B				10pF
E49B7E00X000AE	Hosonic鴻星晶振	HC-49SM	7.3728MHz	±30ppm		18pF
E49B8E00X000CE	Hosonic鴻星晶振	E49B				10pF
E49B9E00X0009E	Hosonic鴻星晶振	ESB	9.84375MHz	±30ppm		10pF
ESA10.0000F30C35F	Hosonic鴻星晶振	HC-49SA	10MHz	±30ppm		10pF
ESA12.0000F20B35F	Hosonic鴻星晶振	HC-49SA	12MHz	±30ppm		20pF
ESA12.0000F20E33F	Hosonic鴻星晶振	HC-49SA	12MHz	±30ppm		20pF
ESA12.0000F30D35F	Hosonic鴻星晶振	HC-49SA	12MHz	±30ppm		30pF
ESA12.000F30D55F	Hosonic鴻星晶振	HC-49SA	12MHz	±30ppm		30pF
ESA14.7456F20E33F	Hosonic鴻星晶振	HC-49SA	14.7456MHz	±30ppm		20pF
ESA16.0000F30M55F	Hosonic鴻星晶振	HC-49SA	16MHz	±30ppm		30pF
ESA18.4320F20E33F	Hosonic鴻星晶振	HC-49SA	18.432MHz	±30ppm		20pF
ESA20.0000F18M33F	Hosonic鴻星晶振	HC-49SA	20MHz	±50ppm		18pF
ESA20.0000F20E33F	Hosonic鴻星晶振	HC-49SA	20MHz	±30ppm		20pF
ESA20.0000F30M55F	Hosonic鴻星晶振	HC-49SA	20MHz	±30ppm		18pF
ESA3.68640F20E33F	Hosonic鴻星晶振	HC-49SA	3.6864MHz	±30ppm		20pF
ESA8.00000F20E33F	Hosonic鴻星晶振	HC-49SA	8MHz	±30ppm		20pF
ESB10.0000F20M35F	Hosonic鴻星晶振	HC-49SB	10MHz	±30ppm		20pF
ESB11.0592F18E33F	Hosonic鴻星晶振	HC-49SM	11.0592MHz	±30ppm		18pF
ESB12.0000F18E33F	Hosonic鴻星晶振	HC-49SM	12MHz	±30ppm		18pF
ESB14.7456F18E33F	Hosonic鴻星晶振	HC-49SM	14.7456MHz	±30ppm		18pF
ESB16.0000F18E33F	Hosonic鴻星晶振	HC-49SM	16MHz	±30ppm		18pF
ESB18.4320F18E33F	Hosonic鴻星晶振	HC-49SM	18.432MHz	±30ppm		18pF
ESB19.2000F32M55F	Hosonic鴻星晶振	HC-49SB	19.2MHz	±30ppm		32pF
ESB20.0000F18E33F	Hosonic鴻星晶振	HC-49SM	20MHz	±30ppm		18pF
ESB24.0000F18E33F	Hosonic鴻星晶振	HC-49SM	24MHz	±30ppm		18pF
ESB24.5760F18E33F	Hosonic鴻星晶振	HC-49SM	24.576MHz	±30ppm		18pF
ESB25.0000F18C25F	Hosonic鴻星晶振	HC-49SB	25MHz	±30ppm		18pF
ESB25.0000F18E33F	Hosonic鴻星晶振	HC-49SM	25MHz	±30ppm		18pF
ESB3.68640F18E33F	Hosonic鴻星晶振	HC-49SM	3.6864MHz	±30ppm		18pF
ESB4.00000F20E23FX	Hosonic鴻星晶振	HC-49SB	4MHz	±30ppm		20pF
ESB6.00000F16D33F	Hosonic鴻星晶振	HC-49SB	6MHz	±30ppm		16pF
ESB8.00000F18E33F	Hosonic鴻星晶振	HC-49SM	8MHz	±30ppm		18pF
ESB8.00000F20B33F	Hosonic鴻星晶振	HC-49SB	8MHz	±30ppm		20pF
