當前位置：首頁 » 歐美進口晶振 » Skyworks晶振 » Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振

$Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振$

prevnext

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振

頻率：100MHZ

尺寸：7.0×5.0mm

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振，尺寸7.0×5.0mm，頻率100MHZ，電壓2.5V ，輸出邏輯LVDS，LVDS輸出晶振，貼片差分振蕩器，LVDS差分晶體振蕩器，7050mm差分晶振，差分壓控晶振，壓控晶體振蕩器，100MHZ差分振蕩器，低電壓差分晶振，低抖動差分晶振，低損耗差分振蕩器，低相位差分晶振，低相噪差分晶振，低功耗差分振蕩器，高品質差分晶振，高性能差分振蕩器，光模塊差分晶振，通訊模塊差分振蕩器，儀器儀表專用差分晶振，測試測量差分晶振，具有低相位低抖動的特點。

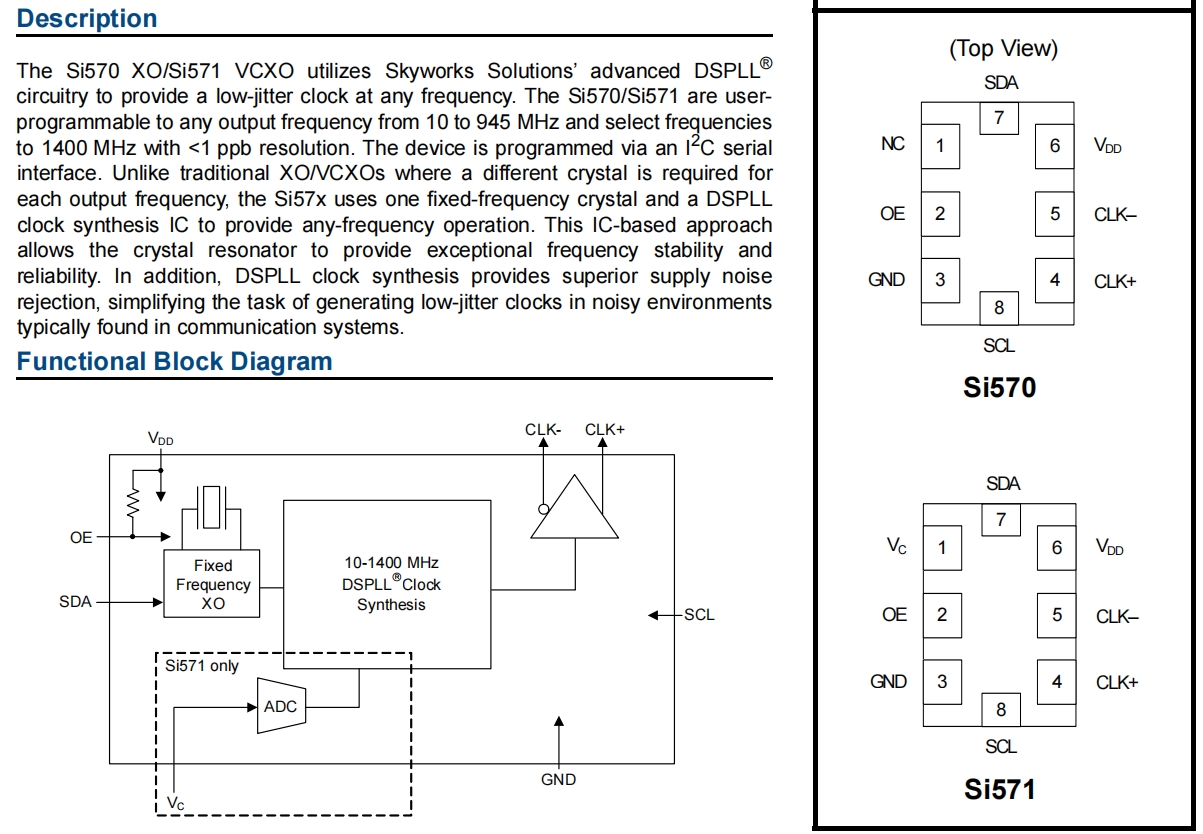

Si570 XO/Si571 VCXO振蕩器采用Skyworks Solutions的先進DSPLL®電路，以提供任何頻率的低抖動時鐘Si570/Si571可由用戶編程為10至945MHz的任何輸出頻率，并可選擇頻率至1400MHz，分辨率<1 ppb。該設備通過I2C串行進行編程界面與傳統XO/VCXO不同，傳統XO/VXO需要不同的晶體每個輸出頻率，Si57x使用一個固定頻率晶體和一個DSPLL時鐘合成IC，以提供任何頻率操作。Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振.

訂購熱線：0755-27876201

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振 參數表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Supply Voltage1

V DD

3.3 V option

2.97

3.3

3.63

2.5 V option

2.25

2.5

2.75

1.8 V option

1.71

1.8

1.89

Supply Current

IDD

Output enabled
LVPECL
CML
LVDS
CMOS

120
108
99
90

130
117
108
98

TriState mode

Output Enable (OE)2 ,
Serial Data (SDA),
Serial Clock (SCL)

VIH

0.75 x V DD

VIL

0.5

Operating Temperature Range

–40

ºC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Control Voltage Tuning Slope1,2,3

VC10 to 90% of V DD

—

33
45
90
135
180
356

—

ppm/V

Control Voltage Linearity4

LVC

BSL

–5

±1

Incremental

–10

±5

+10

Modulation Bandwidth

9.3

10.0

10.7

kHz

VC Input Impedance

Z VC

500

kΩ

Nominal Control Voltage5

VCNOM

@ fO

V DD/2

Control Voltage Tuning Range

V DD

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Programmable Frequency
Range1,2

LVPECL/LVDS/CML

—

1417.5

MHz

CMOS

—

160

Temperature Stability1,3

TA = –40 to +85 ºC

–7
–20
–50
–100

—
—
—
—

7
+20
+50
+100

ppm

Initial Accuracy

—

1.5

—

ppm

Aging

Frequency drift over first year

—

±3

ppm

Frequency drift over 20-year life

—

±10

ppm

Total Stability

Temp stability = ±7 ppm

±20

ppm

Temp stability = ±20 ppm

±31.5

ppm

Temp stability = ±50 ppm

—

±61.5

ppm

Absolute Pull Range1,3

APR

±12

—

±375

ppm

Power up Time4

tOSC

—

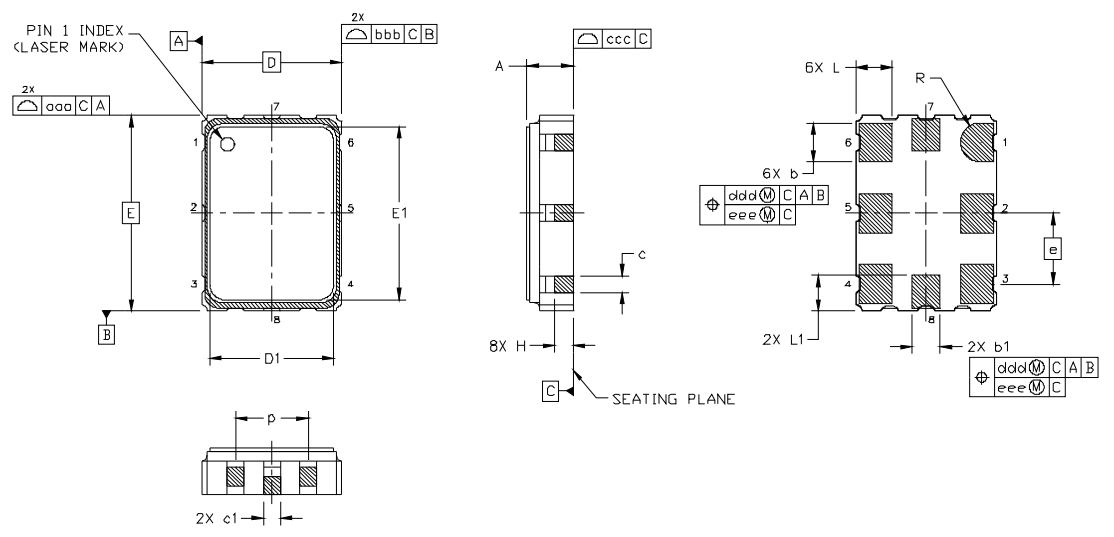

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振 尺寸圖

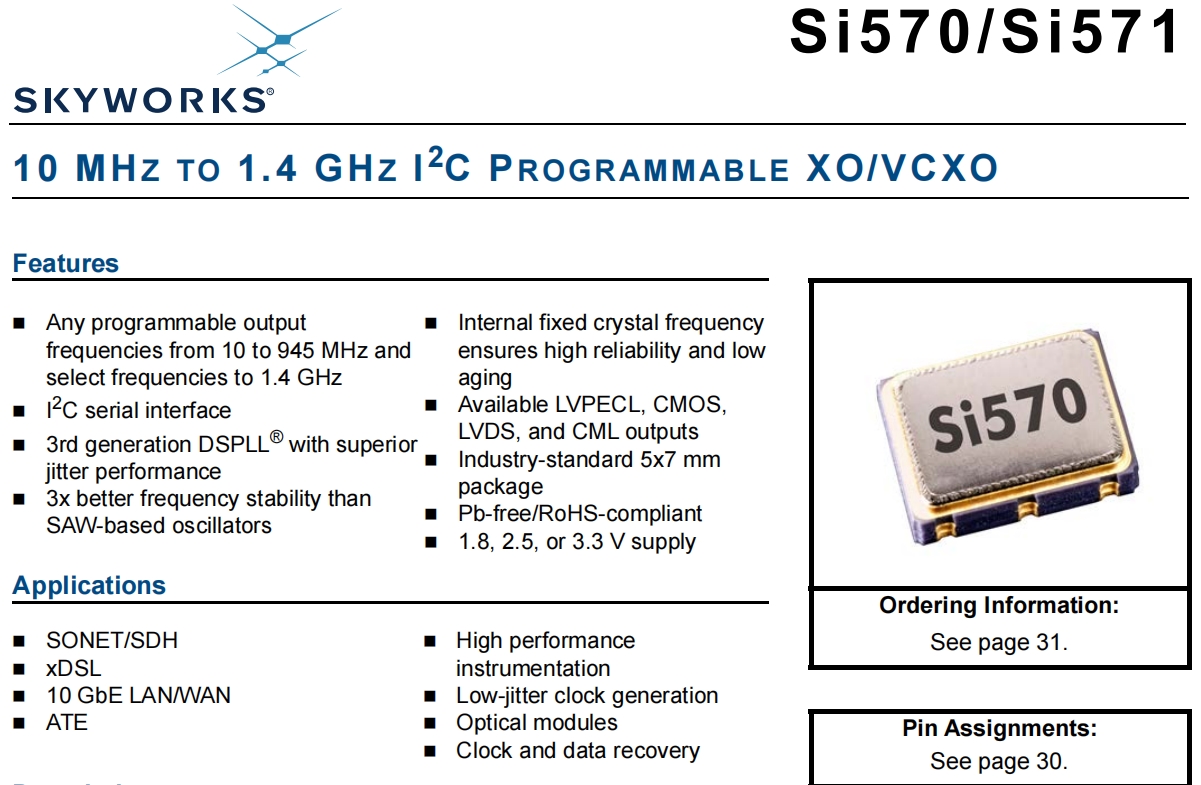

壓控晶體振蕩器產品特征:

任何可編程輸出頻率為10至945MHz

選擇頻率至1.4GHz

2C串行接口

具有卓越性能的第三代DSPLL®抖動性能

頻率穩定性比SAW振蕩器

內部固定晶體頻率

確保高可靠性和低成本變老

可用LVPECL、CMOS、LVDS和CML輸出

行業標準5x7mm包裹

無鉛/符合RoHS

1.8、2.5或3.3 V電源

更多相關Skyworks有源晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
570BAB000544DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570FAA000759DGR	Skyworks有源晶振	XTAL OSC XO 644.53125MHZ LVDS	Si570	644.53125 MHz	LVDS	2.5V	±50ppm
570BAB000118DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570BCC000112DG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si570	10 MHz	LVDS	3.3V	±7ppm
570JAC000900DG	Skyworks有源晶振	XTAL OSC XO 33.3333333MHZ CMOS	Si570	33.3333333 MHz	CMOS	1.8V	±50ppm
570BBC000876DG	Skyworks有源晶振	XTAL OSC XO 49.87013MHZ LVDS SMD	Si570	49.87013 MHz	LVDS	3.3V	±20ppm
570KCB000121DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CML SMD	Si570	100 MHz	CML	1.8V	±7ppm
570ACA001527DGR	Skyworks有源晶振	XTAL OSC XO 875.0000MHZ LVPECL	Si570	875 MHz	LVPECL	3.3V	±7ppm
570BBC000121DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si570	100 MHz	LVDS	3.3V	±20ppm
570BAB000544DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570BAB001614DGR	Skyworks有源晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	Si570	300 MHz	LVDS	3.3V	±50ppm
570BAB001614DG	Skyworks有源晶振	XTAL OSC XO 300.0000MHZ LVDS SMD	Si570	300 MHz	LVDS	3.3V	±50ppm
570BAB000299DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si570	200 MHz	LVDS	3.3V	±50ppm
570GAC000112DGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CMOS SMD	Si570	10 MHz	CMOS	2.5V	±50ppm
570AAA000111DG	Skyworks有源晶振	XO DIFFSE I2C PROG 10-1417 MH	Si570	25 MHz	LVPECL	3.3V	±50ppm
570CAC000121DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si570	100 MHz	CMOS	3.3V	±50ppm
570AAC000118DG	Skyworks晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si570	156.25 MHz	LVPECL	3.3V	±50ppm
570AAC000129DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si570	155.52 MHz	LVPECL	3.3V	±50ppm
570BBA000504DGR	Skyworks有源晶振	XTAL OSC XO 48.0000MHZ LVDS SMD	Si570	48 MHz	LVDS	3.3V	±20ppm
570BBC000131DG	Skyworks有源晶振	XTAL OSC XO 120.0000MHZ LVDS SMD	Si570	120 MHz	LVDS	3.3V	±20ppm
570BBC000131DGR	Skyworks有源晶振	XTAL OSC XO 120.0000MHZ LVDS SMD	Si570	120 MHz	LVDS	3.3V	±20ppm
570BCB001530DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si570	148.5 MHz	LVDS	3.3V	±7ppm
570BCB001530DGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si570	148.5 MHz	LVDS	3.3V	±7ppm
570CAC000125DG	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ CMOS SMD	Si570	128.5 MHz	CMOS	3.3V	±50ppm
570CAC000125DGR	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ CMOS SMD	Si570	128.5 MHz	CMOS	3.3V	±50ppm
570DCB000476DG	Skyworks有源晶振	XTAL OSC XO 322.265625MHZ CML	Si570	322.265625 MHz	CML	3.3V	±7ppm
570DCB000476DGR	Skyworks有源晶振	XTAL OSC XO 322.265625MHZ CML	Si570	322.265625 MHz	CML	3.3V	±7ppm
570FAB000125DG	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ LVDS SMD	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FAB000125DGR	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ LVDS SMD	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FAC000125DG	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ LVDS SMD	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FAC000125DGR	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ LVDS SMD	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FCB001691DG	Skyworks有源晶振	XTAL OSC XO 698.8123MHZ LVDS SMD	Si570	698.8123 MHz	LVDS	2.5V	±7ppm
570FCB001691DGR	Skyworks有源晶振	XTAL OSC XO 698.8123MHZ LVDS SMD	Si570	698.8123 MHz	LVDS	2.5V	±7ppm
570HCC001767DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ CML SMD	Si570	150 MHz	CML	2.5V	±7ppm
570HCC001767DGR	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ CML SMD	Si570	150 MHz	CML	2.5V	±7ppm
570JBC001668DG	Skyworks有源晶振	XTAL OSC XO 32.7680MHZ CMOS SMD	Si570	32.768 MHz	CMOS	1.8V	±20ppm
570JBC001668DGR	Skyworks有源晶振	XTAL OSC XO 32.7680MHZ CMOS SMD	Si570	32.768 MHz	CMOS	1.8V	±20ppm
570WCB000118DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CML SMD	Si570	156.25 MHz	CML	1.8V	±7ppm
570WCB000118DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CML SMD	Si570	156.25 MHz	CML	1.8V	±7ppm
570ABB000133DG	Skyworks有源晶振	XTAL OSC XO 500.0000MHZ LVPECL	Si570	500 MHz	LVPECL	3.3V	±20ppm
570ABB000133DGR	Skyworks有源晶振	XTAL OSC XO 500.0000MHZ LVPECL	Si570	500 MHz	LVPECL	3.3V	±20ppm
570ACA000462DG	Skyworks有源晶振	XTAL OSC XO 1.0000GHZ LVPECL SMD	Si570	1 GHz	LVPECL	3.3V	±7ppm
570ACA000462DGR	Skyworks有源晶振	XTAL OSC XO 1.0000GHZ LVPECL SMD	Si570	1 GHz	LVPECL	3.3V	±7ppm
570BAB000125DG	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ LVDS SMD	Si570	128.5 MHz	LVDS	3.3V	±50ppm
570BAB000125DGR	Skyworks有源晶振	XTAL OSC XO 128.5000MHZ LVDS SMD	Si570	128.5 MHz	LVDS	3.3V	±50ppm
570BAB001595DG	Skyworks有源晶振	XTAL OSC XO 333.0000MHZ LVDS SMD	Si570	333 MHz	LVDS	3.3V	±50ppm
570BAB001595DGR	Skyworks有源晶振	XTAL OSC XO 333.0000MHZ LVDS SMD	Si570	333 MHz	LVDS	3.3V	±50ppm
570BBA000504DG	Skyworks有源晶振	XTAL OSC XO 48.0000MHZ LVDS SMD	Si570	48 MHz	LVDS	3.3V	±20ppm
570AAC000270DGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si570	10 MHz	LVPECL	3.3V	±50ppm
570AAC001528DGR	Skyworks有源晶振	XTAL OSC XO 19.9840MHZ LVPECL	Si570	19.984 MHz	LVPECL	3.3V	±50ppm
570AAC001762DGR	Skyworks有源晶振	XTAL OSC XO 136.39008MHZ LVPECL	Si570	136.39008 MHz	LVPECL	3.3V	±50ppm
570CAA000115DGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si570	125 MHz	CMOS	3.3V	±50ppm
570CAC000200DGR	Skyworks有源晶振	XTAL OSC XO 14.0000MHZ CMOS SMD	Si570	14 MHz	CMOS	3.3V	±50ppm
570CAC000973DGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si570	125 MHz	CMOS	3.3V	±50ppm
570CAC001041DGR	Skyworks有源晶振	XTAL OSC XO 156.0000MHZ CMOS SMD	Si570	156 MHz	CMOS	3.3V	±50ppm
570CAC001705DGR	Skyworks有源晶振	XTAL OSC XO 54.3600MHZ CMOS SMD	Si570	54.36 MHz	CMOS	3.3V	±50ppm
570CAC001722DGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si570	24.576 MHz	CMOS	3.3V	±50ppm
570EAC000741DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si570	156.25 MHz	LVPECL	2.5V	±50ppm
570FAC000465DGR	Skyworks有源晶振	XTAL OSC XO 60.0000MHZ LVDS SMD	Si570	60 MHz	LVDS	2.5V	±50ppm
570FAC000833DGR	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	Si570	153.6 MHz	LVDS	2.5V	±50ppm
570FAC001059DGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si570	100 MHz	LVDS	2.5V	±50ppm
570FAC001531DGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si570	100 MHz	LVDS	2.5V	±50ppm
570GAC000118DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CMOS SMD	Si570	156.25 MHz	CMOS	2.5V	±50ppm
570GAC000121DGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si570	100 MHz	CMOS	2.5V	±50ppm
570GAC001519DGR	Skyworks有源晶振	XTAL OSC XO 35.4780MHZ CMOS SMD	Si570	35.478 MHz	CMOS	2.5V	±50ppm
570JAC001711DGR	Skyworks有源晶振	XTAL OSC XO 33.3333MHZ CMOS SMD	Si570	33.3333 MHz	CMOS	1.8V	±50ppm
570JAC001754DGR	Skyworks有源晶振	XTAL OSC XO 39.0625MHZ CMOS SMD	Si570	39.0625 MHz	CMOS	1.8V	±50ppm
570WCA002323DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	13.39239 MHz	CML	1.8V	±7ppm
570BCA000136DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	160 MHz	LVDS	3.3V	±7ppm
570BCA000301DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	1.213 GHz	LVDS	3.3V	±7ppm
570BCA002166DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	33.333333 MHz	LVDS	3.3V	±7ppm
570KCA002221DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	167.33 MHz	CML	1.8V	±7ppm
570ACA000313DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	300 MHz	LVPECL	3.3V	±7ppm
570BCA001830DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	1.215 GHz	LVDS	3.3V	±7ppm
570ACA002326DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	33.3333333 MHz	LVPECL	3.3V	±7ppm
570ACA002276DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	156.2 MHz	LVPECL	3.3V	±7ppm
570ACA000780DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	30 MHz	LVPECL	3.3V	±7ppm
570BCA000298DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	866 MHz	LVDS	3.3V	±7ppm
570ACA000544DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570BCA000163DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	20 MHz	LVDS	3.3V	±7ppm
570FCA001040DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	188 MHz	LVDS	2.5V	±7ppm
570BCA002400DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	49.87013 MHz	LVDS	3.3V	±7ppm
570ACA001123DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570BCA002390DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	50 MHz	LVDS	3.3V	±7ppm
570ACA001476DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	10 MHz	LVPECL	3.3V	±7ppm
570BCA000520DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570BCA000915DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	375 MHz	LVDS	3.3V	±7ppm
570BCA002414DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	174.703 MHz	LVDS	3.3V	±7ppm
570BCA000157DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	50 MHz	LVDS	3.3V	±7ppm
570ACA002412DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	1.05 GHz	LVPECL	3.3V	±7ppm
570ACA000420DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	644.53125 MHz	LVPECL	3.3V	±7ppm
570ACA002188DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si570	20 MHz	LVPECL	3.3V	±7ppm
570AAC000270DG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si570	10 MHz	LVPECL	3.3V	±50ppm
570AAC001528DG	Skyworks有源晶振	XTAL OSC XO 19.9840MHZ LVPECL	Si570	19.984 MHz	LVPECL	3.3V	±50ppm
570AAC001762DG	Skyworks有源晶振	XTAL OSC XO 136.39008MHZ LVPECL	Si570	136.39008 MHz	LVPECL	3.3V	±50ppm
570CAA000115DG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si570	125 MHz	CMOS	3.3V	±50ppm
570CAC000200DG	Skyworks有源晶振	XTAL OSC XO 14.0000MHZ CMOS SMD	Si570	14 MHz	CMOS	3.3V	±50ppm
570CAC000973DG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si570	125 MHz	CMOS	3.3V	±50ppm
570CAC001041DG	Skyworks有源晶振	XTAL OSC XO 156.0000MHZ CMOS SMD	Si570	156 MHz	CMOS	3.3V	±50ppm
570CAC001705DG	Skyworks有源晶振	XTAL OSC XO 54.3600MHZ CMOS SMD	Si570	54.36 MHz	CMOS	3.3V	±50ppm
570CAC001722DG	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si570	24.576 MHz	CMOS	3.3V	±50ppm
570EAC000741DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si570	156.25 MHz	LVPECL	2.5V	±50ppm
570FAC000465DG	Skyworks有源晶振	XTAL OSC XO 60.0000MHZ LVDS SMD	Si570	60 MHz	LVDS	2.5V	±50ppm
570FAC000833DG	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	Si570	153.6 MHz	LVDS	2.5V	±50ppm
570FAC001059DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si570	100 MHz	LVDS	2.5V	±50ppm
570FAC001531DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si570	100 MHz	LVDS	2.5V	±50ppm
570GAC000118DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CMOS SMD	Si570	156.25 MHz	CMOS	2.5V	±50ppm
570GAC000121DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si570	100 MHz	CMOS	2.5V	±50ppm
570GAC001519DG	Skyworks有源晶振	XTAL OSC XO 35.4780MHZ CMOS SMD	Si570	35.478 MHz	CMOS	2.5V	±50ppm
570JAC001711DG	Skyworks有源晶振	XTAL OSC XO 33.3333MHZ CMOS SMD	Si570	33.3333 MHz	CMOS	1.8V	±50ppm
570JAC001754DG	Skyworks有源晶振	XTAL OSC XO 39.0625MHZ CMOS SMD	Si570	39.0625 MHz	CMOS	1.8V	±50ppm
570NBA000163DG	Skyworks有源晶振	XTAL OSC XO 20.0000MHZ LVDS SMD	Si570	20 MHz	LVDS	3.3V	±20ppm
570NBA000223DG	Skyworks有源晶振	XTAL OSC XO 28.1920MHZ LVDS SMD	Si570	28.192 MHz	LVDS	3.3V	±20ppm
570NBA000233DG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si570	10 MHz	LVDS	3.3V	±20ppm
570NBA000352DG	Skyworks有源晶振	XTAL OSC XO 288.399994MHZ LVDS	Si570	288.399994 MHz	LVDS	3.3V	±20ppm
570NBA000724DG	Skyworks有源晶振	XTAL OSC XO 26.0000MHZ LVDS SMD	Si570	26 MHz	LVDS	3.3V	±20ppm
570NBA000725DG	Skyworks有源晶振	XTAL OSC XO 56.0000MHZ LVDS SMD	Si570	56 MHz	LVDS	3.3V	±20ppm
570NBA000726DG	Skyworks有源晶振	XTAL OSC晶振 XO 100.0000MHZ LVDS SMD	Si570	100 MHz	LVDS	3.3V	±20ppm
570NBA000727DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si570	200 MHz	LVDS	3.3V	±20ppm
570NBA000728DG	Skyworks有源晶振	XTAL OSC XO 900.0000MHZ LVDS SMD	Si570	900 MHz	LVDS	3.3V	±20ppm
570NBA001482DG	Skyworks有源晶振	XTAL OSC XO 700.0000MHZ LVDS SMD	Si570	700 MHz	LVDS	3.3V	±20ppm
570NBA001484DG	Skyworks有源晶振	XTAL OSC XO 700.0000MHZ LVDS SMD	Si570	700 MHz	LVDS	3.3V	±20ppm
570NBA001485DG	Skyworks有源晶振	XTAL OSC XO 700.0000MHZ LVDS SMD	Si570	700 MHz	LVDS	3.3V	±20ppm
570NBA001486DG	Skyworks有源晶振	XTAL OSC XO 700.0000MHZ LVDS SMD	Si570	700 MHz	LVDS	3.3V	±20ppm
570QBA000107DG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ CML SMD	Si570	10 MHz	CML	3.3V	±20ppm
570QBA000135DG	Skyworks有源晶振	XTAL OSC XO 340.0000MHZ CML SMD	Si570	340 MHz	CML	3.3V	±20ppm
570QBA000143DG	Skyworks有源晶振	XTAL OSC XO 117.0000MHZ CML SMD	Si570	117 MHz	CML	3.3V	±20ppm
570QBA000264DG	Skyworks有源晶振	XTAL OSC XO 174.9280MHZ CML SMD	Si570	174.928 MHz	CML	3.3V	±20ppm
570QBA000605DG	Skyworks有源晶振	XTAL OSC XO 31.45728MHZ CML SMD	Si570	31.45728 MHz	CML	3.3V	±20ppm

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振

采購：Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：

跟此產品相關的產品 / Related Products

: LD振蕩器,DIODES有源晶振,LVDS差分晶振,LDA000004,低抖動晶振,5032振蕩器; LD振蕩器,DIODES有源晶振,LVDS差分晶振,LDA000004,低抖動晶振,5032振蕩器 LDA000004是DIODES公司推出的一款基于5032封裝的LVDS差分有源晶振，屬于LD振蕩器系列。這款晶振專為對時鐘信號精度、穩定性和抗干擾能力要求極高的應用場景而設計，具備低抖動特性，能夠為各類電子設備提供精準、純凈且穩定的時鐘信號，廣泛應用于通信、數據處理、工業自動化等領域。

: LV5520JEW-156.25MDK晶振,美國普銳特石英晶振,LV55J振蕩器,LVDS差分晶振; LV5520JEW-156.25MDK晶振,美國普銳特石英晶振,LV55J振蕩器,LVDS差分晶振 LV5520JEW - 156.25MDK晶振，作為美國普銳特的杰出產品，在LVDS差分晶振領域展現出卓越性能。它以156.25MHz的高頻輸出，為高速數據傳輸和處理設備提供穩定且精準的時鐘信號。采用高品質石英材料，結合普銳特精湛的制造工藝，在 - 40℃至 + 85℃的寬溫度范圍內，能將頻率偏差嚴格控制在極小范圍，確保了卓越的頻率穩定性。

X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振

X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振，尺寸7.0×5.0mm，頻率150MHZ，輸出邏輯LV-PECL，EPSON有源晶振，日本進口晶振，差分有源振蕩器，LV-PECL輸出晶振，差分晶體振蕩器，7050mm差分晶振，差分貼片振蕩器，石英差分振蕩器，150MHZ差分晶振，低電壓差分晶振，低損耗差分晶振，低抖動差分晶振，低相位差分晶振，低相噪差分晶振，高性能差分晶振，娛樂設備差分晶振，微波通信專用差分晶振，航空電子差分晶振，儀器設備差分晶振，具有超高的可靠性能。

OSC振蕩器產品超級適合用于娛樂設備，微波通信，航空電子，儀器設備等領域。X1M0003210000,愛普生差分晶振,XG-2103CA微波通信晶振.

康比電子產品中心 Product Center
