7050mm,XCB75系列晶體,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振,石英貼片晶振,歐美進口晶振,石英晶振,FortimingCrystal,無源晶體,石英晶體諧振器,水晶振動子,四腳貼片晶振,8MHZ諧振器,7050mm貼片晶振,尺寸7.0×5.0mm,頻率8MHZ,負載16pF,工作溫度-10~+60°C,低頻晶振,環保晶振,高性能晶振,低老化晶振,移動通信晶振,無線晶振,電子設備晶振,數碼相機晶振.
7050mm,XCB75系列晶體,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振特點:
符合RoHS（無鉛），重要低頻范圍
AT切割石英晶振，真空密封，具有優異的老化性能，擴展的溫度范圍
行業標準占地面積，緊湊尺寸（7x5mm），最大高度1.3mm
卓越的可焊性

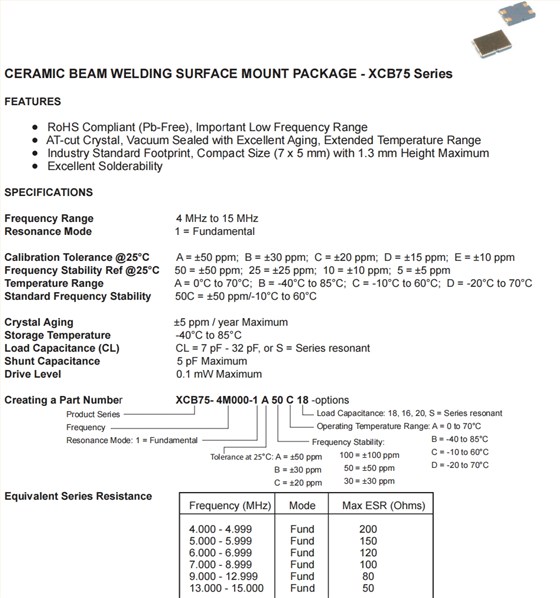

7050mm,XCB75系列晶體,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振 參數表
| Frequency Range | 8 MHz | |||||||
| Resonance Mode | 1 = Fundamental | |||||||
| Calibration Tolerance @25°C | A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm | |||||||
| Frequency Stability Ref @25°C | 50 = ±50 ppm;25 = ±25 ppm;10 = ±10 ppm;5 = ±5 ppm | |||||||
| Temperature Range | A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C | |||||||
| Standard Frequency Stability | 50C = ±50 ppm/-10°C to 60°C | |||||||
| Crystal Aging | ±5 ppm / year Maximum | |||||||
| Storage Temperature | -40°C to 85°C | |||||||
| Load Capacitance (CL) | CL = 7 pF - 32 pF, or S = Series resonant | |||||||
| Shunt Capacitance | 5 pF Maximum | |||||||
| Drive Level | 0.1 mW Maximum | |||||||

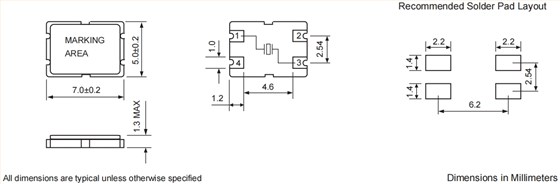

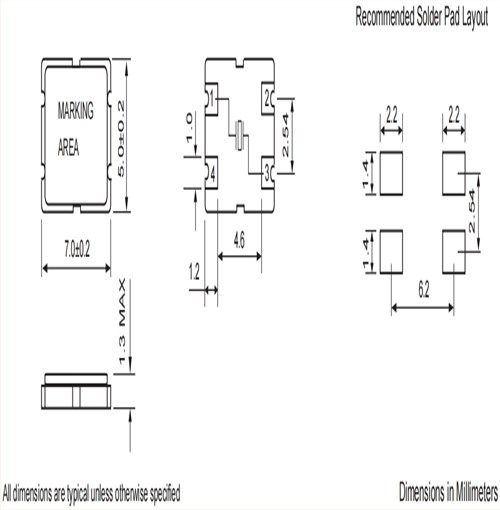

7050mm,XCB75系列晶體,XCB75-8M000-1C50C16,8MHZ,Fortiming富通晶振 尺寸圖
