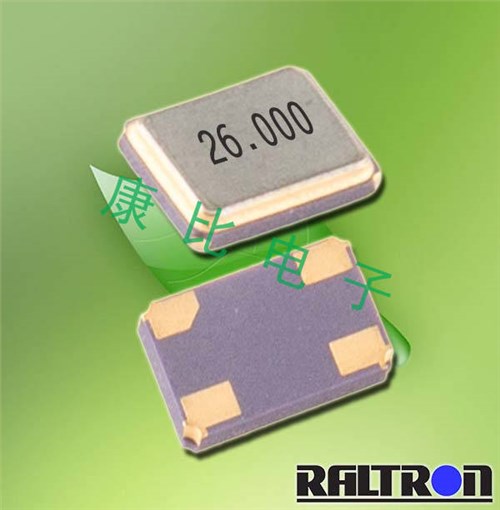

RH100-25.000-18-F-TR,Raltron微處理器晶體,3225mm,25MHz，美國進口晶振，Raltron晶振，拉隆晶振，型號：RH100，編碼為：RH100-25.000-18-F-TR，頻率：25MHz，頻率穩定性：±100ppm，頻率容差：±100ppm，負載電容：18pF，工作溫度范圍：-20℃至+70℃，小體積晶振尺寸：3.2x2.5mm緊湊型設計，四腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，3225晶振，SMD晶振，具有超小型，輕薄型，高精度，高穩定性，高性能，高品質，耐熱及耐環境等特點，非常適合高密度表面安裝。應用于：汽車電子晶振，無線藍牙晶振，醫療設備晶振，智能手機晶振，數碼電子等應用。

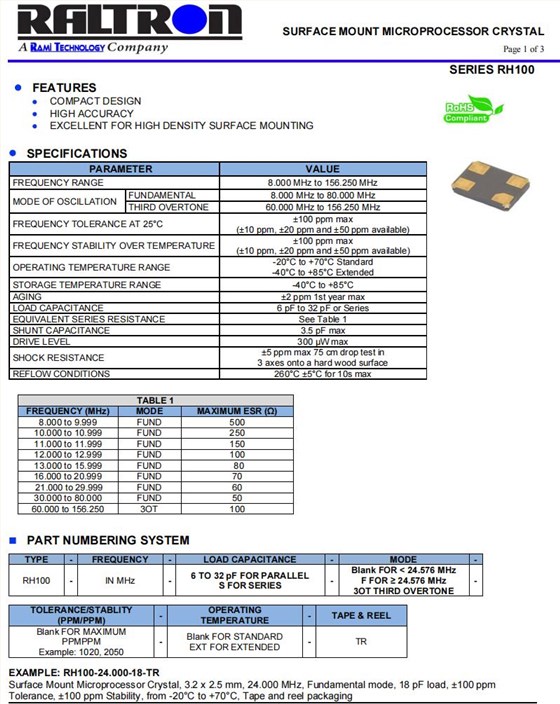

RH100-25.000-18-F-TR,Raltron微處理器晶體,3225mm,25MHz,參數表
| 品牌 | Raltron晶振 |
| 型號 | RH100 |
| 物料編碼 | RH100-25.000-18-F-TR |
| 頻率 | 25MHz |
| 頻率穩定性 | ±100ppm |
| 頻率容差 | ±100ppm |
| 負載電容 | 18pF |
| 工作溫度 | -20°C ~ 70°C |
| 尺寸 | 3.2x2.5mm |

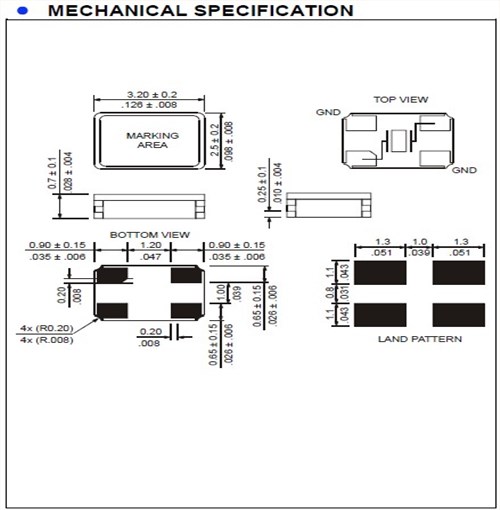

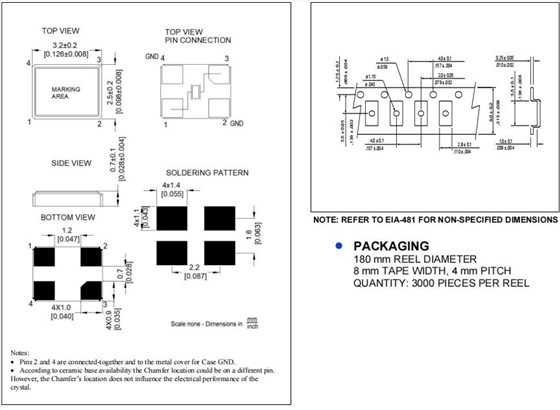

RH100-25.000-18-F-TR,Raltron微處理器晶體,3225mm,25MHz,尺寸圖
| 產品編碼 | 晶振廠家 | 描述 | 系列 |
| RH100-25.000-10-F-3030-EXT-TR | Raltron晶振 | CRYSTAL 25.0MHZ 10PF SMD | RH100 |
| RH100-12.000-18-2020-EXT-TR | Raltron晶振 | CRYSTAL 12.0MHZ 18PF SMD | RH100 |
| RH100-25.000-13-F-0715-EXT-TR-NS1 | Raltron晶振 | CRYSTAL 25.0MHZ 13PF SMD | RH100 |
| RH100-16.000-16-3030-EXT-TR | Raltron晶振 | CRYSTAL 16.0000MHZ 16PF SMD | RH100 |
| RH100-24.000-9-1015-EXT-TR | Raltron晶振 | CRYSTAL 24.0000MHZ 9PF SMD | RH100 |
| RH100-32.000-16-F-1015-EXT-TR | Raltron晶振 | CRYSTAL 32.0000MHZ 16PF SMD | RH100 |
| RH100-40.000-9-F-1010-EXT-TR | Raltron晶振 | CRYSTAL 40.0000MHZ 9PF SMD | RH100 |
| RH100-48.000-8-F-1015-EXT-TR | Raltron晶振 | CRYSTAL 48.0000MHZ 8PF SMD | RH100 |
| RH100-12.000-20-2030-TR | Raltron晶振 | CRYSTAL 12.0000MHZ 20PF SMD | RH100 |
| RH100-11.0592-18-3030-EXT-TR | Raltron晶振 | CRYSTAL 11.0592MHZ 18PF SMD | RH100 |
| RH100-25.000-18-F-TR | Raltron晶振 | CRYSTAL 25.0MHZ 18PF SMD | RH100 |
| RH100-26.000-10-F-1010-EXT-TR | Raltron晶振 | CRYSTAL 26.0000MHZ 10PF SMD | RH100 |
| RH100-12.000-12-1010-X-TR-NS2 | Raltron晶振 | CRYSTAL 12.0MHZ 12PF SMD | RH100 |
| RH100-25.000-18-F-2030-EXT-TR | Raltron晶振 | CRYSTAL 25.0000MHZ 18PF SMD | RH100 |
| RH100-48.000-10-F-1015-EXT-TR | Raltron晶振 | CRYSTAL 48.0000MHZ 10PF SMD | RH100 |
| RH100-12.000-20-3030-EXT-TR | Raltron晶振 | CRYSTAL 12.0000MHZ 20PF SMD | RH100 |
| RH100-12.000-18-2020-TR | Raltron晶振 | CRYSTAL 12.0000MHZ 18PF SMD | RH100 |
| RH100-24.000-18-2030-EXT-TR | Raltron晶振 | CRYSTAL 24.0000MHZ 18PF SMD | RH100 |
| RH100-12.000-12-1010-EXT-TR | Raltron晶振 | CRYSTAL 12.0000MHZ 12PF SMD | RH100 |
| RH100-12.000-9-1015-TR-NS1 | Raltron晶振 | CRYSTAL 12.0000MHZ 9PF SMD | RH100 |
| RH100-25.000-16-F-2020-EXT-TR | Raltron晶振 | CRYSTAL 25.0000MHZ 16PF SMD | RH100 |
| RH100-24.000-8-1010-EXT-TR | Raltron晶振 | CRYSTAL 24.0000MHZ 8PF SMD | RH100 |
| RH100-25.000-18-F-1010-TR | Raltron晶振 | CRYSTAL 25.0000MHZ 18PF SMD | RH100 |
| RH100-16.000-8-1010-TR | Raltron晶振 | CRYSTAL 16.0000MHZ 8PF SMD | RH100 |
| RH100-25.000-10-F-1010-EXT-TR | Raltron晶振 | CRYSTAL 25.0000MHZ 10PF SMD | RH100 |
| RH100-8.000-10-1010-EXT-TR | Raltron晶振 | CRYSTAL 8.0000MHZ 10PF SMD | RH100 |
| RH100-8.000-8-2020-TR | Raltron晶振 | CRYSTAL 8.0000MHZ 8PF SMD | RH100 |
| RH100-8.000-16-3030-TR-NS1 | Raltron晶振 | CRYSTAL 8.0MHZ 18PF SMD | RH100 |
| RH100-13.560-10-1020-EXT-TR | Raltron晶振 | CRYSTAL 13.5600MHZ 10PF SMD | RH100 |
