彼得曼音叉晶體,M3215-32.768kHz-±20ppm-12.5pF,3215mm,32.768KHZ,petermann歐美晶振,3215mm無源晶,32.768K晶振,無源晶振,SMD諧振,貼片無源晶振,尺寸3.2x1.5mm,頻率32.768KHZ,負載12.5pF,精度±20ppm,低耗能晶振,環保晶振,高精度晶振,高品質晶振,移動通信晶振,無線應用晶振,智能手表晶振,CPU應用晶振,電話機晶振.

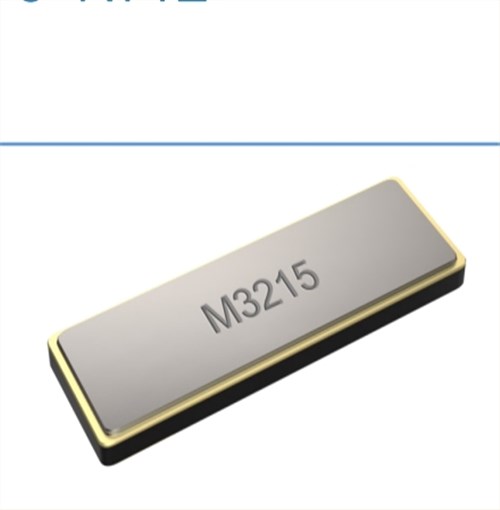

彼得曼音叉晶體,M3215-32.768kHz-±20ppm-12.5pF,3215mm,32.768KHZ特點:
最便宜的陶瓷包裝迷你手表水晶無源晶體
超低姿態
標準工作溫度范圍為-40/+85°C
出色的時鐘發生器，適用于CPU、無線、移動通信等。

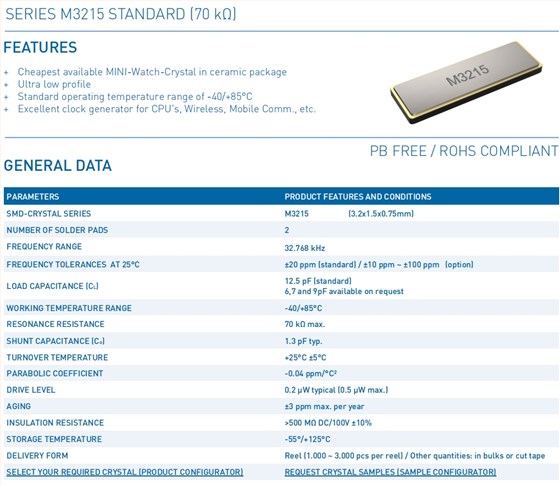

彼得曼音叉晶體,M3215-32.768kHz-±20ppm-12.5pF,3215mm,32.768KHZ 參數表
| SMD-CRYSTAL SERIES | M3215 | (3.2x1.5x0.75mm) | ||||||||||||||||||||||||
| NUMBER OF SOLDER PADS2 | ||||||||||||||||||||||||||
| FREQUENCY RANGE | 32.768 kHz | |||||||||||||||||||||||||
| FREQUENCY TOLERANCES | AT 25°C | ±20 ppm (standard) / ±10 ppm ~ ±100 ppm(option) | ||||||||||||||||||||||||
| LOAD CAPACITANCE (CL) | 12.5 pF (standard) | |||||||||||||||||||||||||
| 6,7 and 9pF available on request | ||||||||||||||||||||||||||
| WORKING TEMPERATURE RANGE | -40/+85°C | |||||||||||||||||||||||||
| RESONANCE RESISTANCE | 70 kΩ max. | |||||||||||||||||||||||||
| SHUNT CAPACITANCE (Co) | 1.3 pF typ. | |||||||||||||||||||||||||
| TURNOVER TEMPERATURE | +25°C ±5°C | |||||||||||||||||||||||||
| PARABOLIC COEFFICIENT | -0.04 ppm/°C² | |||||||||||||||||||||||||
| DRIVE LEVEL | 0.2 µW typical (0.5 μW max.) | |||||||||||||||||||||||||
| AGING | ±3 | ppm max. per year | ||||||||||||||||||||||||
| INSULATION RESISTANCE | >500 MΩ DC/100V ±10% | |||||||||||||||||||||||||
| STORAGE TEMPERATURE | -55°/+125°C | |||||||||||||||||||||||||
| DELIVERY FORMReel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape | ||||||||||||||||||||||||||

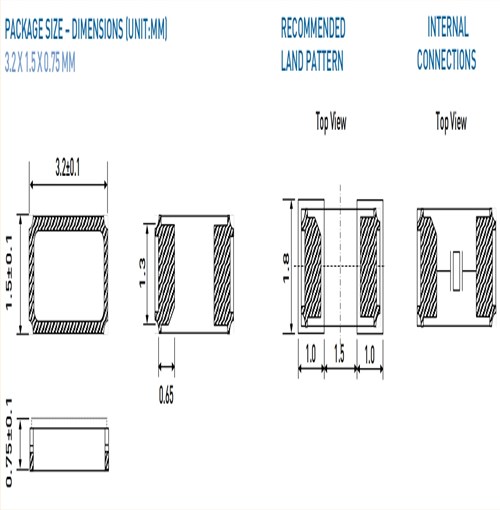

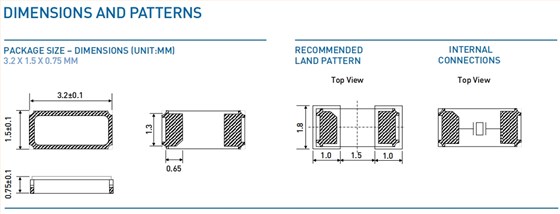

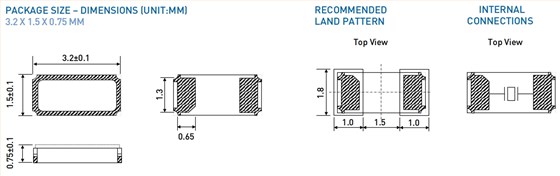

彼得曼音叉晶體,M3215-32.768kHz-±20ppm-12.5pF,3215mm,32.768KHZ 尺寸圖
