FC3BAEBDI40.0-T1,3225mm,FOX無源晶振,耐高溫晶振，美國FOX晶振，福克斯晶振，型號：FC3BA，(Former FXA3225B)系列晶振，編碼為：FC3BAEBDI40.0-T1石英晶振，頻率為：40.000MHz，頻率穩定性：±50ppm，頻率容差：±20ppm，負載電容：8pF，工作溫度范圍：-40℃至+125℃，耐高溫晶振，小體積晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，3225晶振，無源晶振，石英晶體諧振器，SMD晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。進口晶振，被廣泛應用于：移動通訊晶振，無線藍牙晶振，汽車電子晶振，車載控制器，航空電子晶振，安防設備等應用。

FC3BAEBDI40.0-T1,3225mm,FOX無源晶振,耐高溫晶振,參數表

PARAMETERS	MAX(unless otherwise noted)
Frequency Range	40MHz
Frequency Tolerance @ 25ºC	(See options on page 2)
Frequency Stability, ref @ 25ºC	(See options below)
Temperature Range
Operating (TOPR)	(see options below)
Storage (TSTG)	-55℃~ +150℃
Shunt Capacitance (Co)	3pF
Load Capacitance (Cl)	(See options on page 2)
Drive Level	100µW
Aging per year	±5 PPM
Maximum Soldering Temp / Time	260ºC / 10 Seconds
Moisture Sensitivity Level (MSL)	1
Termination Finish	Au
Seal Method	Seam Seal
Lead (Pb) Free	Yes
RoHS Compliant	No Exemptions

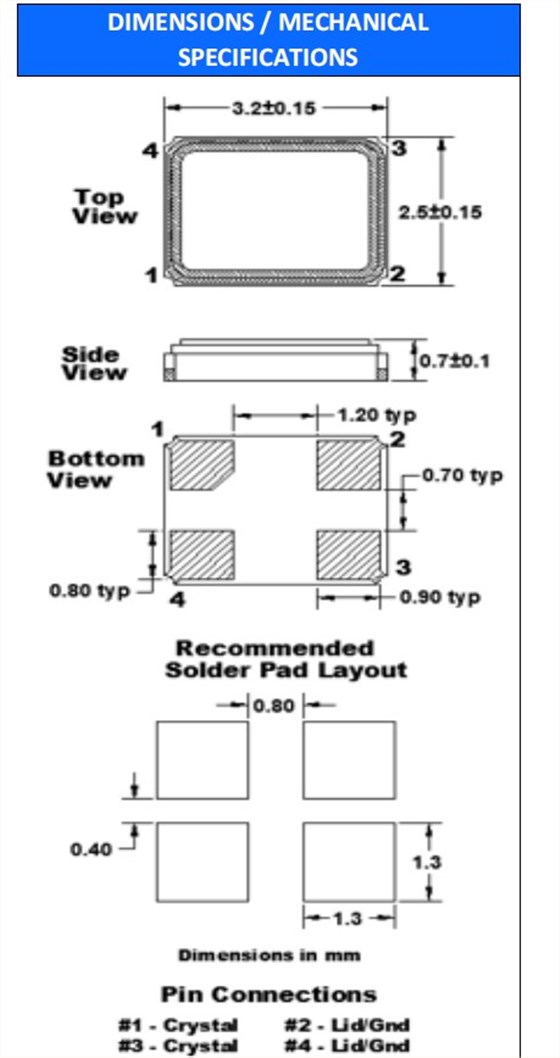

FC3BAEBDI40.0-T1,3225mm,FOX無源晶振,耐高溫晶振,尺寸圖

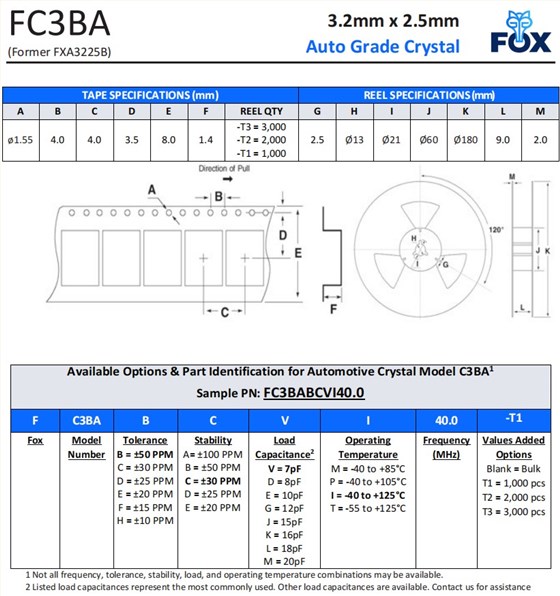

產品編碼	品牌	型號	頻率	頻率穩定性	頻率容差	負載電容
FC3BABBKM20.0-T3	Fox晶振	FC3BA	20 MHz	±50ppm	±50ppm	16 pF
FC3BACAGI16.0-T3	Fox晶振	FC3BA	16 MHz	±100ppm	±30ppm	12 pF
FC3BACALI16.0-T3	Fox晶振	FC3BA	16 MHz	±100ppm	±30ppm	18 pF
FC3BACBDI16.0-T3	Fox晶振	FC3BA	16 MHz	±50ppm	±30ppm	8 pF
FC3BACCGM20.0-T3	Fox晶振	FC3BA	20 MHz	±30ppm	±30ppm	12 pF
FC3BACCLP12.0-T3	Fox晶振	FC3BA	12 MHz	±30ppm	±30ppm	18 pF
FC3BAEBDI12.0-T1	Fox晶振	FC3BA	12 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI16.0-T1	Fox晶振	FC3BA	16 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI20.0-T1	Fox晶振	FC3BA	20 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI24.0-T1	Fox晶振	FC3BA	24 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI25.0-T1	Fox晶振	FC3BA	25 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI40.0-T1	Fox晶振	FC3BA	40 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI8.0-T1	Fox晶振	FC3BA	8 MHz	±50ppm	±20ppm	8 pF
FC3BAEBGI12.0-T1	Fox晶振	FC3BA	12 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI24.0-T1	Fox晶振	FC3BA	24 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI25.0-T1	Fox晶振	FC3BA	25 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI40.0-T1	Fox晶振	FC3BA	40 MHz	±50ppm	±20ppm	12 pF
FC3VAEEGM50.0-T3	Fox晶振	FC3VA	50 MHz	±20ppm	±20ppm	12 pF
