FC2BAEBDI25.0-T1,FOX福克斯晶振,2520mm,汽車音響晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC2BA，(Former FXA2520B)，編碼為：FC2BAEBDI25.0-T1，頻率為：25.000MHz，頻率穩定性：±50ppm，頻率容差：±20ppm，負載電容：8pF，工作溫度范圍：-40℃至+125℃，小體積晶振尺寸：2.5x2.0mm封裝，四腳貼片晶振，石英晶振，耐高溫晶振，無源晶振，石英晶體諧振器，SMD石英晶體，耐高溫晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。符合AEC-Q200標準，被廣泛應用于：通訊設備晶振，汽車音響晶振，車載控制器晶振，醫療設備晶振，智能家居等應用。

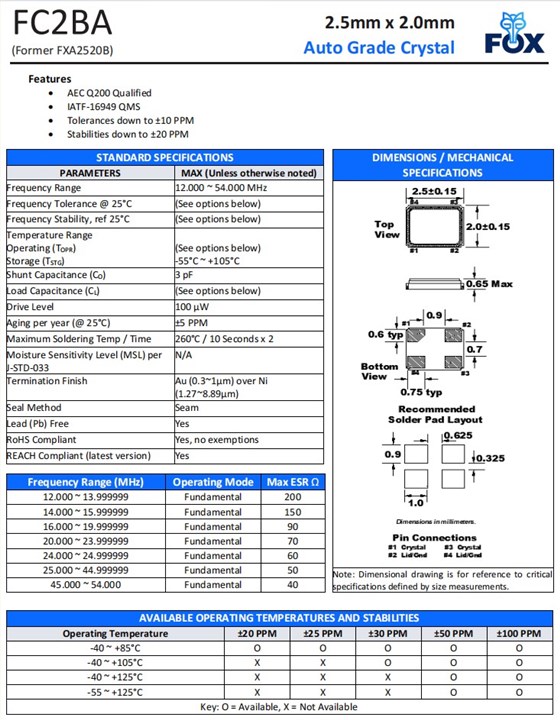

FC2BAEBDI25.0-T1,FOX福克斯晶振,2520mm,汽車音響晶振,參數表

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

25.000MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

(See options below)
-55°C ~ +105°C

Shunt Capacitance (CO)

3 pF

Load Capacitance (CL)

(See options below)

Drive Level

100 µW

Aging per year (@ 25°C)

±5 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

N/A

Termination Finish

Au (0.3~1µm) over Ni
(1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

REACH Compliant (latest version)

Yes

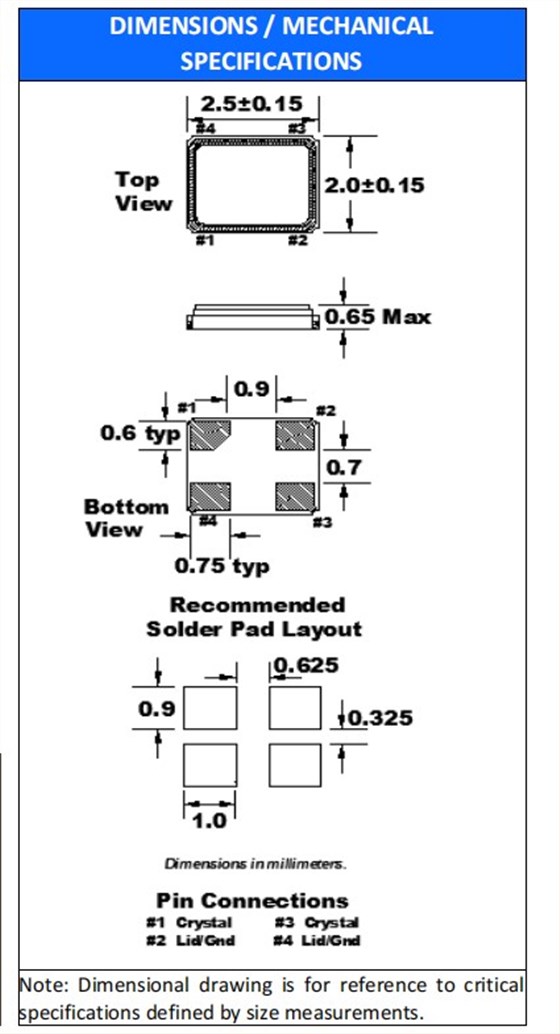

FC2BAEBDI25.0-T1,FOX福克斯晶振,2520mm,汽車音響晶振,尺寸圖

產品編碼	晶振廠家	型號	頻率	頻率穩定性	頻率容差	負載電容
FC2BACBEI16.0-T1	Fox晶振	FC2BA	16 MHz	±50ppm	±30ppm	10 pF
FC2BACBEI16.0-T3	Fox晶振	FC2BA	16 MHz	±50ppm	±30ppm	10 pF
FC2BAEBDI12.0-T1	Fox晶振	FC2BA	12 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI16.0-T1	Fox晶振	FC2BA	16 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI20.0-T1	Fox晶振	FC2BA	20 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI24.0-T1	Fox晶振	FC2BA	24 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI25.0-T1	Fox晶振	FC2BA	25 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI40.0-T1	Fox晶振	FC2BA	40 MHz	±50ppm	±20ppm	8 pF
FC2BAEBEI12.0-T1	Fox晶振	FC2BA	12 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI16.0-T1	Fox晶振	FC2BA	16 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI20.0-T1	Fox晶振	FC2BA	20 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI24.0-T1	Fox晶振	FC2BA	24 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI25.0-T1	Fox晶振	FC2BA	25 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI40.0-T1	Fox晶振	FC2BA	40 MHz	±50ppm	±20ppm	10 pF
FC2BAEBGI25.0-T1	Fox晶振	FC2BA	25 MHz	±50ppm	±20ppm	12 pF
FC2BSBBMM16.0-T1	Fox晶振	FC2BS	16 MHz	±50ppm	±50ppm	20 pF
FC2BSBBMM16.0-T3	Fox晶振	FC2BS	16 MHz	±50ppm	±50ppm	20 pF
