DF18CC1-13.000MHZ-T,麥迪康安防晶振,D系列石英晶振，尺寸13.2*4.5mm，頻率13MHZ，Mmdcomp貼片晶振，歐美進口晶振，MMDCOMP Crystal，石英貼片晶振，SMD晶振，無源晶振，無源石英晶振，石英晶體諧振器，水晶振動子，石英晶振，大尺寸晶振，安防應用晶振，數碼電子晶振，便攜式設備晶振，筆記本電腦晶振，網絡設備晶振，收音機晶振，高性能晶振，高品質晶振，低損耗晶振，低功耗晶振，具有良好的耐壓性能。

石英晶振產品比較適合用于安防應用，數碼電子，便攜式設備，筆記本電腦，網絡設備，收音機等應用。DF18CC1-13.000MHZ-T,麥迪康安防晶振,D系列石英晶振.

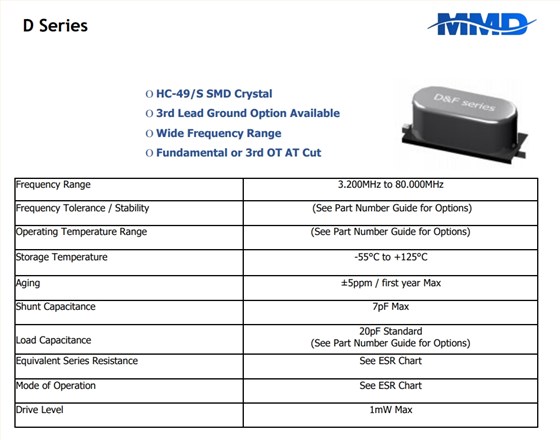

DF18CC1-13.000MHZ-T,麥迪康安防晶振,D系列石英晶振 參數表

Frequency Range			13.000MHz
Frequency Tolerance / Stability			(See Part Number Guide for Options)
Operating Temperature Range			(See Part Number Guide for Options)
Storage Temperature			-55°C to +125°C
Aging			±5ppm / first year Max
Shunt Capacitance			7pF Max
Load Capacitance			20pF Standard
			(See Part Number Guide for Options)

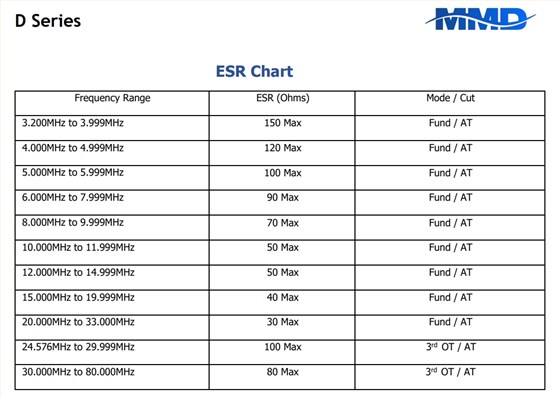

Equivalent Series Resistance			See ESR Chart
Mode of Operation			See ESR Chart
Drive Level			1mW Max

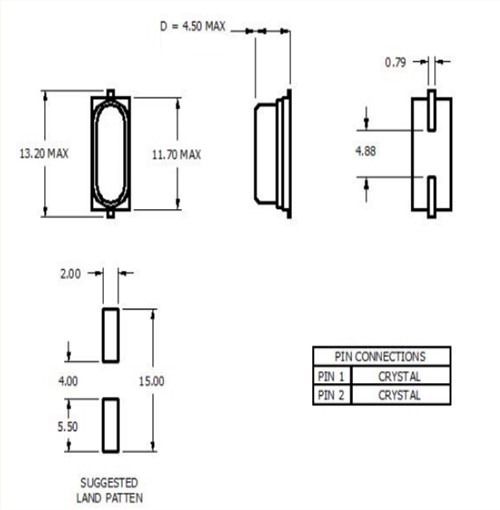

DF18CC1-13.000MHZ-T,麥迪康安防晶振,D系列石英晶振 尺寸圖

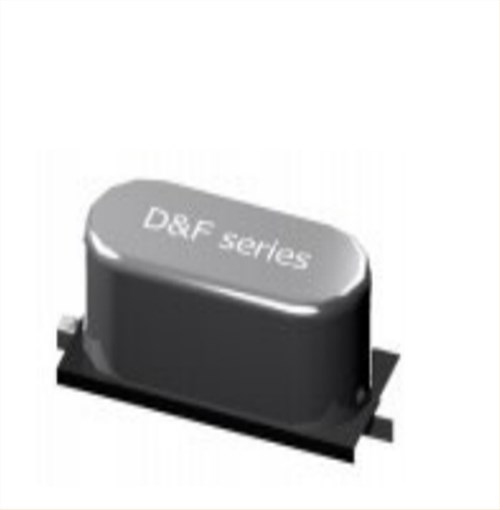

DF18CC1-13.000MHZ-T,麥迪康安防晶振,D系列石英晶振

產品特性：

HC-49/S SMD無源晶體

第三引線接地選項可用

寬頻率范圍

基本或第三次OT AT切割

Mfr Part #	歐美晶振	Description	Series	Frequency	Frequency Stability
WC146SMF-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	WC146SM	32.768 kHz	-
DF18CC1-4.000MHZ-T	麥迪康晶振	CRYSTAL 4.0000MHZ 18PF SMD	D	4 MHz	±30ppm
DF18CC1-16.384MHZ-T	麥迪康晶振	CRYSTAL 16.3840MHZ 18PF SMD	D	16.384 MHz	±30ppm
MMC-463F-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	MMC	32.768 kHz	-
WC315-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	WC315	32.768 kHz	-
DF18CC1-9.8304MHZ-T	麥迪康晶振	CRYSTAL 9.8304MHZ 18PF SMD	D	9.8304 MHz	±30ppm
DF18CC1-16.000MHZ-T	麥迪康晶振	CRYSTAL 16.0000MHZ 18PF SMD	D	16 MHz	±30ppm
DF18CC1-10.000MHZ-T	麥迪康晶振	CRYSTAL 10.0000MHZ 18PF SMD	D	10 MHz	±30ppm
DF18CC1-10.240MHZ-T	麥迪康晶振	CRYSTAL 10.2400MHZ 18PF SMD	D	10.24 MHz	±30ppm
DF18CC1-3.6864MHZ-T	麥迪康晶振	CRYSTAL 3.6864MHZ 18PF SMD	D	3.6864 MHz	±30ppm
DF18CC1-4.500MHZ-T	麥迪康晶振	CRYSTAL 4.5000MHZ 18PF SMD	D	4.5 MHz	±30ppm
DF18CC1-15.000MHZ-T	麥迪康晶振	CRYSTAL 15.0000MHZ 18PF SMD	D	15 MHz	±30ppm
DF18CC1-3.579545MHZ-T	麥迪康晶振	CRYSTAL 3.579545MHZ 18PF SMD	D	3.579545 MHz	±30ppm
DF18CC1-13.000MHZ-T	麥迪康晶振	CRYSTAL 13.0000MHZ 18PF SMD	D	13 MHz	±30ppm
DF18CC1-14.31818MHZ-T	麥迪康晶振	CRYSTAL 14.31818MHZ 18PF SMD	D	14.31818 MHz	±30ppm
T10GC1-20.000MHZ-T	麥迪康晶振	CRYSTAL 20.0000MHZ 10PF SMD	T	20 MHz	±30ppm
X10CB1-40.000MHZ-T	麥迪康晶振	CRYSTAL 40.0000MHZ 10PF SMD	X	40 MHz	±30ppm
X10CB1-30.000MHZ-T	麥迪康晶振	CRYSTAL 30.0000MHZ 10PF SMD	X	30 MHz	±30ppm
X10CB1-24.576MHZ-T	麥迪康晶振	CRYSTAL 24.5760MHZ 10PF SMD	X	24.576 MHz	±30ppm
X10CB1-22.1184MHZ-T	麥迪康晶振	CRYSTAL 22.1184MHZ 10PF SMD	X	22.1184 MHz	±30ppm
X10CB1-27.000MHZ-T	麥迪康晶振	CRYSTAL 27.0000MHZ 10PF SMD	X	27 MHz	±30ppm
X10CB1-32.000MHZ-T	麥迪康晶振	CRYSTAL 32.0000MHZ 10PF SMD	X	32 MHz	±30ppm
X10CB1-25.000MHZ-T	麥迪康晶振	CRYSTAL 25.0000MHZ 10PF SMD	X	25 MHz	±30ppm
DF18CC1-20.000MHZ-T	麥迪康晶振	CRYSTAL 20.0000MHZ 18PF SMD	D	20 MHz	±30ppm
DF18CC1-24.576MHZ-T	麥迪康晶振	CRYSTAL 24.5760MHZ 18PF SMD	D	24.576 MHz	±30ppm
DF18CC1-4.433619MHZ-T	麥迪康晶振	CRYSTAL 4.433619MHZ 18PF SMD	D	4.433619 MHz	±30ppm
DF18CC1-19.6608MHZ-T	麥迪康晶振	CRYSTAL 19.6608MHZ 18PF SMD	D	19.6608 MHz	±30ppm
DF18CC1-14.7456MHZ-T	麥迪康晶振	CRYSTAL 14.7456MHZ 18PF SMD	D	14.7456 MHz	±30ppm
DF18CC1-30.000MHZ-T	麥迪康晶振	CRYSTAL 30.0000MHZ 18PF SMD	D	30 MHz	±30ppm
DF18CC1-16.9344MHZ-T	麥迪康晶振	CRYSTAL 16.9344MHZ 18PF SMD	D	16.9344 MHz	±30ppm
DF18CC1-6.144MHZ-T	麥迪康晶振	CRYSTAL 6.1440MHZ 18PF SMD	D	6.144 MHz	±30ppm
DF18CC1-7.3728MHZ-T	麥迪康晶振	CRYSTAL 7.3728MHZ 18PF SMD	D	7.3728 MHz	±30ppm
DF18CC1-4.194304MHZ-T	麥迪康晶振	CRYSTAL 4.194304MHZ 18PF SMD	D	4.194304 MHz	±30ppm
DF18CC1-18.432MHZ-T	麥迪康晶振	CRYSTAL 18.4320MHZ 18PF SMD	D	18.432 MHz	±30ppm
DF18CC1-15.360MHZ-T	麥迪康晶振	CRYSTAL 15.3600MHZ 18PF SMD	D	15.36 MHz	±30ppm
DF18CC1-6.7458MHZ-T	麥迪康晶振	CRYSTAL 6.7458MHZ 18PF SMD	D	6.7458 MHz	±30ppm
DF18CC1-18.000MHZ-T	麥迪康晶振	CRYSTAL 18.0000MHZ 18PF SMD	D	18 MHz	±30ppm
DF18CC1-12.000MHZ-T	麥迪康晶振	CRYSTAL 12.0000MHZ 18PF SMD	D	12 MHz	±30ppm
DF18CC1-4.9152MHZ-T	麥迪康晶振	CRYSTAL 4.9152MHZ 18PF SMD	D	4.9152 MHz	±30ppm
DF18CC1-28.63636MHZ-T	麥迪康晶振	CRYSTAL 28.63636MHZ 18PF SMD	D	28.63636 MHz	±30ppm
DF18CC1-6.000MHZ-T	麥迪康晶振	CRYSTAL 6.0000MHZ 18PF SMD	D	6 MHz	±30ppm
DF18CC1-5.000MHZ-T	麥迪康晶振	CRYSTAL 5.0000MHZ 18PF SMD	D	5 MHz	±30ppm
DF18CC1-13.500MHZ-T	麥迪康晶振	CRYSTAL 13.5000MHZ 18PF SMD	D	13.5 MHz	±30ppm
DF18CC1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 18PF SMD	D	24 MHz	±30ppm
DF18CC1-11.0592MHZ-T	麥迪康晶振	CRYSTAL 11.0592MHZ 18PF SMD	D	11.0592 MHz	±30ppm
DF18CC1-9.216MHZ-T	麥迪康晶振	CRYSTAL 9.2160MHZ 18PF SMD	D	9.216 MHz	±30ppm
DF18CC1-12.288MHZ-T	麥迪康晶振	CRYSTAL 12.2880MHZ 18PF SMD	D	12.288 MHz	±30ppm
T10GC1-22.1184MHZ-T	麥迪康晶振	CRYSTAL 22.1184MHZ 10PF SMD	T	22.1184 MHz	±30ppm
T10GC1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 10PF SMD	T	24 MHz	±30ppm
T10GC1-19.200MHZ-T	麥迪康晶振	CRYSTAL 19.2000MHZ 10PF SMD	T	19.2 MHz	±30ppm
T10GC1-24.576MHZ-T	麥迪康晶振	CRYSTAL 24.5760MHZ 10PF SMD	T	24.576 MHz	±30ppm
T10GC1-16.000MHZ-T	麥迪康晶振	CRYSTAL 16.0000MHZ 10PF SMD	T	16 MHz	±30ppm
T10GC1-16.384MHZ-T	麥迪康晶振	CRYSTAL 16.3840MHZ 10PF SMD	T	16.384 MHz	±30ppm
