Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振，尺寸7.0×5.0mm，頻率8MHZ，美國卡迪納爾晶振，歐美進口晶振，Cardinal石英晶振，7050mm貼片晶振，石英晶體諧振器，石英貼片晶振，8MHZ石英晶振，SMD晶振，無源晶振，無源貼片晶振，網絡通訊設備晶振，物聯網晶振，無線藍牙晶振，移動通信晶振，測試測量晶振，小型設備晶振，外圍設備晶振，數字音頻晶振，播放器晶振，衛星定位晶振，高品質貼片晶振，高性能石英晶振，低損耗無源晶體，低功耗晶振，低耗能晶振，具有良好的可靠性能。
無源晶體產品廣泛應用各大應用程序，比較常用于移動通信，測試測量，小型設備，外圍設備，數字音頻，播放器，衛星定位等領域。Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振.
Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振 參數表
| Parameter | Min | Typ | Max | Unit | Condition | ||||||||||||||||||||||||||||||
| Frequency Range |
|
8 |
|
MHz | |||||||||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±50 | ppm | at +25oC ± 3oC,see part number guide below for available options | ||||||||||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | |||||||||||||||||||||||||||||||
| Equivalent Series Resistance (ESR) | - | - |
45 40 35 30 25 80 |
Ω |
7.3728 MHz ≤ Freq < 9 MHz 9 MHz ≤ Freq <13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq ≤ 36 MHz 30 MHz ≤ Freq < 48 MHz (3rd Overtone) |
||||||||||||||||||||||||||||||
| Drive Level | - | - | 100 | µW | Use 10µW for testing | ||||||||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | ||||||||||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±3 | ppm | for the first year | ||||||||||||||||||||||||||||||
| - | - | ±2 | ppm | after the first year | |||||||||||||||||||||||||||||||

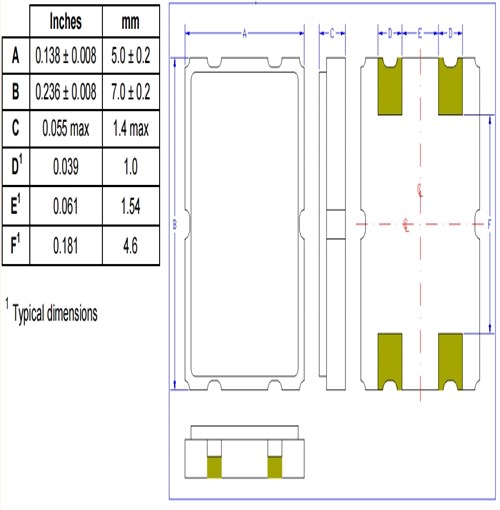

Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振 尺寸圖

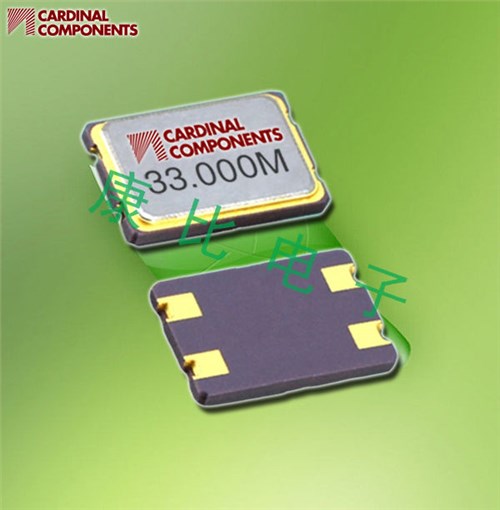

Cardinal無線藍牙晶振,CX5Z-A5B2C5-70-8.0D18,CX5貼片環保晶振
石英晶振產品特性：
小型薄型表面貼裝水晶。
包裝是自動表面安裝的理想選擇組裝和回流實踐。
磁帶和卷軸包裝。
AT切割水晶
| Manufacturer Part Number原廠編碼 | 歐美晶振 | Description 參數 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Operating Temperature工作溫度 |
| CSM1Z-A0B2C3-50-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CSM1 | 27MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-100-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM1 | 7.3728MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-100-6.144D18 | Cardinal晶振 | CRYSTAL 6.1440MHZ 18PF SMD | CSM1 | 6.144MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-40-27.0D18-F | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CSM1 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-120-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM1 | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal晶振 | CRYSTAL 28.63636MHZ 18PF SMD | CSM1 | 28.63636MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C3-60-9.216D18 | Cardinal晶振 | CRYSTAL 9.2160MHZ 18PF SMD | CSM1 | 9.216MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-120-6.0D18 | Cardinal晶振 | CRYSTAL 6.0000MHZ 18PF SMD | CSM1 | 6MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CRYSTAL 26.0000MHZ 18PF SMD | CSM4 | 26MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C5-120-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM1 | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CRYSTAL 18.0000MHZ 18PF SMD | CSM1 | 18MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A0B2C3-50-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CSM1 | 24MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CSM1 | 10MHz | ±50ppm | -10°C ~ 60°C |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM4 | 4MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C5-150-4.9152D18 | Cardinal晶振 | CRYSTAL 4.9152MHZ 18PF SMD | CSM1 | 4.9152MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CRYSTAL 9.8304MHZ 18PF SMD | CSM4 | 9.8304MHz | ±30ppm | -40°C ~ 85°C |
| CSM1-A1B2C3-70-14.7456D20 | Cardinal晶振 | CRYSTAL 14.7456MHZ 20PF SMD | CSM1 | 14.7456MHz | ±50ppm | -10°C ~ 70°C |
| CSM1-A5B2C5-180-3.579545D18 | Cardinal晶振 | CRYSTAL 3.579545MHZ 18PF SMD | CSM1 | 3.579545MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM1 | 12MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C5-150-5.0D18 | Cardinal晶振 | CRYSTAL 5.0000MHZ 18PF SMD | CSM1 | 5MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM4 | 11.0592MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A0B2C3-80-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM1 | 12MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A0B2C3-80-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM1 | 11.0592MHz | ±50ppm | -10°C ~ 60°C |
| CSM1Z-A5B2C5-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM1 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A5B2C3-30-25.0D20 | Cardinal晶振 | CRYSTAL 25.0000MHZ 20PF SMD | CSM1 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CSM1Z-A3B1C3-200-3.6864D18 | Cardinal晶振 | CRYSTAL 3.6864MHZ 18PF SMD | CSM1 | 3.6864MHz | ±100ppm | -55°C ~ 125°C |
| CSM1Z-A5B2C3-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM1 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM4 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM4 | 7.3728MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A5B2C3-40-13.0D18 | Cardinal晶振 | CRYSTAL 13.0000MHZ 18PF SMD | CSM1 | 13MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX5 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CX5 | 24.576MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -10°C ~ 70°C |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -10°C ~ 60°C |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CRYSTAL 19.6608MHZ 18PF SMD | CX532 | 19.6608MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CX532 | 33MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CRYSTAL 17.7456MHZ 18PF SMD | CX532 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CRYSTAL 50.0000MHZ 18PF SMD | CX532 | 50MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CRYSTAL 30.0000MHZ 18PF SMD | CX532 | 30MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -20°C ~ 70°C |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX532 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CSM1Z-A0B2C3-70-14.7456D18 | Cardinal晶振 | CRYSTAL 14.7456MHZ 18PF SMD | CSM1 | 14.7456MHz | ±50ppm | -10°C ~ 60°C |
