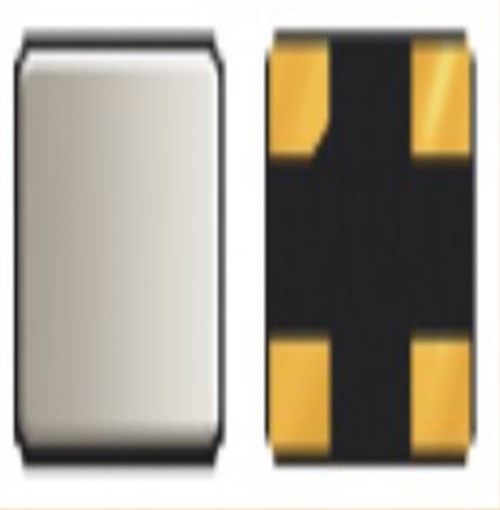

ABM11W-16.0000MHZ-7-D1X-T3,2016mm,Abracon可穿戴設備晶振，美國進口晶振，Abracon艾博康晶振，型號：ABM11W，編碼為：ABM11W-16.0000MHZ-7-D1X-T3，頻率：16.000MHz，工作溫度范圍：-40℃至+85℃，頻率穩定性：±20ppm，頻率容差：±10ppm，負載電容：7pF，是一款小體積晶振尺寸：2.0x1.6x0.5mm封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振。具有超小型晶振，輕薄型晶振，耐熱及耐環境等特點，適用于：可穿戴設備，物聯網（IoT），藍牙/藍牙低能耗（BLE），無線模塊，機器對機器（M2M）連接，超低功耗MCU，近場通信（NFC），ISM頻段等應用。

ABM11W-16.0000MHZ-7-D1X-T3,2016mm,Abracon可穿戴設備晶振，產品特點：

•針對節能可穿戴設備和物聯網應用進行優化

•電鍍電容極低，低至4pF，具有優化的ESR貼片晶振

•最大高度0.5mm，非常適合高度受限的設計

•接縫密封，實現長期可靠性

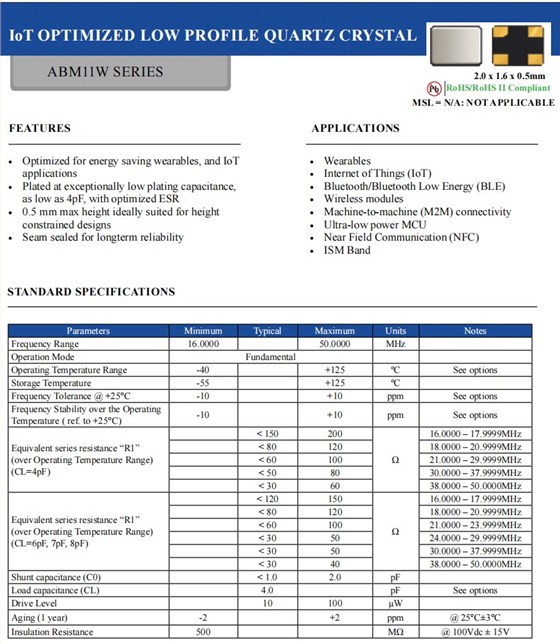

ABM11W-16.0000MHZ-7-D1X-T3,2016mm,Abracon可穿戴設備晶振,參數表

Parameters

Minimum

Typical

Maximum

Units

Notes

Frequency Range

16.000

MHz

Operation Mode

Fundamental

Operating Temperature Range

-40

+125

ºC

See options

Storage Temperature

-55

+125

ºC

Frequency Tolerance @ +25°C

-10

+10

ppm

See options

Frequency Stability over the Operating
Temperature ( ref. to +25°C)

-10

+10

ppm

See options

Equivalent series resistance “R1”
(over Operating Temperature Range)
(CL=4pF)

< 150

200

16.0000 – 17.9999MHz

< 80

120

18.0000 – 20.9999MHz

< 60

100

21.0000 – 29.9999MHz

< 50

30.0000 – 37.9999MHz

< 30

38.0000 – 50.0000MHz

Equivalent series resistance “R1”
(over Operating Temperature Range)
(CL=6pF, 7pF, 8pF)

< 120

150

16.0000 – 17.9999MHz

< 80

120

18.0000 – 20.9999MHz

< 60

100

21.0000 – 23.9999MHz

< 30

24.0000 – 29.9999MHz

< 30

30.0000 – 37.9999MHz

< 30

38.0000 – 50.0000MHz

Shunt capacitance (C0)

< 1.0

2.0

Load capacitance (CL)

4.0

See options

Drive Level

100

µW

Aging (1 year)

-2

ppm

@ 25°C±3°C

Insulation Resistance

500

MΩ

@ 100Vdc ± 15V

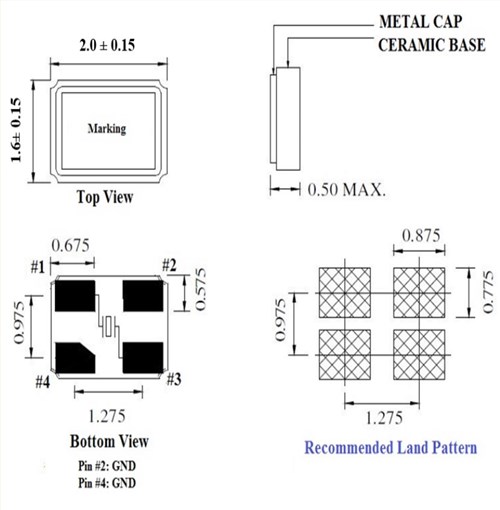

ABM11W-16.0000MHZ-7-D1X-T3,2016mm,Abracon可穿戴設備晶振,尺寸圖

產品編碼	艾博康晶振	型號	頻率	長度	寬度	高度
ABM11W-101-32.0000MHZ-T3	Abracon晶振	ABM11W	32 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-4-J1Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-4-J2Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-B1U-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-B2U-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-D1X-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-D2X-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-J1Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-J2Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-K1Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-6-K2Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-7-B1U-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-7-B2U-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-7-D1X-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-7-D2X-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-7-J1Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-7-J2Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-7-K2Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-B1U-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-B2U-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-D1X-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-D2X-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-J1Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-J2Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-K1Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0000MHZ-8-K2Z-T3	Abracon晶振	ABM11W	16 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-4-J1Z-T3	2016進口晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-4-J2Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-B1U-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-B2U-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-D1X-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-D2X-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-J1Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-J2Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-K1Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-6-K2Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-7-B1U-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-7-B2U-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-7-D1X-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-7-D2X-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-7-J1Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-7-J2Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-7-K2Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-B1U-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-B2U-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-D1X-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-D2X-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-J1Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-J2Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-K1Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.0132MHZ-8-K2Z-T3	Abracon晶振	ABM11W	16.0132 MHz	2mm	1.6mm	0.5mm
ABM11W-16.3676MHZ-4-J1Z-T3	Abracon晶振	ABM11W	16.3676 MHz	2mm	1.6mm	0.5mm
ABM11W-16.3676MHZ-4-J2Z-T3	Abracon晶振	ABM11W	16.3676 MHz	2mm	1.6mm	0.5mm
ABM11W-16.3840MHZ-4-J1Z-T3	Abracon晶振	ABM11W	16.384 MHz	2mm	1.6mm	0.5mm
ABM11W-16.3840MHZ-4-J2Z-T3	Abracon晶振	ABM11W	16.384 MHz	2mm	1.6mm	0.5mm
ABM11W-16.6667MHZ-4-J1Z-T3	Abracon晶振	ABM11W	16.6667 MHz	2mm	1.6mm	0.5mm
ABM11W-16.6667MHZ-4-J2Z-T3	Abracon晶振	ABM11W	16.6667 MHz	2mm	1.6mm	0.5mm
