515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振，尺寸5.00x3.20mm，頻率為50MHZ，輸出CMOS，壓控晶體振蕩器，壓控有源晶振，有源貼片晶振，CMOS輸出晶振，低電壓晶振，低抖動晶振，低功耗晶振，Si515 VCXO利用Skyworks Solutions的先進PLL技術提供從100kHz到250MHz的任何頻率。不同于傳統的VCXO每個輸出頻率都需要不同的晶體，Si515有源晶振使用一個固定的晶體crystal和Skyworks Solutions的專有合成器，可生成任何頻率在這個范圍內。這種基于IC的方法允許晶體諧振器提供增強的可靠性、改進的機械堅固性和優異的穩定性。在里面此外，該解決方案提供了卓越的控制電壓線性度和電源噪聲抑制、提高PLL穩定性并簡化噪聲環境下的低抖動PLL設計環境。

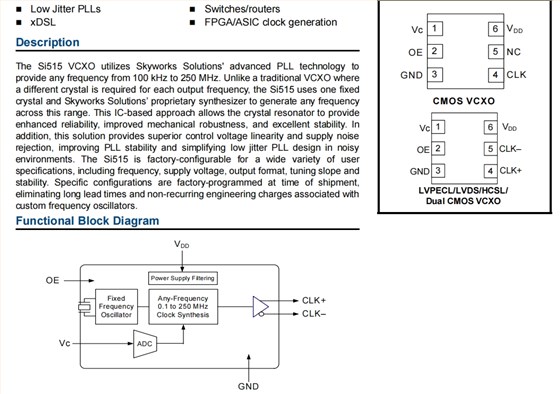

Si515 VCXO振蕩器可在工廠為各種用戶進行配置規格，包括頻率、電源電壓、輸出格式、調諧斜率和穩定性具體配置在出廠時進行編程，消除了與定制頻率振蕩器。產品很適合用于SONET/SDH/OTN,低抖動PLL,xDSL,廣播視頻,電信,交換機/路由器,FPGA/ASIC時鐘生成.515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振.

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	21	26	mA
		LVDS (output enabled)	—	19	23	mA
		LVPECL (output enabled)	—	39	43	mA
		HCSL (output enabled)	—	41	44	mA
		Tristate (output disabled)	—	—	18	mA
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

SDA, SCL Input Voltage High

VIH

0.80 x VDD

—

SDA, SCL Input Voltage Low

VIL

—

0.20 x VDD

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Programmable
Frequency Range

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Frequency
Reprogramming
Resolution

MRES

—

0.026

—

ppb

Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output)

From center frequency

–1000

—

+1000

ppm

Settling time for Small
Frequency Change

<±1000 ppm from
center frequency

—

100

µs

Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition)

>±1000 ppm from
center frequency

—

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum VDDuntil output
frequency (FO) within specification

—

Disable Time

FO< 10 MHz

—

µs

FO>10 MHz

—

µs

Enable Time

FO< 10 MHz

—

µs

FO>10 MHz

—

µs

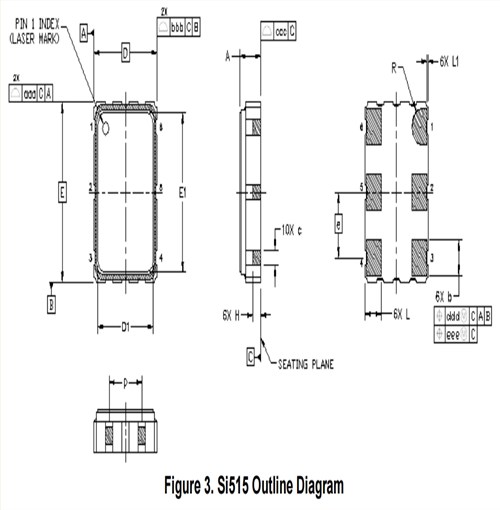

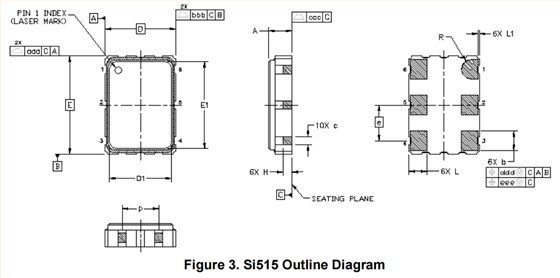

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振 尺寸圖

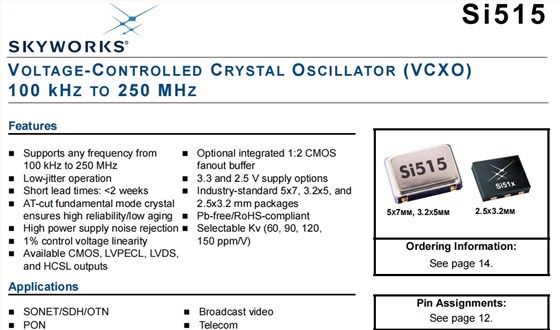

有源晶體振蕩器產品特征:

支持來自的任何頻率100kHz至250MHz

低抖動操作

交付周期短：<2周

AT切基模晶體確保高可靠性/低老化

高電源噪聲抑制

1%控制電壓線性

可用CMOS、LVPECL、LVDS，和HCSL輸出

可選集成1:2 CMOS扇出緩存

3.3和2.5 V電源選項

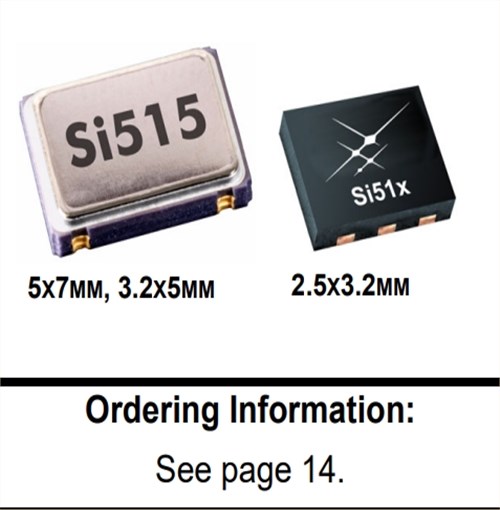

行業標準5x7、3.2x5和2.5x3.2 mm包裝

無鉛/符合RoHS

可選擇的Kv（60、90、120，150ppm/V）

更多相關Skyworks晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply
515CAAM100000AAGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000KHZ CMOS	Si515	100 kHz	CMOS	3.3V
515CAB32M7680AAGR	Skyworks有源晶振	XTAL OSC VCXO 32.7680MHZ CMOS	Si515	32.768 MHz	CMOS	3.3V
515CBA4M09600AAGR	Skyworks有源晶振	XTAL OSC VCXO 4.0960MHZ CMOS SMD	Si515	4.096 MHz	CMOS	3.3V
515CDA8M00000AAGR	Skyworks有源晶振	XTAL OSC VCXO 8.0000MHZ CMOS SMD	Si515	8 MHz	CMOS	3.3V
515GCA10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si515	10 MHz	CMOS	2.5V
515CAA10M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si515	10 MHz	CMOS	3.3V
515CAA22M5792BAGR	Skyworks有源晶振	XTAL OSC VCXO 22.5792MHZ CMOS	Si515	22.5792 MHz	CMOS	3.3V
515CAA24M5760BAGR	Skyworks有源晶振	XTAL OSC VCXO 24.5760MHZ CMOS	Si515	24.576 MHz	CMOS	3.3V
515CAA27M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ CMOS	Si515	27 MHz	CMOS	3.3V
515CAA4M09600BAGR	Skyworks有源晶振	XTAL OSC VCXO 4.0960MHZ CMOS SMD	Si515	4.096 MHz	CMOS	3.3V
515CAA7M37472BAGR	Skyworks有源晶振	XTAL OSC VCXO 7.37472MHZ CMOS	Si515	7.37472 MHz	CMOS	3.3V
515CAA80M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 80.0000MHZ CMOS	Si515	80 MHz	CMOS	3.3V
515CAAM172162BAGR	Skyworks有源晶振	XTAL OSC VCXO 172.1620KHZ CMOS	Si515	172.162 kHz	CMOS	3.3V
515CAB27M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ CMOS	Si515	27 MHz	CMOS	3.3V
515CAB4M09600BAGR	Skyworks有源晶振	XTAL OSC VCXO 4.0960MHZ CMOS SMD	Si515	4.096 MHz	CMOS	3.3V
515CAB5M00000BAGR	Skyworks有源晶振	XTAL OSC VCXO 5.0000MHZ CMOS SMD	Si515	5 MHz	CMOS	3.3V
515CBA24M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 24.0000MHZ CMOS	Si515	24 MHz	CMOS	3.3V
515CBA36M8640BAGR	Skyworks有源晶振	XTAL OSC VCXO 36.8640MHZ CMOS	Si515	36.864 MHz	CMOS	3.3V
515CBA38M4000BAGR	Skyworks有源晶振	XTAL OSC VCXO 38.4000MHZ CMOS	Si515	38.4 MHz	CMOS	3.3V
515CBA80M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 80.0000MHZ CMOS	Si515	80 MHz	CMOS	3.3V
515CBB14M3182BAGR	Skyworks有源晶振	XTAL OSC VCXO 14.3182MHZ CMOS	Si515	14.3182 MHz	CMOS	3.3V
515CBB27M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ CMOS	Si515	27 MHz	CMOS	3.3V
515CBB6M00000BAGR	Skyworks有源晶振	XTAL OSC VCXO 6.0000MHZ CMOS SMD	Si515	6 MHz	CMOS	3.3V
515CCA10M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si515	10 MHz	CMOS	3.3V
515CCA122M880BAGR	Skyworks有源晶振	XTAL OSC VCXO 122.8800MHZ CMOS	Si515	122.88 MHz	CMOS	3.3V
515CCA40M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 40.0000MHZ CMOS	Si515	40 MHz	CMOS	3.3V
515CCA61M4400BAGR	Skyworks有源晶振	XTAL OSC VCXO 61.4400MHZ CMOS	Si515	61.44 MHz	CMOS	3.3V
515CCA64M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 64.0000MHZ CMOS	Si515	64 MHz	CMOS	3.3V
515CCB122M880BAGR	Skyworks有源晶振	XTAL OSC VCXO 122.8800MHZ CMOS	Si515	122.88 MHz	CMOS	3.3V
515CCB14M3182BAGR	Skyworks有源晶振	XTAL OSC VCXO 14.3182MHZ CMOS	Si515	14.3182 MHz	CMOS	3.3V
515CCB16M3840BAGR	Skyworks有源晶振	XTAL OSC VCXO 16.3840MHZ CMOS	Si515	16.384 MHz	CMOS	3.3V
515CCB25M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ CMOS	Si515	25 MHz	CMOS	3.3V
515CDA10M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si515	10 MHz	CMOS	3.3V
515CDA27M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ CMOS	Si515	27 MHz	CMOS	3.3V
515CDA32M7680BAGR	Skyworks有源晶振	XTAL OSC VCXO 32.7680MHZ CMOS	Si515	32.768 MHz	CMOS	3.3V
515CDAM134200BAGR	Skyworks有源晶振	XTAL OSC VCXO 1.3420KHZ CMOS SMD	Si515	1.342 kHz	CMOS	3.3V
515CDB25M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ CMOS	Si515	25 MHz	CMOS	3.3V
515CDB6M00000BAGR	Skyworks有源晶振	XTAL OSC VCXO 6.0000MHZ CMOS SMD	Si515	6 MHz	CMOS	3.3V
515GAA25M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ CMOS	Si515	25 MHz	CMOS	2.5V
515MDA17M1776BAGR	Skyworks有源晶振	XTAL OSC VCXO 17.1776MHZ CMOS	Si515	17.1776 MHz	CMOS	3.3V
515NDAM134200BAGR	Skyworks有源晶振	XTAL OSC振蕩器 VCXO 134.2000KHZ CMOS	Si515	134.2 kHz	CMOS	3.3V
515CAA12M2870BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	12.287 MHz	CMOS	3.3V
515CAA12M2880BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	12.287 MHz	CMOS	3.3V
515CAA98M3040BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	98.3 MHz	CMOS	3.3V
515CCA50M0000BAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	50 MHz	CMOS	3.3V
515CAA000282CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	14.31818 MHz	CMOS	3.3V
515CDA51M2000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	51.2 MHz	CMOS	3.3V
515CAA16M7770CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	16.777 MHz	CMOS	3.3V
515GAA54M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	54 MHz	CMOS	2.5V
515CAA16M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	16 MHz	CMOS	3.3V
515CBA32M7680CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	32.768 MHz	CMOS	3.3V
515CAA12M2880CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	12.288 MHz	CMOS	3.3V
515CBA27M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	27 MHz	CMOS	3.3V
515GAA54M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	54 MHz	CMOS	2.5V
515GCA27M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	27 MHz	CMOS	2.5V
515GCA10M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	10 MHz	CMOS	2.5V
515CAA004711CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	16.777215 MHz	CMOS	3.3V
515CBA96M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	96 MHz	CMOS	3.3V
515CCA12M8000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	12.8 MHz	CMOS	3.3V
515CCA125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	125 MHz	CMOS	3.3V
515CAA27M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	27 MHz	CMOS	3.3V
515CCA2M04800CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	2.048 MHz	CMOS	3.3V
515CAA49M1520BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	49.152 MHz	CMOS	3.3V
515GAA32M7680CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	32.768 MHz	CMOS	2.5V
515CCA65M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	65 MHz	CMOS	3.3V
515CCAM100000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	100 kHz	CMOS	3.3V
515CCA8M00000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	8 MHz	CMOS	3.3V
515ABA10M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si515	10 MHz	LVPECL	3.3V
515BBA10M0000BAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVDS	Si515	10 MHz	LVDS	3.3V
515MCB6M78000BAGR	Skyworks有源晶振	XTAL OSC VCXO 6.7800MHZ CMOS SMD	Si515	6.78 MHz	CMOS	3.3V
515CAAM100000AAG	Skyworks有源晶振	XTAL OSC VCXO 100.0000KHZ CMOS	Si515	100 kHz	CMOS	3.3V
515CAB32M7680AAG	Skyworks有源晶振	XTAL OSC VCXO 32.7680MHZ CMOS	Si515	32.768 MHz	CMOS	3.3V
515CBA4M09600AAG	Skyworks有源晶振	XTAL OSC VCXO 4.0960MHZ CMOS SMD	Si515	4.096 MHz	CMOS	3.3V
515CDA8M00000AAG	Skyworks有源晶振	XTAL OSC VCXO 8.0000MHZ CMOS SMD	Si515	8 MHz	CMOS	3.3V
515GCA10M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si515	10 MHz	CMOS	2.5V
515CAA150M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 150.0000MHZ CMOS	Si515	150 MHz	CMOS	3.3V
515CCA162M025BAGR	Skyworks有源晶振	XTAL OSC VCXO 162.0250MHZ CMOS	Si515	162.025 MHz	CMOS	3.3V
515CAA144M300BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	144.3 MHz	CMOS	3.3V
515CAA000256AAGR	Skyworks有源晶振	XTAL OSC VCXO 256.0000MHZ CMOS	Si515	256 MHz	CMOS	3.3V
515CAA10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si515	10 MHz	CMOS	3.3V
515CAA10M2400AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.2400MHZ CMOS	Si515	10.24 MHz	CMOS	3.3V
515CAA125M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ CMOS	Si515	125 MHz	CMOS	3.3V
515CAA24M5760AAGR	Skyworks有源晶振	XTAL OSC VCXO 24.5760MHZ CMOS	Si515	24.576 MHz	CMOS	3.3V
515CAA25M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ CMOS	Si515	25 MHz	CMOS	3.3V
515CAA27M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ CMOS	Si515	27 MHz	CMOS	3.3V
515CAA30M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 30.0000MHZ CMOS	Si515	30 MHz	CMOS	3.3V
515CAA32M7680AAGR	Skyworks有源晶振	XTAL OSC VCXO 32.7680MHZ CMOS	Si515	32.768 MHz	CMOS	3.3V
515CAA40M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 40.0000MHZ CMOS	Si515	40 MHz	CMOS	3.3V
515CAA44M7360AAGR	Skyworks有源晶振	XTAL OSC VCXO 44.7360MHZ CMOS	Si515	44.736 MHz	CMOS	3.3V
515CAA70M6560AAGR	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ CMOS	Si515	70.656 MHz	CMOS	3.3V
515CAA74M2500AAGR	Skyworks有源晶振	XTAL OSC VCXO 74.2500MHZ CMOS	Si515	74.25 MHz	CMOS	3.3V
515CAA7M37472AAGR	Skyworks有源晶振	XTAL OSC VCXO 7.37472MHZ CMOS	Si515	7.37472 MHz	CMOS	3.3V
515CAA7M50000AAGR	Skyworks有源晶振	XTAL OSC VCXO 7.5000MHZ CMOS SMD	Si515	7.5 MHz	CMOS	3.3V
515CAAM928000AAGR	Skyworks有源晶振	XTAL OSC VCXO 928.0000KHZ CMOS	Si515	928 kHz	CMOS	3.3V
515CAB16M3840AAGR	Skyworks有源晶振	XTAL OSC VCXO 16.3840MHZ CMOS	Si515	16.384 MHz	CMOS	3.3V
515CAB49M1520AAGR	Skyworks有源晶振	XTAL OSC VCXO 49.1520MHZ CMOS	Si515	49.152 MHz	CMOS	3.3V
515CAB98M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 98.0000MHZ CMOS	Si515	98 MHz	CMOS	3.3V
515CBA23M1481AAGR	Skyworks有源晶振	XTAL OSC VCXO 23.1481MHZ CMOS	Si515	23.1481 MHz	CMOS	3.3V
515CBA24M5760AAGR	Skyworks有源晶振	XTAL OSC VCXO 24.5760MHZ CMOS	Si515	24.576 MHz	CMOS	3.3V
515CBA28M9350AAGR	Skyworks有源晶振	XTAL OSC VCXO 28.9350MHZ CMOS	Si515	28.935 MHz	CMOS	3.3V
515CBA2M04800AAGR	Skyworks有源晶振	XTAL OSC VCXO 2.0480MHZ CMOS SMD	Si515	2.048 MHz	CMOS	3.3V
515CBA34M8160AAGR	Skyworks有源晶振	XTAL OSC VCXO 34.8160MHZ CMOS	Si515	34.816 MHz	CMOS	3.3V
515CBA38M8800AAGR	Skyworks有源晶振	XTAL OSC VCXO 38.8800MHZ CMOS	Si515	38.88 MHz	CMOS	3.3V
515CBA3M64000AAGR	Skyworks有源晶振	XTAL OSC VCXO 3.6400MHZ CMOS SMD	Si515	3.64 MHz	CMOS	3.3V
515CBA80M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 80.0000MHZ CMOS	Si515	80 MHz	CMOS	3.3V
515CBAM240000AAGR	Skyworks有源晶振	XTAL OSC VCXO 24.0000KHZ CMOS	Si515	24 kHz	CMOS	3.3V
515CBAM928571AAGR	Skyworks有源晶振	XTAL OSC VCXO 92.8571MHZ CMOS	Si515	92.8571 MHz	CMOS	3.3V
