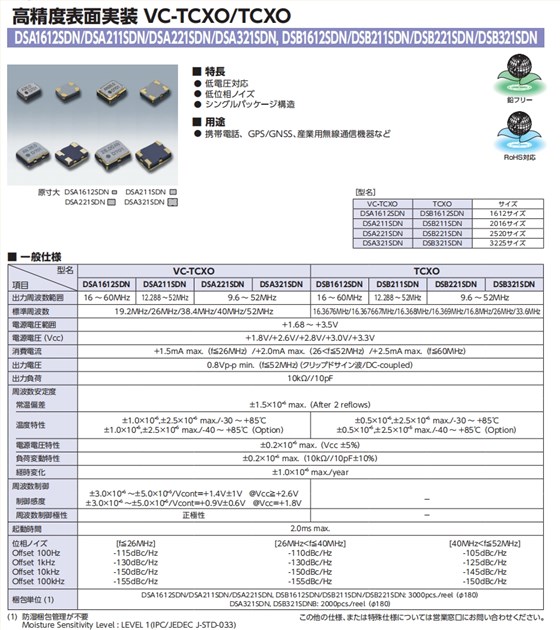

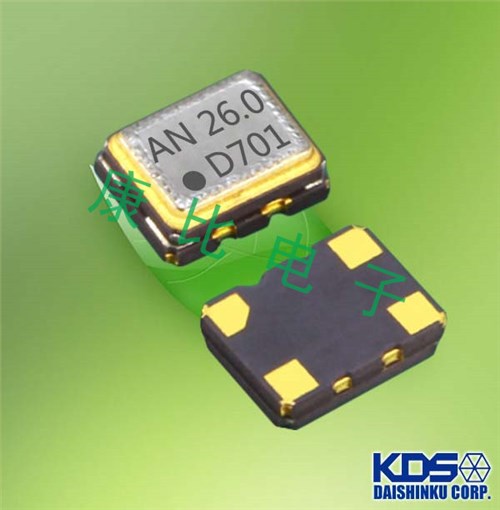

1XXA20000CAA,KDS低相噪振蕩器,DSA221SDN移動設備晶振 參數表
| 型號名稱 | DSA221SDN (VC-TCXO ) | |||
|---|---|---|---|---|
| 輸出頻率范圍 | 20MHz | |||
| 標準頻率 | 19.2 MHz/26 MHz/38.4 MHz/40 MHz/52m Hz | |||
| 電源電壓范圍 | +1.68~+3.5V | |||
| 電源電壓( Vcc ) | +1.8V/+2.6V/+2.8V/+3.0V/+3.3V | |||
| 消耗電流 | +1.5mA max.(f≦26MHz )/+2.0mA max.(26<f≦52MHz ) | |||
| 輸出電壓 | 0.8Vp-p min.(f≦52MHz ) (削波正弦波/DC-coupled ) | |||
| 輸出負載 | 10kΩ//10pF | |||
| 頻率穩定度 | 常溫偏差 | ±1.5×10-6max.(After 2 reflows ) | ||
| 溫度特性 |
±1.0×10-6±2.5×10-6max./-30?+85℃ ±1.0×10-6±2.5×10-6max./-40?+85℃(Option ) |
|||
| 電源電壓特性 | ±0.2×10-6max.(V抄送±5% ) | |||
| 負荷變動特性 | ±0.2×10-6max.(10kΩ//10pF±10% ) | |||
| 經時變化 | ±1.0×10-6max./year | |||
| 頻率控制 | 控制靈敏度 |
±3.0×10-6~±5.0×10-6/Vcont=+1.4V±1V @V抄送≧+2.6V ±3.0×10-6~±5.0×10-6/Vcont=+0.9V±0.6V @V抄送=+1.8V |
||
| 頻率控制極性 | 正極性 | |||
| 啟動時間 | 2.0ms max.。 | |||
|
相位噪聲 Offset 100Hz Offset 1kHz Offset 10kHz Offset 100kHz |
[f≦26MHz] -115dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[26MHz<f≦40MHz] -110dBc/Hz -130dBc/Hz -150dBc/Hz -155dBc/Hz |
[40MHz<f≦52MHz] -105dBc/Hz -125dBc/Hz -145dBc/Hz -150dBc/Hz |
|
| 包裝單位(1) | 3000pcs./reel(φ180 ) | |||

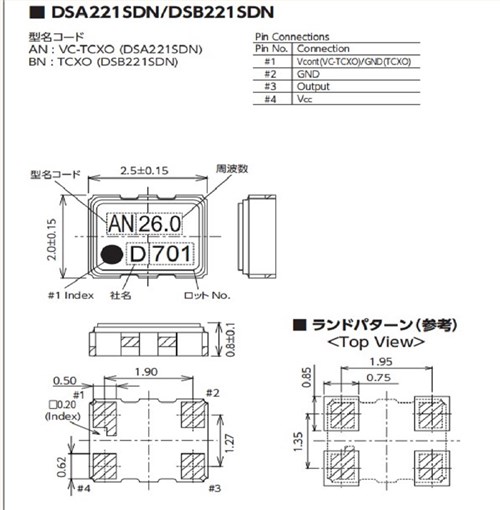

1XXA20000CAA,KDS低相噪振蕩器,DSA221SDN移動設備晶振 尺寸圖
