小型貼片石英晶振主要采用了，先進的晶片的拋光工藝技術，是晶體行業中石英晶片研磨技術中表面處理的最高技術，最終使晶片表面更光潔，平行度及平面度更好，大大的降低諧振電阻，使精度得到了很大的提升。改變了傳統的生產工藝，使產品在各項參數得到了很大的改良,外觀尺寸具有薄型表面貼片石英晶振,特別適用于有小型化要求的市場領域,比如智能手機,無線藍牙,平板電腦等電子數碼產品。

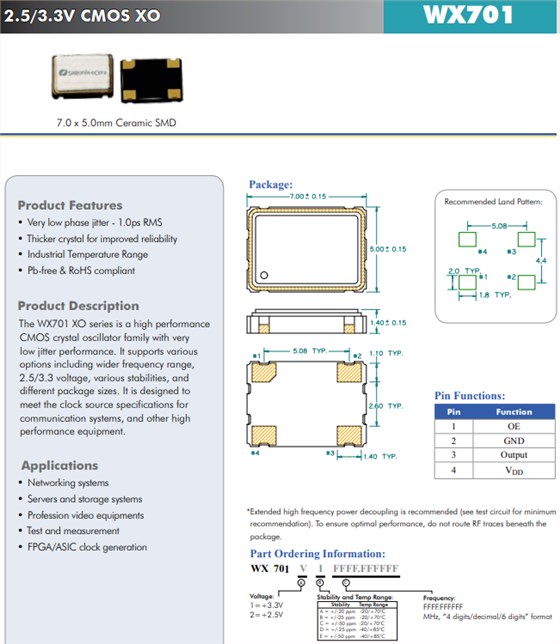

百利通亞陶晶振WX701 XO系列是具有極低抖動性能的高性能CMOS晶體振蕩器系列。它支持各種選項，包括更寬的頻率范圍、小體積晶振尺寸7050mm，2.5/3.3電壓、各種穩定性和不同的封裝尺寸。它旨在滿足通信系統和其他高性能設備的時鐘源規范。

特征：
非常低的相位抖動-1.0ps RMS
更厚的晶體以提高可靠性
工業溫度范圍
無鉛且符合RoHS標準
應用于：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，FPGA/ASIC時鐘生成

WX701系列小體積晶振尺寸7050mm晶振,WX7012A0060.000000,晶體振蕩器,ECERA低抖動晶振

UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX72F6214Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±50ppm	-40°C ~ 85°C
UX31F6203Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6203Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6203Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6201Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6201Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX31F6201Z	Diodes Incorporated	SaRonix-eCera™ UX	156.25MHz	±25ppm	-40°C ~ 85°C
UX52I0501Z	Diodes Incorporated	SaRonix-eCera™ UX	180.55MHz	±50ppm	-40°C ~ 85°C
UX52I0501Z	Diodes Incorporated	SaRonix-eCera™ UX	180.55MHz	±50ppm	-40°C ~ 85°C
UX52I0501Z	Diodes Incorporated	SaRonix-eCera™ UX	180.55MHz	±50ppm	-40°C ~ 85°C
NX7021D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7021D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7021D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
KD3270037	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270037	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270037	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KX2513G0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
KX3211A0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211A0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211A0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
YNETHE125	Diodes Incorporated	SaRonix-eCera™ ASSP VCXO	125MHz	±50ppm	-40°C ~ 85°C
YNETHE125	Diodes Incorporated	SaRonix-eCera™ ASSP VCXO	125MHz	±50ppm	-40°C ~ 85°C
YNETHE125	Diodes Incorporated	SaRonix-eCera™ ASSP VCXO	125MHz	±50ppm	-40°C ~ 85°C
KX3211D0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C

FRSTB1027	Diodes Incorporated	SaRonix-eCera™ FR	27MHz	±25ppm	-20°C ~ 70°C
FRTELE016	Diodes Incorporated	SaRonix-eCera™ FR	16.384MHz	±25ppm	-20°C ~ 70°C
FRETHE025	Diodes Incorporated	SaRonix-eCera™ FR	25MHz	±25ppm	-20°C ~ 70°C
KX2013B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2013D0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KX2511A0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX2513D0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
JX7011E0059.000000	Diodes Incorporated	SaRonix-eCera™ JX	59MHz	±50ppm	-40°C ~ 85°C
JX7011E0059.000000	Diodes Incorporated	SaRonix-eCera™ JX	59MHz	±50ppm	-40°C ~ 85°C
JX7011E0059.000000	Diodes Incorporated	SaRonix-eCera™ JX	59MHz	±50ppm	-40°C ~ 85°C
KK3270046	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270031	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270031	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270031	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C

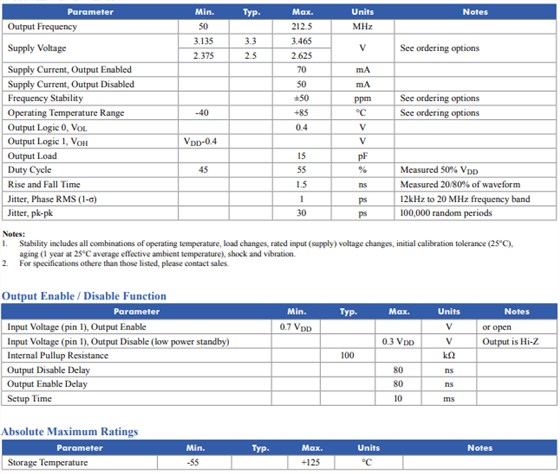

Product Parameters

Subfamily	General XO
Product Series	WX7
Compliance(Only Automotive supports PPAP)	Standard
Freq Range (MHz)	50 to 212.5
Jitter RMS (ps)	<1
Stability (PPM)	20to50
Package Size (mm)	7.0 x 5.0
PkgType	Ceramic Seam
Output Logic	CMOS
Supply Voltage (V)	3.3, 2.5
Pads	4

WX701系列小體積晶振尺寸7050mm晶振,WX7012A0060.000000,晶體振蕩器,ECERA低抖動晶振

產品參數：

類別 XO將軍
產品系列 WX7
合規性（僅汽車支持PPAP）標準
頻率范圍 (MHz) 50至212.5
抖動均方根 (ps) <1
穩定性 (PPM) 20到50
包裝尺寸 7.0x5.0mm有源晶振
包裝類型陶瓷縫
輸出邏輯 CMOS
電源電壓 3.3V, 2.5V
墊 4腳

FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C

WX701系列小體積晶振尺寸7050mm晶振,WX7012A0060.000000,晶體振蕩器,ECERA低抖動晶振

WX501	標準	CMOS	3.32.5	20~50	50 至 212.5	<1	4	-	2.5V/3.3V、5.0x3.2mm、PLL CMOS 晶體振蕩器
WX502	標準	CML	3.32.5	20~50	50 至 212.5	<1	6	-	2.5V/3.3V、5.0x3.2mm、PLL LVPECL 晶體振蕩器
WX503	標準	LVDS	3.32.5	20~50	50 至 212.5	<1	6	-	2.5V/3.3V、5.0x3.2mm、PLL LVDS 晶體振蕩器
WX701	標準	CMOS	3.32.5	20~50	50 至 212.5	<1	4	-	2.5V/3.3V, 7.0x5.0mm, PLL CMOS 晶體振蕩器
WX702	標準	CML	3.32.5	20~50	50 至 212.5	<1	6	-	2.5V/3.3V、7.0x5.0mm、PLL LVPECL 晶體振蕩器

KK3270052	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270052	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270052	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
JX7011B0044.736000	Diodes Incorporated	SaRonix-eCera™ JX	44.736MHz	±25ppm	-20°C ~ 70°C
JX7011B0044.736000	Diodes Incorporated	SaRonix-eCera™ JX	44.736MHz	±25ppm	-20°C ~ 70°C
JX7011B0044.736000	Diodes Incorporated	SaRonix-eCera™ JX	44.736MHz	±25ppm	-20°C ~ 70°C
KK3270051	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270051	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270051	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
JX5011C0120.000000	Diodes Incorporated	SaRonix-eCera™ JX	120MHz	±50ppm	-20°C ~ 70°C
JX5011C0120.000000	Diodes Incorporated	SaRonix-eCera™ JX	120MHz	±50ppm	-20°C ~ 70°C
JX5011C0120.000000	Diodes Incorporated	SaRonix-eCera™ JX	120MHz	±50ppm	-20°C ~ 70°C
KX2132709Z	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2132709Z	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2132709Z	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
JX7012D0025.001875	Diodes Incorporated	SaRonix-eCera™ JX	25.001875MHz	±25ppm	-40°C ~ 85°C
JX7012D0025.001875	Diodes Incorporated	SaRonix-eCera™ JX	25.001875MHz	±25ppm	-40°C ~ 85°C
JX7012D0025.001875	Diodes Incorporated	SaRonix-eCera™ JX	25.001875MHz	±25ppm	-40°C ~ 85°C
JX7011E0091.500000	Diodes Incorporated	SaRonix-eCera™ JX	91.5MHz	±50ppm	-40°C ~ 85°C
JX7011E0091.500000	Diodes Incorporated	SaRonix-eCera™ JX	91.5MHz	±50ppm	-40°C ~ 85°C
JX7011E0091.500000	Diodes Incorporated	SaRonix-eCera™ JX	91.5MHz	±50ppm	-40°C ~ 85°C
KJ3270004Z	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
PD10GE159	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	159.375MHz	±50ppm	-20°C ~ 70°C

WX701系列小體積晶振尺寸7050mm晶振,WX7012A0060.000000,晶體振蕩器,ECERA低抖動晶振

DIODES百利通亞陶晶振所生產的石英晶振,貼片晶振,石英晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.

PD10GE159	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	159.375MHz	±50ppm	-20°C ~ 70°C
PD10GE159	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	159.375MHz	±50ppm	-20°C ~ 70°C
PDGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
PDGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
PDGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm	-40°C ~ 85°C
JX7011D0104.000000	Diodes Incorporated	SaRonix-eCera™ JX	104MHz	±25ppm	-40°C ~ 85°C
JX7011D0104.000000	Diodes Incorporated	SaRonix-eCera™ JX	104MHz	±25ppm	-40°C ~ 85°C
JX7011D0104.000000	Diodes Incorporated	SaRonix-eCera™ JX	104MHz	±25ppm	-40°C ~ 85°C
JT255BI0032.000000	Diodes Incorporated	SaRonix-eCera™ JT	32MHz	±2ppm	-30°C ~ 85°C
JT255BI0032.000000	Diodes Incorporated	SaRonix-eCera™ JT	32MHz	±2ppm	-30°C ~ 85°C
JT255BI0032.000000	Diodes Incorporated	SaRonix-eCera™ JT	32MHz	±2ppm	-30°C ~ 85°C
LDA000004	Diodes Incorporated	SaRonix-eCera™ LD	100MHz	±50ppm	-40°C ~ 85°C
FN2500246	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500246	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500246	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN1000064	Diodes Incorporated	SaRonix-eCera™ FN	10MHz	±50ppm	-20°C ~ 70°C
FN1000064	Diodes Incorporated	SaRonix-eCera™ FN	10MHz	±50ppm	-20°C ~ 70°C
FN1000064	Diodes Incorporated	SaRonix-eCera™ FN	10MHz	±50ppm	-20°C ~ 70°C
UJ2600001	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-30°C ~ 85°C
UJ2600001	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-30°C ~ 85°C
UJ2600001	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm	-30°C ~ 85°C
FN7500043	Diodes Incorporated	SaRonix-eCera™ FN	75MHz	±25ppm	-20°C ~ 70°C
FN7500043	Diodes Incorporated	SaRonix-eCera™ FN	75MHz	±25ppm	-20°C ~ 70°C
FN7500043	Diodes Incorporated	SaRonix-eCera™ FN	75MHz	±25ppm	-20°C ~ 70°C
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
