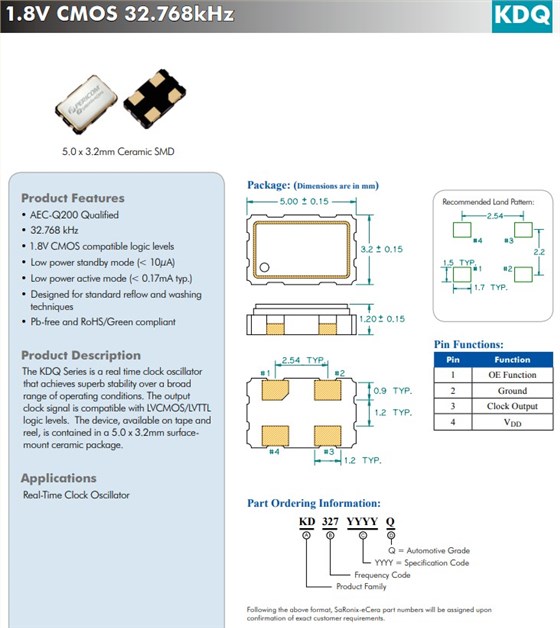

KDQ系列1.8V是一種實時時鐘晶體振蕩器，可在廣泛的工作條件下實現卓越的穩定性。小體積尺寸5.0x3.2mm、32.768kHz、汽車級CMOS晶體振蕩器輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用5.0x3.2mm表面貼裝陶瓷封裝。
產品特點：
符合AEC-Q200標準
頻率：32.768k晶振
1.8V CMOS兼容邏輯電平
低功耗待機模式（< 10μA）
低功耗主動模式（< 0.17mA 典型值）
專為標準回流和清洗技術而設計
無鉛且符合RoHS/Green標準
應用：實時時鐘振蕩器
KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX72F6214Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6203Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX31F6201Z | Diodes Incorporated | SaRonix-eCera™ UX | 156.25MHz | ±25ppm | -40°C ~ 85°C |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
| UX52I0501Z | Diodes Incorporated | SaRonix-eCera™ UX | 180.55MHz | ±50ppm | -40°C ~ 85°C |
| NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
| NX7021D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm | -40°C ~ 85°C |
| KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270037 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KX2513G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | 0°C ~ 70°C |
| KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KX3211A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm | -40°C ~ 85°C |
| YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm | -40°C ~ 85°C |
| YNETHE125 | Diodes Incorporated | SaRonix-eCera™ ASSP VCXO | 125MHz | ±50ppm | -40°C ~ 85°C |
| KX3211D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -40°C ~ 85°C |
Product Parameters
| Subfamily | 32kHz XO |
|---|---|
| Product Series | KDQ |
| Compliance(Only Automotive supports PPAP) | Automotive |
| Freq Range (MHz) | 32.768KHZ |
| Jitter RMS (ps) | <1 ps RMS |
| Stability (PPM) | 20to50 |
| Package Size (mm) | 3.2 x 2.5 |
| PkgType | Ceramic Seam |
| Output Logic | CMOS |
| Supply Voltage (V) | 1.8 |
| Pads | 4 |
KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振
產品參數：
亞科 32kHz XO產品系列 KDQ
合規性（僅汽車支持PPAP）汽車
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 ps RMS
穩定性 20到50PPM
包裝尺寸 3.2x2.5mm有源晶振
包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 1.8V
墊 4腳
應用：刀片服務器,基站,工控機,多功能打印機,機架服務器,存儲陣列,智能電網, DVD/藍光,安全, GPS , STB
| FRSTB1027 | Diodes Incorporated | SaRonix-eCera™ FR | 27MHz | ±25ppm | -20°C ~ 70°C |
| FRTELE016 | Diodes Incorporated | SaRonix-eCera™ FR | 16.384MHz | ±25ppm | -20°C ~ 70°C |
| FRETHE025 | Diodes Incorporated | SaRonix-eCera™ FR | 25MHz | ±25ppm | -20°C ~ 70°C |
| KX2013B0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -20°C ~ 70°C |
| KX2013D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KX2511A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm | -20°C ~ 70°C |
| KX2513D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KJ3270008 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm | -40°C ~ 85°C |
| JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm | -40°C ~ 85°C |
| JX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 59MHz | ±50ppm | -40°C ~ 85°C |
| KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KK3270046 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm | -40°C ~ 85°C |
| KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KD3270031 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KK3270045 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
| KK3270049 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm | -40°C ~ 85°C |
KDQ系列1.8V是一種實時時鐘晶體振蕩器,KD3270040,32.768KHz晶振,ECERA晶振
我們的32.768k晶體振蕩器 (XO) 具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器(XO)，尺寸僅為2.0x1.6mm（KM 系列）。KM 系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器，它們是業界功耗最低（小于10 µA）和最嚴格穩定性 (+/- 20 ppm) 的32kHz XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。
