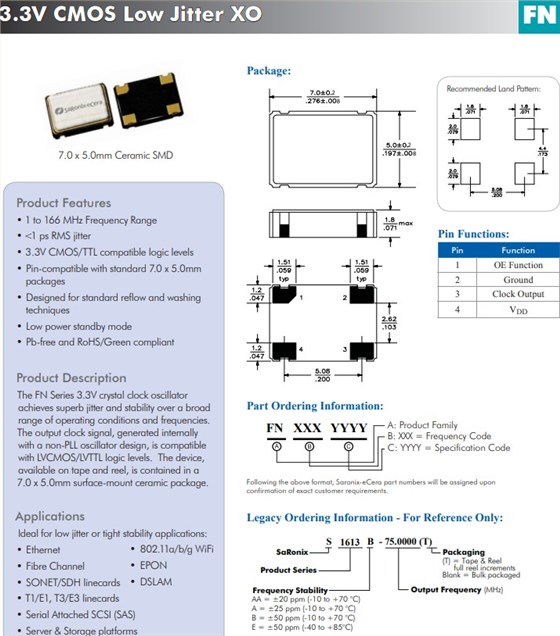

Diodes公司是一家成立時間不算久遠的制造商,經過多年的打拼與積累,擁有高端的測試儀器,以及先進的生產技術,向市場提供高性價比的進口壓控晶振.推出AP22913，這是一款2.0A單通道、壓擺率控制的負載開關，具有真正的反向電流阻斷 (TRCB)，適用于高端負載開關應用。FN1600045是一款7050mm陶瓷面的XO振蕩器,非常適合用于高緊密應用程序,ECERA貼片晶振

FN1000055	Diodes晶振	SaRonix-eCera™ FN	10MHz	±50ppm	-20°C ~ 70°C
FN1000057	Diodes晶振	SaRonix-eCera™ FN	10MHz	±50ppm	-40°C ~ 85°C
FN1000058	Diodes晶振	SaRonix-eCera™ FN	10MHz	±25ppm	-20°C ~ 70°C
FN1100025	Diodes晶振	SaRonix-eCera™ FN	11.059MHz	±50ppm	-40°C ~ 85°C
FN1100027	Diodes晶振	SaRonix-eCera™ FN	11.059MHz	±50ppm	-20°C ~ 70°C
FN1200037	Diodes晶振	SaRonix-eCera™ FN	12MHz	±50ppm	-20°C ~ 70°C
FN1200038	Diodes晶振	SaRonix-eCera™ FN	12MHz	±25ppm	-20°C ~ 70°C
FN1200041	Diodes晶振	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1220024	Diodes晶振	SaRonix-eCera™ FN	12.288MHz	±50ppm	-20°C ~ 70°C
FN1220026	Diodes晶振	SaRonix-eCera™ FN	12.288MHz	±25ppm	-20°C ~ 70°C
FN1280007	Diodes晶振	SaRonix-eCera™ FN	12.8MHz	±25ppm	-20°C ~ 70°C
FN1320001	Diodes晶振	SaRonix-eCera™ FN	13.288MHz	±25ppm	-20°C ~ 70°C
FN1430047	Diodes晶振	SaRonix-eCera™ FN	14.318MHz	±50ppm	-20°C ~ 70°C
FN1430048	Diodes晶振	SaRonix-eCera™ FN	14.3181MHz	±25ppm	-20°C ~ 70°C
FN1430049	Diodes晶振	SaRonix-eCera™ FN	14.3181MHz	±50ppm	-40°C ~ 85°C
FN1430050	Diodes晶振	SaRonix-eCera™ FN	14.318MHz	±50ppm	-20°C ~ 70°C
FN1470033	Diodes晶振	SaRonix-eCera™ FN	14.746MHz	±50ppm	-20°C ~ 70°C
FN1470034	Diodes晶振	SaRonix-eCera™ FN	14.746MHz	±25ppm	-20°C ~ 70°C
FN1470035	Diodes晶振	SaRonix-eCera™ FN	14.746MHz	±50ppm	-40°C ~ 85°C
FN1500008	Diodes晶振	SaRonix-eCera™ FN	15MHz	±50ppm	-40°C ~ 85°C
FN1600044	Diodes晶振	SaRonix-eCera™ FN	16MHz	±25ppm	-20°C ~ 70°C
FN1600045	Diodes晶振	SaRonix-eCera™ FN	16MHz	±50ppm	-40°C ~ 85°C

單通道高側負載開關提供了一種為負載供電或斷電的有效方式，尤其是通過USB端口供電的可移動外圍設備。與USB 端口和自供電 USB 外圍設備相關的大輸出電容器 (100µF) 可能會導致負載開關反向偏置，從而產生從負載流向電源的反向電流的可能性，從而可能導致損壞其他組件或有源電纜。AP22913A負載開關集成了 TRCB，它消除了正常的體二極管不需要的電流路徑，從而為負載開關提供了一種經濟高效且節省空間的有源晶振解決方案。

AP22913在寬工作電壓范圍內具有高達 2.0A 的負載電流，旨在提供1.5V 時 92mΩ 和 5.0V 時 54mΩ 的典型 RDS(ON)，從而在低正向電壓下實現最大負載電流處理能力降低。該器件的開啟壓擺率由內部控制，可為敏感負載提供軟啟動功能，同時該器件還具有高電平有效使能輸入以實現負載切換。為確保TRCB在禁用和關閉狀態下，VIN和 VOUT 端子在內部完全隔離。

FN1630021	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±50ppm	-20°C ~ 70°C
FN1630022	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±25ppm	-20°C ~ 70°C
FN1630023	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±50ppm	-40°C ~ 85°C
FN1630024	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±25ppm	-20°C ~ 70°C
FN1660005	Diodes晶振	SaRonix-eCera™ FN	16.6MHz	±50ppm	-20°C ~ 70°C
FN1690007	Diodes晶振	SaRonix-eCera™ FN	16.934MHz	±50ppm	-20°C ~ 70°C
FN1840018	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±50ppm	-20°C ~ 70°C
FN1840019	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±25ppm	-20°C ~ 70°C
FN1840020	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±50ppm	-40°C ~ 85°C
FN1840021	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±25ppm	-20°C ~ 70°C
FN1940015	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±50ppm	-20°C ~ 70°C
FN1940016	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±25ppm	-20°C ~ 70°C
FN1940018	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±50ppm	-40°C ~ 85°C
FN2000113	Diodes晶振	SaRonix-eCera™ FN	20MHz	±25ppm	-20°C ~ 70°C
FN2000118	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-40°C ~ 85°C
FN2000121	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-20°C ~ 70°C
FN2000123	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-20°C ~ 70°C
FN2210008	Diodes晶振	SaRonix-eCera™ FN	22.118MHz	±50ppm	-20°C ~ 70°C
FN2400045	Diodes晶振	SaRonix-eCera™ FN	24MHz	±50ppm	-40°C ~ 85°C
FN2400046	Diodes晶振	SaRonix-eCera™ FN	24MHz	±50ppm	-20°C ~ 70°C
FN2400047	Diodes晶振	SaRonix-eCera™ FN	24MHz	±25ppm	-20°C ~ 70°C
FN2450040	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±50ppm	-40°C ~ 85°C
FN2450041	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±25ppm	-20°C ~ 70°C

百利通亞陶晶振的AP22913負載開關設計為在1.4V 至5.5V范圍內工作，靜態電流僅為1µA，非常適合1.8V、2.5V、3.3V 和 5.0V 系統。AP22913的最大負載電流為2.0A，適用于廣泛的應用，例如智能手機、便攜式、可穿戴和醫療設備、導航設備以及筆記本電腦和超移動PC。

FN2450042	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±50ppm	-20°C ~ 70°C
FN2450046	Diodes晶振	SaRonix-eCera™ FN	24.575MHz	±50ppm	-40°C ~ 85°C
FN2500154	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500155	Diodes晶振	SaRonix-eCera™ FN	25MHz	±25ppm	-20°C ~ 70°C
FN2500157	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
FN2500161	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-40°C ~ 85°C
FN2500164	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±25ppm	-20°C ~ 70°C
FN2500165	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±25ppm	-20°C ~ 70°C
FN2500166	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±50ppm	-20°C ~ 70°C
FN2500169	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500170	Diodes晶振	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500179	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±50ppm	-20°C ~ 70°C
FN2500180	Diodes晶振	SaRonix-eCera™ FN	25.002MHz	±25ppm	-20°C ~ 70°C
FN2500183	Diodes晶振	SaRonix-eCera™ FN	25.001MHz	±25ppm	-20°C ~ 70°C
FN2500186	Diodes晶振	SaRonix-eCera™ FN	25.006MHz	±50ppm	-20°C ~ 70°C
FN2500187	Diodes晶振	SaRonix-eCera™ FN	25MHz	±25ppm	-20°C ~ 70°C
FN2550003	Diodes晶振	SaRonix-eCera™ FN	25.5MHz	±50ppm	-40°C ~ 85°C
FN2600023	Diodes晶振	SaRonix-eCera™ FN	26MHz	±50ppm	-20°C ~ 70°C
FN2600024	Diodes晶振	SaRonix-eCera™ FN	26MHz	±25ppm	-20°C ~ 70°C
FN2700068	Diodes晶振	SaRonix-eCera™ FN	27MHz	±25ppm	-20°C ~ 70°C
FN2700070	Diodes晶振	SaRonix-eCera™ FN	27MHz	±50ppm	-40°C ~ 85°C

AP22913 有兩種選擇：采用 X-WLB0909-4 封裝的 AP22913CN4-7 和采用 SOT26 封裝的 AP22913W6-7。FN1600045是一款7050mm陶瓷面的XO振蕩器,非常適合用于高緊密應用程序,ECERA貼片晶振
