超小型的CMOS振蕩器用于便攜式設備ECS-2520MVLC-250-BN-TR，The ECS Inc. MultiVolt™ series of oscillators are the most flexible oscillator products available in today market. MultiVolt™ Oscillators are available as standard oscillators (MV) ±20ppm, tight stability oscillators (SMV) ±5ppm or Temperature Compensated Crystal Oscillators (TXO-MV) ±2.5ppm for HCMOS and (TXO-CSMV) ±0.5ppm for clipped sine wave. We also offer them as AEC-Q200 automotive grade (MVQ).

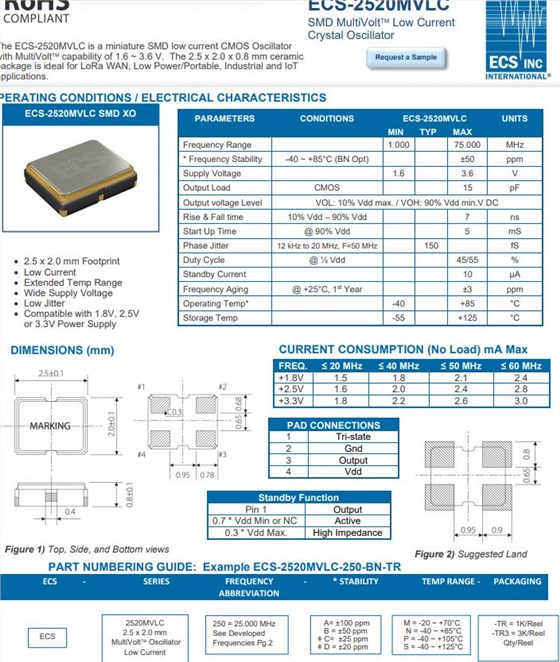

The ECS-2520MVLC is a miniature SMD low current CMOS Oscillator with MultiVolt? capability of 1.6 ~ 3.6 V. The 2.5 x 2.0 x 0.8 mm ceramic package is ideal for LoRa WAN, Low Power/Portable, Industrial and IoTapplications.

ECS公司很高興發布MultiVolt系列振蕩器是當今市場上最靈活的振蕩器產品。多伏™振蕩器可作為標準振蕩器(MV)±20ppm，緊密穩定振蕩器(SMV)±5ppm或溫補晶體振蕩器(TXO-MV)±2.5ppm的HCMOS和(TXO-CSMV)±0.5ppm的剪接正弦波。我們還提供AEC-Q200汽車級(MVQ)。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature 工作溫度	2520貼片晶振
ECS-3963-480-AU-TR	ECS晶振	ECS-3963	48MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-2033-040-AU	ECS晶振	ECS-2033	4MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-040-AU	ECS晶振	ECS-2033	4MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-040-AU	ECS晶振	ECS-2033	4MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-3961-240-AU-TR	ECS晶振	ECS-3961	24MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3961-240-AU-TR	ECS晶振	ECS-3961	24MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3961-240-AU-TR	ECS晶振	ECS-3961	24MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-2033-240-AU	ECS晶振	ECS-2033	24MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-240-AU	ECS晶振	ECS-2033	24MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-240-AU	ECS晶振	ECS-2033	24MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-3963-270-AU-TR	ECS晶振	ECS-3963	27MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3963-270-AU-TR	ECS晶振	ECS-3963	27MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3963-270-AU-TR	ECS晶振	ECS-3963	27MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-2033-143-AU	ECS晶振	ECS-2033	14.31818MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-143-AU	ECS晶振	ECS-2033	14.31818MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-143-AU	ECS晶振	ECS-2033	14.31818MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-320-AU	ECS晶振	ECS-2033	32MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-320-AU	ECS晶振	ECS-2033	32MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-320-AU	ECS晶振	ECS-2033	32MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)

超小型的CMOS振蕩器用于便攜式設備ECS-2520MVLC-250-BN-TR，ECS-2520MVLC是一種微型SMD低電流CMOS振蕩器，有源晶振MultiVolt?1.6 ~ 3.6 V的能力。編碼ECS-2520MVLC-250-BN-TR，2.5 x 2.0 x 0.8 mm的陶瓷軟件包是LoRa WAN，低功耗/便攜式，工業和物聯網的理想選擇應用程序。2.5 x 2.0 mm占地面積，低電流，擴展溫度范圍，寬電源電壓，低抖動，兼容1.8V, 2.5V或3.3V電源。

ECS致力于走在最前沿，擁有各種先進的技術，使我們能夠做到快速、高效地生產頻率控制ECS有源晶振產品。作為我們對大會的承諾的一部分技術領先，ECS,inc .擁有設計、部件、工藝、測試、制造和質量與客戶合作，優化生產能力和穩定性產品的設計。
