AXTAL新型高穩定性TCXO

AXTAL代表Advanced XTAL Products，其中“XTAL”是“crystal”的常見縮寫。20年來，AXTAL一直是領先的先進頻率控制設備制造商和頻率控制專家。AXTAL位于德國南部聯邦巴登-符騰堡州。

AXTAL晶振廠家公司成立于2003年，是物理學家和電子工程師Bernd Neubig在之前的Tele Quarz的衍生產品。AXTAL GmbH&Co.KG公司由Bernd和Brigitte Neubig完全私人所有，他們也是董事總經理。
自2023年以來，新的AXTAL GmbH是美國領先的高可靠性晶體振蕩器供應商Q-Tech Corporation的獨立子公司。新任總經理是前技術總監Henry Halang，他在公司成立后不久就加入了公司。
AXTAL晶振公司的核心業務包括先進的頻率控制產品（FCP），主要是石英晶振和SAW振蕩器以及頻率和定時模塊。主要產品專注于高可靠性石英晶體振蕩器和頻率控制模塊，對環境條件有很高的要求，具有超低噪聲性能，石英晶振非常高的穩定性和高達GHz的頻率生成，適用于測試設備、雷達、微波通信、軍事、航空航天和太空等應用。
AXTAL晶振公司的能力包括整個價值鏈：我們的產品從樣品到生產數量的研發、設計、制造、篩選和測試完全由內部完成。
AXTAL憑借完善的質量管理體系，確保其產品的高質量和可靠性。自2008年起，AXTAL通過了ISO9001認證，并將于2023年通過ISO AS 9100認證。我們的質量管理大大超過了ISO 9001的要求，這是由于廣泛的過程控制、所有質量關鍵部件的100%進貨檢查、石英諧振器的擴展測試等等。

AXTAL新型高穩定性TCXO

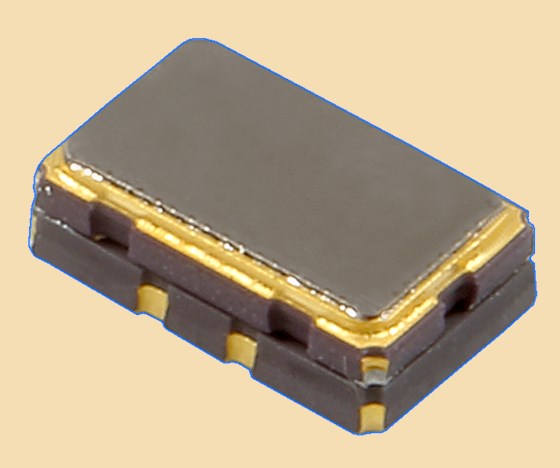

我們新AXLE5032系列 TCXO，具有超高頻穩定性，如±0.05 ppm/-20°C至+70°C或±0.1ppm/-40°C至+85°C，小體積晶振尺寸：5x3.2毫米陶瓷SMD封裝，頻率范圍：10MHz至51MHz，四腳貼片晶振，石英晶振，有源晶振，TCXO晶振，溫補晶體振蕩器，具有超小型，輕薄型，高精度，高性能，低抖動，低功耗，低電壓，低相位噪聲，低電平等特點。被廣泛應用于：移動通訊，無線網絡，藍牙模塊，物聯網，GPS定位，車載導航，汽車電子，醫療設備，安防設備，數碼電子等應用。

溫度補償晶體振蕩器

Product	Type	Frequency (MHz)	Output	Stability (±ppm)	Supply voltage (V)	Package	Package Size (LxW in mm)	Feature
AXLE113A	TCXO	0,001MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	SMD	11.4x9.6	-
AXLE113A	TCXO	10MHz - 40MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	SMD	11.4x9.6	-
AXLE113HF	TCXO	60MHz - 150MHz	HCMOS	0,5 to 0,5	3.3 V and others	SMD	11.4x9.6	High Stability
AXLE113HF	TCXO	60MHz - 150MHz	Sine Wave	0,5 to 0,5	3.3 V and others	SMD	11.4x9.6	High Stability
AXLE114	TCXO	1,25MHz - 50MHz	HCMOS	0,5 to 5	5.0 V and others	SMD	11.4x9.6 - gull wing	-
AXLE114	TCXO	10MHz - 50MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	SMD	11.4x9.6 - gull wing	-
AXLE114	TCXO	10MHz - 50MHz	Sine Wave	0,5 to 5	5.0 V and others	SMD	11.4x9.6 - gull wing	-
AXLE130	TCXO	500MHz - 2500MHz	Sine Wave	0,5 to 3	5.0 V and others	SMD	20x20	Microwave
AXLE145	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	SMD	14x9 (CO 27) - 6-pad	-
AXLE145	TCXO	1MHz - 800MHz	PECL	0,5 to 5	5.0 V and others	SMD	14x9 (CO 27) - 6-pad	-
AXLE145	TCXO	1MHz - 800MHz	LVDS	0,5 to 5	5.0 V and others	SMD	14x9 (CO 27) - 6-pad	-
AXLE145	TCXO	10MHz - 50MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	SMD	14x9 (CO 27) - 6-pad	-
AXLE145	TCXO	10MHz - 50MHz	Sine Wave	0,5 to 5	5.0 V and others	SMD	14x9 (CO 27) - 6-pad	-
AXLE145HF	TCXO	60MHz - 150MHz	Sine Wave	0,5 to 0,5	3.3 V and others	SMD	14x9 (CO 27) - 6-pad	High Stability
AXLE145HF	TCXO	60MHz - 150MHz	HCMOS	0,5 to 0,5	3.3 V and others	SMD	14x9 (CO 27) - 6-pad	High Stability
AXLE175	TCXO	500MHz - 2500MHz	Sine Wave	0,5 to 3	5.0 V	SMD	25.4x25.4	Microwave
AXLE184B	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	SMD	18.3x11.7 - gull wing	-
AXLE184B	TCXO	1MHz - 800MHz	PECL	0,5 to 5	5.0 V and others	SMD	18.3x11.7 - gull wing	-
AXLE184B	TCXO	1MHz - 800MHz	LVDS	0,5 to 5	5.0 V and others	SMD	18.3x11.7 - gull wing	-
AXLE184B	TCXO	6MHz - 190MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	SMD	18.3x11.7 - gull wing	-
AXLE184B	TCXO	6MHz - 190MHz	Sine Wave	0,5 to 5	5.0 V and others	SMD	18.3x11.7 - gull wing	-
AXLE195	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	SMD	19.8x12.5 - CO 30 similar	-
AXLE195	TCXO	6MHz - 190MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	SMD	19.8x12.5 - CO 30 similar	-
AXLE195	TCXO	6MHz - 190MHz	Sine Wave	0,5 to 5	5.0 V and others	SMD	19.8x12.5 - CO 30 similar	-
AXLE195A	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	SMD	19.8x12.5 - CO 30 similar	-
AXLE195A	TCXO	6MHz - 190MHz	Sine Wave	0,5 to 5	5.0 V and others	SMD	19.8x12.5 - CO 30 similar	-
AXLE195A	TCXO	6MHz - 190MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	SMD	19.8x12.5 - CO 30 similar	-
AXLE195B	TCXO	6MHz - 190MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	SMD	18.5x11.9 - CO 30 similar	-
AXLE195B	TCXO	6MHz - 190MHz	Sine Wave	0,5 to 5	5.0 V and others	SMD	18.5x11.9 - CO 30 similar	-
AXLE195B	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	SMD	18.5x11.9 - CO 30 similar	-
AXLE5032	TCXO	9,6MHz - 40MHz	Clipped Sine Wave	0,05 to 2	3.3 V and others	SMD	5x3.2	High Stability
AXLE5032	TCXO	9,6MHz - 40MHz	HCMOS	0,05 to 2	3.3 V and others	SMD	5x3.2	High Stability
AXLE5032LN	TCXO	10MHz - 52MHz	Clipped Sine Wave	0,2 to 2	3.3 V and others	SMD	5x3.2	Low Noise
AXLE5032LN	TCXO	10MHz - 52MHz	HCMOS	0,2 to 2	3.3 V and others	SMD	5x3.2	Low Noise
AXLE5032S	TCXO	10MHz - 50MHz	Clipped Sine Wave	1 to 3	3.3 V	SMD	5x3.2	New Space
AXLE7050A	TCXO	10MHz - 52MHz	Clipped Sine Wave	0,05 to 2	3.3 V and others	SMD	7x5	High Stability
AXLE7050A	TCXO	10MHz - 52MHz	HCMOS	0,05 to 2	3.3 V and others	SMD	7x5	High Stability
AXLE7050B	TCXO	10MHz - 52MHz	Clipped Sine Wave	0,05 to 2	3.3 V and others	SMD	7x5	High Stability
AXLE7050B	TCXO	10MHz - 52MHz	HCMOS	0,05 to 2	3.3 V and others	SMD	7x5	High Stability
AXLE7050LG	TCXO	10MHz - 52MHz	HCMOS	0,05 to 2	5.0 V and others	SMD	7x5	Low G-Sensitivity
AXLE7050LG	TCXO	10MHz - 52MHz	Clipped Sine Wave	0,05 to 2	5.0 V and others	SMD	7x5	Low G-Sensitivity
AXLE7050S	TCXO	10MHz - 50MHz	Clipped Sine Wave	1 to 3	3.3 V	SMD	7x5	New Space

THD Package (Through Hole)

Product	Type	Frequency (MHz)	Output	Stability (±ppm)	Supply voltage (V)	Package	Package Size (LxW in mm)	Feature
AXLE135	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	THD (Through-Hole)	12.7x12.7 (CO 21) - DIL8	-
AXLE135	TCXO	1MHz - 800MHz	PECL	0,5 to 5	5.0 V and others	THD (Through-Hole)	12.7x12.7 (CO 21) - DIL8	-
AXLE135	TCXO	1MHz - 800MHz	LVDS	0,5 to 5	5.0 V and others	THD (Through-Hole)	12.7x12.7 (CO 21) - DIL8	-
AXLE135	TCXO	10MHz - 50MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	12.7x12.7 (CO 21) - DIL8	-
AXLE135	TCXO	10MHz - 50MHz	Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	12.7x12.7 (CO 21) - DIL8	-
AXLE184	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	THD (Through-Hole)	18.3x11.7 - DIL14 compatible	-
AXLE184	TCXO	1MHz - 800MHz	PECL	0,5 to 5	5.0 V and others	THD (Through-Hole)	18.3x11.7 - DIL14 compatible	-
AXLE184	TCXO	1MHz - 800MHz	LVDS	0,5 to 5	5.0 V and others	THD (Through-Hole)	18.3x11.7 - DIL14 compatible	-
AXLE184	TCXO	6MHz - 190MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	18.3x11.7 - DIL14 compatible	-
AXLE184	TCXO	6MHz - 190MHz	Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	18.3x11.7 - DIL14 compatible	-
AXLE207M	TCXO	1MHz - 800MHz	PECL	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x13 (CO 02) - DIL14 4/5-pin	-
AXLE207M	TCXO	1MHz - 800MHz	LVDS	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x13 (CO 02) - DIL14 4/5-pin	-
AXLE207M	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x13 (CO 02) - DIL14 4-pin	-
AXLE207M	TCXO	6MHz - 190MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x13 (CO 02) - DIL14 4-pin	-
AXLE207M	TCXO	6MHz - 190MHz	Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x13 (CO 02) - DIL14 4-pin	-
AXLE208	TCXO	1MHz - 800MHz	HCMOS	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x20 (CO 15)	-
AXLE208	TCXO	6MHz - 190MHz	Clipped Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x20 (CO 15)	-
AXLE208	TCXO	6MHz - 190MHz	Sine Wave	0,5 to 5	5.0 V and others	THD (Through-Hole)	20x20 (CO 15)	-

High Stability

Product	Type	Frequency (MHz)	Output	Stability (±ppm)	Supply voltage (V)	Package	Package Size (LxW in mm)	Feature
AXLE113HF	TCXO	60MHz - 150MHz	HCMOS	0,5 to 0,5	3.3 V and others	SMD	11.4x9.6	High Stability
AXLE113HF	TCXO	60MHz - 150MHz	Sine Wave	0,5 to 0,5	3.3 V and others	SMD	11.4x9.6	High Stability
AXLE145HF	TCXO	60MHz - 150MHz	Sine Wave	0,5 to 0,5	3.3 V and others	SMD	14x9 (CO 27) - 6-pad	High Stability
AXLE145HF	TCXO	60MHz - 150MHz	HCMOS	0,5 to 0,5	3.3 V and others	SMD	14x9 (CO 27) - 6-pad	High Stability
AXLE5032	TCXO	9,6MHz - 40MHz	Clipped Sine Wave	0,05 to 2	3.3 V and others	SMD	5x3.2	High Stability
AXLE5032	TCXO	9,6MHz - 40MHz	HCMOS	0,05 to 2	3.3 V and others	SMD	5x3.2	High Stability
AXLE7050A	TCXO	10MHz - 52MHz	Clipped Sine Wave	0,05 to 2	3.3 V and others	SMD	7x5	High Stability
AXLE7050A	TCXO	10MHz - 52MHz	HCMOS	0,05 to 2	3.3 V and others	SMD	7x5	High Stability
AXLE7050B	TCXO	10MHz - 52MHz	Clipped Sine Wave	0,05 to 2	3.3 V and others	SMD	7x5	High Stability
AXLE7050B	TCXO	10MHz - 52MHz	HCMOS	0,05 to 2	3.3 V and others	SMD	7x5	High Stability

Microwave

Product	Type	Frequency (MHz)	Output	Stability (±ppm)	Supply voltage (V)	Package	Package Size (LxW in mm)	Feature
AXLE130	TCXO	500MHz - 2500MHz	Sine Wave	0,5 to 3	5.0 V and others	SMD	20x20	Microwave
AXLE175	TCXO	500MHz - 2500MHz	Sine Wave	0,5 to 3	5.0 V	SMD	25.4x25.4	Microwave
AXLE2000	TCXO	1000MHz - 7000MHz	Sine Wave	0,5 to 5	12 V	Connectorized	50x50 - SMA	Microwave
