頻率：12.000MHz
尺寸：3.2x2.5x0.6mm
FC3BQBBME12.0-T3,3225mm,FOX輕薄型晶振,12MHz，美國進口晶振，FOX晶振，福克斯晶振，型號：FC3BQ，(Former FQ3225B)，編碼為：FC3BQBBME12.0-T3，頻率為：12.000MHz，頻率穩定性：±50ppm，頻率容差：±50ppm，負載電容：20pF，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：3.2x2.5x0.6mm封裝，四腳貼片晶振，石英晶振，無源晶振，3225晶振，SMD晶振，石英晶體諧振器，無鉛環保晶振。具有超小型，輕薄型，高性能，高品質，高可靠性等特點，被廣泛用于：通訊設備，平板電腦，智能手機，無線網絡，藍牙模塊，安防設備，數碼電子等應用。

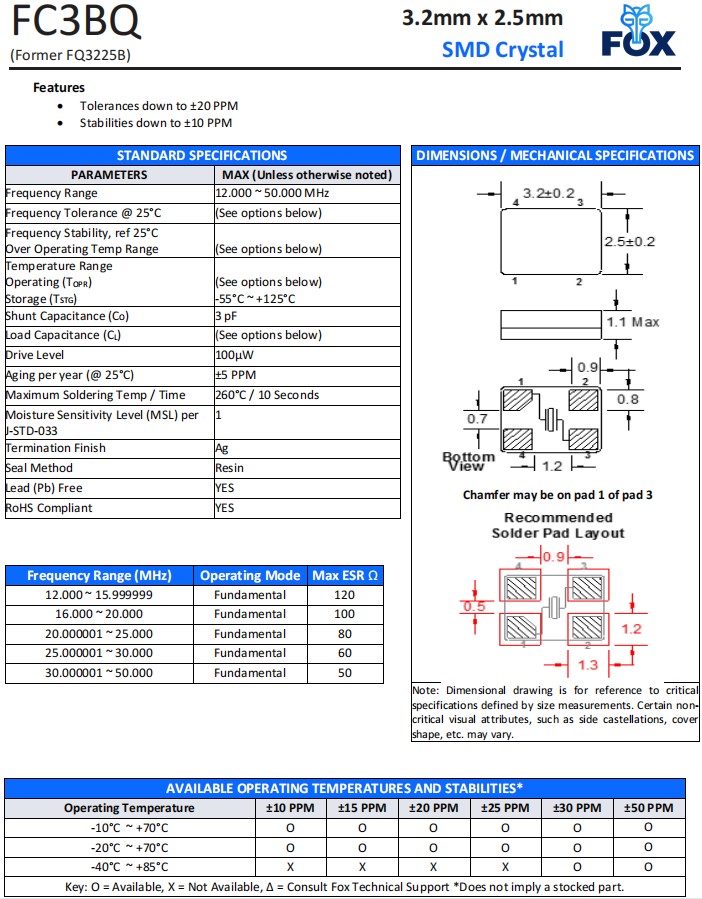

FC3BQBBME12.0-T3,3225mm,FOX輕薄型晶振,12MHz,參數表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
12 MHz
Frequency Tolerance @ 25°C
(See options below)
Frequency Stability, ref 25°C
Over Operating Temp Range
(See options below)
Temperature Range
Operating (TOPR)
Storage (TSTG)
(See options below)
-55°C ~ +125°C
Shunt Capacitance (CO)
3 pF
Load Capacitance (CL)
(See options below)
Drive Level
100µW
Aging per year (@ 25°C)
±5 PPM
Maximum Soldering Temp / Time
260°C / 10 Seconds
Moisture Sensitivity Level (MSL) per
J-STD-033
1
Termination Finish
Ag
Seal Method
Resin
Lead (Pb) Free
YES
RoHS Compliant
YES

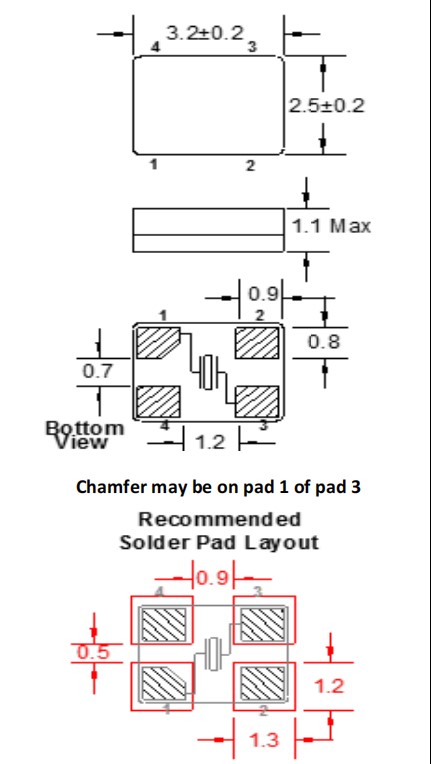

FC3BQBBME12.0-T3,3225mm,FOX輕薄型晶振,12MHz,尺寸圖
| 產品編碼 | 品牌 | SMD晶振 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| FC3BQBBDM20.0-T3 | Fox晶振 | FC3BQ | 20 MHz | ±50ppm | ±50ppm | 8 pF |
| FC3BQBBME12.0-T3 | Fox晶振 | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME16.0-T1 | Fox晶振 | FC3BQ | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME24.0-T1 | Fox晶振 | FC3BQ | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME25.0-T1 | Fox晶振 | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME25.0-T3 | Fox晶振 | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBME27.0-T1 | Fox晶振 | FC3BQ | 27 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM12.0-T1 | Fox晶振 | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM12.0-T3 | Fox晶振 | FC3BQ | 12 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T1 | Fox晶振 | FC3BQ | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM24.0-T3 | Fox晶振 | FC3BQ | 24 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM25.0-T1 | Fox晶振 | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBMM25.0-T3 | Fox晶振 | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BQBBVM25.0-T3 | Fox晶振 | FC3BQ | 25 MHz | ±50ppm | ±50ppm | 7 pF |
| FC3BSBBEM26.0-T3 | Fox晶振 | FC3BS | 26 MHz | ±50ppm | ±50ppm | 10 pF |
| FC3BSBBLM25.0-T3 | Fox晶振 | FC3BS | 25 MHz | ±50ppm | ±50ppm | 18 pF |
| FC3BSBBMM25.0-T3 | Fox晶振 | FC3BS | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BSHFEM12.0-T3 | Fox晶振 | FC3BS | 12 MHz | ±15ppm | ±10ppm | 10 pF |
| FC3BSHHEF26.0-T3 | Fox晶振 | FC3BS | 26 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHHEF32.0-T3 | Fox晶振 | FC3BS | 32 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHLGA27.0-1-T3 | Fox晶振 | FC3BS | 27 MHz | ±5ppm | ±10ppm | 12 pF |
| FC3VAEEGM50.0-T3 | Fox晶振 | FC3VA | 50 MHz | ±20ppm | ±20ppm | 12 pF |
