頻率：166.015625MHz
尺寸：3.2x2.5mm
SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振，日本EPSON愛普生晶振SG3225EEN，編碼為：X1G005221002400，頻率為：166.015625MHz，小體積尺寸3.2x2.5mm，是一款小體積六腳貼片晶振，LV-PECL輸出差分晶振，SPXO石英晶體振蕩器，有源晶振，石英晶振。具有超小型，輕薄型，低功耗，低抖動，低損耗，低相位噪聲，低電源電壓，滿足產品低消耗電流的特點。差分晶振常用的輸出方式分為LVDS，LV-PECL，HCSL三態輸出模式，愛普生SG3225EEN晶振則是LV-PECL輸出差分晶振，愛普生SG3225EEN差分晶體振蕩器，高品質，滿足不同產品需求可提供頻率穩定偏差+-20PPM，+-50PPM，+-100PPM，多種選擇.低消耗電流，工作溫度可達到-40~+85以及-40~+105℃，具有低相位抖動，在電源電壓最低時，震蕩啟動時間所需時間僅0秒。
SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振,參數表
Item
Symbol
SG3225EEN
Conditions / Remarks
Output frequency range
f0
166.015625MHz
Please contact us for inquiries regarding available frequencies.
Supply voltage
Vcc
D : 2.5 V ±0.125 V , C : 3.3 V ±0.165 V
Storage temperature
T_stg
-55℃ to +125℃
Store as bare product.
Operating temperature
T_use
G : -40℃ to +85℃ , H : -40℃ to +105℃
Frequency tolerance
f_tol
D : ±25 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 5 years aging(+25℃)
(Not available H : -40℃ to +105℃)
J : ±50 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25℃)
L : ±100 × 10-6 Max.
Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25℃)
Current consumption
Icc
75 mA Max.
OE= Vcc, with output load
Disable current
I_dis
25 mA Max.
OE=GND
Symmetry
SYM
45 % to 55 %
At outputs crossing point
Output voltage
VOH
Vcc-1.1 V Min.
DC characteristics
VOL
Vcc-1.5 V Max.
Output load condition
L_ECL
50 Ω
Terminated to Vcc-2.0V
Input voltage
VIH
70 % Vcc Min.
OE terminal
VIL
30 % Vcc Max.
Rise/Fall times
Tr / Tf
300 ps Max. (Vcc : 3.3V) 350 ps Max. (Vcc : 2.5V)
20% ~ 80% (VOH – VOL)
Oscillation start up time
t_str
10 ms Max.
Time at minimum supply voltage to be 0 s

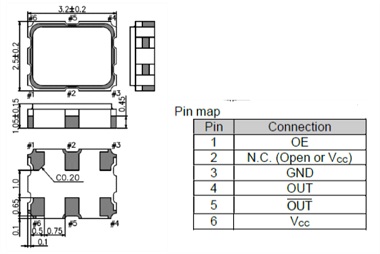

SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振,尺寸圖
SPXO晶體振蕩器SG3225EEN,X1G005221002400,LV-PECL輸出6G通訊晶振
差分晶振是普通貼片晶振所不能夠達到的，差分晶振具有低電平，低抖動，低功耗等特性.差分晶振作為目前行業中高要求，高技術石英晶體振蕩器，具有相位低，損耗低的特點，愛普生差分晶振使用于產品中能夠很容易地識別小信號，能夠從容精確地處理雙級信號，對外部電磁干擾(EMI)是高度免疫的，差分石英晶振滿足市場需求，實現高頻高精度等要求，更加保障了各種系統參考時鐘的可靠性。
| 貼片晶振 |
 型號
|
 頻率
|
 尺寸
|
 輸出波
|
 電源電壓
|
 工作溫度
|
| X1G005221000100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000300 | SG3225EEN | 125.003125MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000400 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000700 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001300 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001400 | SG3225EEN | 200.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001800 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001900 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002100 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221002300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002400 | SG3225EEN | 166.015625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003000 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003100 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003200 | SG3225EEN | 160.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003300 | SG3225EEN | 200.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003400 | SG3225EEN | 125.000000MHz | 3225石英晶振 | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003600 | SG3225EEN | 54.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003700 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003800 | SG3225EEN | 25.000625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003900 | SG3225EEN | 170.016000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004200 | SG3225EEN | 163.387607MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221004400 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005400 | SG3225EEN | 146.370000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005500 | SG3225EEN | 150.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005600 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221100100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100300 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 105°C |
| X1G005221100700 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100800 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221101000 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
