當前位置：首頁 » 日產進口晶振 » 愛普生晶振 » EPSON低抖動LV-PECL晶振SG7050EAN,X1G0042910017,6G通訊設備晶振

prevnext

EPSON低抖動LV-PECL晶振SG7050EAN,X1G0042910017,6G通訊設備晶振

頻率：161.132800MHz

尺寸：7.0x5.0x1.6,mm

EPSON低抖動LV-PECL晶振SG7050EAN,X1G0042910017,6G通訊設備晶振，日本進口晶振，EPSON愛普生晶振，型號SG7050EAN，編碼為：X1G0042910017，頻率為：161.132800 MHz，小體積晶振尺寸：7.0x5.0x1.6mm，LV-PECL輸出差分晶體振蕩器，SPXO石英晶體振蕩器，六腳貼片晶振，石英晶振，有源貼片晶振，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，作為目前行業中高要求、高技術石英晶體振蕩器，差分晶振具有低電平，低抖動，低功耗，低電源電壓，低相位噪聲，低耗能等特性，因此也被稱之為"低抖動振蕩器，低抖動石英晶振，低相位振蕩器，低損耗振蕩器”。SG7050EAN 貼片晶振被廣泛用于網絡設備晶振，無線網絡，藍牙模塊，6G路由器，機頂盒，光端機，安防設備及各種頻率控制設備上。

訂購熱線：0755-27876201

EPSON低抖動LV-PECL晶振SG7050EAN,X1G0042910017,6G通訊設備晶振,參數表

Item	Symbol	Specifications		Condition/Remarks
		LV-PECL	LVDS
		SG3225EAN	SG3225VAN
		SG5032EAN	SG5032VAN
		SG7050EAN	SG7050VAN
Output frequency range	f0	73.5 MHz to 700 MHz		Please contact us about available frequencies.
Supply voltage	VCC	K : 2.5 V to 3.3 V		VCC = ±10 %
Storage temperature	T_stg	-40 °C to +125 °C		Store as bare product.
Operating temperature	T_use	B : -20 °C to +70 °C
		G : -40 °C to +85 °C
Frequency tolerance	f_tol	C : ±20 × 10-6
		E : ±30 × 10-6
		J : ±50 × 10-6
Current consumption	ICC	65 mA Max.	30 mA Max.	OE = VCC
				L_ECL = 50 Ω or L_LVDS = 100 Ω
				f0 = 700 MHz
Disable current	I_dis	20 mA Max.		OE = GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC - 1.0 V to VCC - 0.8 V	-	DC characteristics
(LV-PECL)	VOL	VCC - 1.78 V to VCC -1.62 V	-
Output voltage	VOD	-	250 mV to 450 mV	VOD1 , VOD2	DC characteristics
(LVDS)	dVOD	-	50 mV Max.	dVOD = \| VOD1 - VOD2 \|
	VOS	-	1.15 V to 1.35 V	VOS1 , VOS2
	dVOS	-	150 mV Max.	dVOS = \| VOS1 - VOS2 \|
Output load condition	L_ECL	50 Ω	-	Terminated to VCC - 2.0 V
(ECL)/(LVDS)	L_LVDS	-	100 Ω	Connected between OUT to OUT
Input voltage	VIH	70 % VCC Min.		OE terminal
	VIL	30 % VCC Max.
Rise time / Fall time	tr/tf	350 ps Max.	-	Between 20 % and 80 % of ( VOH - VOL )
		-	300 ps Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time	t_str	3ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.6 ps Max. *1		Offset frequency : 12 kHz to 20 MHz
Frequency aging	f_aging	±5 × 10-6 / year Max.		+25 °C , VCC = 2.5 V or 3.3 V
				First year.

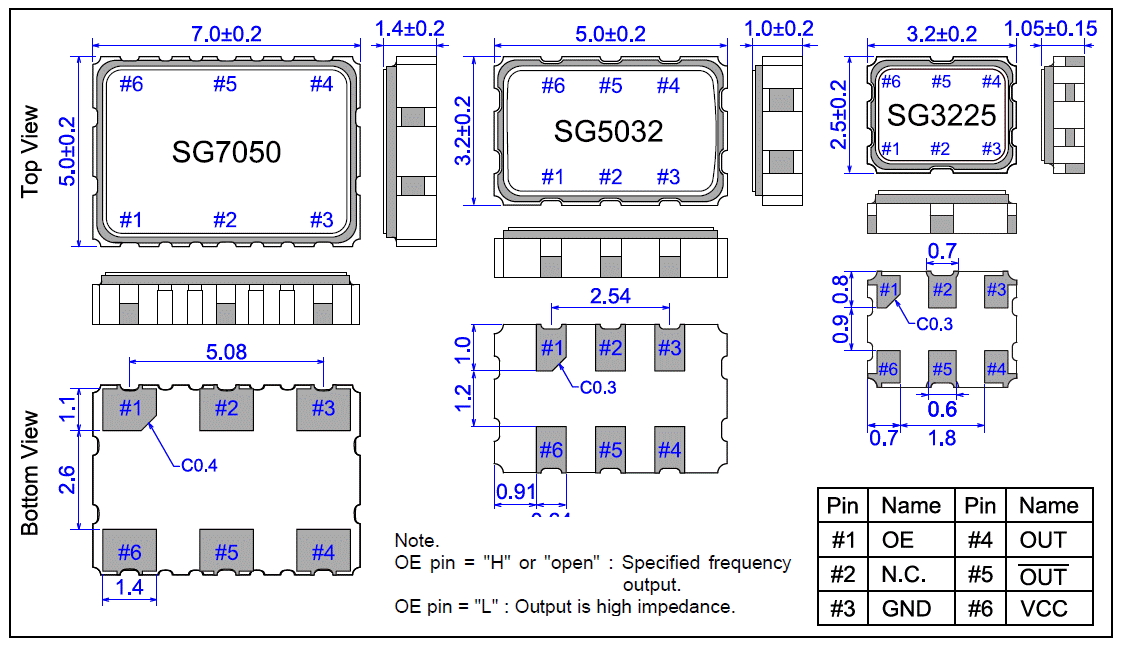

EPSON低抖動LV-PECL晶振SG7050EAN,X1G0042910017,6G通訊設備晶振,尺寸圖

EPSON低抖動LV-PECL晶振SG7050EAN,X1G0042910017,6G通訊設備晶振

差分晶振有不同的輸出信號，LV-PECL，LVDS，HCSL，是差分晶振通用的輸出信號，一般為六腳晶振，能夠很容易地識別小信號，能夠從容精確地處理'雙極'信號，對外部電磁干擾（EMI）是高度免疫的.實現高頻高精度等要求，更加保障了各種系統參考時鐘的可靠性，具有高性能，低功耗，低噪聲，低抖動，低損耗等特點.被廣泛用于通訊設備，機頂盒，光端機，安防設備及各種頻率控制設備上.

貼片石英晶振	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042910001	SG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910002	SG7050EAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910003	SG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910004	SG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910005	SG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910006	SG7050EAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910008	SG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910009	SG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910010	SG7050EAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910011	SG7050EAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910012	SG7050EAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910013	SG7050EAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910014	SG7050EAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910015	SG7050EAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910016	SG7050EAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910017	SG7050EAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910019	SG7050EAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910020	SG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910021	SG7050EAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910022	SG7050EAN	133.330000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910023	SG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910024	SG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910025	SG7050EAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910026	SG7050EAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910027	SG7050EAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910028	SG7050EAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910029	SG7050EAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910030	SG7050EAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910031	SG7050EAN	150.000000 MHz	有源晶振	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910032	SG7050EAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910033	SG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910034	SG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910035	SG7050EAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910036	SG7050EAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910038	SG7050EAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910039	SG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910040	SG7050EAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910042	SG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910043	SG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910044	SG7050EAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910045	SG7050EAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910046	SG7050EAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910047	SG7050EAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910048	SG7050EAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910049	SG7050EAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910050	SG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910052	SG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910053	SG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910054	SG7050EAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910055	SG7050EAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910058	SG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910059	SG7050EAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910061	SG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910062	SG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910063	SG7050EAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910064	SG7050EAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910065	SG7050EAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910066	SG7050EAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910067	SG7050EAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910068	SG7050EAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910069	SG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910071	SG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910072	SG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910073	SG7050EAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910074	SG7050EAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910079	SG7050EAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910080	SG7050EAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910083	SG7050EAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
