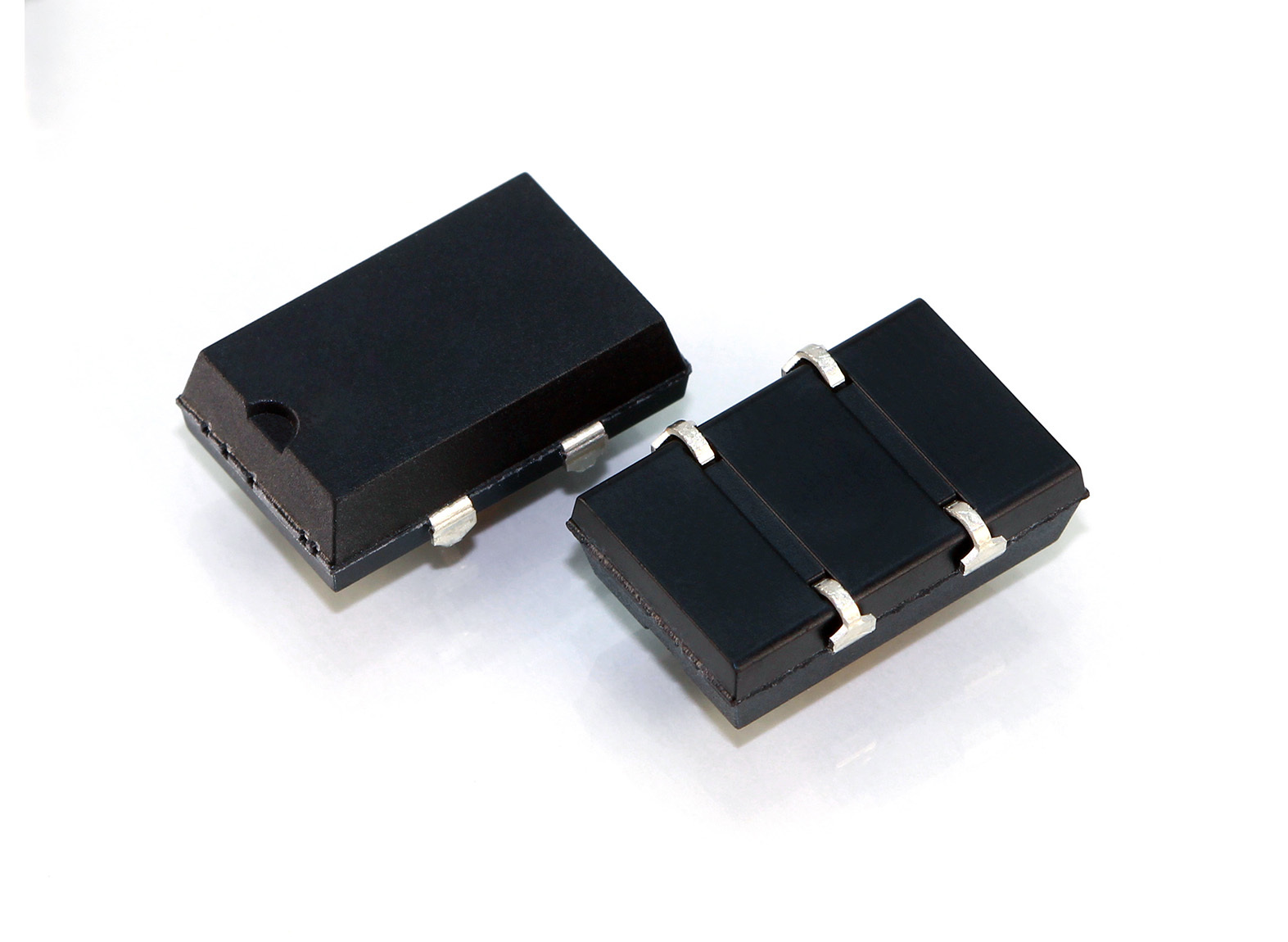

EH14貼片晶振,ecliptek晶振,6G石英晶體振蕩器,EH1400SJETTS-25.000M，ecliptek晶振AMPM系列，編碼為EH1400SJETTS-25.000M，緊湊的占地面積大體積尺寸14 x 9.8 x 4.7mm四腳貼片晶振，寬工作溫度范圍：-40℃至+85℃，頻率為25.0000MHz，石英晶振，貼片晶振，石英晶體振蕩器，有源晶振，長方形鐘振，耐熱及耐環境特點，應用:通信系統管理系統,可穿戴設備，物聯網（物聯網），工業物聯網，音頻和視頻，無人機和機器人等。

訂購熱線：0755-27876201

EH14貼片晶振,ecliptek晶振,6G石英晶體振蕩器,EH1400SJETTS-25.000M，ecliptek晶振AMPM系列，編碼為EH1400SJETTS-25.000M，緊湊的占地面積大體積尺寸14 x 9.8 x 4.7mm四腳貼片晶振，寬工作溫度范圍：-40℃至+85℃，頻率為25.0000MHz，石英晶振，貼片晶振，石英晶體振蕩器，有源晶振，長方形鐘振，耐熱及耐環境特點，應用:通信系統管理系統,可穿戴設備，物聯網（物聯網），工業物聯網，音頻和視頻，無人機和機器人等。

EH14貼片晶振,ecliptek晶振,6G石英晶體振蕩器,EH1400SJETTS-25.000M，參數表

Nominal Frequency	25.000MHz
Frequency Tolerance/Stability	Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±20ppm Maximum ±25ppm Maximum ±50ppm Maximum
Aging at 25°C	±5ppm/Year Maximum
Operating Temperature Range	0°C to +70°C -40°C to +85°C
Supply Voltage	5.0Vdc ±10%
Input Current	No Load 50mA Maximum
Output Voltage Logic High (VOh)	2.4Vdc Minimum with TTL Load, Vdd-0.4Vdc Minimum with HCMOS Load, IOH = -16mA
Output Voltage Logic Low (VOl)	0.4Vdc Maximum with TTL Load, 0.5Vdc Maximum with HCMOS Load, IOL = +16mA
Rise/Fall Time	Measured at 0.8Vdc to 2.0Vdc with TTL Load; Measured at 20% to 80% of waveform with HCMOS Load 6nSec Maximum over Nominal Frequency of 1MHz to 70MHz 4nSec Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz
Duty Cycle	50 ±10(%) (Measured at 1.4Vdc with TTL Load or at 50% of waveform with HCMOS Load over Nominal Frequency range of 1MHz to 70MHz; Measured at 50% of waveform over Nominal Frequency range of 70.000001MHz to 155.52MHz) 50 ±5(%) (Measured at 50% of waveform with TTL Load or with HCMOS Load)
Load Drive Capability	10TTL Load or 50pF HCMOS Load Maximum over Nominal Frequency of 1MHz to 70MHz 5TTL Load or 15pF HCMOS Load Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz
Output Logic Type	CMOS
Pin 1 Connection	Tri-State (Disabled Output: High Impedance)
Tri-State Input Voltage (Vih and Vil)	+2.2Vdc Minimum to enable output, +0.8Vdc Maximum to disable output (High Impedance), No Connect to enable output.
Absolute Clock Jitter	±250pSec Maximum, ±100pSec Typical
One Sigma Clock Period Jitter	±50pSec Maximum, ±30pSec Typical
Start Up Time	10mSec Maximum
Storage Temperature Range	-55°C to +125°C

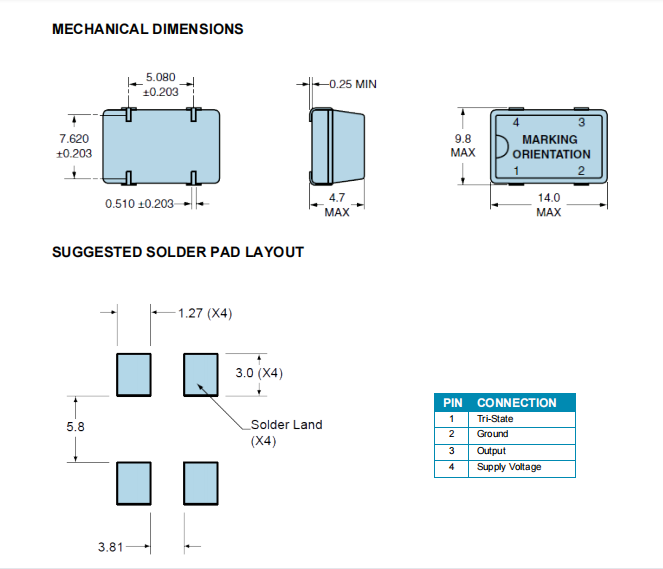

EH14貼片晶振,ecliptek晶振,6G石英晶體振蕩器,EH1400SJETTS-25.000M ，尺寸圖

EH14貼片晶振,ecliptek晶振,6G石英晶體振蕩器,EH1400SJETTS-25.000M

特點：

占地面積小至14 x9.8x4.7mm
石英晶振、貼片晶振
低功耗
1MHz至155.52MHz輸出頻率范圍
新頻率交付周期短
廣泛的-40°C至+85°C工作溫度范圍
低工作電流：1.3mA IDD（典型值）

應用于：應用:通信系統管理系統,可穿戴設備，物聯網（物聯網），工業物聯網，音頻和視頻，無人機和機器人等。
