愛普生SG-211SCE系列SPXO有源晶振X1G0036210007超級適合衛星和醫療產品

來源：*** 查看手機網址

掃一掃!

愛普生SG-211SCE系列SPXO有源晶振X1G0036210007超級適合衛星和醫療產品

掃一掃!

瀏覽：- 發布日期：2023-04-27 17:55:21【大中小】

分享到：

愛普生SG-211SCE系列SPXO有源晶振X1G0036210007超級適合衛星和醫療產品,愛普生公司憑著自身的實力成為日系品牌的領導者之一，并通過自身能力實現自我的價值，同時致力于為廣大用戶提供性能優越，具有成本效益的石英貼片晶振產品線，愛普生公司最為核心在于，創建專屬自身的獨特核心技術和設備，龐大生產實力為愛普生公司發展奠定了良好的基礎.

編碼	Model/型號	Frequency/頻率	LxWxH/尺寸	Output Wave/輸出方式	Supply Voltage/電源電壓	Ope Temperature/工作溫度
X1G0029210072	SG-210SCD	63.710000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029210079	SG-210SCD	72.578300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029210080	SG-210SCD	63.111600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029210082	SG-210SCD	62.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210083	SG-210SCD	59.800000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210085	SG-210SCD	63.360000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210086	SG-210SCD	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210087	SG-210SCD	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210088	SG-210SCD	77.700000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210094	SG-210SCD	63.071918 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029310001	SG-210SDD	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310008	SG-210SDD	62.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-40 to 85 °C
X1G0029310009	SG-210SDD	62.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310010	SG-210SDD	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310011	SG-210SDD	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310013	SG-210SDD	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-40 to 85 °C
X1G0029410001	SG-210SED	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410002	SG-210SED	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410006	SG-210SED	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410008	SG-210SED	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410011	SG-210SED	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410013	SG-210SED	66.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410014	SG-210SED	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410016	SG-210SED	60.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410018	SG-210SED	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0036210006	SG-211SCE	12.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210007	SG-211SCE	54.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210009	SG-211SCE	25.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210010	SG-211SCE	8.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210011	SG-211SCE進口愛普生晶振	26.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210012	SG-211SCE	24.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210013	SG-211SCE	24.576000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210014	SG-211SCE	10.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210015	SG-211SCE	9.830400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210017	SG-211SCE	5.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210018	SG-211SCE	4.999950 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210019	SG-211SCE	20.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210022	SG-211SCE	40.960000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210023	SG-211SCE	20.480000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210024	SG-211SCE	27.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210025	SG-211SCE	7.200000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210026	SG-211SCE	40.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210028	SG-211SCE	40.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210029	SG-211SCE	20.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210030	SG-211SCE	24.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210031	SG-211SCE	48.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210032	SG-211SCE	16.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210034	SG-211SCE	24.545400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210036	SG-211SCE	40.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210039	SG-211SCE	19.200000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210041	SG-211SCE	16.384000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C

愛普生SG-211SCE系列SPXO有源晶振X1G0036210007超級適合衛星和醫療產品,隨著電子行業的變幻莫測，產品更新迭代已然成為常態化，對于愛普生公司當下最主要是持續不斷的自我成長以及更新更為優質的產品，以滿足用于對產品的需求，在生產或制造的藝術和科學,我們積累了幾十年的專業知識和經驗,專注于研發生產高質量的石英晶振,有源晶振,壓控振蕩器, 32.768K鐘表晶振,溫補晶振等產品，以此為廣大用戶提供完美的晶振解決方案.

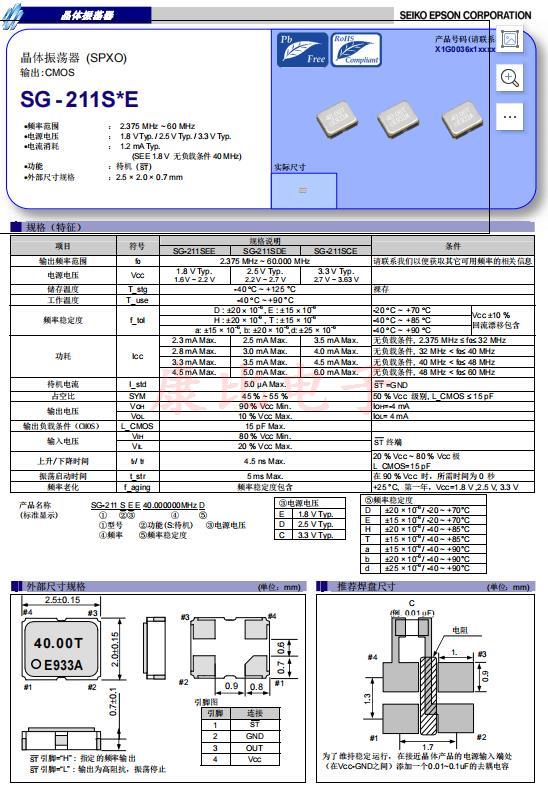

愛普生公司推出編碼X1G0036210007，型號SG-211SCE，SPXO有源晶振，石英晶體振蕩器，尺寸2520mm，頻率為54MHZ，輸出CMOS，工作溫度-40 to 85 °C，電壓2.7~3.6V，產品采用先進的生產技術結合優異的原料匠心打磨而成，具備高精度，低抖動，低相位的特點，非常適合太空設備，航空電子，醫療產品等領域.
