12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振

頻率：12.000MHz

尺寸：11.5x4.7x4.2mm

12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABLS系列，編碼為：ABLS-12.000MHZ-20-B4Y-T，頻率為：12.000MHz，頻率穩定性：±30ppm，頻率容差：±30ppm，負載電容：20pF，工作溫度范圍：-20℃至+70℃，是一款小體積晶振尺寸：11.5x4.7x4.2mm封裝，兩腳貼片晶振，石英晶振，石英晶體諧振器，SMD晶體，無源晶振，無鉛環保晶振。具有超小型，輕薄型，高品質，耐熱及耐環境等特點。應用于：計算機晶振、調制解調器、微處理器晶振，無線應用程序。

訂購熱線：0755-27876201

12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振，產品特點：

●適用于RoHS回流

●低輪廓石英晶體諧振器

●具有緊密的穩定性和擴展的溫度范圍

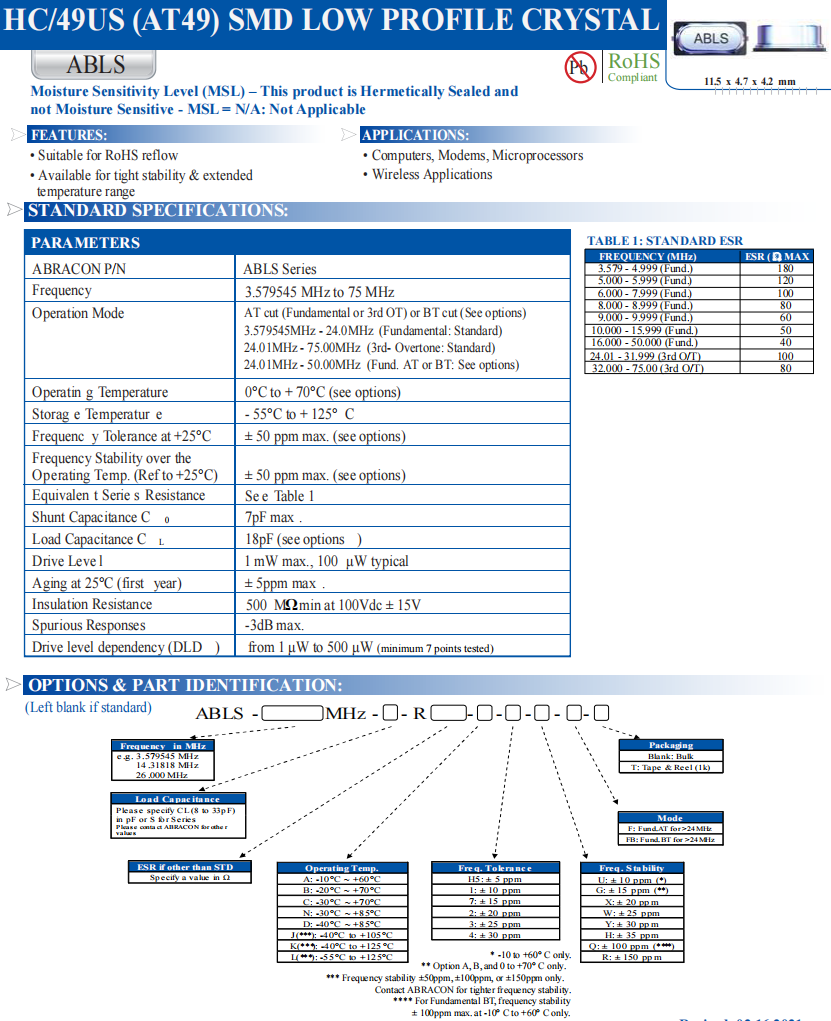

12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振,參數表

ABRACON P/N	ABLS Series
Frequency	12 MHz
Operation Mode	AT cut (Fundamental or 3rd OT) or BT cut (See options)
	3.579545MHz - 24.0MHz (Fundamental: Standard)
	24.01MHz - 75.00MHz (3rd- Overtone: Standard)
	24.01MHz - 50.00MHz (Fund. AT or BT: See options)
Operatin g Temperature	0°C to + 70°C (see options)
Storag e Temperatur e	- 55°C to + 125° C
Frequenc y Tolerance at +25°C	± 50 ppm max. (see options)
Frequency Stability over the	± 50 ppm max. (see options)
Operating Temp. (Ref to +25°C)	± 50 ppm max. (see options)
Equivalen t Serie s Resistance	See Table 1
Shunt Capacitance C 0	7pF max
Load Capacitance C L	18pF (see options )
Drive Leve l	1 mW max., 100 μW typical
Aging at 25°C (first year)	± 5ppm max .
Insulation Resistance	500 MΩ min at 100Vdc ± 15V
Spurious Responses	-3dB max
Drive level dependency (DLD )	from 1 μW to 500 μW (minimum 7 points tested)

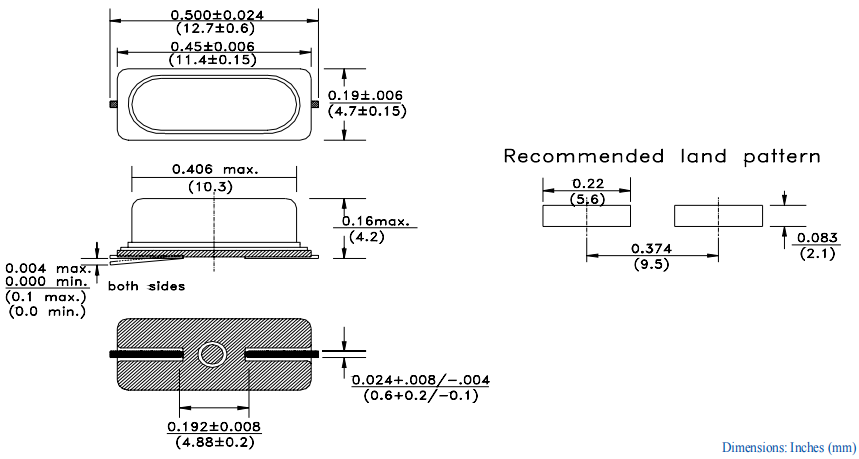

12MHz,ABLS-12.000MHZ-20-B4Y-T,ABLS,Abracon無線應用晶振,尺寸圖

產品編碼	晶振廠家	型號	頻率	長度	寬度	高度
ABLS-10.000MHZ-16-A-4-H-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-20-B-3-H-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-20-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-B2-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-B4-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-B4Y-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-D-3-Y-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-K4T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.000MHZ-L4Q-T	Abracon晶振	ABLS	10 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.240MHZ-B4-T	Abracon晶振	ABLS	10.24 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.72044MHZ-10-D4Y-T	Abracon晶振	ABLS	10.72044 MHz	11.4mm	4.7mm	4.2mm
ABLS-10.7477MHZ-10-D4Y-T	Abracon晶振	ABLS	10.7477 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.000MHZ-D-3-Y-T	Abracon晶振	ABLS	11 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.000MHZ-D-4-Y-T	Abracon晶振	ABLS	11 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-20-B-3-H-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-20-B-4-H-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-20-B-4-Y-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-20-L-4-Q-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-32-B-4-Y-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-B2-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-B4-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-D-4-H-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-K4T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-L4Q-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-11.0592MHZ-T	Abracon晶振	ABLS	11.0592 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-16-A-4-H-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-20-B-3-H-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-20-B4Y-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-20-D-3-H-T	貼片晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-20-D-4-H-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-30-4Y-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-30-A-4-H-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-32-B-4-Y-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-B-4-Y-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-B2-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-B4-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-B4H-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-D4Y-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-K4T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.000MHZ-L4Q-T	Abracon晶振	ABLS	12 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.11876MHZ-10-D4Y-T	Abracon晶振	ABLS	12.11876 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.1496MHZ-10-D4Y-T	Abracon晶振	ABLS	12.1496 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.1875MHZ-10-R20-D-T	Abracon晶振	ABLS	12.1875 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-20-B-3-H-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-20-B-4-Y-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-20-L-4-Q-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-B2-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-B4-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-D-3-Y-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-D-4-Y-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-K4T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.288MHZ-L4Q-T	Abracon晶振	ABLS	12.288 MHz	11.4mm	4.7mm	4.2mm
ABLS-12.98883MHZ-10-D4Y-T	Abracon晶振	ABLS	12.98883 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.000MHZ-B4-T	Abracon晶振	ABLS	13 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.000MHZ-K4T	Abracon晶振	ABLS	13 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.000MHZ-L4Q-T	Abracon晶振	ABLS	13 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.02187MHZ-10-D4Y-T	Abracon晶振	ABLS	13.02187 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.02519MHZ-10-K4Q-T	Abracon晶振	ABLS	13.02519 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.0625MHZ-10-K4Q-T	Abracon晶振	ABLS	13.0625 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.0625MHZ-10-R20-D-T	Abracon晶振	ABLS	13.0625 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.225625MHZ-A2Y-T	Abracon晶振	ABLS	13.225625 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.262250MHZ-10-J4Y-T	Abracon晶振	ABLS	13.26225 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.48352MHZ-10-D4Y-T	Abracon晶振	ABLS	13.48352 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.4916MHZ-10-R20-D-T	Abracon晶振	ABLS	13.4916 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.500MHZ-B4-T	Abracon晶振	ABLS	13.5 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.5178MHZ-10-D4Y-T	Abracon晶振	ABLS	13.5178 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.52127MHZ-10-D4Y-T	Abracon晶振	ABLS	13.52127 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.52127MHZ-10-J-4Q-T	Abracon晶振	ABLS	13.52127 MHz	11.4mm	4.7mm	4.2mm
ABLS-13.54856MHZ-10-J4Y-T	Abracon晶振	ABLS	13.54856 MHz	11.4mm	4.7mm	4.2mm
