當前位置：首頁 » 歐美進口晶振 » AEL晶振 » 英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T

prevnext

英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T

頻率：32.768KHZ

尺寸：3.2x1.5mm

英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T，尺寸3.2x1.5mm，頻率32.768KHZ，艾爾石英晶體，歐美無源晶振，SMD晶振，無源晶振，貼片石英晶振，無源貼片晶體，石英SMD晶振，石英晶振，水晶振動子，石英晶體諧振器，32.768K無源晶振，32.768KHZ音叉晶體，3215mm貼片晶振，兩腳貼片晶振，環保晶振，時鐘應用晶振，智能水電專用晶振，智能手環晶振，游戲設備晶振，無線藍牙晶振，小型設備晶振，高性能晶振，高質量晶振，低損耗晶振，低功耗晶振，具有良好的耐壓性能。

32.768K晶振產品比較適用于時鐘應用，智能水電，智能手環，游戲設備，無線藍牙，小型設備等應用。英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T

訂購熱線：0755-27876201

32.768K晶振產品比較適用于時鐘應用，智能水電，智能手環，游戲設備，無線藍牙，小型設備等應用。英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T.

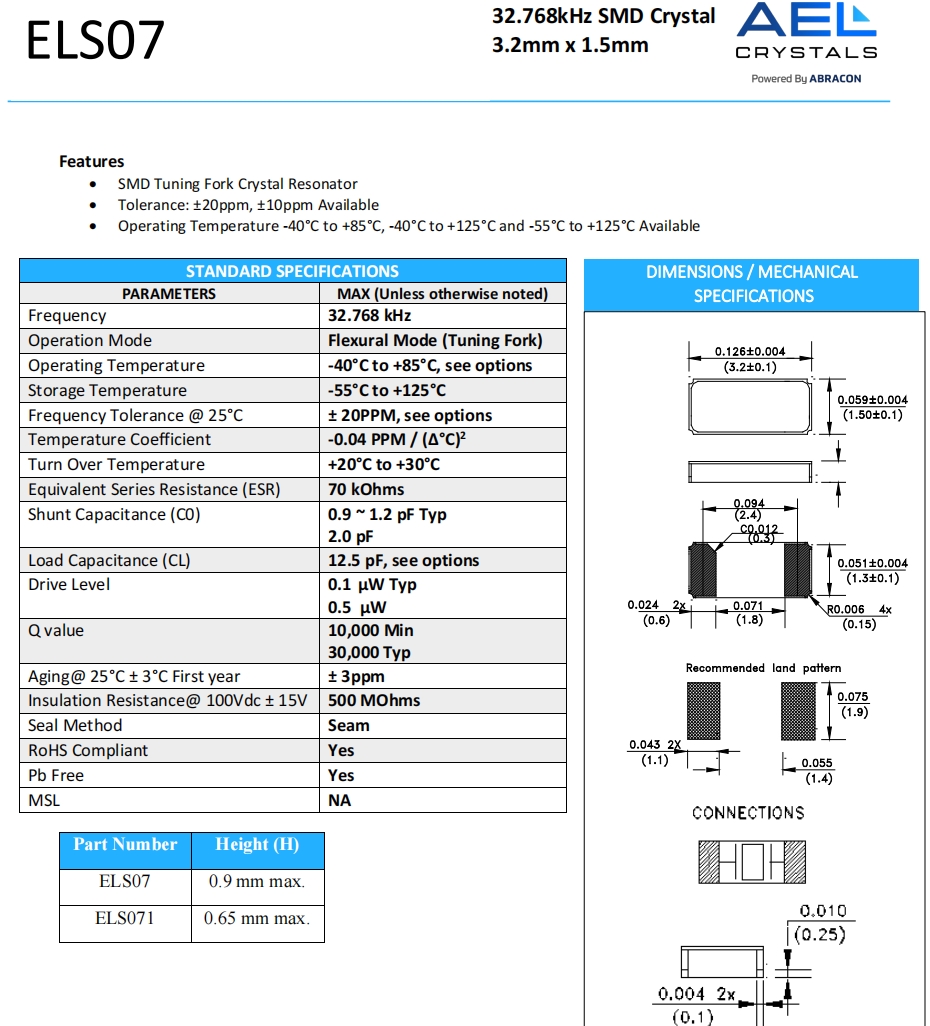

英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T 參數表

STANDARD SPECIFICATIONS
PARAMETERS						MAX (Unless otherwise noted)
Frequency						32.768 kHz
Operation Mode						Flexural Mode (Tuning Fork)
Operating Temperature						-40°C to +85°C, see options
Storage Temperature						-55°C to +125°C
Frequency Tolerance @ 25°C						± 20PPM, see options
Temperature Coefficient						-0.04 PPM / (?°C)2

Turn Over Temperature						+20°C to +30°C
Equivalent Series Resistance (ESR)						70 kOhms
Shunt Capacitance (C0)						0.9 ~ 1.2 pF Typ 2.0 pF
Load Capacitance (CL)						12.5 pF, see options
Drive Level						0.1 μW Typ 0.5 μW
Q value						10,000 Min 30,000 Typ
Aging@ 25°C ± 3°C First year						± 3ppm

Insulation Resistance@ 100Vdc ± 15V						500 MOhms
Seal Method						Seam
RoHS Compliant						Yes
Pb Free						Yes
MSL						NA

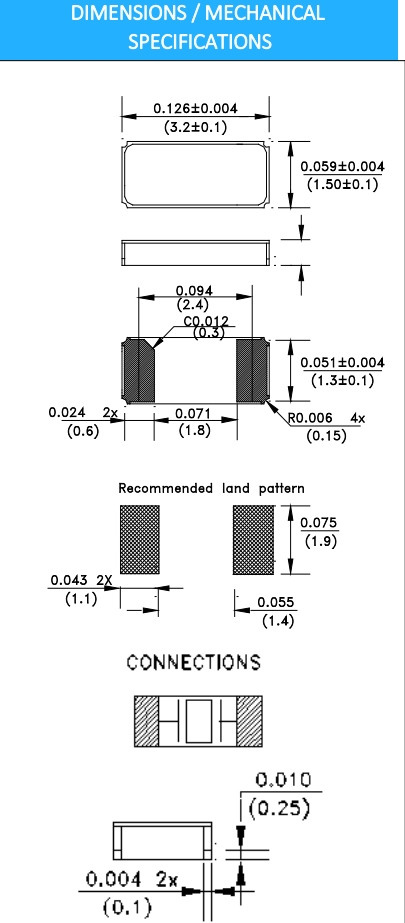

英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T 尺寸圖

英國AEL無源晶振,ELS07智能水電晶振,ELS07-32.768kHz-6-T

產品特性：

SMD音叉石英晶體諧振器

公差：±20ppm，±10ppm可用

工作溫度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

Part	Brand	Length	Width	Height	Operating Temperature	Frequency
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 75°C	32 MHz
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	32 MHz
ELS07-32.768kHz-6-T	AEL晶振	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
ELS07-32.768kHz-T	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-9-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-6-2-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS06-32.768kHz-9-T	AEL Crystals	2mm	1.2mm	0.6mm	-40°C ~ 85°C	32.768 kHz
ELS05-32.768kHz-9-T	AEL Crystals	1.6mm	1mm	0.5mm	-40°C ~ 85°C	32.768 kHz
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	1.6mm	1.2mm	0.4mm	-40°C ~ 85°C	24 MHz
X10M000000L121	AEL Crystals	11.3mm	4mm	16mm	-20°C ~ 70°C	10 MHz
X10M000000S065	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 105°C	10 MHz
X12M000000S081	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	12 MHz
X12M000000S096	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz
X12M000000S118	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	12 MHz
X12M582900S001	AEL Crystals	3mm	2.5mm	0.6mm	-10°C ~ 60°C	12.5829 MHz
X13M560000S024	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	13.56 MHz
X14M000000S003	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	14 MHz
X14M800000S001	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	14.8 MHz
X16M000000S182	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	16 MHz
X16M000000S207	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	16 MHz
X18M432000S049	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz
X21M948717S005	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 125°C	21.948717 MHz
X24M000000S029	AEL Crystals	2.5mm	2mm	0.5mm	-30°C ~ 85°C	24 MHz
X24M000000S049	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	24 MHz
X24M000000S050	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz
X24M000000S079	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	24 MHz
X24M000000S094	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz
X24M000000S303	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz
X26M000000S301	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz
X30M000000S005	AEL Crystals	12.3mm	4.6mm	4.3mm	-20°C ~ 70°C	30 MHz
X32K768L025	AEL Crystals	2.1mm	6.2mm	13.2mm	-10°C ~ 60°C	32.768 kHz
X32K768L104	AEL Crystals	2.9mm	8mm	17mm	-10°C ~ 60°C	32.768 kHz
X32K768S003	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S012	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
X32K768S013	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S020	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S021	AEL Crystals	4.1mm	1.5mm	0.7mm	-40°C ~ 85°C	32.768 kHz
X32K768S036	AEL Crystals	10.41mm	4.06mm	3.56mm	-40°C ~ 85°C	32.768 kHz
X32K768S038	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S041	AEL Crystals	4mm	1.5mm	0.7mm	-40°C ~ 85°C	32.768 kHz
X32K768S045	AEL Crystals	2mm	6mm	9mm	-40°C ~ 85°C	32.768 kHz
X32K768S051	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S067	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
X32K768S073	AEL Crystals	6mm	2.5mm	8.3mm	-40°C ~ 85°C	32.768 kHz
X32K768S112	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S115	AEL Crystals	8mm	4mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S134	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S233	AEL Crystals	10.4mm	4mm	3.5mm	-40°C ~ 85°C	32.768 kHz
X32K768S239	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S300	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768K
X32M000000S039	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	32 MHz
X32M000000S045	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 75°C	32 MHz
X32M000000S046	AEL Crystals	2mm	1.6mm	0.5mm	-40°C ~ 85°C	32 MHz
X3M686400S004	AEL Crystals	11.8mm	5.5mm	2.1mm	-10°C ~ 60°C	3.6864 MHz
X4M000000S002	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C	4 MHz
X4M000000S018	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	4 MHz
X4M000000S084	AEL Crystals	12.3mm	4.6mm	4.3mm	-25°C ~ 75°C	4 MHz
X8M000000L023	AEL Crystals	10.5mm	4.7mm	4mm	-25°C ~ 75°C	8 MHz
X8M000000S007	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C	8 MHz
X8M000000S045	AEL Crystals	12mm	8mm	4.8mm	-20°C ~ 65°C	8 MHz
X8M057000S001	AEL Crystals	5mm	3.2mm	1mm	-20°C ~ 70°C	8.057 MHz
